June 2000

The TinyRISC

EZ4103 EasyMACRO subsystem is a compact, high-

performance, 32-bit MIPS microprocessor subsystem implemented in the
LSI Logic G12TM-p technology. The EZ4103 CPU implements the MIPS
II instruction set and MIPS16 Application Specific Extensions. The
EZ4103 combines the TinyRISC CPU with the most commonly used
blocks (such as a bus controller, MMU, and EJTAG) to simplify system-
on-a-chip design and reduce time to market. A bus controller module
(FBusMACRO) and RAMs are also available from LSI Logic to help
speed your CoreWare

design.

The EZ4103 is especially suited for cost-sensitive, low-power embedded
applications. The TinyRISC CPU performs code compression and
accepts both 16-bit and 32-bit instructions.

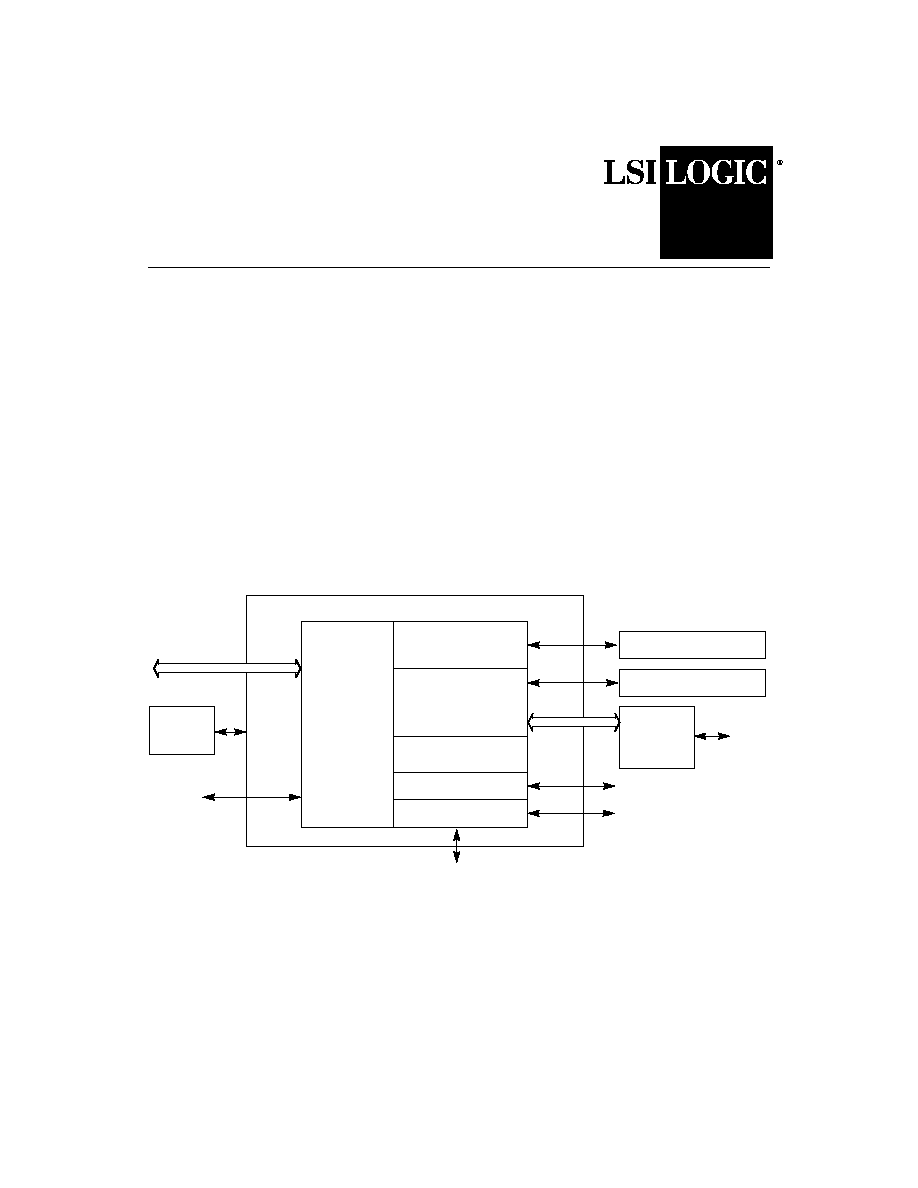

Figure 1

shows the EZ4103

and how it interfaces with system logic in a typical design.

Figure 1

EZ4103 in a Typical System

32-bit TinyRISC

EZ4103 EasyMACRO Subsystem

Two 32-bit Timers

UART

EJTAG

FlexLink

CBus

Caches and Tags

BBus

EJTAG Interface

SerialICE-1 Interface

MMU

Basic BIU and Cache

4103 CPU

and

FastMDU

Controller (BBCC)

TLB RAM

PC Trace Output

FBus

Clock

Controller

FBusMACRO

Module

TinyRISC

EZ4103

EasyMACRO Microprocessor

Preliminary Datasheet

ez4103dsMay25.fm Page 1 Friday, May 26, 2000 1:49 PM

TinyRISC

EZ4103 EasyMACRO Microprocessor

Powered by 1.8 V, the EZ4103 has a 120 MHz (worst-case conditions)
clock speed with a performance of 120 MIPS peak and 96 MIPS
sustained. The EZ4103 uses G12-p technology and implements a full-
scan methodology to achieve very high fault coverage.

EZ4103 Overview and Features

Components

MIPS R3000 CPU, executing MIPS I,
MIPS II, and MIPS16 instructions

EJTAG Interface and Controller

Nonintrusive debug

Real-time PC trace

Breakpoints

FastMDU

5 cycle 32-bit to 64-bit multiply and
accumulate

34/35 cycle divide

Basic BIU and Cache Controller
(BBCC) with four write back buffers
included

Two 32-bit Timers

MMU supports a 64-entry TLB RAM

ICEport included for backward
compatibility with SerialICE

-1

debugger

Caches:

1 to 32 Kbytes of direct-mapped or
set-associative I-Cache

1 to 32 Kbytes of direct-mapped
D-Cache

Features

All configuration through EasyMACRO
interfaces, no external logic needed

Clock speed is 120 MHz at 1.8 V
(120 MIPS peak and estimated 96 MIPS
sustained)

16-bit and 32-bit code can be mixed
arbitrarily with full support on a
subroutine basis

Models available: performance and
software development, Verilog, and gate
level, timing-accurate models. Support
for VHDL models through Model
Technology's Model

Sim simulator

Compatible with the Microsoft Windows
CE operating system

Compatible with the full range of MIPS,
third-party software development, and
system verification environment tools

Implements full-scan methodology to
achieve very high design fault coverage

Technology

LSI Logic G12-p Technology with
0.13

eff

(0.18

drawn

)

1.8 V operation

ez4103dsMay25.fm Page 2 Friday, May 26, 2000 1:49 PM

TinyRISC

EZ4103 EasyMACRO Microprocessor

Functional Description

The TR4103 CPU performs all arithmetic, logical, shift, and address
calculations. The CPU supports EJTAG debug and is closely coupled
with the FastMDU. The FastMDU calculates all multiply and divide
operations for the EZ4103 and provides 5 cycle 32 x 32 = 64 bit multiply
and accumulate operations, 34/35 cycle divide, saturated math, and
overflow indication.

The Basic Bus Interface Unit and Cache Controller (BBCC) provides an
internal bus interface and connects the CPU to the caches. Four Write
Buffers are integrated with the BBCC in the EZ4103. The BBus connects
the BBCC, the SerialICE-1 and EJTAG units, and the two internal timers
with logic implemented inside the EZ4103.

The Memory Management Unit (MMU) translates virtual addresses from
the CPU to physical addresses and uses an external 64-entry Translation
Look-Aside Buffer (TLB) RAM.

The CPU controls the two internal 32-bit Timers. Each timer can count
down from a preloaded value, roll over or stop at zero, generate an
interrupt on zero, or act as a BBus watchdog.

The EJTAG Interface provides an on-chip debug scheme with breakpoint
and PC Trace capability in an EJTAG compatible design. The EJTAG
debugger provides real-time PC trace and breakpoint capabilities.

A SerialICE-1 Interface (UART) is also included in the EasyMACRO
subsystem to promote backward compatibility with an existing TinyRISC
design.

The CBus Interface passes data to and from the CPU. This interface
connects the CPU to the MMU, the BBCC, and up to three optional
coprocessors and on-chip memory implemented outside the
EasyMACRO subsystem.

The FlexLink Interface allows the logic designer to insert specialized
arithmetic instructions into the microprocessor EasyMACRO subsystem.
The FlexLink interface can handle single-cycle and multi-cycle
operations.

ez4103dsMay25.fm Page 3 Friday, May 26, 2000 1:49 PM

TinyRISC

EZ4103 EasyMACRO Microprocessor

The optional 32-bit FBusMACRO module controls the FBus, which is a
dedicated, multimaster bus that connects outside devices with the
EZ4103 internal components. The optional FBusMACRO module allows
seamless EZ4103 connection to a variety of devices, including EPROM,
RAM, DRAM, SDRAM, and general purpose I/O pins. The FBus also
supports burst read (one cycle) and write, built-in arbitration for an
external FBus master, and snooping of external write accesses to
memory. In the EZ4103, the FBusMACRO interfaces mainly with the
BBCC module.

Pipeline Architecture

The EZ4103 implements a three-stage pipeline (Fetch, Execute, and
Write Back) that uses a single adder for the ALU, the data address, and
the instruction address. Sharing a single adder, as well as eliminating
pipeline registers and bypass logic, dramatically reduces the circuitry
required to implement the EasyMACRO microprocessor. The EZ4103
does not require a load delay slot.

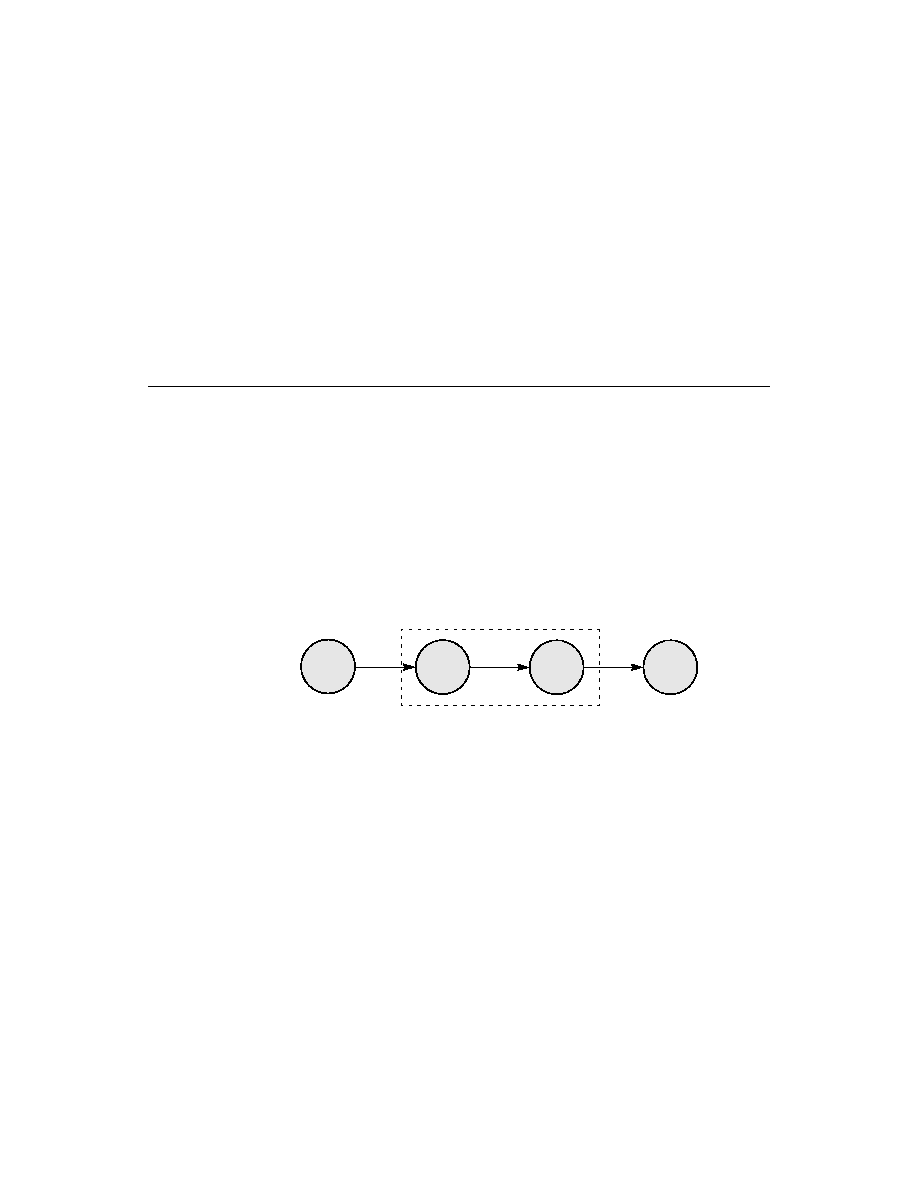

Figure 2

shows the microprocessor

CPU three-stage pipeline.

Figure 2

EZ4103 Instruction Pipeline

The execution of a single EZ4103 instruction consists of the following
three pipeline stages:

Instruction Fetch The EZ4103 fetches the instruction (IF). If
necessary, the core decompresses a 16-bit instruction into a 32-bit
instruction.

Execute The EZ4103 executes all ALU instructions, resolves
conditional branches, and calculates Load and Store addresses (X1).
The EasyMACRO microprocessor subsystem transfers Load and Store
data from external memory or cache (performs memory accesses) and
performs Move To/From Coprocessor operations in a second Execute
(Stall) Cycle (X2).

Execute

Write Back

Instruction Fetch

ez4103dsMay25.fm Page 4 Friday, May 26, 2000 1:49 PM

TinyRISC

EZ4103 EasyMACRO Microprocessor

Write Back The EZ4103 writes the results into the Register File
(WB).

EZ4103 Design Support

The EZ4103 EasyMACRO subsystem has all the necessary tools to
develop a system on a chip, including:

Architectural Simulator

Coverification

EJTAG interface/on-chip debugger

LR4103 Microprocessor Chip and BDMR4103 Evaluation Kit for
evaluation and prototyping

System Verification Environment

Third-party Toolchain Support

The EZ4103 supports the LSI Logic EJTAG interface, which enables
software development and hardware design debugging from a remote
host. EJTAG uses the EZ4103 EJTAG pins to provide a debug solution
with breakpoint capability and real-time trace of the program counter. A
SerialICE-1 ICEport has also been added to the EZ4103 for backward
compatibility with any existing TinyRISC designs.

The CoreWare program consists of three main elements:

A library of cores

A design development and simulation package

Expert applications support

The CoreWare library contains a wide range of complex cores based on
accepted and emerging industry standards from high-speed interconnect
and digital video to DSP and MIPS microprocessors. LSI Logic provides
a complete framework for device and system development and
simulation. LSI Logic has advanced ASIC technologies that consistently
produce Right-First-TimeTM silicon. The LSI Logic in-house experts
provide design support from system architecture definition through chip
layout and test vector generation.

ez4103dsMay25.fm Page 5 Friday, May 26, 2000 1:49 PM

TinyRISC

EZ4103 EasyMACRO Microprocessor

Instruction Set Summary

Table 1

summarizes the 32-bit instruction set for the EZ4103. All

instructions are MIPS I except those marked with a footnote. Tables

and

list the TinyRISC-specific CP0 and the Multiply/Divide instructions.

Tables

and

list the MMU and the unimplemented MIPS II instructions.

Table 6

provides a summary of the EZ4103 MIPS16 instruction set.

Table 1

EZ4103 Instruction Set Summary (32 bits)

Instruction Description

Instruction

Description

Load/Store Instructions

Load Byte

Store Byte

LBU

Load Byte Unsigned

Store Halfword

Load Halfword

Store Word

LHU

Load Halfword Unsigned

SWL

Store Word Left

Load Word

SWR

Store Word Right

LWL

Load Word Left

SYNC

Synchronize Shared Memory

LWR

Load Word Right

Immediate Arithmetic Instructions

ADDI

Add Immediate

ORI

OR Immediate

ADDIU

Add Immediate Unsigned

SLTI

Set on Less Than Immediate

ANDI

AND Immediate

SLTIU

Set on Less Than Immediate
Unsigned

LUI

Load Upper Immediate

XORI

Exclusive OR Immediate

Three-Operand, Register-Type Arithmetic Instructions

ADD

Add

SLT

Set on Less Than

ADDU

Add Unsigned

SLTU

Set on Less Than Unsigned

AND

Logical AND

SUB

Subtract

NOR

Logical NOR

SUBU

Subtract Unsigned

Logical OR

XOR

Exclusive Logical OR

(Sheet 1 of 3)

ez4103dsMay25.fm Page 6 Friday, May 26, 2000 1:49 PM

TinyRISC

EZ4103 EasyMACRO Microprocessor

Jump and Branch Instructions

BCzF

Branch on Coprocessor z False
(also listed under Coprocessor
Instructions)

BLTZAL

Branch on Less Than Zero and
Link

BCzT

Branch on Coprocessor z True (also
listed under Coprocessor
Instructions)

BNE

Branch on Not Equal

BEQ

Branch on Equal

Jump

BGEZ

Branch on Greater Than or Equal to
Zero

JAL

Jump and Link

BGEZAL

Branch on Greater Than or Equal to
Zero and Link

JALR

Jump and Link Register

BGTZ

Branch on Greater Than Zero

JALX

Jump and Link Exchange

BLEZ

Branch on Less Than or Equal to
Zero

Jump Register

BLTZ

Branch on Less Than Zero

Branch Likely Instructions

BCzFL

Branch on Coprocessor z False
Likely

BGTZL

Branch on Greater Than Zero
Likely

BCzTL

Branch on Coprocessor z True Likely BLEZL

Branch on Less Than or Equal to
Zero Likely

BEQL

Branch on Equal Likely

BLTZALL

Branch on Less Than Zero and
Link Likely

BGEZALL

Branch on Greater Than or Equal to
Zero and Link Likely

BLTZL

Branch on Less Than Zero Likely

BGEZL

Branch on Greater Than or Equal to
Zero Likely

BNEL

Branch on Not Equal Likely

Trap Instructions

TEQ

Trap if Equal

TLT

Trap if Less Than

TEQI

Trap if Equal Immediate

TLTI

Trap if Less Than Immediate

TGE

Trap if Greater Than or Equal

TLTIU

Trap if Less Than Immediate
Unsigned

Table 1

EZ4103 Instruction Set Summary (32 bits) (Cont.)

Instruction Description

Instruction

Description

(Sheet 2 of 3)

ez4103dsMay25.fm Page 7 Friday, May 26, 2000 1:49 PM

TinyRISC

EZ4103 EasyMACRO Microprocessor

Trap Instructions (Cont.)

TGEI

Trap if Greater Than or Equal
Immediate

TLTU

Trap if Less Than Unsigned

TGEIU

Trap if Greater Than or Equal
Immediate Unsigned

TNE

Trap if Not Equal

TGEU

Trap if Greater Than or Equal
Unsigned

TNEI

Trap If Not Equal Immediate

Coprocessor Instructions

BCzF

Branch on Coprocessor z False
(also listed under Jump and Branch
Instructions)

LWCz

Load Word to Coprocessor z
(z

BCzT

Branch on Coprocessor z True
(also listed under Jump and Branch
Instructions)

MTCz

Move To Coprocessor z

COPz

Coprocessor Operation

MFCz

Move From Coprocessor z

CTCz

Move Control to Coprocessor z

SWCz

Store Word from Coprocessor z

CFCz

Move Control from Coprocessor z

Shift Instructions

SLL

Shift Left Logical

SRAV

Shift Right Arithmetic Variable

SLLV

Shift Left Logical Variable

SRL

Shift Right Logical

SRA

Shift Right Arithmetic

SRLV

Shift Right Logical Variable

Special Control Instructions

BREAK

Breakpoint

SYSCALL

System Call

EJTAG Debug Instructions

SDBBP

Software Debug Breakpoint

DERET

Debug Exception Return

1. MIPS II instructions.

Table 1

EZ4103 Instruction Set Summary (32 bits) (Cont.)

Instruction Description

Instruction

Description

(Sheet 3 of 3)

ez4103dsMay25.fm Page 8 Friday, May 26, 2000 1:49 PM

TinyRISC

EZ4103 EasyMACRO Microprocessor

Table 2

EZ4103-Specific System Control Processor (CP0) Instructions (32 bits)

Instruction

Description

Instruction

Description

MFC0

Move from CP0

RFE

Restore from Exception

MTC0

Move to CP0

WAITI

Wait for Interrupt

Table 3

Multiply/Divide Instructions (32 bits)

Instruction

Description

Instruction

Description

MUL

Three-Operand Multiply

DIV

Divide

MULT

Multiply

DIVU

Divide Unsigned

MULTU

Multiply Unsigned

MFHI

Move From HI

MADD

Multiply Add

MFLO

Move From LO

MADDU

Multiply Add Unsigned

MTHI

Move To HI

MSUB

Multiply Subtract

MTLO

Move To LO

MSUBU

Multiply Subtract Unsigned

Table 4

MMU TLB Instructions (32 bits)

Instruction

Description

Instruction

Description

TLBR

Read Indexed TLB Entry

TLBWI

Write Indexed TLB Entry

TLBWR

Write Random TLB Entry

TLBP

Probe TLB For Matching Entry

Table 5

Unimplemented MIPS II Instructions

Instruction

Description

Instruction

Description

COP1

All floating point instructions

ERET

Exception Return

Load Linked Word

LDCz

Load Doubleword to Coprocessor

Store Conditional Word

SDCz

Store Doubleword to Coprocessor

ez4103dsMay25.fm Page 9 Friday, May 26, 2000 1:49 PM

TinyRISC

EZ4103 EasyMACRO Microprocessor

Table 6

EZ4103 Instruction Set Summary (MIPS16)

Instruction

Description

Instruction

Description

Load/Store Instructions

Load Byte

Load Word

LBU

Load Byte Unsigned

Store Byte

Load Halfword

Store Halfword

LHU

Load Halfword Unsigned

Store Word

Arithmetic Instructions: ALU Immediate

Load Immediate

SLTIU

Set on Less Than Immediate
Unsigned

ADDIU

Add Immediate Unsigned

CMPI

Compare Immediate

SLTI

Set on Less Than Immediate

Arithmetic Instructions: Two/Three Operand, Register Type

ADDU

Add Unsigned

AND

SUBU

Subtract Unsigned

SLT

Set on Less Than

XOR

Exclusive OR

SLTU

Set on Less Than Unsigned

NOT

Not

CMP

Compare

MOVE

Move

NEG

Negate

Multiply/Divide Instructions

MULT

Multiply

DIVU

Divide Unsigned

MULTU

Multiply Unsigned

MFHI

Move From HI

DIV

Divide

MFLO

Move From LO

Jump and Branch Instructions

JAL

Jump and Link

BNEZ

Branch on Not Equal to Zero

JALX

Jump and Link Exchange

BTEQZ

Branch on T Equal to Zero

Jump Register

BTNEZ

Branch on T Not Equal to Zero

JALR

Jump and Link Register

Branch Unconditional

(Sheet 1 of 2)

ez4103dsMay25.fm Page 10 Friday, May 26, 2000 1:49 PM

TinyRISC

EZ4103 EasyMACRO Microprocessor

Signal Descriptions

Table 7

defines all the signals that interface with the EZ4103

EasyMACRO microprocessor subsystem. In the table, the signals are
divided into the following categories:

CPU

FastMDU

FlexLink Interface

CBus Interface

MMU Interface and Setup

BBCC

BBus Interface

Timer

SerialICE-1 Port

Clock and Reset

Scan Test

EJTAG

Mnemonics for signals that are active LOW end with an `N', and
mnemonics for signals that are active HIGH end with a `P'.

Table 7

EZ4102 EasyMACRO Module Signals

Signal

I/O

Description

CPU

D_CDEBUGMP

Output

Debug mode indicator

G_BIG_ENDIANP

Input

CPU Big endian select

G_CWAITIP

Output

CPU Wait Indicator

G_LOPRP[3:0]

Input

CPU low REV nibble of CP0 PRID register (hardwire)

(Sheet 1 of 10)

ez4103dsMay25.fm Page 12 Friday, May 26, 2000 1:49 PM

TinyRISC

EZ4103 EasyMACRO Microprocessor

FastMDU

G_AMOFP

Output

FastMDU

G_BCMP

Input

FastMDU, multiply-accumulate instruction, TinyRISC backward
compatibility mode

G_SATMP

Input

FastMDU saturated math mode select

FlexLink Interface

F_CIR_BOTP[5:0]

Output

Instruction register bottom six bits

F_CIR_TOPP[5:0]

Output

Instruction register top six bits

F_CKILLXP

Output

Kill instruction in X1 stage

F_CPIPE_RUNN

Output

Indicates that next cycle is a CPU run cycle without an X2
stage

F_CRSP[31:0]

Output

Source register (rs) bus

F_CRTP[31:0]

Output

Source register (rt) bus

F_CRUN_INN

Output

CPU run enable

F_CRX_VALIDN

Output

F_SELP

Input

FlexLink select

F_STALLP

Input

FlexLink stall request

F_XBUSP[31:0]

Input

FlexLink result bus

CBus Interface

C_ADDR_ERRORP

Output

Memory address error

C_ADDR_OUTP[31:1]

Output

CBus virtual instruction/data address

C_BBEP

Input

BIU bus error

C_BBEP_ACKP

Output

CPU BIU bus error acknowledge

C_BYTEP[3:0]

Output

Byte enable signals

Table 7

EZ4102 EasyMACRO Module Signals (Cont.)

Signal

I/O

Description

(Sheet 2 of 10)

ez4103dsMay25.fm Page 13 Friday, May 26, 2000 1:49 PM

TinyRISC

EZ4103 EasyMACRO Microprocessor

CBus Interface (Cont.)

C_CBUS_STEALN

Output

Indicates a CBus steal from the BBCC

C_COPCONDP[3:0]

Input

CPU coprocessor condition bits

C_COP_DRIVEP

Output

Indicates that the coprocessor is driving the data bus

C_COPEXISTP[3:1]

Input

Indicates coprocessor existence

C_COPP[1:0]

Output

Coprocessor number

C_DATAP[31:0]

Output

CBus data bus

C_DRDYP

Output

CBus data ready on data bus

C_EXT_CDATAP[31:0]

input

CBus input from external modules

C_EXT_DRDYP

Input

External CBus data ready on data bus

C_EXT_IRDYP

Input

External CBus instruction ready

C_EXT_OEP

Output

External CBus output enable

C_EXT_RUN_ENABLEP

Input

CBus run enable signal, deasserting C_EXT_RUN_ENABLEP
causes the CPU to stall

C_EXT_SELP

Input

External CBus select signal

C_INTGRP

Output

CPU interrupt grant

C_INTP[5:0]

Input

CPU interrupt direct

C_IP_DN

Output

Indicates that instruction/data is available on the CBus

C_IRDYP

Output

CBus instruction ready

C_KILLMEMP

Output

CPU kill memory transaction

C_KILLWP

Output

CBus kill instruction in WB stage

C_KILLXP

Output

CBus kill instruction in X1 stage

C_MADDR_OUTP[31:0]

Output

Physical address output from MMU

C_MADDR_VALIDP

Output

Indicates that physical address is valid

C_MEM_FETCHP

Output

CPU memory fetch request

Table 7

EZ4102 EasyMACRO Module Signals (Cont.)

Signal

I/O

Description

(Sheet 3 of 10)

ez4103dsMay25.fm Page 14 Friday, May 26, 2000 1:49 PM

TinyRISC

EZ4103 EasyMACRO Microprocessor

CBus Interface (Cont.)

C_MNOCACHEP

Output

MMU prevents current page data from storage in cache

C_MODE16P

Output

CPU in MIPS16 mode

C_RUNN

Output

Indicates that the next cycle is a run cycle

C_STOREP

Output

CPU store to memory request

MMU Interface and Setup

G_MMUENP

Input

MMU enable configuration bit

M_CAMINP[25:0]

Input

TLB CAM array data

M_CAMOUTP[25:0]

Output

TLB CAM array data

M_GBITOUTP

Output

TLB group mask (global) bit

M_MATCHINP[5:0]

Input

TLB encoded match address

M_RAMINP[23:0]

Input

TLB RAM array data

M_RAMOUTP[23:0]

Output

TLB RAM array data

M_TLBCLKP

Output

TLB gated CLK (runs only during MMU stall cycles)

M_TLBINDP[5:0]

Output

TLB address

M_TLBMISSP

Input

TLB miss indicator

M_TLBMTCHP

Output

TLB match enable

M_TLBRDP

Output

TLB read enable

M_TLBWRTP

Output

TLB write enable

BBCC - System Configuration Register and Cache Setup

G_CACHE_CONFIGP[2:0]

Input

Controls to configure cache/tag size

G_MREQP

Input

BBus modified request

G_SCONFIG1P[31:0]

Output

BBCC System Configuration register (SCR1)

G_SCONFIG2P[31:0]

Output

BBCC System Configuration register (SCR2)

Table 7

EZ4102 EasyMACRO Module Signals (Cont.)

Signal

I/O

Description

(Sheet 4 of 10)

ez4103dsMay25.fm Page 15 Friday, May 26, 2000 1:49 PM

TinyRISC

EZ4103 EasyMACRO Microprocessor

BBCC - System Configuration Register and Cache Setup (Cont.)

G_SCONFIG3P[31:0]

Output

BBCC System Configuration register (SCR3)

G_SCR2_RESETP[11:0]

Input

Copies into G_SCONFIG2P[11:0] during system reset

G_SCR2_STICKYP[3:0]

Input

Copies into G_SCONFIG2P[15:12], and value is sticky until
reset by either system reset or CPU write zero

G_SCR3_READP[31:0]

Input

Read-only bits for G_SCONFIG3P[31:0]

BBCC - Cache and Tag

R_I1DCDATAP[31:0]

Input

Data from I-Cache Set 1 Data RAM

R_I1DCLKP

Output

Clock for I-Cache Set 1 Data RAM

R_I1DWEP

Output

Write enable for I-Cache Set 1 Data RAM

R_I1TCDATAP[25:0]

Input

Data from I-Cache Set 1 Tag RAM

R_I1TCLKP

Output

Clock for I-Cache Set 1 Tag RAM

R_I1TWEP[4:0]

Output

Write enable for I-Cache Set 1 Tag RAM

R_IDDCDATAP[31:0]

Input

Data from I-Cache Set 0/D-Cache Data RAM

R_IDDCLKP

Output

Clock for I-Cache Set 0/D-Cache Data RAM

R_IDDWEP[3:0]

Output

Write enable for I-Cache Set 0/D-Cache Data RAM

R_IDTCDATAP[26:0]

Input

Data from I-Cache Set 0/D-Cache Tag RAM

R_IDTCLKP

Output

Clock for I-Cache Set 0/D-Cache Tag RAM

R_IDTWEP[5:0]

Output

Write enable for I-Cache Set 0/D-Cache Tag RAM

R_INDEXP[14:2]

Output

Address for I-Cache Set 0/D-Cache and I-Cache Set 1 Data
RAMs

R_IP_DN

Output

MSB address bit for I-Cache Set 0/D-Cache Data and Tag
RAM

R_LOCKP

Output

Lock bits for I-Cache Set 0/D-Cache Tag RAM

R_TAGP[21:0]

Output

Address Tag for I-Cache Set 0/D-Cache and I-Cache Set 1 Tag
RAM

Table 7

EZ4102 EasyMACRO Module Signals (Cont.)

Signal

I/O

Description

(Sheet 5 of 10)

ez4103dsMay25.fm Page 16 Friday, May 26, 2000 1:49 PM

TinyRISC

EZ4103 EasyMACRO Microprocessor

BBCC - Cache and Tag (Cont.)

R_VALIDP[3:0]

Output

Valid bits for I-Cache Set 0/D-Cache and I-Cache Set 1 Tag
RAM

BBCC - OCM Related

C_OCMCLKP

Output

On-chip memory clock

C_OCMEXISTP

Input

On-chip memory exists

C_OCMOEP

Output

On-chip memory output enable

C_OCMSELP

Input

On-chip memory select signal

C_OCMWEP

Output

On-chip memory write enable

BBus Interface

B_CONTADDRN

Output

BBus continuous address indicator

B_FBREQN

Input

BBus request to master from FBus module

B_WRAPP

Output

BBus address wrap-around indicator

B_XBADDRP[31:2]

Output

Output address bus to all BBus devices

B_XBBLKREQN

Output

Block fetch request to external BBus device (only from BBCC)

B_XBBYTEN[3:0]

Output

Byte enable bits to all BBus devices

B_XBDATAP[31:0]

Output

Output data bus to all BBus devices

B_XBERRORN

Output

BBus error signal to all BBus devices (bundled)

B_XBIP_DN

Output

Instruction/data indicator to all BBus devices

B_XBNOSELN

Output

Indicates hardware test mode (B_ZCACHE_SELP) and no
address selected to all BBus devices

B_XBRDYN

Output

Ready signal (transaction complete) to all BBus devices

B_XBSNOOPWAITP

Output

Wait for snoop to finish signal to all BBus devices

B_XBSTARTN

Output

Transaction start signal to all BBus devices

B_XBTXN

Output

Transaction active signal to all BBus devices

Table 7

EZ4102 EasyMACRO Module Signals (Cont.)

Signal

I/O

Description

(Sheet 6 of 10)

ez4103dsMay25.fm Page 17 Friday, May 26, 2000 1:49 PM

TinyRISC

EZ4103 EasyMACRO Microprocessor

BBus Interface (Cont.)

B_XBWBURST_GNTN

Output

Write burst grant to external BBus device (only from BBCC)

B_XBWRN

Output

Read/write indicator to all BBus devices

B_XFBGNTN

Output

BBus grant to FBus module (FBM)

B_XZBGNTN

Output

BBus grant to external BBus device

B_ZBADDRP[31:2]

Input

Input address bus from external BBus device

B_ZBBLKGNTN

Input

Block fetch grant from external BBus device (only to BBCC)

B_ZBBYTEN[3:0]

Input

Byte enable bits from external BBus device

B_ZBDATAP[31:0]

Input

Input data bus from external BBus device

B_ZBDSNOOPP

Input

BBus data snoop signal

B_ZBERRORN

Input

BBus error signal from external BBus device

B_ZBIP_DN

Input

Indicates arriving instruction/data from external BBus device

B_ZBISNOOPP

Input

BBus instruction snoop signal

B_ZBRDYN

Input

Ready signal (transaction complete) from external BBus device

B_ZBREQN

Input

BBus request from external BBus device

B_ZBSTARTN

Input

Transaction start signal from external BBus device

B_ZBTXN

Input

Transaction active signal from external BBus device

B_ZBWBURST_REQN

Input

Write burst request from external BBus device (only to BBCC)

B_ZBWRN

Input

Indicates a read/write from external BBus device

B_ZCACHE_SELP

Input

Indicates hardware test mode. Signal is supplied by hardware
test master (from external BBus device).

B_ZISETP

Input

Hardware cache test select between I-Cache Set 0 and Set 1.
B_ZISETP is supplied by hardware test master (from external
BBus device).

Table 7

EZ4102 EasyMACRO Module Signals (Cont.)

Signal

I/O

Description

(Sheet 7 of 10)

ez4103dsMay25.fm Page 18 Friday, May 26, 2000 1:49 PM

TinyRISC

EZ4103 EasyMACRO Microprocessor

BBus Interface (Cont.)

B_ZTAGTESTN

Input

Hardware cache test select between Tag and Data cache.
B_ZTAGTESTN is supplied by hardware test master (from
external BBus device).

G_MRRP

Input

Modified Round Robin internal-bus algorithm selector

Timer

T_0OUTN

Output

Timer 0 output

T_1OUTN

Output

Timer 1 output

SerialICE-1 Port

I_ICECLKP

Input

External clock, must run at 16x the serial bit rate

I_ICERXP

Input

Serial receive data

I_ICETXP

Output

Serial transmit data

I_RXRDYP

Output

Asserts when a byte is received

Clock and Reset

G_PCLKP

Input

System clock

G_RESETN

Input

Synchronous system reset input

Scan Test

G_SCAN_ENABLEP

Input

Scan chain enable

G_SCAN_INP

Input

Scan chain input

G_SCAN_MODEP

Input

Scan test logic enable

G_SCAN_OUTP

Output

Scan chain output

G_SCAN_RAMWEP

Input

Scan mode RAM write control

Table 7

EZ4102 EasyMACRO Module Signals (Cont.)

Signal

I/O

Description

(Sheet 8 of 10)

ez4103dsMay25.fm Page 19 Friday, May 26, 2000 1:49 PM

TinyRISC

EZ4103 EasyMACRO Microprocessor

EJTAG - Device Identification Register

D_IPART_NUMBERP[13:0]

Input

Part number in Device Identification register

D_IDEVICE_REVP[1:0]

Input

Device revision code in Device Identification register

D_ILOCATIONP[3:0]

Input

LSI Logic geographic location code in Device Identification
register

EJTAG - Implementation Register

D_FORCEBRTP

Input

Controls PC trace setup

D_IASIDSIZEP[1:0]

Input

ASID size in Implementation register

D_ICHP[3:0]

Input

Obsolete Ch field in Implementation register

D_ICPLXBRKP

Input

Complex Break Support in Implementation register

D_IDCACHECP

Input

Data cache coherency in Implementation register

D_IICACHECP

Input

Instruction cache coherency in Implementation register

D_IIMPL3126P[5:0]

Input

Reserved

D_INODATABRKP

Input

Data address break in Implementation register

D_INODMAP

Input

No JTAG DMA support in Implementation register

D_INOINSTBRKP

Input

Instruction break in Implementation register

D_INOPCTRACEP

Input

No PC trace support in Implementation register

D_INOPROCBRKP

Input

Processor bus break in Implementation register

D_IPCSTWP[2:0]

Input

PCST width and DCLK division factor in Implementation
register

D_IPROFSUPP[1:0]

Input

Profiling support in Implementation register

D_ISDBBPCODEP

Input

SDBBP uses Special2 (or version 1.3) opcode

D_ITPCWP[2:0]

Input

TPC width in Implementation register

D_SIMPIMPLP[9:0]

Input

Simple break configuration

D_TRACEMETHP

Input

Controls internal PC trace setup

Table 7

EZ4102 EasyMACRO Module Signals (Cont.)

Signal

I/O

Description

(Sheet 9 of 10)

ez4103dsMay25.fm Page 20 Friday, May 26, 2000 1:49 PM

TinyRISC

EZ4103 EasyMACRO Microprocessor

EJTAG - JTAG Setup

D_JTAGALSOP

Input

Normal JTAG interface attached

D_JTAGIRBITSP[1:0]

Input

Number of bits in JTAG instruction register

D_JTAGTDOP

Input

Test Data Output from normal JTAG module

EJTAG - Probe

D_TCK

Input

JTAG clock

D_TDI_DINT

Input

JTAG data in

D_TDO_DRIVEN

Output

JTAG drive indication for TDO

D_TDO_TPC

Output

JTAG data out

D_TMS

Input

JTAG mode select

D_TRST

Input

Active-LOW JTAG reset

EJTAG - PC Trace

D_CLKP

Output

Divided processor clock

D_PCST1P[2:0]

Output

PC trace status information set 1

D_PCST2P[2:0]

Output

PC trace status information set 2

D_PCST3P[2:0]

Output

PC trace status information set 3

D_PCST4P[2:0]

Output

PC trace status information set 4

D_TPCP[8:2]

Output

PC and ASID bits

EJTAG - Miscellaneous Control

D_PCLKWAKEUP

Output

Indicates wake-up of the PCLKP clock generator when either
a JTAG break or a CPU soft reset occurs

D_PERRSTN

Output

Reset signal for peripheral from the EJTAG Control Register

D_PSLEEPN

Input

Run indication for CPU clock, generated by clock module

Table 7

EZ4102 EasyMACRO Module Signals (Cont.)

Signal

I/O

Description

(Sheet 10 of 10)

ez4103dsMay25.fm Page 21 Friday, May 26, 2000 1:49 PM

To receive product literature, visit us at http://www.lsilogic.com

LSI Logic Corporation reserves the right to make changes
to any products and services herein at any time without
notice. LSI Logic does not assume any responsibility or lia-
bility arising out of the application or use of any product or
service described herein, except as expressly agreed to in
writing by LSI Logic; nor does the purchase, lease, or use
of a product or service from LSI Logic convey a license
under any patent rights, copyrights, trademark rights, or any
other of the intellectual property rights of LSI Logic or of
third parties.

This document is preliminary. As such, it contains data
derived from functional simulations and performance esti-
mates. LSI Logic has not verified the functional descriptions
or electrical and mechanical specifications using production
parts.
The LSI Logic logo design, G12, CoreWare, SerialICE,
TinyRISC and Right-First-Time are registered trademarks
or trademarks of LSI Logic Corporation. All other brand and
product names may be trademarks of their respective com-
panies.

BM
Printed in USA
Doc. No. DB08-000135-00

Printed on
Recycled Paper

ISO 9000 Certified

Sales Offices and Design Resource Centers

LSI Logic Corporation
Corporate Headquarters
Tel: 408.433.8000
Fax: 408.433.8989

NORTH AMERICA

California
Irvine

Tel: 949.809.4600
Fax: 949.809.4444

Pleasanton Design Center
Tel: 925.730.8800
Fax: 925.730.8700

San Diego
Tel: 858.467.6981
Fax: 858.496.0548

Silicon Valley

Tel: 408.433.8000
Fax: 408.954.3353

Wireless Design Center
Tel: 858.350.5560
Fax: 858.350.0171

Colorado
Boulder

Tel: 303.447.3800
Fax: 303.541.0641

Colorado Springs
Tel: 719.533.7000
Fax: 719.533.7020

Fort Collins
Tel: 970.223.5100
Fax: 970.206.5549

Florida
Boca Raton
Tel: 561.989.3236
Fax: 561.989.3237

Georgia
Alpharetta
Tel: 770.753.6146
Fax: 770.753.6147

Illinois
Oakbrook Terrace
Tel: 630.954.2234
Fax: 630.954.2235

Kentucky
Bowling Green
Tel: 270.793.0010
Fax: 270.793.0040

Maryland
Bethesda
Tel: 301.897.5800
Fax: 301.897.8389

Massachusetts
Waltham

Tel: 781.890.0180
Fax: 781.890.6158

Burlington - Mint Technology
Tel: 781.685.3800
Fax: 781.685.3801

Minnesota
Minneapolis

Tel: 612.921.8300
Fax: 612.921.8399

New Jersey
Red Bank
Tel: 732.933.2656
Fax: 732.933.2643

Cherry Hill - Mint Technology
Tel: 856.489.5530
Fax: 856.489.5531

New York
Fairport
Tel: 716.218.0020
Fax: 716.218.9010

North Carolina
Raleigh
Tel: 919.785.4520
Fax: 919.783.8909

Oregon
Beaverton
Tel: 503.645.0589
Fax: 503.645.6612

Texas
Austin
Tel: 512.388.7294
Fax: 512.388.4171

Plano

Tel: 972.244.5000
Fax: 972.244.5001

Houston
Tel: 281.379.7800
Fax: 281.379.7818

Canada
Ontario
Ottawa

Tel: 613.592.1263
Fax: 613.592.3253

INTERNATIONAL

France
Paris
LSI Logic S.A.
Immeuble Europa

Tel: 33.1.34.63.13.13
Fax: 33.1.34.63.13.19

Germany
Munich
LSI Logic GmbH

Tel: 49.89.4.58.33.0
Fax: 49.89.4.58.33.108

Stuttgart

Tel: 49.711.13.96.90
Fax: 49.711.86.61.428

Italy
Milan
LSI Logic S.P.A.

Tel: 39.039.687371
Fax: 39.039.6057867

Japan
Tokyo
LSI Logic K.K.

Tel: 81.3.5463.7821
Fax: 81.3.5463.7820

Osaka

Tel: 81.6.947.5281
Fax: 81.6.947.5287

Korea
Seoul
LSI Logic Corporation of
Korea Ltd
Tel: 82.2.528.3400
Fax: 82.2.528.2250

The Netherlands
Eindhoven
LSI Logic Europe Ltd
Tel: 31.40.265.3580
Fax: 31.40.296.2109

Singapore
Singapore
LSI Logic Pte Ltd
Tel: 65.334.9061
Fax: 65.334.4749

Sweden
Stockholm
LSI Logic AB

Tel: 46.8.444.15.00
Fax: 46.8.750.66.47

Taiwan
Taipei
LSI Logic Asia, Inc.
Taiwan Branch
Tel: 886.2.2718.7828
Fax: 886.2.2718.8869

United Kingdom
Bracknell
LSI Logic Europe Ltd

Tel: 44.1344.426544
Fax: 44.1344.481039

Sales Offices with
Design Resource Centers

ez4103dsMay25.fm Page 24 Friday, May 26, 2000 1:49 PM

ÐÐ»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: EZ4103

Document Outline

Ð­Ð»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: EZ4103

Document Outline

ÐÐ»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: EZ4103
