Document Number: 90004
For technical questions contact: aluminumcaps4@vishay.com
www.vishay.com
Revision: 13-Sep-04
311
94SC
Vishay OS-CON
Solid Aluminum Capacitors
With Organic Semiconductor Electrolyte
FEATURES
Designed for general use.
Superior high frequency characteristics.
94SC capacitors are suitable for use in noise limiters and
switching power supplies.
PART MARKING
Sleeve color: Blue. Marking: White
Polarity -
Rated voltage
Capacitance
Vishay OS-CON
Lot number
Maximum operating temperature (+ 105 C)

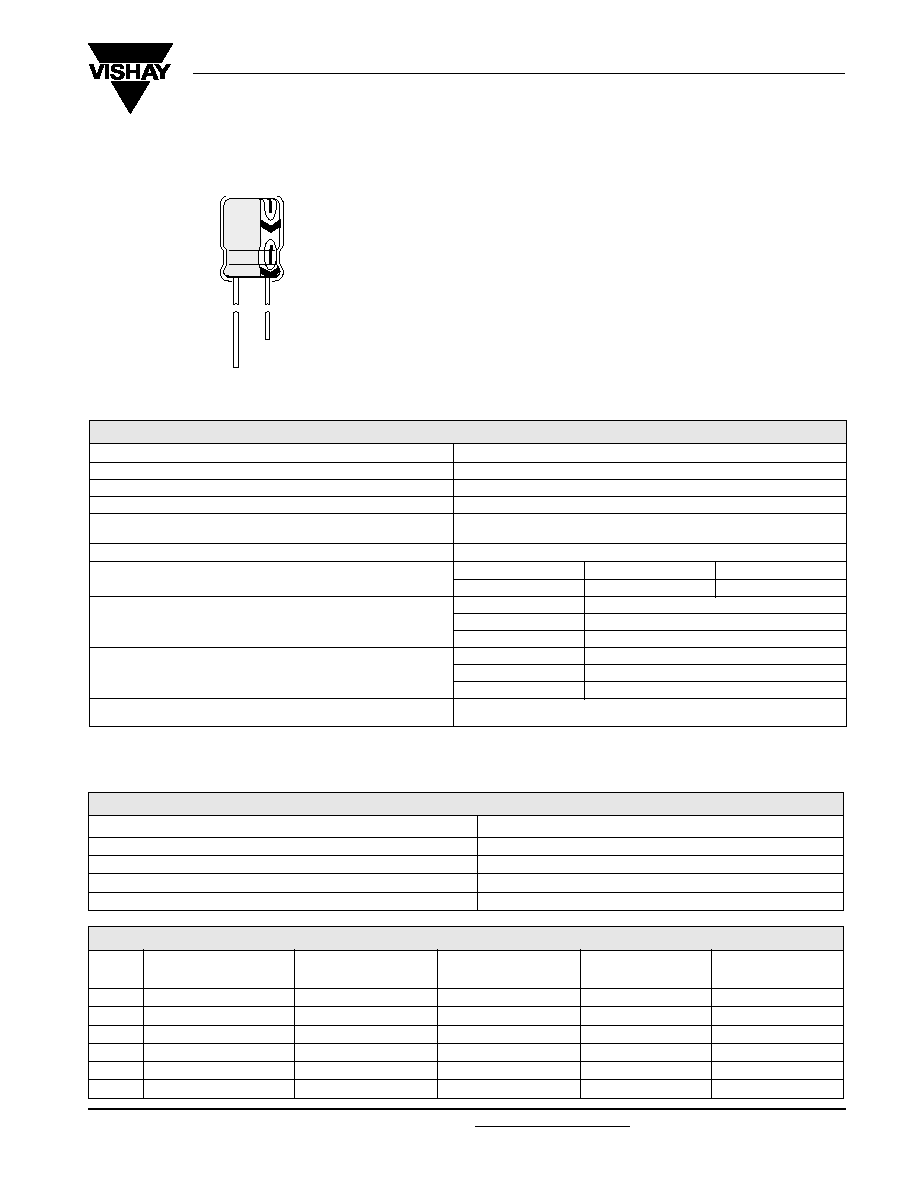

Fig.1 Component outline.
QUICK REFERENCE DATA
DESCRIPTION
VALUE
Operating Temperature Range
- 55 C to + 105 C
Capacitance Tolerance at 120 Hz
X0 = 20 %
Tangent of Loss Angle (tan
) at 120 Hz
Values in Standard Ratings Table
Leakage Current (A/2 minutes)(or less)*
6.3 to 25 WV: 0.01 CV or 0.5
30WV: 0.0.2 CV or 0.1 (Whichever is greater)
Equivalent Series Resistance (
), (100 k to 300 kHz)
Values in Standard Ratings Table
Temperature Characteristics
Impedance Ratio at 100 kHz
- 55 C
Z/Z
20 C
1.0 to 1.25
+ 105 C
Z/Z
20 C
0.75 to 1.0
High Temperature Load (+ 105 C, 2000 hours)
Rated Voltage Applied
(25 WV - 20 V applied)**
C/C
Within 20 % of the initial value
tan
1.5 x the value of Tangent of Loss Angle
Leakage Current
The Value of Leakage Current
Moisture Resistance
(+ 60 C, 90 to 95 % RH, 1000 hours, no voltage)
C/C
Within 10 % of the initial value
tan
1.5 x the value of Tangent of Loss Angle
Leakage Current
The Value of Leakage Current
Reverse Voltage Guarantee
Temporary:
20 % of the rated voltage
Continuous:
10 % of the rated voltage
* If any doubt arises, measure the current after applying voltage (voltage treatment) for 30 minutes at + 105 C. The rated voltage should be
applied for 6.3 to 16.3 WV, while temperature reduction voltage should be applied for 25 WV.
** To use a Vishay OS-CON capacitor when the operating temperature exceeds + 85 C on a component with a rated voltage of 25 V, reduce
the voltage by 0.25 V for every degree (1 C) relative to the value at + 85 C (25 V).
TEMPERATURE COEFFICIENT RIPPLE CURRENT
Ambient Temperature
Coefficient
~ + 45 C
1.0
+ 85 C
0.7
+ 95 C
0.4
+ 105 C
0.25

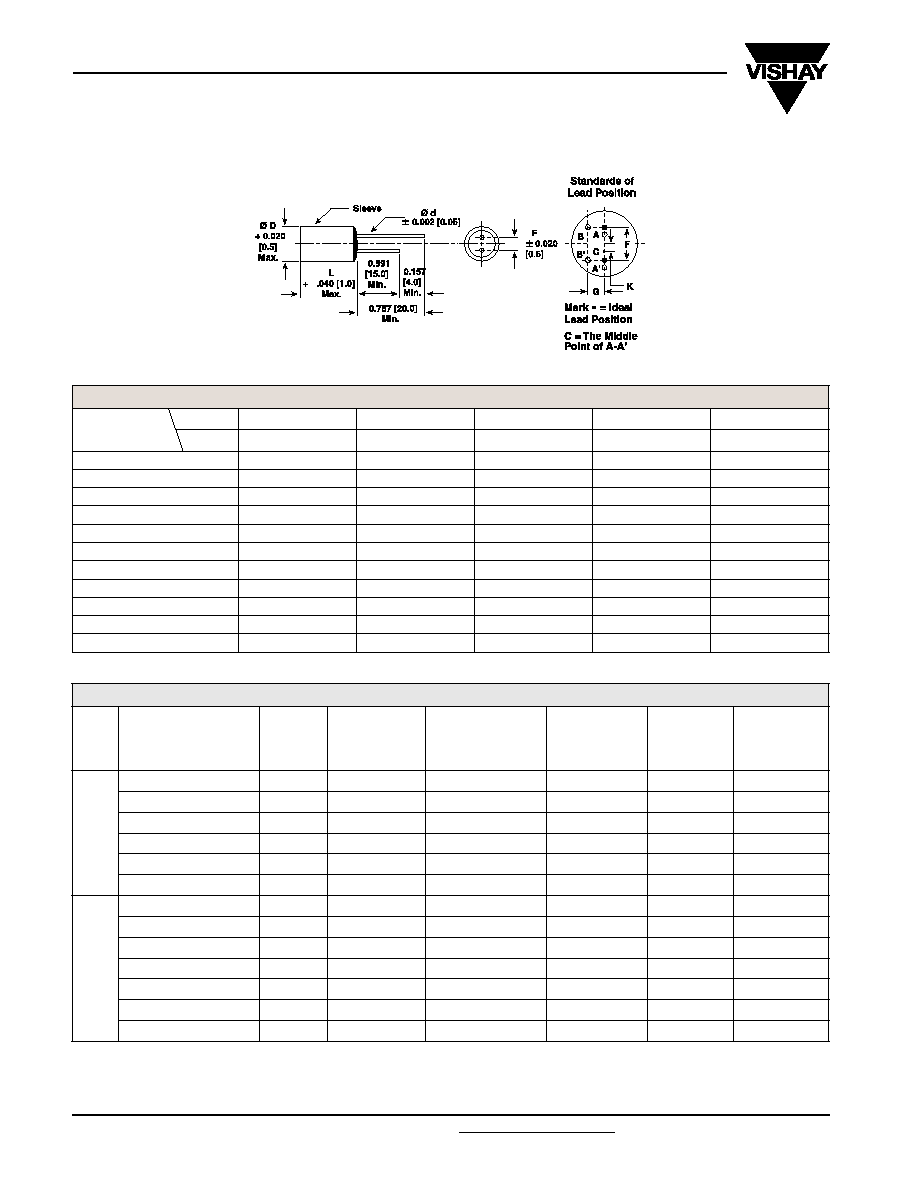

DIMENSIONS
in inches [millimeters]
CASE
CODE
NOMINAL CASE SIZE
D x L
F
d
G (Max.)
K (Max.)
A
0.157 x 0.268 [4.0 x 6.8]
0.079 [2.0]
0.018 [0.45]
0.020 [0.5]
0.020 [0.5]
B
0.197 x 0.268 [5.0 x 6.8]
0.079 [2.0]
0.018 [0.45]
0.020 [0.5]
0.020 [0.5]
C
0.248 x 0.268 [6.3 x 6.8]
0.098 [2.5]
0.018 [0.45]
0.020 [0.5]
0.020 [0.5]
D
0.248 x 0.386 [6.3 x 9.8]
0.098 [2.5]
0.236 [0.60]
0.020 [0.5]
0.020 [0.5]
E
0.315 x 0.413 [8.0 x 10.5]
0.138 [3.5]
0.236 [0.60]
0.031 [0.8]
0.031 [0.8]
F
0.394 x 0.413 [10.0 x 10.5]
0.20 [5.0]
0.236 [0.60]
0.031 [0.8]
0.031 [0.8]
