2.0 to 6.0 GHz
GaAs MMIC
Low-Noise Amplifier
Advanced Product Information
May 2005 V1.5
(1 of 5)
Features
Small Size: 1.60 x 1.55 x 0.076 mm
Integrated On-Chip Drain Bias Coil
Integrated On-Chip DC Blocking
Single Bias Operation
Directly Cascadable Fully Matched, Novel
Feedback & Distributed Amplifier Design
P1dB: 15.5 dBm @ 6 GHz, Typ.
High Linear Gain: 17.5 dB Typ.
Noise Figure: 3.3 dB Typ. @ 6 GHz
pHEMT Technology
Silicon Nitride Passivation
Specifications (TA = 25C, Vdd = 5V)
1
Parameters
Units
Min
Typ
Max
Frequency Range
GHz
2.0
6.0
Linear Gain
dB
16.0
17.5
Gain Variation (over operating frequency)
dB
2.0
Power Output (@1 dB Gain Compression)
dBm
14.0
15.5
P1dB Variation (over operating frequency)
dBm
1.0
Saturated Output Power
dBm
19.0
23.0
Third Order Intercept Point (@ 6 GHz)
dBm
25.5
Second Order Intercept Point (@ 6 GHz)
dBm
41.0
Noise Figure (@6 GHz)
dB
3.3
3.8
Input Return Loss 2
dB
-9.5
Output Return Loss 2
dB
-12.0
Current
mA
85
100
115
Thermal Resistance
C/W
34.0
Stability
Unconditionally Stable
Absolute Maximum Ratings
1
Parameter
Rating
Drain Voltage
4.5V (min.) / 8.0V (max.)
Drain Current
150 mA
Continuous Power Dissipation
1.2 W
Input Power
10 dBm
Storage Temperature
-50C to +150C
Channel Temperature
175C
Operating Backside Temperature
2
-40C Min.
Die Attach and Bonding Procedures
Die Attach: Eutectic die attach is recommended. For eutec-
tic die attach: Preform: AuSn (80% Au, 20% Sn); Stage
Temperature: 290C, 5C; Handling Tool: Tweezers; Time: 1
min or less.
Wire Bonding: Wire Size: 0.7 to 1.0 mil in diameter (pre-
stressed); Thermocompression bonding is preferred over ther-
mosonic bonding. For thermocompression bonding: Stage
Temperature: 250C; Bond Tip Temperature: 150C; Bonding
Tip Pressure: 18 to 40 gms depending on size of wire.
CMM1200-BD
Chip Diagram
Notes: 1. Tested on Celeritek connectorized evaluation board.
2. Measured on wafer.
Notes: 1. Operation outside these limits can cause permanent damage.
2. Calculation maximum operating temperature:
Tmax = 175(Pdis [W] x 34) [C].
3236 Scott Boulevard, Santa Clara, California 95054
Phone: (408) 986-5060
Fax: (408) 986-5095
CMM1200-BD
Advanced Product Information - May 2005
V1.5
(2 of 5)
Typical On-Wafer Scattering Parameters
(Vd = +5.0V, Icc = 101 mA, T = 23C, device in a 50 ohm system)
Frequency
S11
S21
S12
S22
(MHz)
(Mag)
(Ang)
(Mag)
(Ang)
(Mag)
(Ang)
(Mag)
(Ang)
0.10
0.813
-0.57
0.001
0.00
0.000
0.00
0.970
-0.23
1.00
-0.461
0.50
-1.411
-3.07
0.004
0.00
-0.474
-0.44
1.90
0.060
0.07
1.612
7.22
-0.001
0.00
-0.245
-0.03
2.20
0.041
-0.01
5.064
6.32
0.000
0.00
-0.192
0.04
2.50
0.008
-0.05
7.462
3.94
-0.001
0.00
-0.127
0.04
3.40
-0.021
-0.09
7.667
-3.82
0.000
0.00
-0.077
0.00
3.70
-0.023
-0.10
6.413
-5.62
0.001
0.00
-0.074
-0.01
4.00
-0.027
-0.13
4.857
-6.95
0.002
0.00
-0.075
-0.02
4.90
-0.059
-0.20
-0.337
-8.14
0.003
0.00
-0.092
-0.03
5.20
-0.085
-0.22
-1.893
-7.81
0.003
0.00
-0.099
-0.03
5.50
-0.111
-0.24
-3.305
-7.21
0.004
0.00
-0.106
-0.03
5.80
-0.140
-0.26
-4.492
-6.28
0.004
0.00
-0.117
-0.03
6.10
-0.179
-0.26
-5.314
-5.42
0.005
0.00
-0.126
-0.01
7.00
-0.267
-0.25
-7.084
-2.16
0.005
0.00
-0.128
0.02
7.90
-0.338
-0.20
-7.165
1.27
0.004
0.00
-0.117
0.05
8.20
-0.355
-0.18
-6.874
2.35
0.004
0.00
-0.109
0.06
8.50
-0.368
-0.16
-6.436
3.37
0.004
0.00
-0.100
0.07
9.10
-0.387
-0.11
-5.152
5.20
0.003
-0.01
-0.077
0.08
10.00
-0.395
-0.06
-2.289
7.12
0.001
-0.01
-0.036
0.09
10.90
-0.392
-0.01
1.328
7.55
0.000
-0.01
0.000
0.07
12.10
-0.394
0.05
5.852
5.16
-0.004
-0.01
0.027
0.02
13.00
-0.394
0.12
7.603
1.63
-0.007
-0.01
0.024
-0.02
13.90
-0.368
0.21
7.341
-2.28
-0.009
0.00
0.002
-0.04
14.50
-0.324
0.28
6.104
-4.58
-0.009
0.00
-0.016
-0.05
15.10
-0.253
0.34
4.167
-6.32
-0.010
0.00
-0.033
-0.04
16.00
-0.101
0.39
0.436
-7.50
-0.010
0.00
-0.053
-0.03
17.20
0.125
0.35
-4.701
-5.86
-0.006
0.01
-0.072
0.00
18.10
0.262
0.25
-7.183
-2.26
-0.003
0.01
-0.065
0.04
19.00
0.369
0.13
-7.082
2.49
0.003
0.01
-0.021
0.09
20.20
0.501
-0.10
-1.719
6.64
0.010
0.01
0.117
0.07
21.10
0.481
-0.36
2.707
4.90
0.012
0.00
0.152
-0.06
22.00
0.348
-0.53
4.002
1.55
0.008
-0.01
0.080
-0.14
23.20
0.198
-0.65
2.532
-1.66
0.000
-0.01
-0.012
-0.12
24.10
0.078
-0.78
0.354
-2.02
-0.005
-0.01
-0.019
-0.09
25.00
-0.150
-0.85
-0.597
-0.90
-0.006
0.00
-0.022
-0.09
26.20
-0.437
-0.73
-0.379
-0.17
-0.006
0.00
-0.033
-0.07
26.80
-0.537
-0.60
-0.265
-0.05
-0.004
0.00
-0.033
-0.07
28.00
-0.204
-0.39
-0.136
-0.02
-0.002
0.00
-0.028
-0.05
29.20
-0.466
-0.67
-0.076
0.03
-0.003
0.00
-0.011
-0.04
30.10
-0.637
-0.58
-0.040
0.03
-0.001
0.00
0.011
-0.04
S-Parameter Data Files are available on-line at: www.celeritek.com
3236 Scott Boulevard
Santa Clara, California 95054
Phone: (408) 986-5060
Fax: (408) 986-5095

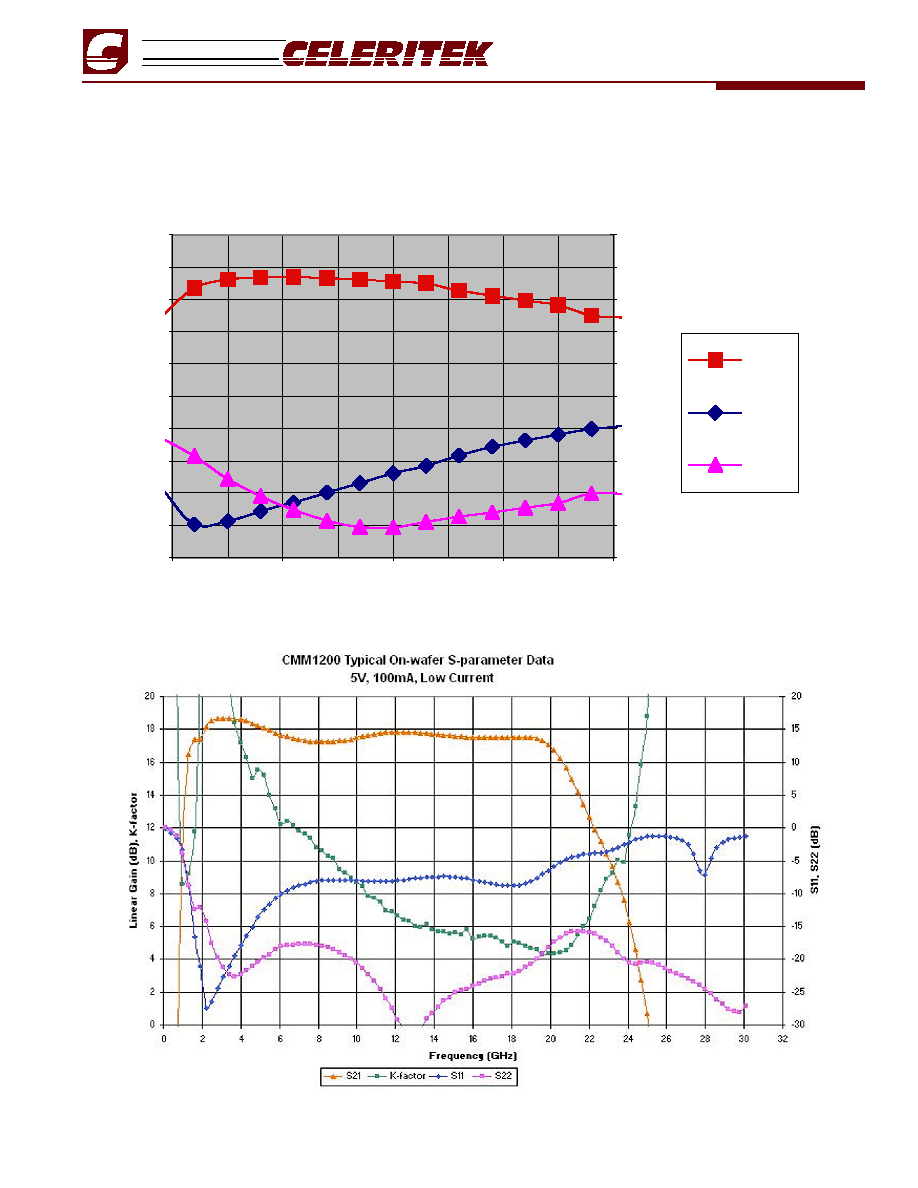

CMM1200 Typical Small-Signal Data
