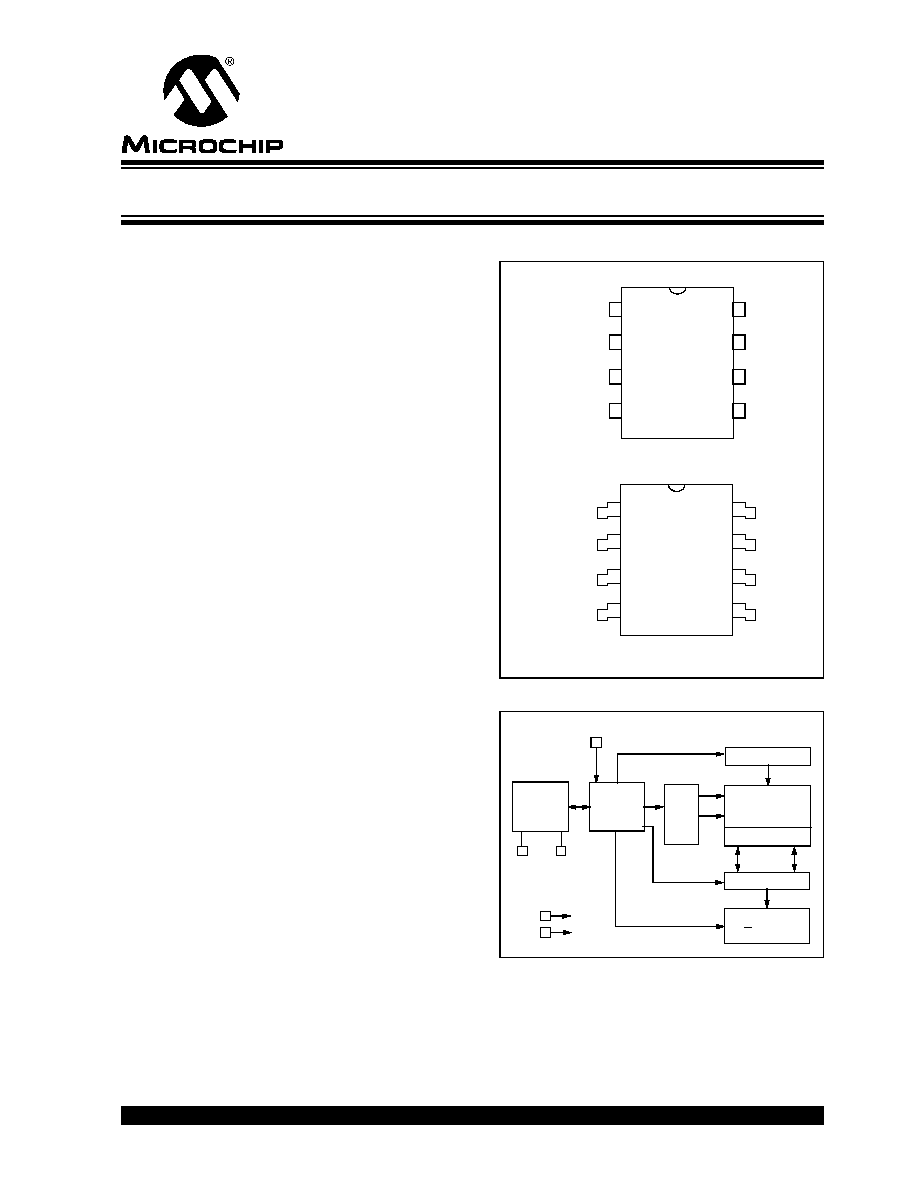

2001 Microchip Technology Inc.

DS21095H-page 1

FEATURES

· Single supply with operation down to 2.5V

· Completely implements DDC1

/DDC2

inter-

face for monitor identification

· Low power CMOS technology

- 1 mA active current typical

- 10

A standby current typical at 5.5V

· 2-wire serial interface bus, I

compatible

· Self-timed write cycle (including auto-erase)

· Page-write buffer for up to 8 bytes

· 100 kHz (2.5V) and 400 kHz (5V) compatibility

· Factory programming (QTP) available

· 1,000,000 erase/write cycles ensured

· Data retention > 200 years

· 8-pin PDIP and SOIC package

· Available for extended temperature ranges

DESCRIPTION

The Microchip Technology Inc. 24LC21 is a 128 x 8 bit
Electrically Erasable PROM. This device is designed
for use in applications requiring storage and serial
transmission of configuration and control information.
Two modes of operation have been implemented:
Transmit Only Mode and Bi-Directional Mode. Upon
power-up, the device will be in the Transmit Only Mode,
sending a serial bit stream of the entire memory array
contents, clocked by the V

CLK

pin. A valid high to low

transition on the SCL pin will cause the device to enter
the Bi-Directional Mode, with byte selectable read/write
capability of the memory array. The 24LC21 is available
in a standard 8-pin PDIP and SOIC package in both
commercial and industrial temperature ranges.

- Commercial (C):

0°C to +70°C

- Industrial (I):

-40°C to +85°C

PACKAGE TYPES

BLOCK DIAGRAM

24
L

CLK

SCL

SDA

24
LC
21

CLK

SCL

SDA

PDIP

SOIC

HV GENERATOR

EEPROM

ARRAY

PAGE LATCHES

YDEC

XDEC

SENSE AMP

R/W CONTROL

MEMORY

CONTROL

LOGIC

I/O

CONTROL

LOGIC

CLK

SDA

SCL

24LC21

1K 2.5V Dual Mode I

Serial EEPROM

DDC is a trademark of the Video Electronics Standards Association.
I

C is a trademark of Philips Corporation.

24LC21

DS21095H-page 2

2001 Microchip Technology Inc.

1.0

ELECTRICAL CHARACTERISTICS

1.1

Maximum Ratings*

...................................................................................7.0V

All inputs and outputs w.r.t. V

............... -0.6V to V

+1.0V

Storage temperature .....................................-65°C to +150°C
Ambient temp. with power applied ................-65°C to +125°C
Soldering temperature of leads (10 seconds) ............. +300°C
ESD protection on all pins

..................................................

4 kV

*Notice: Stresses above those listed under "Maximum ratings"
may cause permanent damage to the device. This is a stress rat-
ing only and functional operation of the device at those or any
other conditions above those indicated in the operational listings
of this specification is not implied. Exposure to maximum rating
conditions for extended periods may affect device reliability.

TABLE 1-1:

PIN FUNCTION TABLE

Name

Function

Ground

SDA

Serial Address/Data I/O

SCL

Serial Clock (Bi-Directional Mode)

CLK

Serial Clock (Transmit-Only Mode)

+2.5V to 5.5V Power Supply

No Connection

TABLE 1-2:

DC CHARACTERISTICS

= +2.5V to 5.5V

Commercial

(C): T

AMB

= 0°C to +70°C

Industrial (I): T

AMB

= -40°C to +85°C

Parameter

Symbol

Min

Max

Units

Conditions

SCL and SDA pins:

High level input voltage
Low level input voltage

.7 V

.3 V

V
V

--
--

Input levels on V

CLK

pin:

High level input voltage
Low level input voltage

2.0

.2 V

V
V

2.7V (Note 1)

< 2.7V (Note 1)

Hysteresis of Schmitt trigger inputs

HYS

.05 V

(Note 1)

Low level output voltage

OL1

= 3 mA, V

= 2.5V (Note 1)

Low level output voltage

OL2

= 6 mA, V

= 2.5V

Input leakage current

-10

= .1V to V

Output leakage current

-10

OUT

= .1V to V

Pin capacitance (all inputs/outputs)

, C

OUT

= 5.0V (Note1),

AMB

= 25

C, F

CLK

= 1 MHz

Operating current

Write

Read

--
--

3
1

mA
mA

= 5.5V, SCL = 400 kHz

Standby current

CCS

--
--

100

= 3.0V, SDA = SCL = V

= 5.5V, SDA = SCL = V

(Note 2)

Note 1: This parameter is periodically sampled and not 100% tested.

2: V

LCK

must be grounded.

2001 Microchip Technology Inc.

DS21095H-page 3

24LC21

TABLE 1-3:

AC CHARACTERISTICS

Parameter

Symbol

Standard Mode

Vcc= 4.5 - 5.5V

Fast Mode

Units

Remarks

Min

Max

Min

Max

Clock frequency

CLK

100

400

kHz

Clock high time

HIGH

4000

600

Clock low time

LOW

4700

1300

SDA and SCL rise time

1000

300

(Note 1)

SDA and SCL fall time

300

(Note 1)

START condition hold time

STA

4000

600

After this period the first clock
pulse is generated

START condition setup
time

STA

4700

600

Only relevant for repeated
START condition

Data input hold time

DAT

(Note 2)

Data input setup time

DAT

250

100

STOP condition setup time T

STO

4000

600

Output valid from clock

3500

900

(Note 2)

Bus free time

BUF

4700

1300

Time the bus must be free
before a new transmission
can start

Output fall time from V

min to V

max

250

20 + .1

250

(Note 1), C

100 pF

Input filter spike suppres-
sion (SDA and SCL pins)

(Note 3)

Write cycle time

Byte or Page mode

Transmit-Only Mode Parameters

Output valid from V

CLK

VAA

2000

1000

CLK

high time

VHIGH

4000

600

CLK

low time

VLOW

4700

1300

Mode transition time

VHZ

500

Transmit-Only power up
time

VPU

Endurance

cycles 25°C, V

= 5.0V, Block

Mode (Note 4)

Note 1: Not 100% tested. C

= total capacitance of one bus line in pF.

2: As a transmitter, the device must provide an internal minimum delay time to bridge the undefined region

(minimum 300 ns) of the falling edge of SCL to avoid unintended generation of START or STOP conditions.

3: The combined T

and V

HYS

specifications are due to new Schmitt trigger inputs which provide improved

noise and spike suppression. This eliminates the need for a T

specification for standard operation.

4: This parameter is not tested but ensured by characterization. For endurance estimates in a specific applica-

tion, please consult the Total Endurance Model which can be obtained on our website: www.microchip.com

24LC21

DS21095H-page 4

2001 Microchip Technology Inc.

2.0

FUNCTIONAL DESCRIPTION

The 24LC21 operates in two modes, the Transmit-Only
Mode and the Bi-Directional Mode. There is a separate
two wire protocol to support each mode, each having a
separate clock input and sharing a common data line
(SDA). The device enters the Transmit-Only Mode
upon power-up. In this mode, the device transmits data
bits on the SDA pin in response to a clock signal on the
V

CLK

pin. The device will remain in this mode until a

valid high to low transition is placed on the SCL input.
When a valid transition on SCL is recognized, the
device will switch into the Bi-Directional Mode. The only
way to switch the device back to the Transmit-Only
Mode is to remove power from the device.

2.1

Transmit-Only Mode

The device will power up in the Transmit-Only Mode.
This mode supports a unidirectional two wire protocol
for transmission of the contents of the memory array.
This device requires that it be initialized prior to valid
data being sent in the Transmit-Only Mode (see Initial-
ization Procedure, below). In this mode, data is trans-
mitted on the SDA pin in 8 bit bytes, each followed by a

ninth, null bit (see Figure 2-1). The clock source for the
Transmit-Only Mode is provided on the V

CLK

pin, and a

data bit is output on the rising edge on this pin. The
eight bits in each byte are transmitted most significant
bit first. Each byte within the memory array will be out-
put in sequence. When the last byte in the memory
array is transmitted, the output will wrap around to the
first location and continue. The Bi-Directional Mode
Clock (SCL) pin must be held high for the device to
remain in the Transmit-Only Mode.

2.2

Initialization Procedure

After V

has stabilized, the device will be in the Trans-

mit-Only Mode. Nine clock cycles on the V

CLK

pin must

be given to the device for it to perform internal synchro-
nization. During this period, the SDA pin will be in a
high impedance state. On the rising edge of the tenth
clock cycle, the device will output the first valid data bit
which will be the most significant bit of a byte. The
device will power up at an indeterminate byte address.
(Figure 2-2).

FIGURE 2-1:

TRANSMIT ONLY MODE

FIGURE 2-2:

DEVICE INITIALIZATION

SCL

SDA

VCLK

VAA

1 (LSB)

ULL

1 (MSB)

VLOW

VHIGH

VAA

IGH

MPEDANCE

FOR

CLOCK

CYCLES

VPU

SCL

SDA

VCLK

2001 Microchip Technology Inc.

DS21095H-page 5

24LC21

3.0

BI-DIRECTIONAL MODE

The 24LC21 can be switched into the Bi-Directional
Mode (see Figure 3-1) by applying a valid high to low
transition on the Bi-Directional Mode Clock (SCL).
When the device has been switched into the Bi-Direc-
tional Mode, the V

CLK

input is disregarded, with the

exception that a logic high level is required to enable
write capability. This mode supports a two wire bi-direc-
tional data transmission protocol. In this protocol, a
device that sends data on the bus is defined to be the
transmitter, and a device that receives data from the
bus is defined to be the receiver. The bus must be con-
trolled by a master device that generates the Bi-Direc-
tional Mode Clock (SCL), controls access to the bus
and generates the START and STOP conditions, while
the 24LC21 acts as the slave. Both master and slave
can operate as transmitter or receiver, but the master
device determines which mode is activated.

3.1

Bi-Directional Mode Bus
Characteristics

The following bus protocol has been defined:

· Data transfer may be initiated only when the bus

is not busy.

· During data transfer, the data line must remain

stable whenever the clock line is HIGH. Changes
in the data line while the clock line is HIGH will be
interpreted as a START or STOP condition.

Accordingly, the following bus conditions have been
defined (see Figure 3-2).

3.1.1

BUS NOT BUSY (A)

Both data and clock lines remain HIGH.

3.1.2

START DATA TRANSFER (B)

A HIGH to LOW transition of the SDA line while the
clock (SCL) is HIGH determines a START condition. All
commands must be preceded by a START condition.

3.1.3

STOP DATA TRANSFER (C)

A LOW to HIGH transition of the SDA line while the
clock (SCL) is HIGH determines a STOP condition. All
operations must be ended with a STOP condition.

FIGURE 3-1:

MODE TRANSITION

FIGURE 3-2:

DATA TRANSFER SEQUENCE ON THE SERIAL BUS

SCL

SDA

VCLK

Bi-Directional Mode

VHZ

Transmit Only Mode

(A)

(B)

(D)

(A)

(C)

START

CONDITION

ADDRESS OR

ACKNOWLEDGE

VALID

DATA

ALLOWED

TO CHANGE

STOP

CONDITION

SCL

SDA

24LC21

DS21095H-page 6

2001 Microchip Technology Inc.

3.1.4

DATA VALID (D)

The state of the data line represents valid data when,
after a START condition, the data line is stable for the
duration of the HIGH period of the clock signal.

The data on the line must be changed during the LOW
period of the clock signal. There is one clock pulse per
bit of data.

Each data transfer is initiated with a START condition
and terminated with a STOP condition. The number of
the data bytes transferred between the START and
STOP conditions is determined by the master device
and is theoretically unlimited, although only the last
eight will be stored when doing a write operation.
When an overwrite does occur it will replace data in a
first in first out fashion.

3.1.5

ACKNOWLEDGE

Each receiving device, when addressed, is obliged to
generate an acknowledge after the reception of each
byte. The master device must generate an extra clock
pulse which is associated with this acknowledge bit.

The device that acknowledges has to pull down the
SDA line during the acknowledge clock pulse in such a
way that the SDA line is stable LOW during the HIGH
period of the acknowledge related clock pulse. Of
course, setup and hold times must be taken into
account. A master must signal an end of data to the
slave by not generating an acknowledge bit on the last
byte that has been clocked out of the slave. In this
case, the slave must leave the data line HIGH to enable
the master to generate the STOP condition.

Note:

The 24LC21 does not generate any
acknowledge bits if an internal pro-
gramming cycle is in progress.

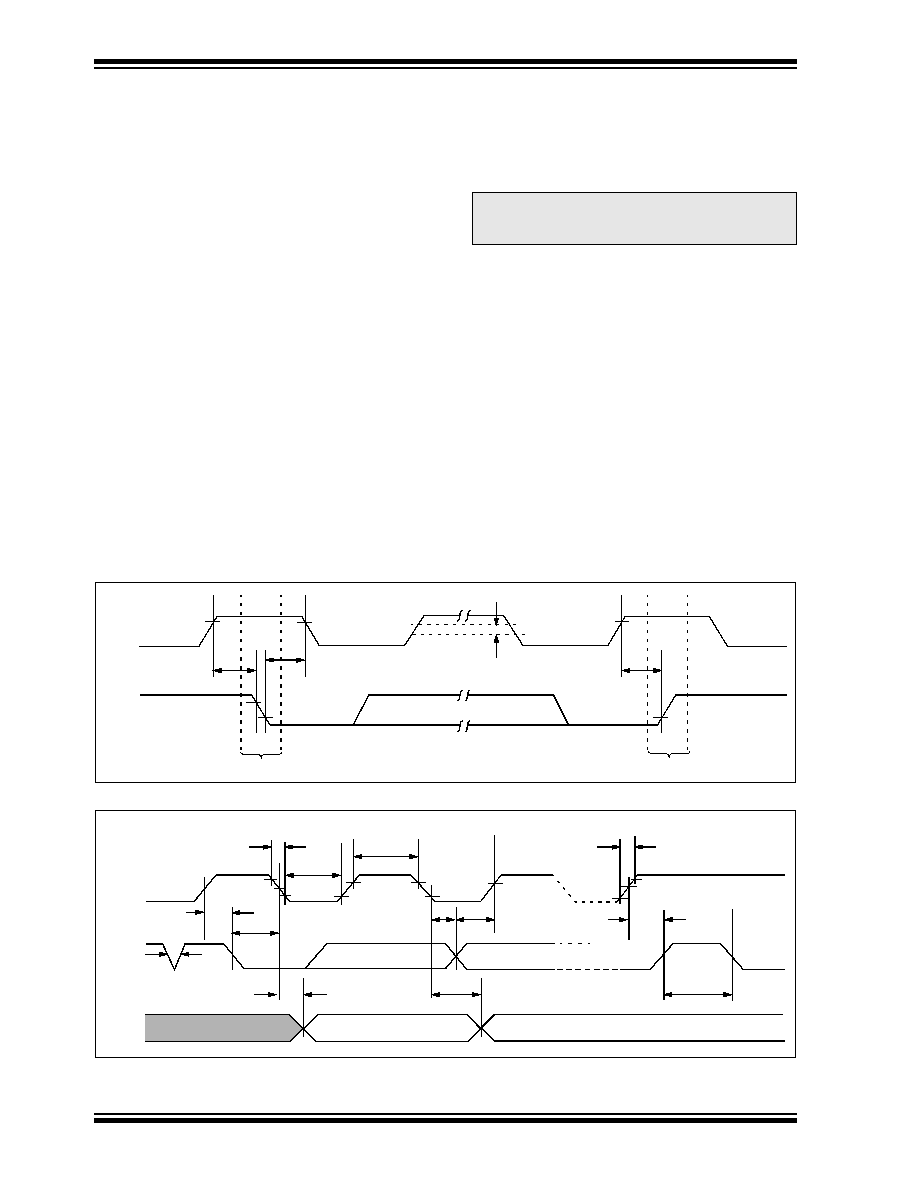

FIGURE 3-3:

BUS TIMING START/STOP

FIGURE 3-4:

BUS TIMING DATA

STA

HYS

STO

START

STOP

SCL

SDA

STA

LOW

HIGH

DAT

STO

STA

BUF

STA

SCL

SDA

SDA
OUT

24LC21

DS21095H-page 7

2001 Microchip Technology Inc.

3.1.6

SLAVE ADDRESS

After generating a START condition, the bus master
transmits the slave address consisting of a 7-bit device
code (

1010

) for the 24LC21, followed by three don't

care bits.

The eighth bit of slave address determines if the master
device wants to read or write to the 24LC21
(Figure 3-5).

The 24LC21 monitors the bus for its corresponding
slave address all the time. It generates an acknowl-
edge bit if the slave address was true and it is not in a
programming mode.

FIGURE 3-5:

CONTROL BYTE
ALLOCATION

4.0

WRITE OPERATION

4.1

Byte Write

Following the start signal from the master, the slave
address (4 bits), the don't care bits (3 bits) and the R/W
bit which is a logic low is placed onto the bus by the
master transmitter. This indicates to the addressed
slave receiver that a byte with a word address will fol-
low after it has generated an acknowledge bit during
the ninth clock cycle. Therefore, the next byte transmit-
ted by the master is the word address and will be writ-
ten into the address pointer of the 24LC21. After
receiving another acknowledge signal from the 24LC21
the master device will transmit the data word to be writ-
ten into the addressed memory location. The 24LC21
acknowledges again and the master generates a stop
condition. This initiates the internal write cycle, and dur-
ing this time the 24LC21 will not generate acknowledge
signals (Figure 4-1).

It is required that V

CLK

be held at a logic high level in

order to program the device. This applies to byte write
and page write operation. Note that V

CLK

can go low

while the device is in its self-timed program operation
and not affect programming.

4.2

Page Write

The write control byte, word address and the first data
byte are transmitted to the 24LC21 in the same way as
in a byte write. But instead of generating a stop condi-
tion the master transmits up to eight data bytes to the
24LC21 which are temporarily stored in the on-chip
page buffer and will be written into the memory after the
master has transmitted a stop condition. After the
receipt of each word, the three lower order address
pointer bits are internally incremented by one. The
higher order five bits of the word address remains con-
stant. If the master should transmit more than eight
words prior to generating the stop condition, the
address counter will roll over and the previously
received data will be overwritten. As with the byte write
operation, once the stop condition is received an inter-
nal write cycle will begin (Figure 4-3).

It is required that V

CLK

be held at a logic high level in

order to program the device. This applies to byte write
and page write operation. Note that V

CLK

can go low

while the device is in its self-timed program operation
and not affect programming.

Operation

Control Code

Chip Select

R/W

Read

1010

XXX

Write

1010

XXX

SLAVE ADDRESS

R/W

START

READ/WRITE

Note:

Page write operations are limited to
writing bytes within a single physical
page, regardless of the number of
bytes actually being written. Physical
page boundaries start at addresses that
are integer multiples of the page buffer
size (or `page size') and end at
addresses that are integer multiples of
[page size - 1]. If a page write command
attempts to write across a physical
page boundary, the result is that the
data wraps around to the beginning of
the current page (overwriting data pre-
viously stored there), instead of being
written to the next page as might be
expected. It is therefore necessary for
the application software to prevent
page write operations that would
attempt to cross a page boundary.

24LC21

DS21095H-page 9

2001 Microchip Technology Inc.

5.0

ACKNOWLEDGE POLLING

Since the device will not acknowledge during a write
cycle, this can be used to determine when the cycle is
complete (this feature can be used to maximize bus
throughput). Once the stop condition for a write com-
mand has been issued from the master, the device ini-
tiates the internally timed write cycle. ACK polling can
be initiated immediately. This involves the master send-
ing a start condition followed by the control byte for a
write command (R/W = 0). If the device is still busy with
the write cycle, then no ACK will be returned. If the
cycle is complete, then the device will return the ACK
and the master can then proceed with the next read or
write command. See Figure 5-1 for the flow diagram.

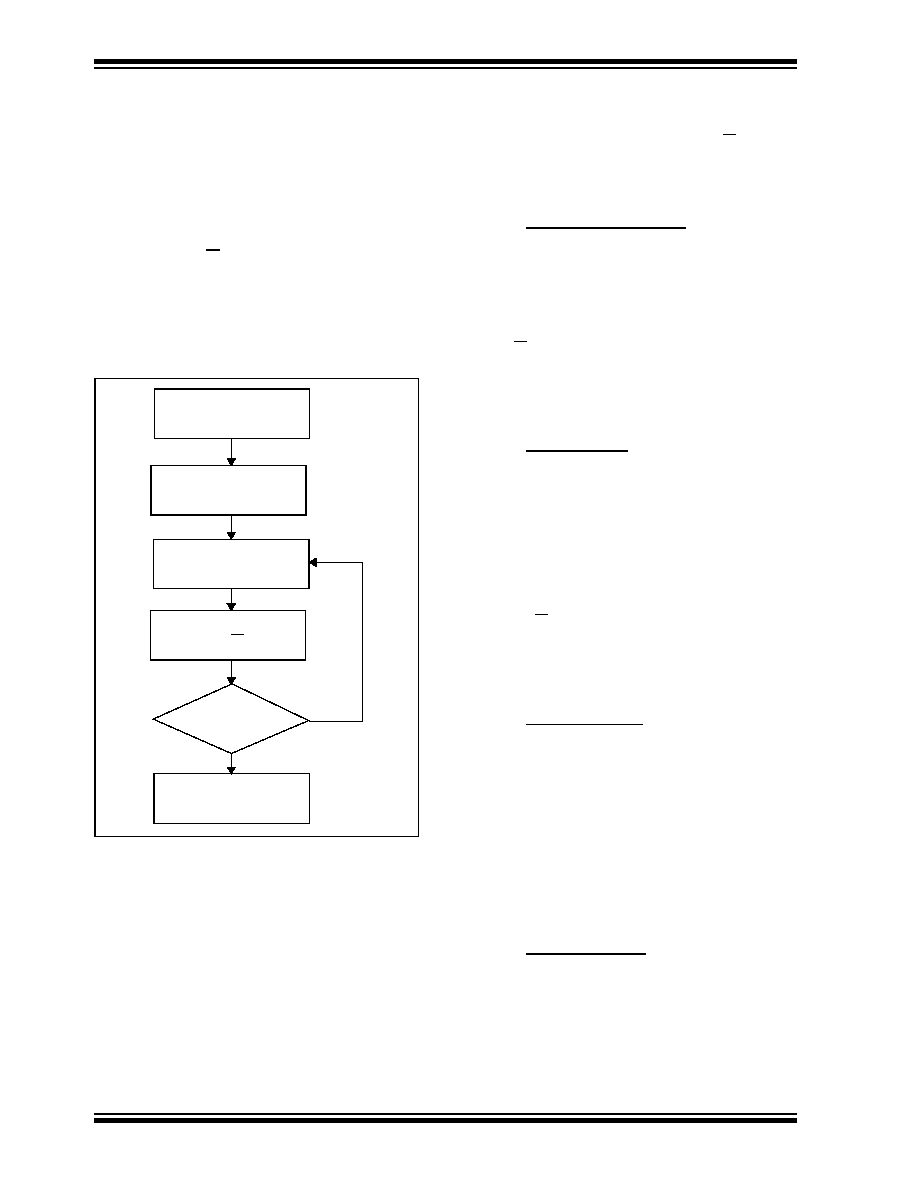

FIGURE 5-1:

ACKNOWLEDGE POLLING
FLOW

6.0

WRITE PROTECTION

When using the 24LC21 in the Bi-Directional Mode, the
V

CLK

pin operates as the write protect control pin. Set-

ting V

CLK

high allows normal write operations, while

setting V

CLK

low prevents writing to any location in the

array. Connecting the V

CLK

pin to V

would allow the

24LC21 to operate as a serial ROM, although this con-
figuration would prevent using the device in the Trans-
mit-Only Mode.

7.0

READ OPERATION

Read operations are initiated in the same way as write
operations with the exception that the R/W bit of the
slave address is set to `1'. There are three basic types
of read operations: current address read, random read
and sequential read.

7.1

Current Address Read

The 24LC21 contains an address counter that main-
tains the address of the last word accessed, internally
incremented by one. Therefore, if the previous access
(either a read or write operation) was to address n, the
next current address read operation would access data
from address n + 1. Upon receipt of the slave address
with R/W bit set to `1', the 24LC21 issues an acknowl-
edge and transmits the eight bit data word. The master
will not acknowledge the transfer but does generate a
stop condition and the 24LC21 discontinues transmis-
sion (Figure 7-1).

7.2

Random Read

Random read operations allow the master to access
any memory location in a random manner. To perform
this type of read operation, first the word address must
be set. This is done by sending the word address to the
24LC21 as part of a write operation. After the word
address is sent, the master generates a start condition
following the acknowledge. This terminates the write
operation, but not before the internal address pointer is
set. Then the master issues the control byte again but
with the R/W bit set to a `1'. The 24LC21 will then issue
an acknowledge and transmits the eight bit data word.
The master will not acknowledge the transfer but does
generate a stop condition and the 24LC21 discontinues
transmission (Figure 7-2).

7.3

Sequential Read

Sequential reads are initiated in the same way as a ran-
dom read except that after the 24LC21 transmits the
first data byte, the master issues an acknowledge as
opposed to a stop condition in a random read. This
directs the 24LC21 to transmit the next sequentially
addressed 8-bit word (see Figure 7-3).

To provide sequential reads the 24LC21 contains an
internal address pointer which is incremented by one at
the completion of each operation. This address pointer
allows the entire memory contents to be serially read
during one operation.

7.4

Noise Protection

The 24LC21 employs a V

threshold detector circuit

which disables the internal erase/write logic if the V

is below 1.5 volts at nominal conditions.

The SCL and SDA inputs have Schmitt trigger and filter
circuits which suppress noise spikes to assure proper
device operation even on a noisy bus.

Send

Write Command

Send Stop

Condition to

Initiate Write Cycle

Send Start

Send Control Byte

with R/W = 0

Did Device

Acknowledge

(ACK = 0)?

Operation

Yes

2001 Microchip Technology Inc.

DS21095H-page 10

24LC21

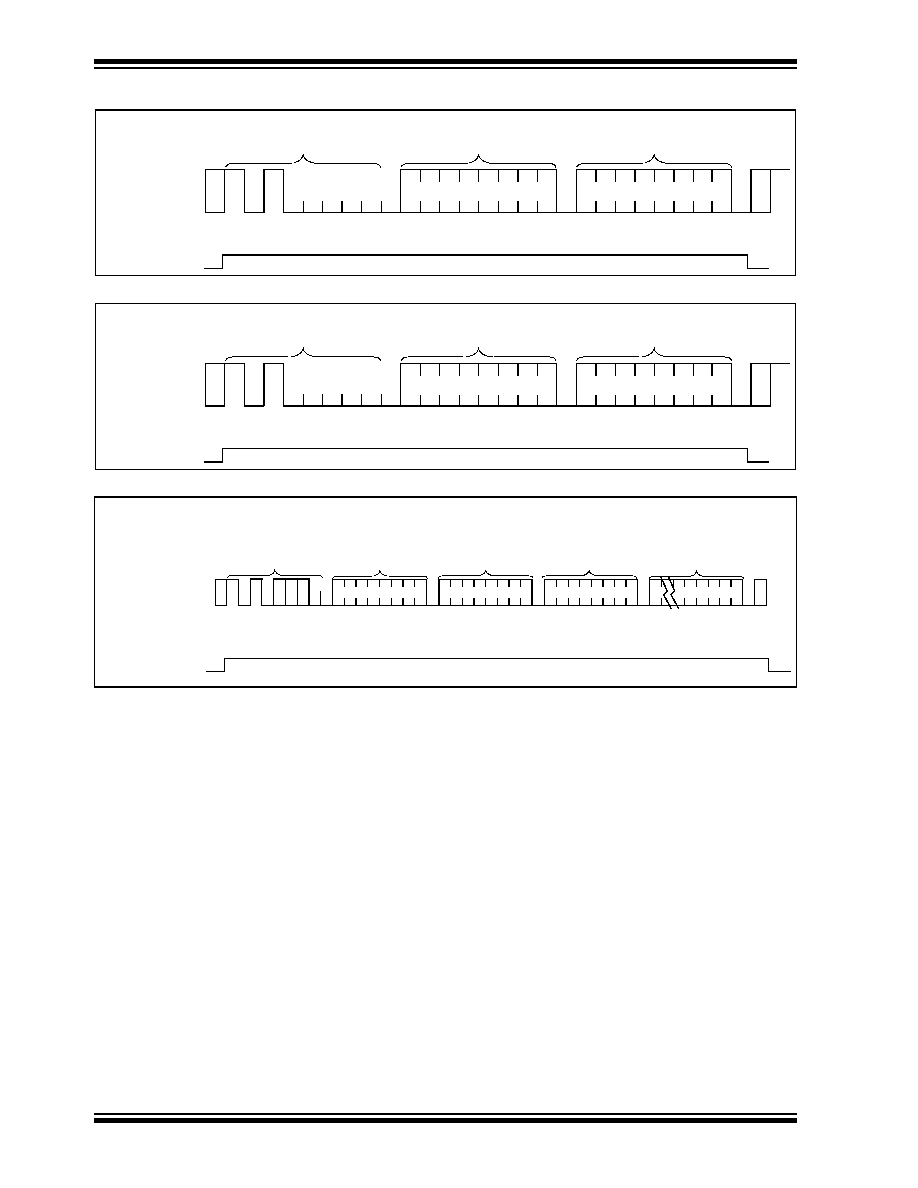

FIGURE 7-1:

CURRENT ADDRESS READ

FIGURE 7-2:

RANDOM READ

FIGURE 7-3:

SEQUENTIAL READ

BUS ACTIVITY
MASTER

SDA LINE

BUS ACTIVITY

S
T
A
R
T

CONTROL

BYTE

DATA (n)

A
C
K

N
O

A
C
K

S
T
O
P

BUS ACTIVITY
MASTER

SDA LINE

BUS ACTIVITY

S
T
A
R
T

S
T
O
P

CONTROL

BYTE

WORD

ADDRESS

DATA (n)

A
C
K

N
O

A
C
K

CONTROL

BYTE

A
C
K

S
T
A
R
T

BUS ACTIVITY
MASTER

SDA LINE

BUS ACTIVITY

S
T
O
P

CONTROL

BYTE

A
C
K

N
O

A
C
K

DATA (n)

DATA (n + 1)

DATA (n + 2)

DATA (n + X)

A
C
K

8.0

PIN DESCRIPTIONS

8.1

SDA

This pin is used to transfer addresses and data into and
out of the device, when the device is in the Bi-Direc-
tional Mode. In the Transmit-Only Mode, which only
allows data to be read from the device, data is also
transferred on the SDA pin. This pin is an open drain
terminal, therefore the SDA bus requires a pullup resis-
tor to V

(typical 10K

for 100 kHz, 2K

for 400 kHz).

For normal data transfer in the Bi-Directional Mode,
SDA is allowed to change only during SCL low.
Changes during SCL high are reserved for indicating
the START and STOP conditions.

8.2

SCL

This pin is the clock input for the Bi-Directional Mode,
and is used to synchronize data transfer to and from the
device. It is also used as the signaling input to switch
the device from the Transmit Only Mode to the Bi-Direc-
tional Mode. It must remain high for the chip to continue
operation in the Transmit Only Mode.

8.3

CLK

This pin is the clock input for the Transmit Only Mode.
In the Transmit Only Mode, each bit is clocked out on
the rising edge of this signal. In the Bi-Directional
Mode, a high logic level is required on this pin to enable
write capability.

24LC21

2001 Microchip Technology Inc.

DS21095H-page 11

24LC21 Product Identification System

To order or to obtain information, e.g., on pricing or delivery, please use the listed part numbers, and refer to the factory or the listed
sales offices.

Sales and Support

Package:

P = Plastic DIP (300 mil Body), 8-lead

SN = Plastic SOIC (150 mil Body), 8-lead

Temperature

Blank = 0°C to +70°C

Range:

= -40°C to +85°C

Device:

24LC21

Dual Mode I

C Serial EEPROM

24LC21T

Dual Mode I

C Serial EEPROM (Tape and Reel)

24LC21

Data Sheets
Products supported by a preliminary Data Sheet may have an errata sheet describing minor operational differences and recom-
mended workarounds. To determine if an errata sheet exists for a particular device, please contact one of the following:
1.

Your local Microchip sales office

The Microchip Corporate Literature Center U.S. FAX: (480) 792-7277

The Microchip Worldwide Web Site (www.microchip.com)

Please specify which device, revision of silicon and Data Sheet (include Literature #) you are using.

New Customer Notification System
Register on our web site (www.microchip.com/cn) to receive the most current information on our products.

24LC21

DS21095H-page 15

2001 Microchip Technology Inc.

"All rights reserved. Copyright © 2001, Microchip
Technology Incorporated, USA. Information contained
in this publication regarding device applications and the
like is intended through suggestion only and may be
superseded by updates. No representation or warranty
is given and no liability is assumed by Microchip
Technology Incorporated with respect to the accuracy
or use of such information, or infringement of patents or
other intellectual property rights arising from such use
or otherwise. Use of Microchip's products as critical
components in life support systems is not authorized
except with express written approval by Microchip. No
licenses are conveyed, implicitly or otherwise, under
any intellectual property rights. The Microchip logo and
name are registered trademarks of Microchip
Technology Inc. in the U.S.A. and other countries. All
rights reserved. All other trademarks mentioned herein
are the property of their respective companies. No
licenses are conveyed, implicitly or otherwise, under
any intellectual property rights."

Trademarks

The Microchip name, logo, PIC, PICmicro,
PICMASTER, PICSTART, PRO MATE, K

SEEVAL, MPLAB and The Embedded Control
Solutions Company are registered trademarks of
Microchip Technology Incorporated in the U.S.A. and
other countries.

Total Endurance, ICSP, In-Circuit Serial Programming,
FilterLab, MXDEV, microID, FlexROM, fuzzyLAB,
MPASM, MPLINK, MPLIB, PICDEM, ICEPIC,
Migratable Memory, FanSense, ECONOMONITOR,
SelectMode and microPort are trademarks of
Microchip Technology Incorporated in the U.S.A.

Serialized Quick Term Programming (SQTP) is a
service mark of Microchip Technology Incorporated in
the U.S.A.

All other trademarks mentioned herein are property of
their respective companies.

Microchip received QS-9000 quality system
certification for its worldwide headquarters,
design and wafer fabrication facilities in
Chandler and Tempe, Arizona in July 1999. The
Company's quality system processes and
procedures are QS-9000 compliant for its
PICmicro

8-bit MCUs, K

code hopping

devices, Serial EEPROMs and microperipheral
products. In addition, Microchip's quality
system for the design and manufacture of
development systems is ISO 9001 certified.

Information contained in this publication regarding device applications and the like is intended through suggestion only and may be superseded by
updates. It is your responsibility to ensure that your application meets with your specifications. No representation or warranty is given and no liability is
assumed by Microchip Technology Incorporated with respect to the accuracy or use of such information, or infringement of patents or other intellectual
property rights arising from such use or otherwise. Use of Microchip's products as critical components in life support systems is not authorized except with
express written approval by Microchip. No licenses are conveyed, implicitly or otherwise, except as maybe explicitly expressed herein, under any intellec-
tual property rights. The Microchip logo and name are registered trademarks of Microchip Technology Inc. in the U.S.A. and other countries. All rights
reserved. All other trademarks mentioned herein are the property of their respective companies.

DS21095H-page 16

2001 Microchip Technology Inc.

Printed on recycled paper.

AMERICAS

Corporate Office

2355 West Chandler Blvd.
Chandler, AZ 85224-6199
Tel: 480-792-7200 Fax: 480-792-7277
Technical Support: 480-792-7627
Web Address: http://www.microchip.com

Rocky Mountain

2355 West Chandler Blvd.
Chandler, AZ 85224-6199
Tel: 480-792-7966 Fax: 480-792-7456

Atlanta

500 Sugar Mill Road, Suite 200B
Atlanta, GA 30350
Tel: 770-640-0034 Fax: 770-640-0307

Austin

Analog Product Sales
8303 MoPac Expressway North
Suite A-201
Austin, TX 78759
Tel: 512-345-2030 Fax: 512-345-6085

Boston

2 Lan Drive, Suite 120
Westford, MA 01886
Tel: 978-692-3848 Fax: 978-692-3821

Boston

Analog Product Sales
Unit A-8-1 Millbrook Tarry Condominium
97 Lowell Road
Concord, MA 01742
Tel: 978-371-6400 Fax: 978-371-0050

Chicago

333 Pierce Road, Suite 180
Itasca, IL 60143
Tel: 630-285-0071 Fax: 630-285-0075

Dallas

4570 Westgrove Drive, Suite 160
Addison, TX 75001
Tel: 972-818-7423 Fax: 972-818-2924

Dayton

Two Prestige Place, Suite 130
Miamisburg, OH 45342
Tel: 937-291-1654 Fax: 937-291-9175

Detroit

Tri-Atria Office Building
32255 Northwestern Highway, Suite 190
Farmington Hills, MI 48334
Tel: 248-538-2250 Fax: 248-538-2260

Los Angeles

18201 Von Karman, Suite 1090
Irvine, CA 92612
Tel: 949-263-1888 Fax: 949-263-1338

Mountain View

Analog Product Sales
1300 Terra Bella Avenue
Mountain View, CA 94043-1836
Tel: 650-968-9241 Fax: 650-967-1590

New York

150 Motor Parkway, Suite 202
Hauppauge, NY 11788
Tel: 631-273-5305 Fax: 631-273-5335

San Jose

Microchip Technology Inc.
2107 North First Street, Suite 590
San Jose, CA 95131
Tel: 408-436-7950 Fax: 408-436-7955

Toronto

6285 Northam Drive, Suite 108
Mississauga, Ontario L4V 1X5, Canada
Tel: 905-673-0699 Fax: 905-673-6509

ASIA/PACIFIC

Australia

Microchip Technology Australia Pty Ltd
Suite 22, 41 Rawson Street
Epping 2121, NSW
Australia
Tel: 61-2-9868-6733 Fax: 61-2-9868-6755

China - Beijing

Microchip Technology Beijing Office
Unit 915
New China Hong Kong Manhattan Bldg.
No. 6 Chaoyangmen Beidajie
Beijing, 100027, No. China
Tel: 86-10-85282100 Fax: 86-10-85282104

China - Shanghai

Microchip Technology Shanghai Office
Room 701, Bldg. B
Far East International Plaza
No. 317 Xian Xia Road
Shanghai, 200051
Tel: 86-21-6275-5700 Fax: 86-21-6275-5060

Hong Kong

Microchip Asia Pacific
RM 2101, Tower 2, Metroplaza
223 Hing Fong Road
Kwai Fong, N.T., Hong Kong
Tel: 852-2401-1200 Fax: 852-2401-3431

India

Microchip Technology Inc.
India Liaison Office
Divyasree Chambers
1 Floor, Wing A (A3/A4)
No. 11, O'Shaugnessey Road
Bangalore, 560 025, India
Tel: 91-80-2290061 Fax: 91-80-2290062

Japan

Microchip Technology Intl. Inc.
Benex S-1 6F
3-18-20, Shinyokohama
Kohoku-Ku, Yokohama-shi
Kanagawa, 222-0033, Japan
Tel: 81-45-471- 6166 Fax: 81-45-471-6122

ASIA/PACIFIC

(continued)

Korea

Microchip Technology Korea
168-1, Youngbo Bldg. 3 Floor
Samsung-Dong, Kangnam-Ku
Seoul, Korea
Tel: 82-2-554-7200 Fax: 82-2-558-5934

Singapore

Microchip Technology Singapore Pte Ltd.
200 Middle Road
#07-02 Prime Centre
Singapore, 188980
Tel: 65-334-8870 Fax: 65-334-8850

Taiwan

Microchip Technology Taiwan
11F-3, No. 207
Tung Hua North Road
Taipei, 105, Taiwan
Tel: 886-2-2717-7175 Fax: 886-2-2545-0139

EUROPE

Denmark

Microchip Technology Denmark ApS
Regus Business Centre
Lautrup hoj 1-3
Ballerup DK-2750 Denmark
Tel: 45 4420 9895 Fax: 45 4420 9910

France

Arizona Microchip Technology SARL
Parc d'Activite du Moulin de Massy
43 Rue du Saule Trapu
Batiment A - ler Etage
91300 Massy, France
Tel: 33-1-69-53-63-20 Fax: 33-1-69-30-90-79

Germany

Arizona Microchip Technology GmbH
Gustav-Heinemann Ring 125
D-81739 Munich, Germany
Tel: 49-89-627-144 0 Fax: 49-89-627-144-44

Germany

Analog Product Sales
Lochhamer Strasse 13
D-82152 Martinsried, Germany
Tel: 49-89-895650-0 Fax: 49-89-895650-22

Italy

Arizona Microchip Technology SRL
Centro Direzionale Colleoni
Palazzo Taurus 1 V. Le Colleoni 1
20041 Agrate Brianza
Milan, Italy
Tel: 39-039-65791-1 Fax: 39-039-6899883

United Kingdom

Arizona Microchip Technology Ltd.
505 Eskdale Road
Winnersh Triangle
Wokingham
Berkshire, England RG41 5TU
Tel: 44 118 921 5869 Fax: 44-118 921-5820

01/30/01

ORLDWIDE

ALES

AND

ERVICE

ÐÐ»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: 24LC21T

Document Outline

Ð­Ð»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: 24LC21T

Document Outline

ÐÐ»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: 24LC21T
