ispLSI

8600V

3.3V In-System Programmable

SuperBIGTM High Density PLD

8600v_03

Copyright © 2000 Lattice Semiconductor Corp. All brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject
to change without notice.

LATTICE SEMICONDUCTOR CORP., 5555 Northeast Moore Ct., Hillsboro, Oregon 97124, U.S.A.
Tel. (503) 268-8000; 1-800-LATTICE; FAX (503) 268-8556; http://www.latticesemi.com

Features

· SuperBIG HIGH DENSITY IN-SYSTEM

PROGRAMMABLE LOGIC
-- 3.3V Power Supply
-- 32,000 PLD Gates/600 Macrocells
-- 192-264 I/O Pins Supporting 3.3V/2.5V I/O
-- 864 Registers
-- High-Speed Global and Big Fast Megablock (BFM)

Interconnect

-- Wide 20-Macrocell Generic Logic Block (GLB) for

High Performance

-- Wide Input Gating (44 Inputs per GLB) for Fast

Counters, State Machines, Address Decoders, Etc.

-- PCB-Efficient Ball Grid Array (BGA) Package

Options

· HIGH-PERFORMANCE E

CMOS

TECHNOLOGY

max = 125 MHz Maximum Operating Frequency

pd = 8.5 ns Propagation Delay

-- Electrically Erasable and Reprogrammable
-- Non-Volatile
-- Programmable Speed/Power Logic Path

Optimization

· IN-SYSTEM PROGRAMMABLE

-- Increased Manufacturing Yields, Reduced Time-to-

Market and Improved Product Quality

-- Reprogram Soldered Devices for Faster Debugging

· 100% IEEE 1149.1 BOUNDARY SCAN TESTABLE AND

3.3V IN-SYSTEM PROGRAMMABLE

· ARCHITECTURE FEATURES

-- Enhanced Pin-Locking Architecture, Symmetrical

Generic Logic Blocks Connected by Hierarchical
Big Fast Megablock and Global Routing Planes

-- Product Term Sharing Array Supports up to 28

Product Terms per Macrocell Output

-- Macrocells Support Concurrent Combinatorial and

Registered Functions

-- Embedded Tristate Bus Can Be Used as an Internal

Tristate Bus or as an Extension of an External
Tristate Bus

-- Macrocell and I/O Registers Feature Multiple Control

Options, Including Set, Reset and Clock Enable

-- I/O Pins Support Programmable Bus Hold, Pull-Up,

Open-Drain and Slew Rate Options

-- Separate VCCIO Power Supply to Support 3.3V or

2.5V Input/Output Logic Levels

-- I/O Cell Register Programmable as Input Register for

Fast Setup Time or Output Register for Fast Clock to
Output Time

· ispDesignEXPERTTM LOGIC COMPILER AND COM-

PLETE ISP DEVICE DESIGN SYSTEMS FROM HDL
SYNTHESIS THROUGH IN-SYSTEM PROGRAMMING
-- Superior Quality of Results
-- Tightly Integrated with Leading CAE Vendor Tools
-- Productivity Enhancing Timing Analyzer, Explore

Tools, Timing Simulator and ispANALYZERTM

-- PC and UNIX Platforms

Functional Block Diagram

ispLSI 8000V Family Description

The ispLSI 8000V Family of Register-Intensive, 3.3V
SuperBIG In-System Programmable Logic Devices is
based on Big Fast Megablocks of 120 registered macro-
cells and a Global Routing Plane (GRP) structure
interconnecting the Big Fast Megablocks. Each Big Fast
Megablock contains 120 registered macrocells arranged
in six groups of 20, a group of 20 being referred to as a
Generic Logic Block, or GLB. Within the Big Fast
Megablock, a Big Fast Megablock Routing Pool (BRP)
interconnects the six GLBs to each other and to 24 Big
Fast Megablock I/O cells with optional I/O registers. The
Global Routing Plane which interconnects the Big Fast
Megablocks has additional global I/Os with optional I/O
registers. The 192-I/O version contains 72 Big Fast
Megablock I/O and 120 global I/O, while the 264-I/O

Global Routing Plane

I/O

Big Fast Megablock 0

I/O

Big Fast Megablock 1

I/O

Big Fast Megablock 3

I/O

Big Fast Megablock 4

I/O

Big Fast Megablock 2

I/O

Boundary

Scan

8600v block

July 2000

Specifications

ispLSI 8600V

version contains 120 Big Fast Megablock I/O and 144
global I/O.

Outputs from the GLBs in a Big Fast Megablock can drive
both the Big Fast Megablock Routing Pool within the Big
Fast Megablock and the Global Routing Plane between
the Big Fast Megablocks. Switching resources are pro-
vided to allow signals in the Global Routing Plane to drive
any or all the Big Fast Megablocks in the device. This
mechanism allows fast, efficient connections, both within
the Big Fast Megablocks and between them.

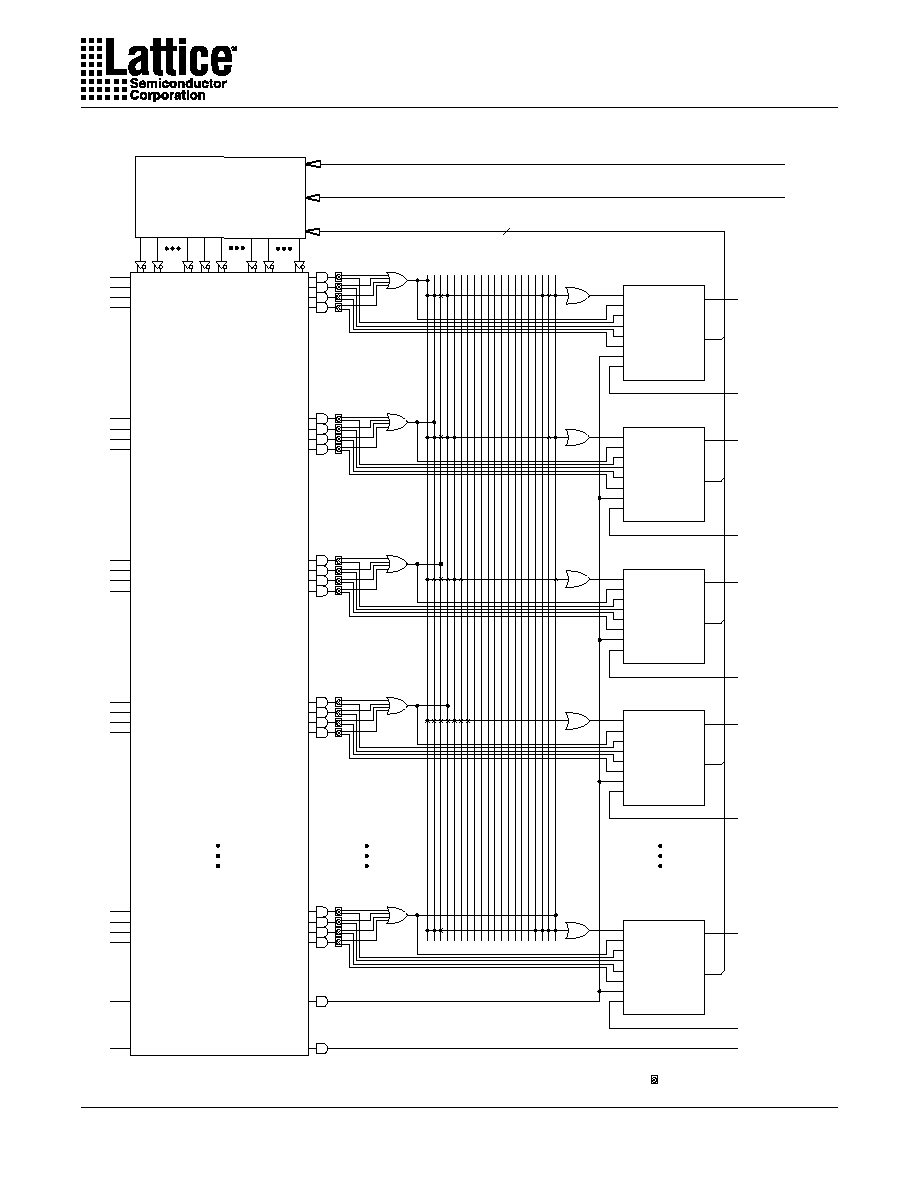

Each GLB contains 20 macrocells and a fully populated,
programmable AND-array with 82 logic product terms.
The GLB has 44 inputs from the Big Fast Megablock
Routing Pool which are available in both true and comple-
ment form for every product term. Up to 20 of these inputs
can be switched to provide local feedback into the GLB
for logic functions that require it. The 80 general-purpose
product terms can be grouped into 20 sets of four and
sent into a Product Term Sharing Array (PTSA) which
allows sharing up to a maximum of 28 product terms for
a single function. Alternatively, the PTSA can be by-
passed for functions of four product terms or less.

The 20 registered macrocells in the GLB are driven by the
20 outputs from the PTSA or the PTSA bypass. Each
macrocell contains a programmable XOR gate, a pro-
grammable register/latch/toggle flip-flop and the
necessary clocks and control logic to allow combinatorial
or registered operation. Each macrocell has two outputs,
one output can be fed back inside the GLB to the AND-
array, while the other output drives both the Big Fast
Megablock Routing Pool and the Global Routing Plane.
This dual output capability from the macrocell allows
efficient use of the hardware resources. One output can
be a registered function for example, while the other
output can be an unrelated combinatorial function.

Macrocell registers can be clocked from one of several
global, local or product term clocks available on the
device. A global, local and product term clock enable is
also provided, eliminating the need to gate the clock to
the macrocell registers. Reset and preset for the macrocell
register is provided from both global and product term
signals. The polarity of all of these control signals is
selectable on an individual macrocell basis. The macro-
cell register can be programmed to operate as a D-type
register, a D-type flow-through latch or a T-type flip flop.

The 20 outputs from the GLB can drive both the Big Fast
Megablock Routing Pool within the Big Fast Megablock

and the Global Routing Plane between the Big Fast
Megablocks. The Big Fast Megablock Routing Pool con-
tains general purpose tracks which interconnect the six
GLBs within the Big Fast Megablock and dedicated
tracks for the signals from the Big Fast Megablock I/O
cells. The Global Routing Plane contains general pur-
pose tracks that interconnect the Big Fast Megablocks
and also carry the signals from the I/Os connected to the
Global Routing Plane.

Control signals for the I/O cell registers are generated
using an extra product term within each GLB, or using
dedicated input pins. Each GLB has two extra product
terms beyond the 80 available for the macrocell logic.
The first additional product term is used as an optional
shared product term clock for all the macrocells within the
GLB. The second additional product term is then routed
to an I/O Control Bus using a separate routing structure
from the Big Fast Megablock Routing Pool and Global
Routing Plane. Use of a separate control bus routing
structure allows the I/O registers to have many control
signals with no impact on the interconnection of the GLBs
and Big Fast Megablocks. The I/O Control Bus is split into
four quadrants, each servicing the I/O cell control re-
quirements for one edge of the device. Signals in the
control bus can be independently selected by any or all
I/O cells to act as clock, clock enable, output enable,
reset or preset.

Each Big Fast Megablock has 24 I/O cells. The Global
Routing Pool has 144 I/O cells. Each I/O cell can be
configured as a combinatorial input, combinatorial out-
put, registered input, registered output or bidirectional
I/O. I/O cell registers can be clocked from one of several
global, local or product term clocks which are selected
from the I/O control bus. A global and product term clock
enable is also provided, eliminating the need for the user
to gate the clock to the I/O cell registers. Reset and preset
for the I/O cell register is provided from both global and
product term signals. The polarity of all of these control
signals is selectable on an individual I/O cell basis. The
I/O cell register can be programmed to operate as a D-
type register or a D-type latch.

The input thresholds are fixed at levels which comply with
both 3.3V and 2.5V interfaces. The output driver can
source 4mA and sink 8mA (3.3V output supply). The
output drivers have a separate VCCIO power supply
which is independent of the main VCC supply for the
device. This feature allows the output drivers to run from
either 3.3V or 2.5V while the device logic is always

ispLSI 8000V Family Description (Continued)

Specifications

ispLSI 8600V

powered from 3.3V. The output drivers also provide
individually programmable edge rates and open drain
capability. A programmable pullup resistor is provided to
tie off unused inputs and a programmable bus-hold latch
is available to hold tristate outputs in their last valid state
until the bus is driven again by another device.

The ispLSI 8000V Family features 3.3V, non-volatile in-
system programmability for both the logic and the
interconnect structures, providing the means to develop
truly reconfigurable systems. Programming is achieved
through the industry standard IEEE 1149.1-compliant
Boundary Scan interface using the JTAG protocol. Bound-
ary Scan test is also supported through the same interface.

An enhanced, multiple cell security scheme is provided
that prevents reading of the JEDEC programming file
when secured. After the device has been secured using
this mechanism, the only way to clear the security is to
execute a bulk-erase instruction.

ispLSI 8600V Description

The ispLSI 8600V device has five Big Fast Megablocks
for a total of 5 x 120 = 600 macrocells.

Each Big Fast Megablock has a total of 24 I/O cells and
the Global Routing Plane has a total of 144 I/O cells. This
gives (5 x 24) + 144 = 264 I/Os for the full I/O version,
while the partial I/O version contains 72 BFM I/O + 120
Global I/O = 192 I/Os.

The total registers in the device is the sum of macrocells
plus I/O cells, 600 + 264 = 864 registers.

Embedded Tristate Bus

There is a 108-line embedded internal tristate bus as part
of the Global Routing Plane (GRP), enabling multiple
GLBs to drive the same tracks. This bus can be parti-
tioned into various bus widths such as twelve 9-line
buses, six 18-line buses or three 36-line buses. The
GLBs can dynamically share a subset of the Global
Routing Plane tracks. This feature eliminates the need to
convert tristate buses to wide multiplexers on the pro-
grammable device. Up to 18 macrocells per GLB can
participate in driving the embedded tristate bus. The
remaining two macrocells per GLB are used to generate
the internal tristate driver control signals on each data
byte (with parity). The embedded tristate bus can also be
configured as an extension of an external tristate bus
using the bidirectional capability of the I/O cells con-
nected to the Global Routing Plane. The Global Routing
Plane I/Os 0-8 and 15-23 from each group (I/OGx as
defined in the I/O Pin Location Table) can connect to the
internal tristate bus as well as the unidirectional/non-
tristate global routing channels. I/Os 9-14 connect only to
the global routing channel.

The embedded tristate bus has internal bus hold and
arbitration features in order to make the function more
"user friendly". The bus hold feature keeps the internal
bus at the previously driven logic state when the bus is
not driven to eliminate bus float. The bus arbitration is
performed on a "first come, first served" priority. In other
words, once a logic block drives the bus, other logic
blocks cannot drive the bus until the first releases the bus.
This arbitration feature prevents internal bus contention
when there is an overlap between two bus enable sig-
nals. Typically, it takes about 3ns to resolve one bus
signal coming off the bus to another bus signal driving the
bus. The arbitration feature, combined with the predict-
ability of the CPLD, makes the embedded tristate bus the
most practical for real world bus implementation.

ispLSI 8000V Family Description (Continued)

Specifications

ispLSI 8600V

PT 0
PT 1
PT 2

To Output Control MUX

PT 3

Macrocell 0

Macrocell 19

To Interconnect

PT 8
PT 9

PT 10
PT 11

Macrocell 2

To Interconnect

PT 4
PT 5
PT 6
PT 7

Macrocell 1

To Interconnect

Feedback Inputs

PT 76
PT 77
PT 78
PT 79

PT 81

PT 80

PT 12
PT 13
PT 14
PT 15

Macrocell 3

To interconnect

PTSA Bypass
Single PT
PT Clock
PT Preset
PT Reset

From PTSA

Shared PT Clock

From Tristate
Bus Track

Bus Input

PTSA Bypass
Single PT
PT Clock
PT Preset
PT Reset

From PTSA

Shared PT Clock

From Tristate
Bus Track

Bus Input

PTSA Bypass
Single PT
PT Clock
PT Preset
PT Reset

From PTSA

Shared PT Clock

From Tristate
Bus Track

Bus Input

PTSA Bypass
Single PT
PT Clock
PT Preset
PT Reset

From PTSA

Shared PT Clock

From Tristate
Bus Track

Bus Input

PTSA Bypass
Single PT
PT Clock
PT Preset
PT Reset

From PTSA

Shared PT Clock

From Tristate Bus Track

Bus Input

General Purpose Big Fast Megablock Input Tracks

I/O Big Fast Megablock Input Tracks

AND Array Input

Routing

Fully Populated

AND Array

Product Term
Sharing Array

Function Selector (E

Cell Controlled)

Note: Macrocells 9 and 10 do not support Tristate Bus Feedback.

Figure 2. ispLSI 8000V GLB Overview

Specifications

ispLSI 8600V

Output Control Organization

In addition to the data input and output to the I/O cells,
each I/O cell can have up to six different I/O cell control
signals. In addition to the internal OE control, the five
control signals for each I/O cell consist of pin OE control,
clock enable, clock input, asynchronous preset and asyn-
chronous reset. All of the I/O control signals can be driven
either from the dedicated external input pins or from the
internal control bus.

The output enable of each I/O cell can be driven by 21
different sources 16 from the output control bus, four
from the Global OE pins and one from the Test OE pin.

Figure 5. Output Control Bus and Quadrant Organization

Quadrant 0, 16-Bit Wide Output Control Bus

(I/O B0-B4 <0-11>, QIOCLK0)

Quadrant 2, 16-Bit Wide Output Control Bus

(I/O B0-B4 <12-23>, QIOCLK2)

t 1

, 1

-B

it W

t C

l B

(I/O

-G

-2

, Q

)

r
a

t 3

, 1

-B

it W

t C

tro

l B

(I/O

-G

-
1

, Q

)

GLB

Generated

Output

Control

(see Figure 2)

From PT81

OE Bus/8600V.eps

The Global OE signals and Test OE signal are driven
from the dedicated external control input pins.

The 16-bit wide output control buses are organized in four
different quadrants as shown in Figure 5. Since each
GLB is capable of generating the output control signals,
each of the output control bus signals can be driven from
a unique GLB. The 30 GLBs can generate a total of 30
unique I/O control signals. Referring to Figure 2, the GLB
generates its output control signal from control product
term (PT81).

Figure 5 also illustrates how the quadrant clocks are
routed to the appropriate quadrant I/O cells.

Specifications

ispLSI 8600V

Figure 8. Boundary Scan Waveforms and Timing Specifications

TMS

TDI

TCK

TDO

Data to be

captured

Data to be

driven out

Valid Data

Data Captured

btsu

bth

btcl

btch

btcp

btvo

btco

btoz

btcpsu

btcph

btuov

btuco

btuoz

SYMBOL

Table 2-0010/8600V

PARAMETER

btch

btcl

btsu

bth

TCK Pulse Width High

TCK Pulse Width Low

TDI, TMS Setup Time to TCK

TDI, TMS Hold Time from TCK

btcp

TCK Clock Pulse Width

MAX

UNITS

100

btco

btvo

btcpsu

btcph

TAP Controller, TCK to TDO Valid

TAP Controller, TCK to TDO High-Impedance to Valid Output

BSCAN Test Capture Register Setup Time

BSCAN Test Capture Register Hold Time

TCK, TDI, TMS Rise and Fall Time

mV/ns

btoz

TAP Controller, TCK to TDO High-Impedance

btuco

btuoz

btuov

BSCAN Test Update Register Clock to Valid Output

BSCAN Test Update Register Clock to High-Impedance

BSCAN Test Update Register High-Impedance to Valid Output

MIN

Specifications

ispLSI 8600V

Absolute Maximum Ratings

1,2

Supply Voltage V

.................................. -0.5 to +5.4V

Input Voltage Applied ............................... -0.5 to +5.6V

Tri-Stated Output Voltage Applied ........... -0.5 to +5.6V

Storage Temperature ................................ -65 to 150

Case Temp. with Power Applied .............. -55 to 125

Max. Junction Temp. (T

) with Power Applied ... 150

1. Stresses above those listed under the "Absolute Maximum Ratings" may cause permanent damage to the device. Functional

operation of the device at these or at any other conditions above those indicated in the operational sections of this specification
is not implied (while programming, follow the programming specifications).

2. Compliance with the Thermal Management section of the Lattice Semiconductor Data Book or CD-ROM is a requirement.

DC Recommended Operating Condition

Capacitance (T

=25

C,f=1.0 MHz)

Erase/Reprogram Specification

SYMBOL

Table 2-0005/8600V

CCIO

PARAMETER

I/O Supply Voltage

MIN.

MAX.

UNITS

2.3

3.6

Supply Voltage

Commercial T = 0

C to 70

3.0

3.6

SYMBOL

Table 2-0006/8600V

PARAMETER

Clock Capacitance

UNITS

TYPICAL

TEST CONDITIONS

V = 3.3V, V = 2.0V

Global Input Capacitance

V = 3.3V, V = 2.0V

I/O Capacitance

V = 3.3V, V = 2.0V

I/O

Table 2-0008/8600V

PARAMETER

MINIMUM

MAXIMUM

UNITS

Erase/Reprogram Cycles

10000

Cycles

Specifications

ispLSI 8600V

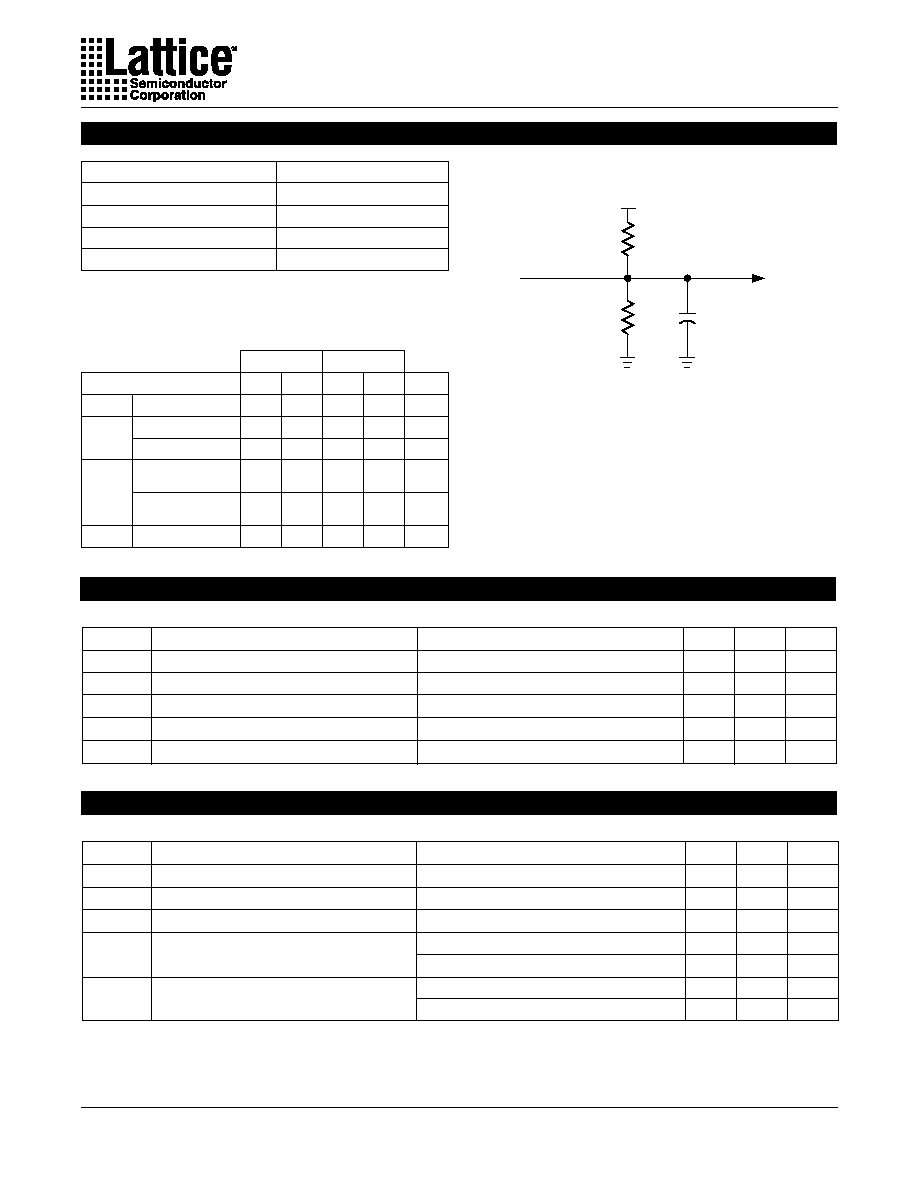

Switching Test Conditions

Figure 9. Test Load

Output Load Conditions (See Figure 9)

Over Recommended Operating Conditions

DC Electrical Characteristics for 3.3V Range

Input Pulse Levels

Table 2-0003/8600V

Input Rise and Fall Time

Input Timing Reference Levels

Ouput Timing Reference Levels

Output Load

GND to VCCIO

min

1.5V

See Figure 9

3-state levels are measured 0.5V from
steady-state active level.

1.5 ns 10% to 90%

TEST CONDITION

3.3V

2.5V

316

348

35pF

348

35pF

316

35pF

Active High

Active Low

Slow Slew

316

5pF

348

511

475

511

35pF

475

5pF

Active Low to Z
at V +0.5V

Active High to Z
at V -0.5V

Table 2-0004A/8600V

VCCIO

Device
Output

Test

Point

CL includes Test Fixture and Probe Capacitance.

0213A/8600V

SYMBOL

Table 2-0007/8600V

PARAMETER

Output Low Voltage

Output High Voltage

Input High Voltage

I = 8 mA

I = -4 mA

CONDITION

MIN.

MAX.

UNITS

2.4

2.0

0.4

5.25

Input Low Voltage

-0.3

0.8

CCIO

I/O Supply Voltage

3.0

3.6

= 0

C to + 70

Over Recommended Operating Conditions

DC Electrical Characteristics for 2.5V Range

Table 2-0007B/8600V

SYMBOL

PARAMETER

Input High Voltage

CONDITION

MIN.

MAX.

UNITS

1.7

5.25

Input Low Voltage

= 0

C to + 70

-0.3

0.7

CCIO

I/O Supply Voltage

2.3

2.7

Output High Voltage

CCIO=min

, V

or V

, I

= -2mA

CCIO=min

, V

or V

, I

= 2mA

1.7

CCIO=min

, V

or V

, I

= -100

2.1

0.7

CCIO=min

, V

or V

, I

= 100

0.2

Output Low Voltage

Specifications

ispLSI 8600V

Over Recommended Operating Conditions

DC Electrical Characteristics

SYMBOL

1. Measured at a frequency of 1MHz using 30 20-bit counters.
2. Typical values are at V

= 3.3V and T

= 25

3. Maximum I

varies widely with specific device configuration and operating frequency.

4. Pullup is capable of pulling minimum voltage of V

under no-load conditions.

5. Unused inputs held at GND.

Table 2-0007C/8600V

BHL

PARAMETER

BHH

BHLO

1,3,5

I/O Active Pullup Current

Bus Hold Low Sustaining Current

Bus Hold High Sustaining Current

Bus Hold Low Overdrive Current

Operating Power Supply Current

V = 0.5V, V = 3.0V
f = 1 MHz

Input or I/O High Leakage Current

Input or I/O Low Leakage Current

V (Max.)

IN IL

TOGGLE

IL IH

CONDITION

MIN.

TYP.

MAX.

UNITS

-40

330

-10

-250

550

BHLH

BHT

Bus Hold High Overdrive Current

Bus Hold Trip Points

-550

High Speed Mode

160

Low Power Mode

CCIO

-0.2)V

CCIO

5.25V

CCIO

IL(max)

IH(min)

Specifications

ispLSI 8600V

pd1

UNITS

-90

-60

MIN.

TEST

COND.

Table 2-0030/8600V

MAX.

DESCRIPTION

PARA-

METER

1 Prop Delay, BFM Input to Same BFM Output, 4 PT Bypass

10.0

pd2

2 Prop Delay, Global Input to Global Output

suq

4 I/O Cell Reg, Data Setup Time, Quadrant I/O Clock

8.0

5 I/O Cell Reg, Data Hold Time, Quadrant I/O Clock

coq

6 I/O Cell Reg, Quadrant Clock to Output Delay

6.0

sug

7 I/O Cell Reg, Data Setup Time, Global Clock

8 I/O Cell Reg, Data Hold Time, Global Clock

cog

9 I/O Cell Reg, Global Clock to Output Delay

7.5

su1

10 GLB Reg Setup, BFM Input to Same BFM GLB, 4 PT Bypass

11 GLB Reg Hold Time, BFM Input to Same BFM GLB

0.0

co1

12 GLB Reg, Global Clock to Same BFM Output Delay

10.0

suceq

13 I/O Cell Reg, CLKEN Setup Time, Quadrant I/O Clock

6.5

hceq

14 I/O Cell Reg, CLKEN Hold Time, Quadrant I/O Clock

0.0

suceg

15 GLB Reg, CLKEN Setup Time, Global Clock

4.5

hceg

16 GLB Reg, CLKEN Hold Time, Global Clock

0.0

goe

B/C

17 Global Output Enable/Disable Delay

rglb

18 Global Reset/Preset Time, GLB Reg

15.0

rio

19 Global Reset/Preset Time, I/O Cell Reg

10.0

20 Global Reset/Preset Pulse Duration

6.5

0.0

6.0

7.0

16.0

13.5

10.0

0.0

21 Global or Quadrant Clock Pulse, High Duration

6.0

22 Global or Quadrant Clock Pulse, Low Duration

6.0

max

3 Clk Frequency, Local Feedback, Same GLB

90.0

15.0

12.0

9.0

11.0

0.0

15.0

9.5

0.0

6.5

0.0

22.0

15.0

9.5

0.0

9.0

10.0

24.0

15.0

0.0

9.0

60.0

MHz

-125

MIN. MAX.

8.5

5.0

4.0

6.0

0.0

8.0

5.5

0.0

3.5

0.0

14.0

8.5

5.0

0.0

3.5

4.5

7.0

0.0

4.0

125.0

1. Unless noted otherwise, all parameters use PTSA and CLK0.
2. Refer to Timing Model in this data sheet for further details.
3. Standard 20-bit counter with local feedback.
4. Refer to Switching Test Conditions section.

External Switching Characteristics

Over Recommended Operating Conditions

Specifications

ispLSI 8600V

Internal Timing Parameters

Over Recommended Operating Conditions

I/O Cell Delay

idcom

23 Input Pad and Input Buffer, Combinatorial Input

0.3

0.4

0.6

idreg

24 Input Pad and Input Buffer, Registered Input

6.4

7.6

11.2

obp

25 Output Register/Latch Bypass to Output Buffer

0.0

ibp

26 Input Register/Latch Bypass to BFM Routing or GRP

0.4

0.5

0.8

iolat

27 I/O Cell Latch, Transparent Mode

2.0

2.4

3.6

ioco

28 I/O Cell Register/Latch, Clk/Gate to Output

0.5

1.2

1.6

iosu

29 I/O Cell Register/Latch, Setup Time

0.5

2.4

3.9

ioh

30 I/O Cell Register/Latch, Hold Time

2.5

3.2

4.7

iorst

31 I/O Cell Register/Latch, Reset or Set Time

1.5

1.7

2.5

iosuce

32 I/O Cell Register/Latch, Setup Time for Clk Enable

0.9

1.0

1.2

iohce

33 I/O cell Register/Latch, Hold Time for Clk Enable

4.6

6.9

odreg

34 I/O Cell Output Buffer Delay, Registered Output

1.6

1.9

2.9

odcom

35 I/O Cell Output Buffer Delay, Combinatorial Output

1.6

1.9

2.9

odz

36 Output Driver Disable Time

1.4

1.7

2.6

slf

37 Slew Rate Adder, Fast Slew Rate

0.0

sls

38 Slew Rate Adder, Slow Slew Rate

6.2

7.3

10.9

GLB / Macrocell Delay

andhs

39 AND Array, High Speed Mode

2.6

2.9

4.2

andlp

40 AND Array, Low Power Mode

6.5

7.7

11.5

1pt

41 Single Product Term Bypass

1.9

2.2

3.4

4ptcom 42 Four Product Term Bypass, Combinatorial Macrocell

0.5

0.6

0.9

4ptreg

43 Four Product Term Bypass, Registered Macrocell

1.4

1.7

2.2

ptsa

44 Product Term Sharing Array

2.4

2.7

4.1

mbp

45 Macrocell Register/Latch Bypass

0.0

mlat

46 Macrocell Latch, Transparent Mode

4.6

5.5

8.2

mco

47 Macrocell Register/Latch, Clk/Gate to Output

0.2

0.8

0.9

msu

48 Macrocell Register/Latch, Setup Time

2.7

4.5

6.9

49 Macrocell Register/Latch, Hold Time

1.0

1.2

1.1

mrst

50 Macrocell Register/Latch, Reset or Set Time

2.0

1.5

1.6

msuce

51 Macrocell Register/Latch, Setup Time for Clk Enable

1.0

1.3

1.7

mhce

52 Macrocell Register/Latch, Hold Time for Clk Enable

2.3

2.6

3.9

floc

54 Local Feedback to AND Array

0.1

0.6

pck

55 Single Product Term, Clk

1.3

1.6

2.5

pcken

56 Single Product Term, Clk Enable

1.7

2.0

3.1

sck

57 Shared Product Term, Clk

1.7

1.9

2.0

2.3

3.1

3.5

scken

58 Shared Product Term, Clk Enable

1.7

1.9

2.0

2.3

3.1

3.5

prst

59 Single Product Term, Reset or Set Delay

1.5

1.7

2.6

rdir

60 Macrocell Register, Direct Input from GRP

7.2

8.4

12.7

-125

-90

-60

MIN

MAX

MIN

MAX

MIN

MAX

UNITS

PARA-
METER #

DESCRIPTION

Specifications

ispLSI 8600V

Internal Timing Parameters

Over Recommended Operating Conditions

BFM / Global Routing Pool Delay

bfmi

61 BFM Routing Delay, Signal from I/O Cell

0.4

1.0

0.6

1.3

0.8

1.9

grpi

62 GRP Delay, Signal from I/O Cell

1.6

1.9

2.8

grpiz

63 Internal Tristate Bus Enable/Disable, I/O Cell Buffer

4.1

4.9

7.3

bfmm

64 BFM Routing Delay, Signal from Macrocell

0.6

0.7

1.1

grpm

65 GRP Delay, Signal from Macrocell

2.0

3.0

4.5

grpmz

66 Internal Tristate Bus Enable/Disable, Macrocell Buffer

3.0

4.3

6.5

bfmg

67 BFM Routing Delay, Signal from GRP

2.5

3.3

4.9

grpb

68 GRP Delay, Signal from BFM Routing

1.3

1.5

2.3

bcom

69 BFM Routing to I/O Cell, Combinatorial Path

1.5

1.7

2.6

breg

70 BFM Routing to I/O Cell, Registered Path

2.3

2.6

4.0

gcom

71 GRP to I/O Cell, Combinatorial Path

0.8

1.2

greg

72 GRP to I/O Cell, Registered Path

1.6

1.7

2.6

I/O Control Bus Delay

piock

73 Product Term as I/O Cell Register Clock

4.1

4.7

7.2

piocken 74 Product Term as I/O Cell Register Clock Enable

4.6

5.3

8.1

poe

75 Product Term as Output Buffer Enable/Disable

5.6

6.5

9.9

piorst

76 Product Term as I/O Cell Register Reset or Set Delay

4.3

5.0

7.6

pioz

77 Internal Tristate Bus Control Signal for I/O Cell Buffer

3.3

3.8

5.8

Global Control Delay

gck

78 Global Macrocell Register Clk

3.9

4.1

4.3

4.9

6.6

7.5

gcken

79 Global Macrocell Register Clk Enable

6.4

7.5

11.4

giock

80 Global I/O Register Clk

3.4

3.9

4.0

4.4

6.1

6.5

giocken 81 Global I/O Register Clk Enable

6.5

7.5

11.4

qck

82 Quadrant I/O Register Clk

1.9

2.0

2.9

3.1

4.5

goe

83 Global Output Enable

5.6

8.3

12.4

toe

84 Test Output Enable

8.5

10.1

15.2

gmrst

85 Global GLB Register Reset

7.6

7.8

11.8

giorst

86 Global I/O Cell Register Reset

5.4

6.4

9.6

1. Internal Timing Parameters are not tested and are for reference only.
2. Refer to Timing Model in this data sheet for further details.

-125

-90

-60

MIN

MAX

MIN

MAX

MIN

MAX

UNITS

PARA-
METER #

DESCRIPTION

Specifications

ispLSI 8600V

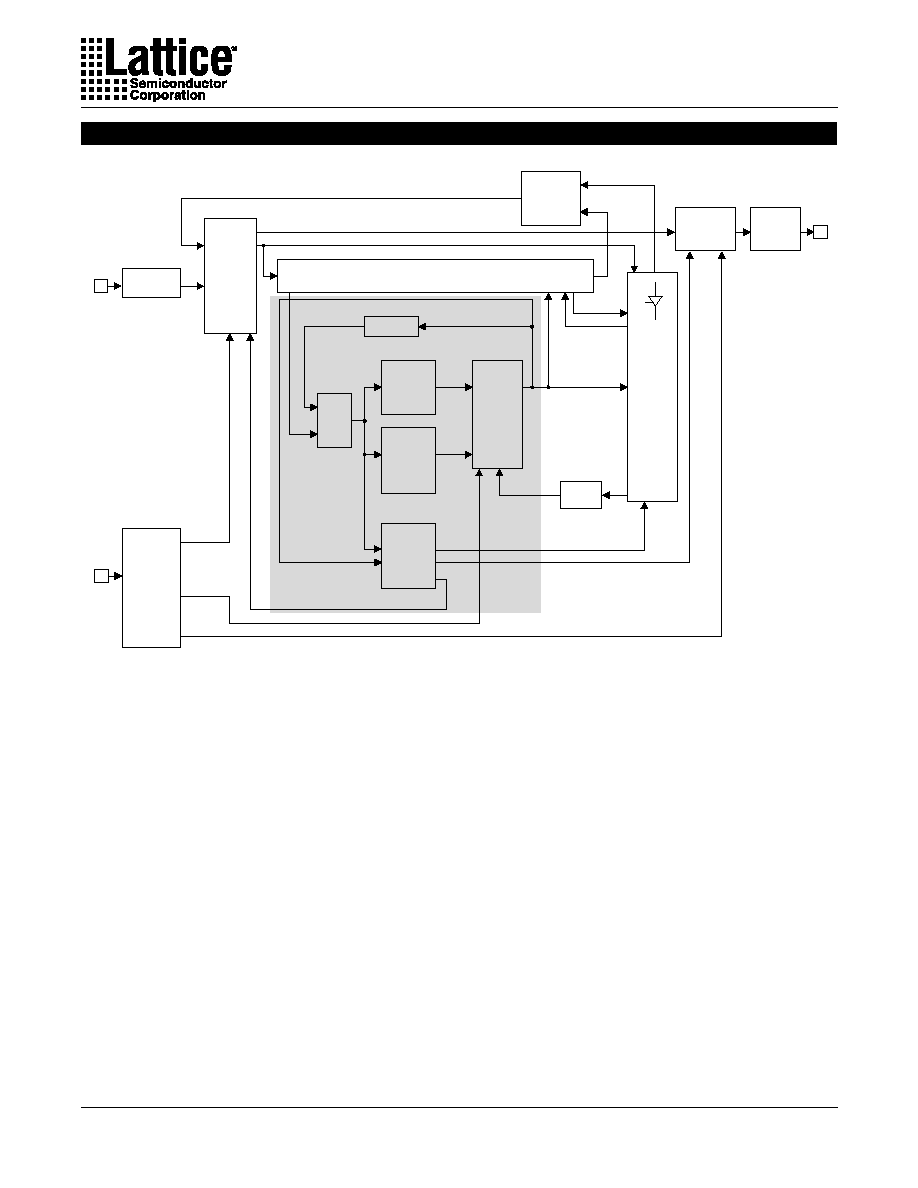

ispLSI 8600V Timing Model

I/O register delays

BFM Routing Pool

Output routing

Output

buffer

delays

Output

slew rate

adders

I/O

pad

AND array

PTSA

Macrocell

I/O

pad

Input

pad

8840V_Model.eps

slf

#37,

#38,

sls

odreg

odcom

#34,
#35,
#36,

odz

bcom

breg

gcom

#69,
#70,
#71,
#72,

greg

obp

#25,

ibp

#26,

iolat

#27,

ioco

#28,

iosu

#29,

ioh

#30,

iosuce

#32,

iohce

#33,

#31,

iorst

#23,

idcom

#24,

idreg

#61,

bfmi

#67,

bfmg

#64,

bfmm

grpi

grpiz

grpm

grpmz

#62,
#63,
#65,
#66,
#68,

grpb

andhs

andlp

1pt

4ptcom

4ptreg

#41,
#42,
#43,
#44,

ptsa

mbp

mlat

mco

msu

mrst

msuce

#45,
#46,
#47,
#48,
#49,
#50,
#51,
#52,

mbce

giock

#80,

#39,

#40,

giocken

#81,

qck

#82,

giorst

#86,

gck

#78,

gcken

#79,

gmrst

#85,

goe

#83,

#84,

toe

pck

pcken

sck

scken

#55,
#56,
#57,
#58,
#59,

prst

#54,

floc

#60,

rdir

GLB/
Macrocell

Global

Routing

Plane

PT Mcell controls

Local feedback

Bus direct

Input Buffer and I/O Cell Register

Output path

Input path

piock

piocken

poe

piorst

#73,
#74,
#75,
#76,
#77,

pioz

PT I/O control bus

Input buffer

delays

Global control

delay

Specifications

ispLSI 8600V

Example Timing Calculations

pd1

= (BFM Input Path Delay) + (GLB Delay) + (Output Path Delay)
= (

idcom +

ibp +

bfmi max) + (

andhs +

4ptcom +

mbp) + (

bfmm +

bcom +

obp +

odcom +

slf)

= (#23 + #26 + #61) + (#39 + #42 + #45) + (#64 + #69 + #25 + #35 + #37)
= (0.3 + 0.4 + 1.0) + (2.6 + 0.5 + 0.0) + (0.6 + 1.5 + 0.0 + 1.6 + 0.0)
= 8.5 ns

pd (within BFM)

= (BFM Delay) + (GLB Delay)
= (

bfmm) + (

andhs +

4ptcom +

mbp)

= (#64) + (#39 + #42 + #45)
= (0.6) + (2.6 + 0.5 + 0.0)
= 3.7 ns

pd (between BFMs)

= (GRP Delay) + (BFM Delay) + (GLB Delay)
= (

grpm) + (

bfmg) + (

andhs +

4ptcom +

mbp)

= (#65) + (#67) + (#39 + #42 + #45)
= (2.0) + (2.5) + (2.6 + 0.5 + 0.0)
= 7.6 ns

BFM I/O to internal tri-state Enable/Disable

= (BFM Input Path Delay) + (GLB Delay, 1PT) + (Tri-state Control Delay)
= (

idcom +

ibp +

bfmi max) + (

andhs +

1pt +

mbp) + (

grpmz)

= (#23 + #26 + #61) + (#39 + #41 + #45) + (#66)
= (0.3 + 0.4 + 1.0) + (2.6 + 1.9 + 0.0) + (3.0)
= 9.2 ns

su1

= (BFM Input Path Delay) + (GLB Setup Time) - (Min. Global Clock Delay)
= (

idcom +

ibp +

bfmi max) + (

andhs +

4ptreg +

msu) (

gck min)

= (#23 + #26 + #61) + (#39 + #43 + #48) (#78)
= (0.3 + 0.4 + 1.0) + (2.6 + 1.4 + 2.7) (3.9)
= 4.5 ns

max = (Global Clk to MC Output) + (Local Feedback) + (GLB Setup Time)

= (

mco) + (

floc) + (

andhs +

ptsa +

msu)

= (#47) + (#54) + (#39 + #44 + #48)
= (0.2) + (0.1) + (2.6 + 2.4 + 2.7)
= 8.0 ns

max

= 125 MHz

Note: Calculations are based upon timing specifications for the ispLSI 8600V-125L

Specifications

ispLSI 8600V

Power Consumption

Power consumption in the ispLSI 8600V device depends
on two primary factors: the speed at which the device is
operating and the number of product terms used. The
product terms have a fuse-selectable speed/power
tradeoff setting. Each group of four product terms has a
single speed/power tradeoff control fuse that acts on the
complete group of four. The fast "high-speed" setting

operates product terms at their normal full power con-
sumption. For portions of the logic that can tolerate
longer propagation delays, selecting the slower "low-
power" setting will significantly reduce the power
dissipation for these product terms. Figure 10 shows the
relationship between power and operating speed.

0127/8600V

The ICC estimate is based on typical conditions (VCC = 3.3V, room temperature) and an assumption of two GLB loads
on average exists. These values are for estimates only. Since the value of ICC is sensitive to operating conditions
and the program in the device, the actual ICC should be verified.

ICC can be estimated for the ispLSI 8600V using the following equation:

ICC = 25.0 + (# of Turbo PTs * 0.25) + (# of Non-Turbo PTs * 0.11) + (# of Macrocells Used * fmax * AF * 0.04)
# of Turbo PTs = Number of Turbo Product Terms Used in Design
# of Non-Turbo PTs = Number of Non-Turbo Product Terms Used in Design
fmax = Maximum Operating Frequency

Average Macrocell Toggle Frequency

Note: An Activity Factor of 1.0 means all macrocell registers toggle at fmax. An Activity Factor of 0.5 means the
average macrocell register toggles at half of fmax.

Fmax

AF (Activity Factor) =

max (MHz)

CC (mA)

Notes: Configuration of 30 20-bit counters

Typical current at 3.3V, 25¡ C

600

500

400

300

200

100

Turbo
Non-Turbo

110

ispLSI 8600V

120 130

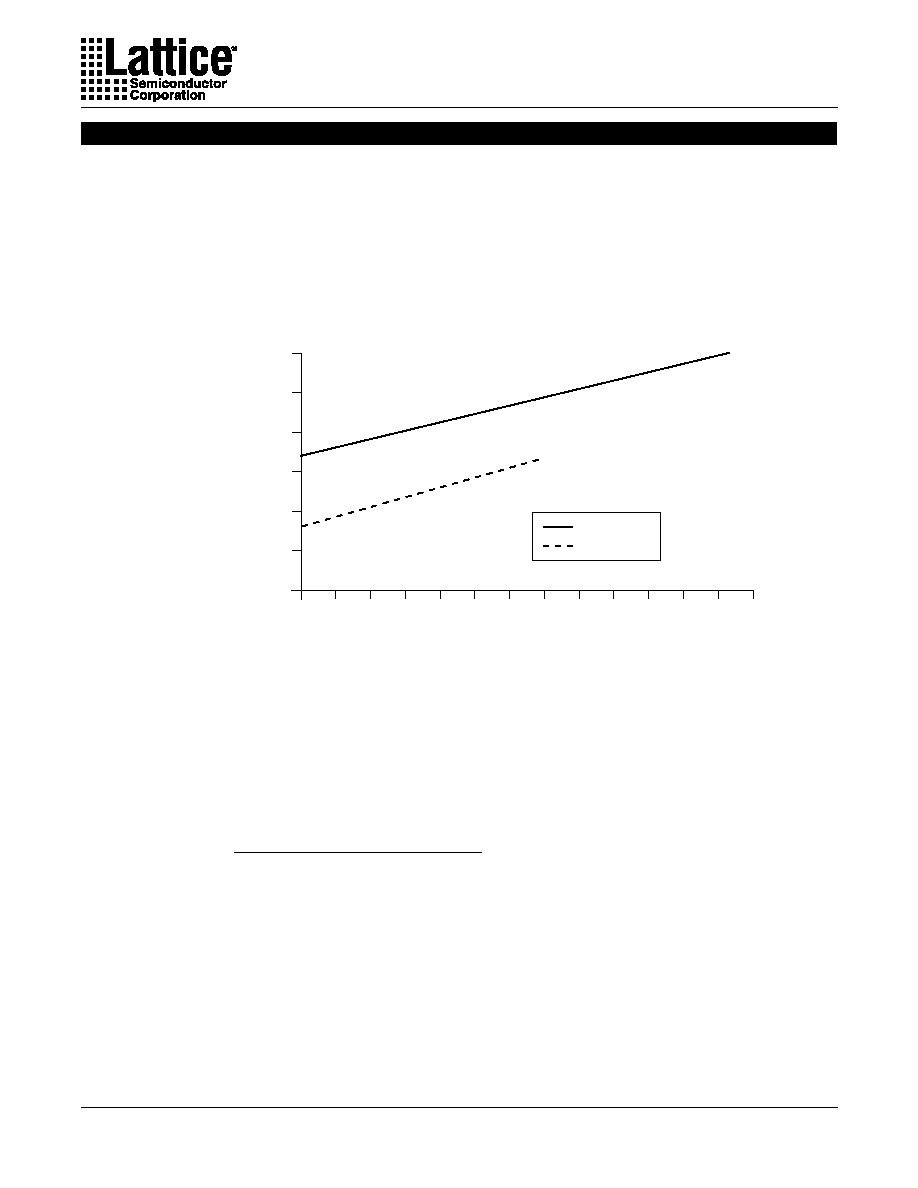

Figure 10. Typical Device Power Consumption vs fmax

Specifications

ispLSI 8600V

CLK0, CLK1,

Dedicated clock input for the GLB registers only. These clock inputs are connected to one of the clock

CLK2

inputs of all GLB registers in the device.

CLKEN

Dedicated clock enable input for the GLB registers only. This input is available as a clock enable for
each GLB register in the device. Use of the clock enable input eliminates the need for the user to gate
the clock to the register.

GND

Ground (GND)

GOE0, GOE1,

Global Output Enable inputs.

GOE2, GOE3

SET/RESET

Dedicated, reset/preset pin connected to ALL registers in the device, GLB registers and
I/O registers. Each register can independently choose to be reset or preset when this signal goes
active. The active polarity is user selectable.

IOCLKEN

Dedicated clock enable input for the I/O registers only. This input is available as a clock enable input for
all I/O registers in the device. Use of the clock enable input eliminates the need for the user to tie the
clock to the I/O register.

I/O

Input/Output These are the general purpose I/O used by the logic array.

EPEN

Embedded Port Enable Pin When this pin is high, the port is enabled. When this pin is low, the
state machine is held at reset asynchronously and TCK, TMS and TDI are ignored.

TMS

Input This signal is the Test Mode Select input signal.

QIOCLK0,

Dedicated clock inputs for the I/O registers only. These clock inputs are connected to the I/O registers

QIOCLK1,

on the same side of the device only, they are not connected to all of the I/O registers. Use of these

QIOCLK2,

quadrant I/O clocks gives the fastest tco from the device.

QIOCLK3

TCK

Input This signal is the Test Clock input signal.

TDI

Input This signal is the Test Data input signal.

TDO

Output This signal is the Test Data Out Output Signal.

TOE

Test Output Enable. Tristates all I/O pins when a logic low is driven.

VCC

Vcc

VCCIO

Power supply for the output drivers. The internal logic of the device is connected to VCC which is
always 3.3V. The output drivers are connected to VCCIO which can be equal to VCC or 2.5V. This
allows the output drivers to be powered from 2.5V, for example, to interface directly with another 2.5V
device.

No connect.

Signal Descriptions

Signal Name Description

1. NC pins are not to be connected to any active signals, VCC or GND.

Specifications

ispLSI 8600V

Signal Locations

QIOCLK0, QIOCKL1, Y8, M20, C8, N2

AE14, P22, A15, N3

QIOCLK2, QIOCLK3

CLK0, CLK1, CLK2

Y9, P18, D8

AC15, R24, B15

CLKEN

AB17

IOCLKEN

E16

EPEN

C17

B26

TCK

TDI

AF1

TDO

TMS

AC4

GOE0, GOE1,

Y10, M19, C9, N1

AF15, P23, D16, N5

GOE2, GOE3

TOE

SET/RESET

VCC

D9, D10, D11, D12, J4, J17, K4, K17, L4, L17, M4,

E9, E12, E15, E18, F5, F10, F17, F22, G5, G22,

M17, U9, U10, U11, U12

K5, K22, L22, M5, N22, P5, R22, T5, U5, U22,
Y5, Y22, AA5, AA10, AA17, AA22, AB9, AB12,
AB15, AB18

VCCIO

A7, A8, A20, B16, C5, C12, E4, G20, H4, M1, N17,

E8, E13, E19, F7, F20, J6, J21, K3, L24, N1,

U2, U20, V2, V6, W7, W8, W16, W19, Y13

P24, T3, U25, V6, Y23, AA7, AA20, AB8, AB14,
AB19

GND

D4, D16, D17, J9, J10, J11, J12, K9, K10, K11,

E5, E11, E14, E22, F6, F21, L11, L12, L13, L14,

K12, L9, L10, L11, L12, M9, M10, M11, M12, U4,

L15, L16, M11, M12, M13, M14, M15, M16, N11,

U17

N12, N13, N14, N15, N16, P11, P12, P13, P14,
P15, P16, R11, R12, R13, R14, R15, R16, T11,
T12, T13, T14, T15, T16, AA6, AA21, AB5,
AB13, AB16, AB22

A9, V17, W9

A1, A6, A7, A8, A16, A20, A21, A22, , B1, B2,
B7, B8, B9, B20, B21, C1, C2, C3, C7, C8, C9,
C19, C20, C21, C24, C25, C26, D1, D2, D3, D4,
D7, D8, D9, D19, D20, D21, D24,D25, D26, E6,
E17, E20, E21, E23, E24, E25, E26, F8, F9,
F18, F19, G6, G21, Y6, Y21, AA8, AA9, AA18,
AA19, AB1, AB2, AB3, AB4, AB6, AB10, AB20,
AB21, AB23, AC1, AC2, AC3, AC6, AC7, AC8,
AC18, AC19, AC20, AC23, AC24, AC25, AC26,
AD1, AD2, AD3, AD6, AD7, AD8, AD15, AD19,
AD20, AD25, AD26, AE1, AE6, AE7, AE8, AE19,
AE20, AE21, AE25, AE26, AF6, AF7, AF8,
AF19, AF20, AF21, AF25, AF26

Signal Name

1. NC pins are not to be connected to any active signals, VCC or GND.

272-Ball BGA

492-Ball BGA

Specifications

ispLSI 8600V

I/O Pin Locations (272-Ball BGA Package)

Signal BGA

I/O G0 <0>

I/O G0 <1>

I/O G0 <2>

I/O G0 <3>

I/O G0 <4>

I/O G0 <5>

I/O G0 <6>

I/O G0 <7>

I/O G0 <8>

I/O G0 <9>

I/O G0 <10>

I/O G0 <11>

I/O G0 <12>

U19

I/O G0 <13>

R17

I/O G0 <14>

V20

I/O G0 <15>

V19

I/O G0 <16>

U18

I/O G0 <17>

V18

I/O G0 <18>

T17

I/O G0 <19>

W20

I/O G0 <20>

Y20

I/O G0 <21>

Y19

I/O G0 <22>

W18

I/O G0 <23>

Y18

I/O G2 <0>

I/O G2 <1>

I/O G2 <2>

I/O G2 <3>

I/O G2 <4>

I/O G2 <5>

I/O G2 <6>

I/O G2 <7>

I/O G2 <8>

I/O G2 <9>

I/O G2 <10>

I/O G2 <11>

I/O G2 <12>

N18

I/O G2 <13>

N19

I/O G2 <14>

N20

I/O G2 <15>

P19

I/O G2 <16>

P17

I/O G2 <17>

P20

I/O G2 <18>

R20

I/O G2 <19>

R19

I/O G2 <20>

R18

I/O G2 <21>

T20

I/O G2 <22>

T19

I/O G2 <23>

T18

I/O G3 <0>

I/O G3 <1>

I/O G3 <2>

I/O G3 <3>

I/O G3 <4>

I/O G3 <5>

I/O G3 <6>

I/O G3 <7>

I/O G3 <8>

I/O G3 <9>

I/O G3 <10>

I/O G3 <11>

I/O G3 <12>

M18

I/O G3 <13>

L20

I/O G3 <14>

L19

I/O G3 <15>

L18

I/O G3 <16>

K20

I/O G3 <17>

K19

I/O G3 <18>

K18

I/O G3 <19>

J20

I/O G3 <20>

H20

I/O G3 <21>

J19

I/O G3 <22>

H19

I/O G3 <23>

J18

I/O G4 <0>

I/O G4 <1>

I/O G4 <2>

I/O G4 <3>

I/O G4 <4>

I/O G4 <5>

I/O G4 <6>

I/O G4 <7>

I/O G4 <8>

I/O G4 <9>

I/O G4 <10>

I/O G4 <11>

I/O G4 <12>

D20

I/O G4 <13>

F17

I/O G4 <14>

E19

I/O G4 <15>

G17

I/O G4 <16>

G18

I/O G4 <17>

F18

I/O G4 <18>

E20

I/O G4 <19>

F19

I/O G4 <20>

H17

I/O G4 <21>

F20

I/O G4 <22>

H18

I/O G4 <23>

G19

I/O G5 <0>

I/O G5 <1>

I/O G5 <2>

I/O G5 <3>

I/O G5 <4>

I/O G5 <5>

I/O G5 <6>

I/O G5 <7>

I/O G5 <8>

I/O G5 <9>

I/O G5 <10>

I/O G5 <11>

I/O G5 <12>

D19

I/O G5 <13>

E18

I/O G5 <14>

C20

I/O G5 <15>

B20

I/O G5 <16>

A19

I/O G5 <17>

C19

I/O G5 <18>

D18

I/O G5 <19>

B19

I/O G5 <20>

C18

I/O G5 <21>

E17

I/O G5 <22>

B18

I/O G5 <23>

A18

I/O B0 <0>

I/O B0 <1>

I/O B0 <2>

I/O B0 <3>

I/O B0 <4>

I/O B0 <5>

I/O B0 <6>

I/O B0 <7>

I/O B0 <8>

I/O B0 <9>

I/O B0 <10>

I/O B0 <11>

I/O B0 <12>

I/O B0 <13>

I/O B0 <14>

I/O B0 <15>

I/O B0 <16>

I/O B0 <17>

I/O B0 <18>

I/O B0 <19>

I/O B0 <20>

I/O B0 <21>

I/O B0 <22>

I/O B0 <23>

I/O B3 <0>

V10

I/O B3 <1>

W10

I/O B3 <2>

Y11

I/O B3 <3>

W11

I/O B3 <4>

V11

I/O B3 <5>

Y12

I/O B3 <6>

W12

I/O B3 <7>

V12

I/O B3 <8>

W13

I/O B3 <9>

U13

I/O B3 <10>

V13

I/O B3 <11>

Y14

Signal BGA

I/O B3 <12>

B14

I/O B3 <13>

D13

I/O B3 <14>

B13

I/O B3 <15>

A13

I/O B3 <16>

A12

I/O B3 <17>

B12

I/O B3 <18>

B11

I/O B3 <19>

A11

I/O B3 <20>

C11

I/O B3 <21>

B10

I/O B3 <22>

A10

I/O B3 <23>

C10

I/O B4 <0>

W14

I/O B4 <1>

V14

I/O B4 <2>

U14

I/O B4 <3>

Y15

I/O B4 <4>

W15

I/O B4 <5>

V15

I/O B4 <6>

U15

I/O B4 <7>

Y16

I/O B4 <8>

V16

I/O B4 <9>

U16

I/O B4 <10>

W17

I/O B4 <11>

Y17

I/O B4 <12>

B17

I/O B4 <13>

A17

I/O B4 <14>

C16

I/O B4 <15>

D15

I/O B4 <16>

C15

I/O B4 <17>

A16

I/O B4 <18>

B15

I/O B4 <19>

D14

I/O B4 <20>

C14

I/O B4 <21>

A15

I/O B4 <22>

A14

I/O B4 <23>

C13

Specifications

ispLSI 8600V

I/O Pin Locations (492-Ball BGA Package)

Signal BGA

I/O G0 <0>

AA4

I/O G0 <1>

AA3

I/O G0 <2>

AA2

I/O G0 <3>

AA1

I/O G0 <4>

I/O G0 <5>

I/O G0 <6>

I/O G0 <7>

I/O G0 <8>

I/O G0 <9>

I/O G0 <10>

I/O G0 <11>

I/O G0 <12>

U21

I/O G0 <13>

Y26

I/O G0 <14>

Y25

I/O G0 <15>

Y24

I/O G0 <16>

V21

I/O G0 <17>

AA26

I/O G0 <18>

AA25

I/O G0 <19>

AA24

I/O G0 <20>

AA23

I/O G0 <21>

AB26

I/O G0 <22>

AB25

I/O G0 <23>

AB24

I/O G1 <0>

I/O G1 <1>

I/O G1 <2>

I/O G1 <3>

I/O G1 <4>

I/O G1 <5>

I/O G1 <6>

I/O G1 <7>

I/O G1 <8>

I/O G1 <9>

I/O G1 <10>

I/O G1 <11>

I/O G1 <12>

W23

I/O G1 <13>

W24

I/O G1 <14>

W25

I/O G1 <15>

W26

I/O G1 <16>

V22

I/O G1 <17>

V23

I/O G1 <18>

V24

I/O G1 <19>

V25

I/O G1 <20>

V26

I/O G1 <21>

W22

I/O G1 <22>

U23

I/O G1 <23>

U24

I/O G2 <0>

I/O G2 <1>

I/O G2 <2>

I/O G2 <3>

I/O G2 <4>

I/O G2 <5>

I/O G2 <6>

I/O G2 <7>

I/O G2 <8>

I/O G2 <9>

I/O G2 <10>

I/O G2 <11>

I/O G2 <12>

P26

I/O G2 <13>

P25

I/O G2 <14>

R23

I/O G2 <15>

T22

I/O G2 <16>

R26

I/O G2 <17>

R25

I/O G2 <18>

T26

I/O G2 <19>

T23

I/O G2 <20>

W21

I/O G2 <21>

T24

I/O G2 <22>

T25

I/O G2 <23>

U26

I/O G3 <0>

I/O G3 <1>

I/O G3 <2>

I/O G3 <3>

I/O G3 <4>

I/O G3 <5>

I/O G3 <6>

I/O G3 <7>

I/O G3 <8>

I/O G3 <9>

I/O G3 <10>

I/O G3 <11>

I/O G3 <12>

N23

I/O G3 <13>

N24

I/O G3 <14>

N26

I/O G3 <15>

N25

I/O G3 <16>

M22

I/O G3 <17>

M23

I/O G3 <18>

M24

I/O G3 <19>

M26

I/O G3 <20>

H21

I/O G3 <21>

M25

I/O G3 <22>

L26

I/O G3 <23>

L23

I/O G4 <0>

I/O G4 <1>

I/O G4 <2>

I/O G4 <3>

I/O G4 <4>

I/O G4 <5>

I/O G4 <6>

I/O G4 <7>

I/O G4 <8>

I/O G4 <9>

I/O G4 <10>

I/O G4 <11>

I/O G4 <12>

H26

I/O G4 <13>

J23

I/O G4 <14>

J24

I/O G4 <15>

J25

I/O G4 <16>

J22

I/O G4 <17>

J26

I/O G4 <18>

K23

I/O G4 <19>

K24

I/O G4 <20>

K25

I/O G4 <21>

H22

I/O G4 <22>

K26

I/O G4 <23>

L25

I/O G5 <0>

I/O G5 <1>

I/O G5 <2>

I/O G5 <3>

I/O G5 <4>

I/O G5 <5>

I/O G5 <6>

I/O G5 <7>

I/O G5 <8>

I/O G5 <9>

I/O G5 <10>

I/O G5 <11>

I/O G5 <12>

K21

I/O G5 <13>

H25

I/O G5 <14>

H24

I/O G5 <15>

H23

I/O G5 <16>

G26

I/O G5 <17>

G25

I/O G5 <18>

G24

I/O G5 <19>

G23

I/O G5 <20>

F26

I/O G5 <21>

F25

I/O G5 <22>

F24

I/O G5 <23>

F23

I/O B0 <0>

AE2

I/O B0 <1>

AF2

I/O B0 <2>

AE3

I/O B0 <3>

AF3

I/O B0 <4>

AD4

I/O B0 <5>

AE4

I/O B0 <6>

AF4

I/O B0 <7>

AC5

I/O B0 <8>

AD5

I/O B0 <9>

AE5

I/O B0 <10>

AB7

I/O B0 <11>

AF5

I/O B0 <12>

I/O B0 <13>

I/O B0 <14>

I/O B0 <15>

I/O B0 <16>

I/O B0 <17>

I/O B0 <18>

I/O B0 <19>

I/O B0 <20>

I/O B0 <21>

I/O B0 <22>

I/O B0 <23>

I/O B1 <0>

AC9

I/O B1 <1>

AD9

I/O B1 <2>

AE9

I/O B1 <3>

AF9

I/O B1 <4>

AC10

I/O B1 <5>

AD10

I/O B1 <6>

AE10

I/O B1 <7>

AF10

I/O B1 <8>

AE11

I/O B1 <9>

AD11

I/O B1 <10>

AB11

I/O B1 <11>

AC11

I/O B1 <12>

A12

I/O B1 <13>

E10

I/O B1 <14>

B12

I/O B1 <15>

A11

I/O B1 <16>

D11

I/O B1 <17>

C11

I/O B1 <18>

B11

I/O B1 <19>

A10

I/O B1 <20>

B10

I/O B1 <21>

C10

I/O B1 <22>

D10

I/O B1 <23>

I/O B2 <0>

AF11

I/O B2 <1>

AE12

I/O B2 <2>

AF12

I/O B2 <3>

AD12

I/O B2 <4>

AC12

I/O B2 <5>

AE13

I/O B2 <6>

AF13

I/O B2 <7>

AD13

I/O B2 <8>

AC13

I/O B2 <9>

AC14

I/O B2 <10>

AD14

I/O B2 <11>

AF14

I/O B2 <12>

C15

I/O B2 <13>

D15

I/O B2 <14>

B14

I/O B2 <15>

A14

I/O B2 <16>

C14

I/O B2 <17>

D14

I/O B2 <18>

D13

I/O B2 <19>

C13

I/O B2 <20>

A13

I/O B2 <21>

B13

I/O B2 <22>

D12

I/O B2 <23>

C12

I/O B3 <0>

AE15

I/O B3 <1>

AF16

I/O B3 <2>

AC16

I/O B3 <3>

AD16

I/O B3 <4>

AE16

I/O B3 <5>

AF17

I/O B3 <6>

AE17

I/O B3 <7>

AD17

I/O B3 <8>

AC17

I/O B3 <9>

AF18

I/O B3 <10>

AE18

I/O B3 <11>

AD18

I/O B3 <12>

B19

I/O B3 <13>

A19

I/O B3 <14>

D18

I/O B3 <15>

C18

I/O B3 <16>

B18

I/O B3 <17>

A18

I/O B3 <18>

D17

I/O B3 <19>

C17

I/O B3 <20>

B17

I/O B3 <21>

A17

I/O B3 <22>

B16

I/O B3 <23>

C16

I/O B4 <0>

AD21

I/O B4 <1>

AC21

I/O B4 <2>

AF22

I/O B4 <3>

AE22

I/O B4 <4>

AD22

I/O B4 <5>

AC22

I/O B4 <6>

AF23

I/O B4 <7>

AE23

I/O B4 <8>

AD23

I/O B4 <9>

AF24

I/O B4 <10>

AE24

I/O B4 <11>

AD24

I/O B4 <12>

A26

I/O B4 <13>

D23

I/O B4 <14>

B25

I/O B4 <15>

A25

I/O B4 <16>

B24

I/O B4 <17>

A24

I/O B4 <18>

C23

I/O B4 <19>

B23

I/O B4 <20>

A23

I/O B4 <21>

D22

I/O B4 <22>

C22

I/O B4 <23>

B22

Specifications

ispLSI 8600V

Signal Configuration

ispLSI 8600V 272-Ball BGA Signal Diagram

VCCIO

CLK 1

CLK 0

VCCIO

CLKEN

VCCIO

CLK 2

EPEN

VCCIO

IOCLKEN

VCCIO

TCK

TDO

GND

VCC

TOE

SET/

RESET

VCC

TDI

TMS

VCC

ispLSI 8600V

Bottom View

1. NCs are not to be connected to any active signals, Vcc or GND.

Note: Ball A1 indicator dot on top side of package.

I/O G5

<16>

I/O G5

<23>

I/O B4

<13>

I/O B4

<17>

I/O B4

<21>

I/O B4

<22>

I/O B3

<15>

I/O B3

<16>

I/O B3

<19>

I/O B3

<22>

I/O B0

<18>

I/O B0

<21>

I/O G5

<0>

I/O G5

<3>

I/O G5

<4>

I/O G5

<5>

I/O G5

<1>

I/O G5

<2>

I/O B0

<23>

I/O G4

<6>

I/O G4

<7>

I/O G4

<5>

I/O G4

<8>

I/O G4

<1>

I/O G4

<0>

I/O G4

<3>

I/O G3

<1>

I/O G3

<0>

I/O G4

<2>

I/O G3

<4>

I/O G3

<3>

I/O G3

<2>

I/O G3

<7>

I/O G3

<6>

I/O G3

<9>

I/O G3

<8>

I/O G3

<11>

I/O G3

<10>

I/O G3

<5>

I/O G4

<4>

I/O G2

<3>

I/O G2

<2>

I/O G2

<1>

I/O G0

<11>

I/O G2

<6>

I/O G2

<5>

I/O G2

<4>

I/O G0

<10>

I/O G2

<11>

I/O G2

<8>

I/O G2

<7>

I/O G2

<9>

I/O G2

<10>

I/O B0

<20>

I/O B0

<16>

I/O B0

<15>

I/O B0

<12>

I/O B3

<21>

I/O B3

<18>

I/O B3

<17>

I/O B3

<14>

I/O B3

<12>

I/O B4

<18>

I/O B4

<12>

I/O G5

<22>

I/O G5

<19>

I/O G5

<15>

I/O G5

<14>

I/O G5

<17>

I/O G5

<20>

I/O B4

<14>

I/O B4

<16>

I/O B4

<20>

I/O B4

<23>

I/O B3

<20>

I/O B3

<23>

I/O B0

<13>

I/O B0

<17>

I/O G5

<8>

I/O G5

<9>

I/O G5

<11>

I/O G5

<10>

I/O G5

<7>

I/O G5

<6>

I/O G4

<9>

I/O G4

<10>

I/O G4

<11>

I/O B0

<22>

I/O B0

<19>

I/O B0

<14>

I/O B3

<13>

I/O B4

<19>

I/O B4

<15>

I/O G5

<18>

I/O G5

<12>

I/O G4

<12>

I/O G4

<18>

I/O G4

<14>

I/O G5

<13>

I/O G5

<21>

I/O G4

<21>

I/O G4

<19>

I/O G4

<17>

I/O G4

<13>

I/O G2

<18>

I/O G2

<19>

I/O G2

<20>

I/O G0

<13>

I/O G2

<21>

I/O G2

<22>

I/O G2

<23>

I/O G0

<12>

I/O G0

<16>

I/O B4

<9>

I/O B4

<6>

I/O B4

<2>

I/O B3

<9>

I/O B0

<10>

I/O B0

<5>

I/O B0

<4>

I/O G0

<9>

I/O G2

<0>

I/O G0

<8>

I/O G0

<7>

I/O G0

<0>

I/O B0

<1>

I/O B0

<6>

I/O B0

<2>

I/O G0

<3>

I/O G0

<5>

I/O G0

<6>

I/O G0

<4>

I/O G0

<20>

I/O G0

<19>

I/O G0

<14>

I/O G0

<15>

I/O G0

<17>

I/O B4

<8>

I/O B4

<5>

I/O B4

<1>

I/O B3

<10>

I/O B3

<7>

I/O B3

<4>

I/O B3

<0>

I/O G0

<22>

I/O B4

<10>

I/O B4

<4>

I/O B4

<0>

I/O B3

<8>

I/O B3

<6>

I/O B3

<3>

I/O B3

<1>

I/O G0

<21>

I/O G0

<23>

I/O B4

<11>

I/O B4

<7>

I/O B4

<3>

I/O B3

<11>

I/O B3

<5>

I/O B3

<2>

I/O G0

<2>

I/O G0

<1>

I/O B0

<0>

I/O B0

<3>

I/O B0

<8>

I/O B0

<9>

I/O B0

<7>

I/O B0

<11>

I/O G0

<18>

I/O G3

<20>

I/O G3

<22>

I/O G4

<22>

I/O G3

<19>

I/O G3

<21>

I/O G3

<23>

I/O G3

<16>

I/O G3

<17>

I/O G3

<18>

I/O G3

<13>

I/O G3

<14>

I/O G3

<15>

I/O G3

<12>

I/O G2

<14>

I/O G2

<13>

I/O G2

<12>

I/O G4

<20>

I/O G2

<17>

I/O G2

<15>

I/O G2

<16>

I/O G4

<23>

I/O G4

<16>

I/O G4

<15>

QIOCLK

GOE

QIOCLK

Specifications

ispLSI 8600V

Signal Configuration

ispLSI 8600V 492-Ball BGA Signal Diagram

1. NC pins are not to be connected to any active signals, VCC or GND.

Note: Ball A1 indicator dot on top side of package.

I/O B4

<12>

I/O B4

<15>

I/O B4

<17>

I/O B4

<20>

I/O B3

<13>

I/O B3

<17>

I/O B3

<21>

I/O B2

<15>

I/O B2

<20>

I/O B1

<12>

I/O B1

<15>

I/O B1

<19>

I/O B1

<23>

I/O B0

<16>

I/O B0

<20>

I/O B0

<23>

I/O B0

<21>

I/O B0

<22>

I/O B0

<18>

I/O B0

<14>

I/O B1

<21>

I/O B1

<17>

I/O B2

<23>

I/O B2

<19>

I/O B2

<16>

I/O B2

<12>

I/O B3

<23>

I/O B3

<19>

I/O B3

<15>

I/O B4

<22>

I/O B4

<18>

I/O B4

<13>

I/O G5

<20>

I/O G5

<16>

I/O G4

<12>

I/O G5

<13>

I/O G5

<14>

I/O G5

<15>

I/O G4

<21>

I/O G3

<20>

I/O G4

<17>

I/O G4

<22>

I/O G4

<20>

I/O G4

<19>

I/O G4

<18>

I/O G3

<23>

I/O G4

<23>

I/O G3

<22>

I/O G3

<19>

I/O G3

<14>

I/O G2

<12>

I/O G2

<13>

I/O G3

<15>

I/O G3

<13>

I/O G3

<12>

I/O G2

<14>

I/O G2

<17>

I/O G2

<16>

I/O G2

<18>

I/O G2

<23>

I/O G1

<20>

I/O G1

<15>

I/O G0

<13>

I/O G0

<17>

I/O G0

<18>

I/O G0

<19>

I/O G0

<20>

I/O G0

<14>

I/O G0

<15>

I/O G1

<14>

I/O G1

<13>

I/O G1

<12>

I/O G1

<21>

I/O G2

<20>

I/O G1

<19>

I/O G1

<18>

I/O G1

<17>

I/O G1

<16>

I/O G0

<16>

I/O G1

<23>

I/O G1

<22>

I/O G0

<12>

I/O G2

<22>

I/O G2

<21>

I/O G2

<19>

I/O G2

<15>

I/O G3

<21>

I/O G3

<18>

I/O G3

<17>

I/O G3

<16>

I/O G5

<12>

I/O G4

<15>

I/O G4

<14>

I/O G4

<13>

I/O G4

<16>

I/O G5

<17>

I/O G5

<18>

I/O G5

<19>

I/O G5

<21>

I/O G5

<22>

I/O G5

<23>

I/O G5

<4>

I/O G5

<8>

I/O G5

<9>

I/O G5

<10>

I/O G5

<11>

I/O G3

<3>

I/O G4

<1>

I/O G4

<7>

I/O G4

<11>

I/O G4

<0>

I/O G3

<5>

I/O G3

<4>

I/O G3

<2>

I/O G3

<6>

I/O G3

<0>

I/O G3

<1>

I/O G4

<5>

I/O G4

<4>

I/O G4

<3>

I/O G4

<2>

I/O G4

<10>

I/O G4

<9>

I/O G4

<8>

I/O G4

<6>

I/O G5

<5>

I/O G5

<6>

I/O G5

<7>

I/O B4

<21>

I/O B3

<14>

I/O B3

<18>

I/O B2

<13>

I/O B2

<17>

I/O B2

<18>

I/O B2

<22>

I/O B1

<16>

I/O B1

<22>

I/O B0

<15>

I/O B0

<19>

I/O G5

<3>

I/O G5

<2>

I/O G5

<1>

I/O G5

<0>

I/O B0

<13>

I/O B1

<13>

I/O B0

<17>

I/O B0

<12>

I/O B1

<20>

I/O B1

<18>

I/O B1

<14>

I/O B2

<21>

I/O B2

<14>

I/O B3

<22>

I/O B3

<20>

I/O B3

<16>

I/O B3

<12>

I/O B4

<23>

I/O B4

<19>

I/O B4

<16>

I/O B4

<14>

CLK2

EPEN

QIOCLK

TCK

GOE 2

GND

VCCIO

VCC

GND

VCC

VCCIO

VCC

I/O G3

<10>

I/O G3

<9>

I/O G3

<7>

I/O G3

<11>

I/O G2

<11>

I/O G2

<10>

I/O G2

<9>

I/O G2

<8>

I/O G2

<4>

I/O G2

<3>

I/O G2

<5>

I/O G2

<6>

I/O G2

<0>

I/O G1

<0>

I/O G2

<1>

I/O G1

<2>

I/O G1

<3>

I/O G1

<4>

I/O G1

<5>

I/O G1

<7>

I/O G2

<2>

I/O G1

<1>

I/O G0

<8>

I/O G0

<4>

I/O B0

<10>

I/O B1

<10>

I/O G0

<23>

I/O B4

<5>

I/O B4

<1>

I/O B3

<8>

I/O B3

<2>

I/O B2

<9>

I/O B2

<8>

I/O B2

<4>

I/O B1

<11>

I/O B1

<4>

I/O B1

<0>

I/O B0

<7>

I/O B0

<4>

I/O B0

<8>

I/O B1

<1>

I/O B1

<5>

I/O B1

<9>

I/O B2

<3>

I/O B2

<7>

I/O B2

<10>

I/O B3

<3>

I/O B3

<7>

I/O B3

<11>

I/O B4

<0>

I/O B4

<4>

I/O B4

<8>

I/O B4

<11>

I/O B4

<10>

I/O B4

<7>

I/O B4

<3>

I/O B3

<10>

I/O B3

<6>

I/O B3

<4>

I/O B3

<0>

I/O B2

<5>

I/O B2

<1>

I/O B1

<8>

I/O B1

<6>

I/O B1

<2>

I/O B0

<9>

I/O B0

<5>

I/O B0

<2>

I/O B0

<0>

I/O B0

<1>

I/O B0

<3>

I/O B0

<6>

I/O B0

<11>

I/O B1

<3>

I/O B1

<7>

I/O B2

<0>

I/O B2

<2>

I/O B2

<6>

I/O B2

<11>

I/O B3

<1>

I/O B3

<5>

I/O B3

<9>

I/O B4

<2>

I/O B4

<6>

I/O B4

<9>

I/O G0

<22>

I/O G0

<21>

I/O G0

<5>

I/O G0

<6>

I/O G0

<7>

I/O G0

<3>

I/O G0

<2>

I/O G0

<1>

I/O G0

<0>

I/O G0

<9>

I/O G0

<10>

I/O G1

<11>

I/O G1

<10>

I/O G1

<9>

I/O G1

<8>

I/O G1

<6>

I/O G0

<11>

I/O G2

<7>

I/O G3

<8>

VCC

VCCIO

QIOCLK

GOE 3

VCC

VCCIO

SET/

RESET

TOE

VCCIO

VCC

GND

GND VCCIO

VCCIO

VCC

VCCIO

VCCIO GOE 1

QIOCLK

VCC

CLK 1

IOCLKEN

VCC

TDO

CLK 0

QIOCLK

GOE 0

TMS

TDI

GND

VCCIO

VCC

VCCIO

VCCIO VCC

VCC

VCCIO

VCC

GND

VCCIO

VCC

GND

CLKEN

VCC

VCCIO

VCC

GND

ispLSI 8600V

Bottom View

ÐÐ»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: 8600V

Document Outline

Ð­Ð»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: 8600V

Document Outline

ÐÐ»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: 8600V
