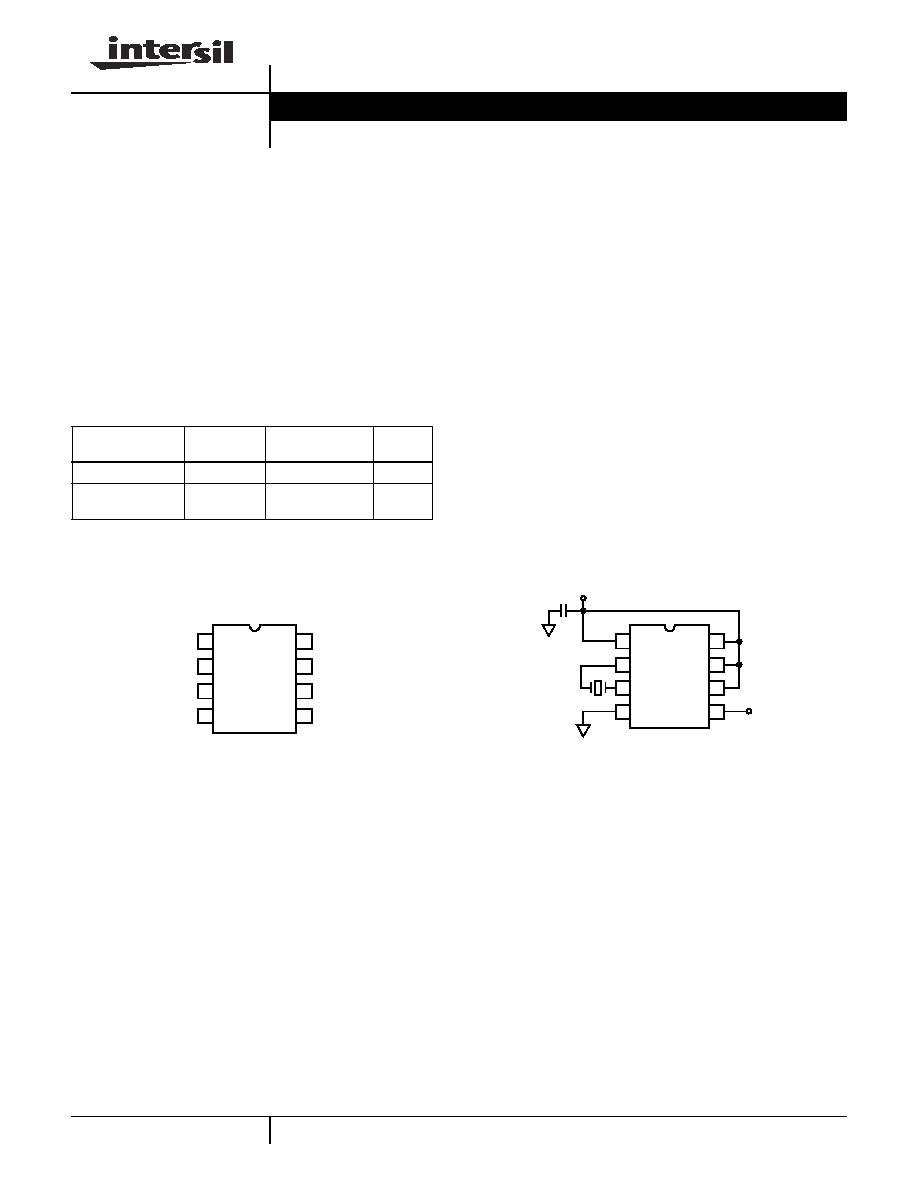

HA7210
10kHz to 10MHz, Low Power Crystal
Oscillator
The HA7210 is a very low power crystal-controlled oscillators
that can be externally programmed to operate between 10kHz
and 10MHz. For normal operation it requires only the addition
of a crystal. The part exhibits very high stability over a wide
operating voltage and temperature range.
The HA7210 also features a disable mode that switches the
output to a high impedance state. This feature is useful for
minimizing power dissipation during standby and when
multiple oscillator circuits are employed.
Pinout
HA7210
(PDIP, SOIC)
TOP VIEW
Features
Single Supply Operation at 32kHz . . . . . . . . . . . . 2V to 7V
Operating Frequency Range . . . . . . . . . .10kHz to 10MHz
Supply Current at 32kHz . . . . . . . . . . . . . . . . . . . . . . .5
A
Supply Current at 1MHz. . . . . . . . . . . . . . . . . . . . . .130
A
Drives 2 CMOS Loads
Only Requires an External Crystal for Operation
Applications
Battery Powered Circuits
Remote Metering
Embedded Microprocessors
Palm Top/Notebook PC
Related Literature
- AN9334, Improving HA7210 Start-Up Time
Typical Application Circuit
32.768kHz MICROPOWER CLOCK OSCILLATOR
NOTE:
1. Internal pull-up resistors provided on EN, FREQ1, and FREQ2
inputs.
Ordering Information
PART NUMBER
(BRAND)
TEMP.
RANGE (
o
C)
PACKAGE
PKG.
NO.
HA7210IP
-40 to 85
8 Ld PDIP
E8.3
HA7210IB
(H7210I)
-40 to 85
8 Ld SOIC
M8.15
V
DD
OSC IN
OSC OUT
V
SS
1
2
3
4
8
7
6
5
ENABLE
FREQ 2
FREQ 1
OUTPUT
V
DD
1
2
3
4
8
7
6
5
HA7210
32.768kHz
CLOCK
32.768kHz
CRYSTAL
0.1
F
(NOTE 1)
Data Sheet
May 2002
FN3389.9
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 321-724-7143
|
Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright Intersil Americas Inc. 2002. All Rights Reserved
2

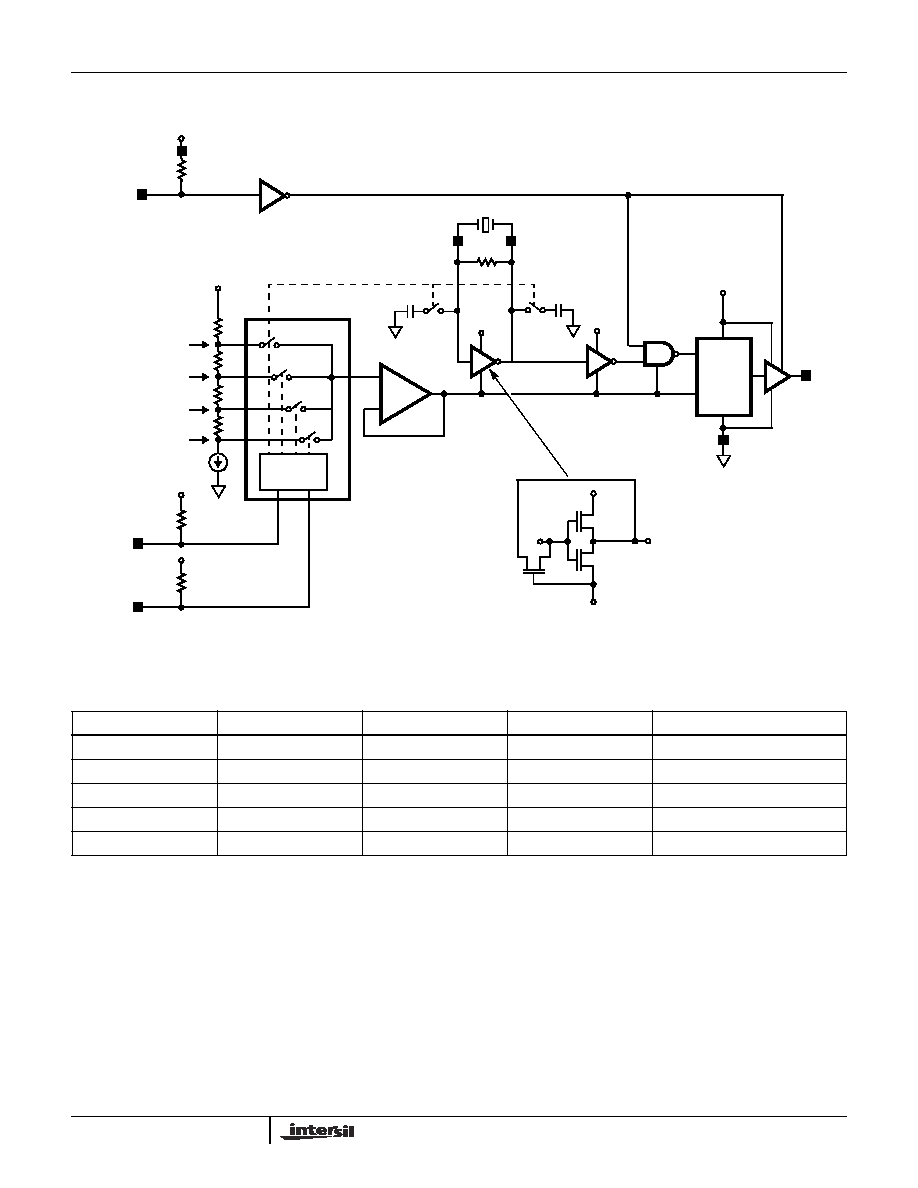

Simplified Block Diagram
+
-
LEVEL
SHIFTER
BUFFER
BUFFER AMP
OSC IN 2
3 OSC OUT
EXTERNAL CRYSTAL
V
DD
V
DD
I
BIAS
V
DD
- 1.4V
V
DD
- 2.2V
V
DD
- 3.0V
V
DD
- 3.8V
FREQ 1
FREQ 2
7
6
ENABLE
8
V
DD
15pF
S
1B
S
1C
15pF
V
DD
R
F
V
DD
V
RN
V
RN
S
1A
S
2
S
3
S
4
V
DD
4
V
SS
5
OUTPUT
V
DD
1
N
P
V
DD
V
RN
P
IN
R
F
OUT
OSCILLATOR
(NOTE 2)
(NOTE 2)
(NOTE 2)
1 OF 4
DECODE
FREQUENCY SELECTION TRUTH TABLE
ENABLE
FREQ 1
FREQ 2
SWITCH
OUTPUT RANGE
1
1
1
S
1A
, S
1B
, S
1C
10kHz - 100kHz
1
1
0
S
2
100kHz - 1MHz
1
0
1
S
3
1MHz - 5MHz
1
0
0
S
4
5MHz - 10MHz+
0
X
X
X
High Impedance
NOTE:
2. Logic input pull-up resistors are constant current source of 0.4
A.
HA7210
3
Absolute Maximum Ratings
Thermal Information
Supply Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10V
Voltage (Any Pin) . . . . . . . . . . . . . . . . . . . . V
SS
-0.3V to V
DD
+0.3V
ESD Rating
Human Body Model (Per MIL-STD-883 Method 3015.7) . . .4000V
Operating Conditions
Temperature Range (Note 3). . . . . . . . . . . . . . . . . . . -40
o
C to 85
o
C
Thermal Resistance (Typical, Note 4)
JA
(
o
C/W)
PDIP Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
125
SOIC Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
170
Maximum Junction Temperature (Plastic Package) . . . . . . . .150
o
C
Maximum Storage Temperature Range . . . . . . . . . -65
o
C to 150
o
C
Maximum Lead Temperature (Soldering 10s) . . . . . . . . . . . . 300
o
C
(SOIC - Lead Tips Only)
CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the
device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
NOTES:
3. This product is production tested at 25
o
C only.
4.
JA
is measured with the component mounted on an evaluation PC board in free air.
Electrical Specifications
V
SS
= GND, T
A
= 25
o
C, Unless Otherwise Specified
PARAMETER
TEST CONDITIONS
V
DD
= 5V
V
DD
= 3V
UNITS
MIN
TYP
MAX
MIN
TYP
MAX
V
DD
Supply Range
f
OSC
= 32kHz
2
5
7
-
-
-
V
I
DD
Supply Current
f
OSC
= 32kHz, EN = 0 (Standby)
-
5.0
9.0
-
-
-
A
f
OSC
= 32kHz, C
L
= 10pF (Note 5),
EN = 1, Freq1 = 1, Freq2 = 1
-
5.2
10.2
-
3.6
6.1
A
f
OSC
= 32kHz, C
L
= 40pF, EN = 1,
Freq1 = 1, Freq2 = 1
-
10
15
-
6.5
9
A
f
OSC
= 1MHz, C
L
= 10pF (Note 5),
EN = 1, Freq1 = 0, Freq2 = 1
-
130
200
-
90
180
A
f
OSC
= 1MHz, C
L
= 40pF, EN = 1,
Freq1 = 0, Freq2 = 1
-
270
350
-
180
270
A
V
OH
Output High Voltage
I
OUT
= -1mA
4.0
4.9
-
-
2.8
-
V
V
OL
Output Low Voltage
I
OUT
= 1mA
-
0.07
0.4
-
0.1
-
V
I
OH
Output High Current
V
OUT
4V
-
-10
-5
-
-
-
mA
I
OL
Output Low Current
V
OUT
0.4V
5.0
10.0
-
-
-
-
mA
Three-State Leakage Current
V
OUT
= 0V, 5V, T
A
= 25
o
C, -40
o
C
-
0.1
-
-
-
-
nA
V
OUT
= 0V, 5V, T
A
= 85
o
C
-
10
-
-
-
-
nA
I
IN
Enable, Freq1, Freq2 Input Current
V
IN
= V
SS
to V
DD
-
0.4
1.0
-
-
-
A
V
IH
Input High Voltage Enable, Freq1, Freq2
2.0
-
-
-
-
-
V
V
IL
Input Low Voltage Enable, Freq1, Freq2
-
-
0.8
-
-
-
V
Enable Time
C
L
= 18pF, R
L
= 1k
-
800
-
-
-
-
ns
Disable Time
C
L
= 18pF, R
L
= 1k
-
90
-
-
-
-
ns
t
r
Output Rise Time
10% - 90%, f
OSC
= 32kHz, C
L
= 40pF
-
12
25
-
12
-
ns
t
f
Output Fall Time
10% - 90%, f
OSC
= 32kHz, C
L
= 40pF
-
12
25
-
14
-
ns
Duty Cycle, Packaged Part Only (Note 6)
C
L
= 40pF, f
OSC
= 1MHz
40
54
60
-
-
-
%
Duty Cycle, (See Typical Curves)
C
L
= 40pF, f
OSC
= 32kHz
-
41
-
-
44
-
%
Frequency Stability vs Supply Voltage
f
OSC
= 32kHz, V
DD
= 5V, C
L
= 10pF
-
1
-
-
-
-
ppm/V
Frequency Stability vs Temperature
f
OSC
= 32kHz, V
DD
= 5V, C
L
= 10pF
-
0.1
-
-
-
-
ppm/
o
C
Frequency Stability vs Load
f
OSC
= 32kHz, V
DD
= 5V, C
L
= 10pF
-
0.01
-
-
-
-
ppm/pF
NOTES:
5. Calculated using the equation I
DD
= I
DD
(No Load) + (V
DD
) (f
OSC
)(C
L
)
6. Duty cycle will vary with supply voltage, oscillation frequency, and parasitic capacitance on the crystal pins.
HA7210
4

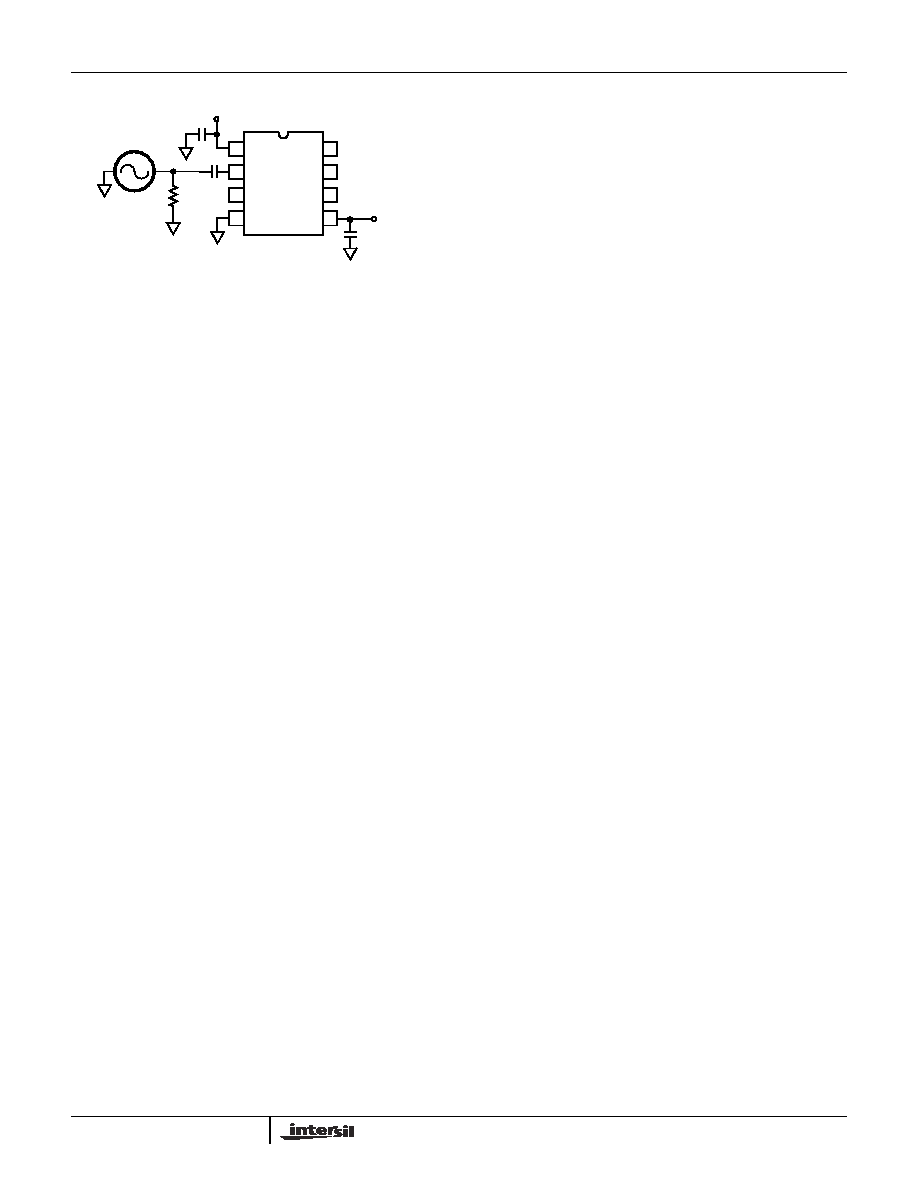

Test Circuit
In production the HA7210 is tested with a 32kHz and a
1MHz crystal. However for characterization purposes data
was taken using a sinewave generator as the frequency
determining element, as shown in Figure 1. The 1V
P-P
input
is a smaller amplitude than what a typical crystal would
generate so the transitions are slower. In general the
Generator data will show a "worst case" number for I
DD
,
duty cycle, and rise/fall time. The Generator test method is
useful for testing a variety of frequencies quickly and
provides curves which can be used for understanding
performance trends. Data for the HA7210 using crystals has
also been taken. This data has been overlaid onto the
generator data to provide a reference for comparison.
Application Information
Theory Of Operation
The HA7210 is a Pierce Oscillator optimized for low power
consumption, requiring no external components except for a
bypass capacitor and a Parallel Mode Crystal. The Simplified
Block Diagram shows the Crystal attached to pins 2 and 3, the
Oscillator input and output. The crystal drive circuitry is detailed
showing the simple CMOS inverter stage and the P-channel
device being used as biasing resistor R
F
. The inverter will
operate mostly in its linear region increasing the amplitude of
the oscillation until limited by its transconductance and voltage
rails, V
DD
and V
RN
. The inverter is self biasing using R
F
to
center the oscillating waveform at the input threshold. Do not
interfere with this bias function with external loads or excessive
leakage on pin 2. Nominal value for R
F
is 17M
in the lowest
frequency range to 7M
in the highest frequency range.
The HA7210 optimizes its power for 4 frequency ranges
selected by digital inputs Freq1 and Freq2 as shown in the
Block Diagram. Internal pull up resistors (constant current
0.4
A) on Enable, Freq1 and Freq2 allow the user simply to
leave one or all digital inputs not connected for a
corresponding "1" state. All digital inputs may be left open for
10kHz to 100kHz operation.
A current source develops 4 selectable reference voltages
through series resistors. The selected voltage, V
RN
, is
buffered and used as the negative supply rail for the
oscillator section of the circuit. The use of a current source in
the reference string allows for wide supply variation with
minimal effect on performance. The reduced operating
voltage of the oscillator section reduces power consumption
and limits transconductance and bandwidth to the frequency
range selected. For frequencies at the edge of a range, the
higher range may provide better performance.
The OSC OUT waveform on pin 3 is squared up through a series
of inverters to the output drive stage. The Enable function is
implemented with a NAND gate in the inverter string, gating the
signal to the level shifter and output stage. Also during Disable
the output is set to a high impedance state useful for minimizing
power during standby and when multiple oscillators are OR'ed to
a single node.
Design Considerations
The low power CMOS transistors are designed to consume
power mostly during transitions. Keeping these transitions
short requires a good decoupling capacitor as close as
possible to the supply pins 1 and 4. A ceramic 0.1
F is
recommended. Additional supply decoupling on the circuit
board with 1
F to 10
F will further reduce overshoot, ringing
and power consumption. The HA7210, when compared to a
crystal and inverter alone, will speed clock transition times,
reducing power consumption of all CMOS circuitry run from
that clock.
Power consumption may be further reduced by minimizing the
capacitance on moving nodes. The majority of the power will
be used in the output stage driving the load. Minimizing the
load and parasitic capacitance on the output, pin 5, will play
the major role in minimizing supply current. A secondary
source of wasted supply current is parasitic or crystal load
capacitance on pins 2 and 3. The HA7210 is designed to work
with most available crystals in its frequency range with no
external components required. Two 15pF capacitors are
internally switched onto crystal pins 2 and 3 on the HA7210 to
compensate the oscillator in the 10kHz to 100kHz frequency
range.
The supply current of the HA7210 may be approximately
calculated from the equation:
I
DD
= I
DD
(Disabled) + V
DD
f
OSC
C
L
where:
I
DD
= Total supply current
V
DD
= Total voltage from V
DD
(pin 1) to V
SS
(pin 4)
f
OSC
= Frequency of Oscillation
C
L
= Output (pin 5) load capacitance
EXAMPLE #1:
V
DD
= 5V, f
OSC
= 100kHz, C
L
= 30pF
I
DD
(Disabled) = 4.5
A (Figure 10)
I
DD
= 4.5
A + (5V)(100kHz)(30pF) = 19.5
A
Measured I
DD
= 20.3
A
EXAMPLE #2:
V
DD
= 5V, f
OSC
= 5MHz, C
L
= 30pF
I
DD
(Disabled) = 75
A (Figure 9)
I
DD
= 75
A + (5V)(5MHz)(30pF) = 825
A
Measured I
DD
= 809
A
1
2
3
4
8
7
6
5
HA7210
V
OUT
C
L
+5V
18pF
0.1
F
1000pF
50
ENABLE
FREQ 2
FREQ 1
1V
P-P
FIGURE 1.
HA7210
5
Crystal Selection
For general purpose applications, a Parallel Mode Crystal is
a good choice for use with the HA7210. However for
applications where a precision frequency is required, the
designer needs to consider other factors.
Crystals are available in two types or modes of oscillation,
Series and Parallel. Series Mode crystals are manufactured
to operate at a specified frequency with zero load
capacitance and appear as a near resistive impedance when
oscillating. Parallel Mode crystals are manufactured to
operate with a specific capacitive load in series, causing the
crystal to operate at a more inductive impedance to cancel
the load capacitor. Loading a crystal with a different
capacitance will "pull" the frequency off its value.
The HA7210 has 4 operating frequency ranges. The higher
three ranges do not add any loading capacitance to the
oscillator circuit. The lowest range, 10kHz to 100kHz,
automatically switches in two 15pF capacitors onto OSC IN
and OSC OUT to eliminate potential start-up problems.
These capacitors create an effective crystal loading
capacitor equal to the series combination of these two
capacitors. For the HA7210 in the lowest range, the effective
loading capacitance is 7.5pF. Therefore the choice for a
crystal, in this range, should be a Parallel Mode crystal that
requires a 7.5pF load.
In the higher 3 frequency ranges, the capacitance on OSC
IN and OSC OUT will be determined by package and layout
parasitics, typically 4 to 5pF. Ideally the choice for crystal
should be a Parallel Mode set for 2.5pF load. A crystal
manufactured for a different load will be "pulled" from its
nominal frequency (see Crystal Pullability).

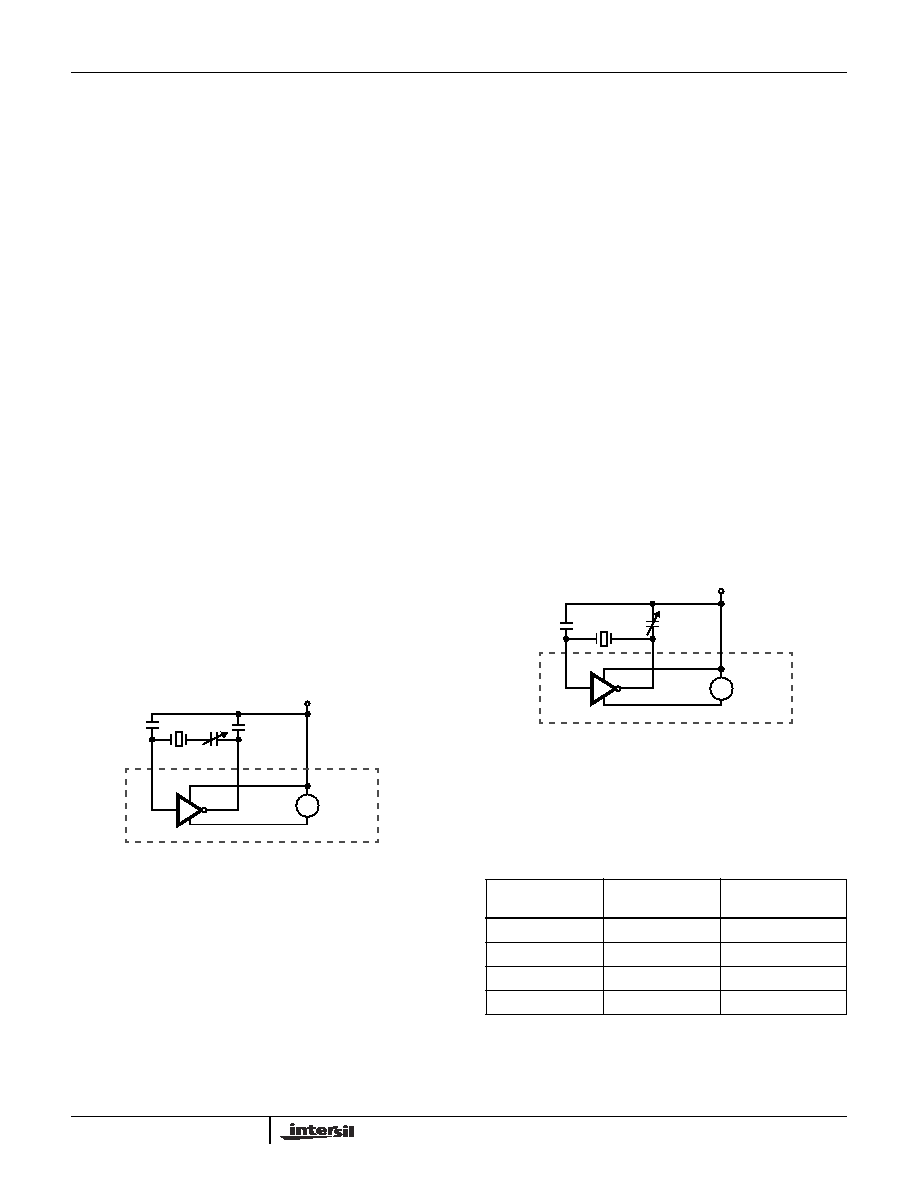

Frequency Fine Tuning
Two Methods will be discussed for fine adjustment of the
crystal frequency. The first and preferred method (Figure 2),
provides better frequency accuracy and oscillator stability
than method two (Figure 3). Method one also eliminates
start-up problems sometimes encountered with 32kHz
tuning fork crystals.
For best oscillator performance, two conditions must be met:
the capacitive load must be matched to both the inverter and
crystal to provide ideal conditions for oscillation, and the
frequency of the oscillator must be adjustable to the desired
frequency. In Method two these two goals can be at odds
with each other; either the oscillator is trimmed to frequency
by de-tuning the load circuit, or stability is increased at the
expense of absolute frequency accuracy.
Method one allows these two conditions to be met
independently. The two fixed capacitors, C
1
and C
2
, provide
the optimum load to the oscillator and crystal. C
3
adjusts the
frequency at which the circuit oscillates without appreciably
changing the load (and thus the stability) of the system.
Once a value for C
3
has been determined for the particular
type of crystal being used, it could be replaced with a fixed
capacitor. For the most precise control over oscillator
frequency, C
3
should remain adjustable.
This three capacitor tuning method will be more accurate
and stable than method two and is recommended for 32kHz
tuning fork crystals; without it they may leap into an overtone
mode when power is initially applied.
Method two has been used for many years and may be
preferred in applications where cost or space is critical. Note
that in both cases the crystal loading capacitors are
connected between the oscillator and V
DD
; do not use V
SS
as an AC ground. The Simplified Block Diagram shows that
the oscillating inverter does not directly connect to V
SS
but is
referenced to V
DD
and V
RN
. Therefore V
DD
is the best AC
ground available.
Typical values of the capacitors in Figure 2 are shown
below. Some trial and error may be required before the best
combination is determined. The values listed are total
capacitance including parasitic or other sources. Remember
that in the 10kHz to 100kHz frequency range setting the
HA7210 switches in two internal 15pF capacitors.
HA7210
+5V
V
REG
C
1
C
2
XTAL
C
3
2
OSC IN
3
OSC OUT
1
V
DD
FIGURE 2.
+
-
CRYSTAL
FREQUENCY
LOAD CAPS
C
1
, C
2
TRIMMER CAP
C
3
32kHz
33pF
5pF to 50pF
1MHz
33pF
5pF to 50pF
2MHz
25pF
5pF to 50pF
4MHz
22pF
5pF to 100pF
HA7210
+
-
+5V
V
REG
C
1
C
2
XTAL
2
OSC IN
3
OSC OUT
1
V
DD
FIGURE 3.
HA7210
6

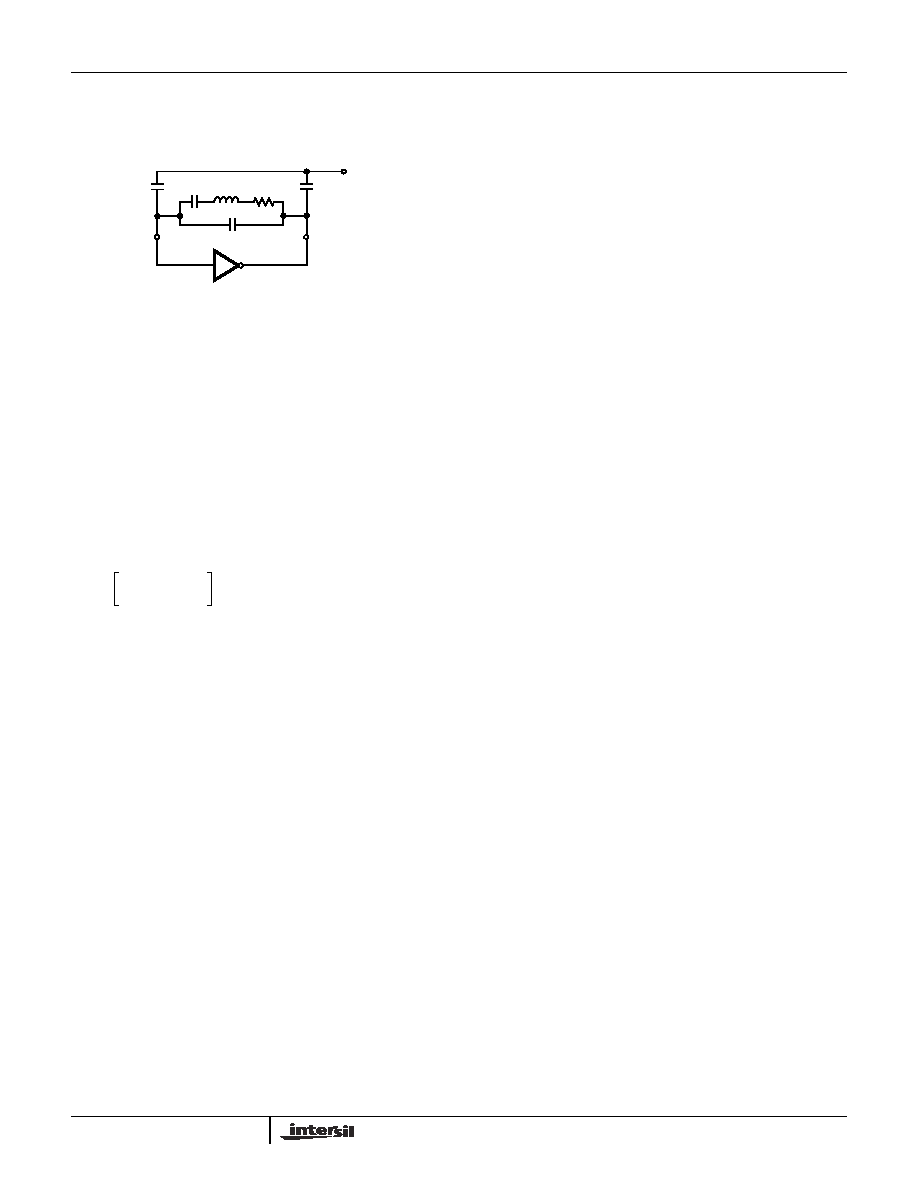

Crystal Pullability
Figure 4 shows the basic equivalent circuit for a crystal and
its loading circuit.
Where:
C
M
= Motional Capacitance
L
M
= Motional Inductance
R
M
= Motional Resistance
C
0
= Shunt Capacitance
If loading capacitance is connected to a Series Mode
Crystal, the new Parallel Mode frequency of resonance may
be calculated with the following equation:
Where:
f
P
= Parallel Mode Resonant Frequency
f
S
= Series Mode Resonant Frequency
In a similar way, the Series Mode resonant frequency may
be calculated from a Parallel Mode crystal and then you may
calculate how much the frequency will "pull" with a new load.
Layout Considerations
Due to the extremely low current (and therefore high
impedance) the circuit board layout of the HA7210 must be
given special attention. Stray capacitance should be
minimized. Keep the oscillator traces on a single layer of the
PCB. Avoid putting a ground plane above or below this layer.
The traces between the crystal, the capacitors, and the OSC
pins should be as short as possible. Completely surround
the oscillator components with a thick trace of V
DD
to
minimize coupling with any digital signals. The final
assembly must be free from contaminants such as solder
flux, moisture, or any other potential source of leakage. A
good solder mask will help keep the traces free of moisture
and contamination over time.
Further Reading
Al Little "HA7210 Low Power Oscillator: Micropower Clock
Oscillator and Op Amps Provide System Shutdown for Battery
Circuits". Intersil Corporation Application Note AN9317.
Robert Rood "Improving Start-Up Time at 32kHz for the
HA7210 Low Power Crystal Oscillator". Intersil Corporation
Application Note AN9334.
S. S. Eaton "Timekeeping Advances Through COS/MOS
Technology". Intersil Corporation Application Note
ICAN-6086.
E. A. Vittoz, et. al. "High-Performance Crystal Oscillator
Circuits: Theory and Application". IEEE Journal of Solid-
State Circuits, Vol. 23, No. 3, June 1988, pp774-783.
M. A. Unkrich, et. al. "Conditions for Start-Up in Crystal
Oscillators". IEEE Journal of Solid-State Circuits, Vol. 17,
No. 1, Feb. 1982, pp87-90.
Marvin E. Frerking "Crystal Oscillator Design and
Temperature Compensation". New York: Van Nostrand-
Reinhold, 1978. Pierce Oscillators Discussed pp56-75.
C
1
C
2
2
OSC IN
3
OSC OUT
V
DD
C
0
C
M
L
M
R
M
FIGURE 4.
C
CL
1
1
C
1
-------
1
C
2
-------
+
---------------------------
Equivalent Crystal Load
=
=
f
P
f
S
1
C
M
2 C
0
C
CL
+
(
)
----------------------------------
+
=
HA7210
7
Typical Performance Curves
FIGURE 5. OUTPUT WAVEFORM (C
L
= 40pF)
FIGURE 6. OUTPUT WAVEFORM (C
L
= 18pF)
FIGURE 7. SUPPLY CURRENT vs TEMPERATURE
FIGURE 8. SUPPLY CURRENT vs TEMPERATURE
FIGURE 9. DISABLE SUPPLY CURRENT vs TEMPERATURE
FIGURE 10. DISABLE SUPPLY CURRENT vs TEMPERATURE
NOTE: Refer to Test Circuit (Figure 1).
1.0V/DIV.
20.0ns/DIV.
C
L
= 40pF, f
OSC
= 5MHz, V
DD
= 5V, V
SS
= GND
1.0V/DIV.
20.0ns/DIV.
C
L
= 18pF, f
OSC
= 5MHz, V
DD
= 5V, V
SS
= GND
-100
-50
0
50
100
150
750
800
850
900
950
1000
1050
TEMPERATURE (
o
C)
f
IN
= 5MHz, EN = 1, F1 = 0, F2 = 0, C
L
= 30pF, V
DD
= 5V
X
TAL
AT 25
o
C
S
U
P
P
L
Y
CURRE
NT
(
A)
GENERATOR (1V
P-P
) (NOTE)
-100
-50
0
50
100
150
18
19
20
21
22
23
24
25
26
TEMPERATURE (
o
C)
EN = 1, F1 = 1, F2 = 1, f
IN
= 100kHz, C
L
= 30pF, V
DD
= 5V
X
TAL
AT 25
o
C
S
U
P
P
L
Y
CURRE
NT
(
A)
GENERATOR (1V
P-P
) (NOTE)
-100
-50
0
50
100
150
0
50
100
150
200
250
300
350
TEMPERATURE (
o
C)
S
U
P
P
L
Y
CURRE
NT
(
A)
f
IN
= 5MHz, EN = 0, F1 = 0, F2 = 0, V
DD
= 5V
GENERATOR (1V
P-P
) (NOTE)
X
TAL
AT 25
o
C
-100
-50
0
50
100
150
4
4.5
5
5.5
6
6.5
7
7.5
TEMPERATURE (
o
C)
GENERATOR (1V
P-P
) (NOTE)
X
TAL
AT 25
o
C
EN = 0, F1 = 1, F2 = 1, f
IN
= 100kHz, V
DD
= 5V
S
U
P
P
L
Y
CURRE
NT
(
A)
HA7210
8

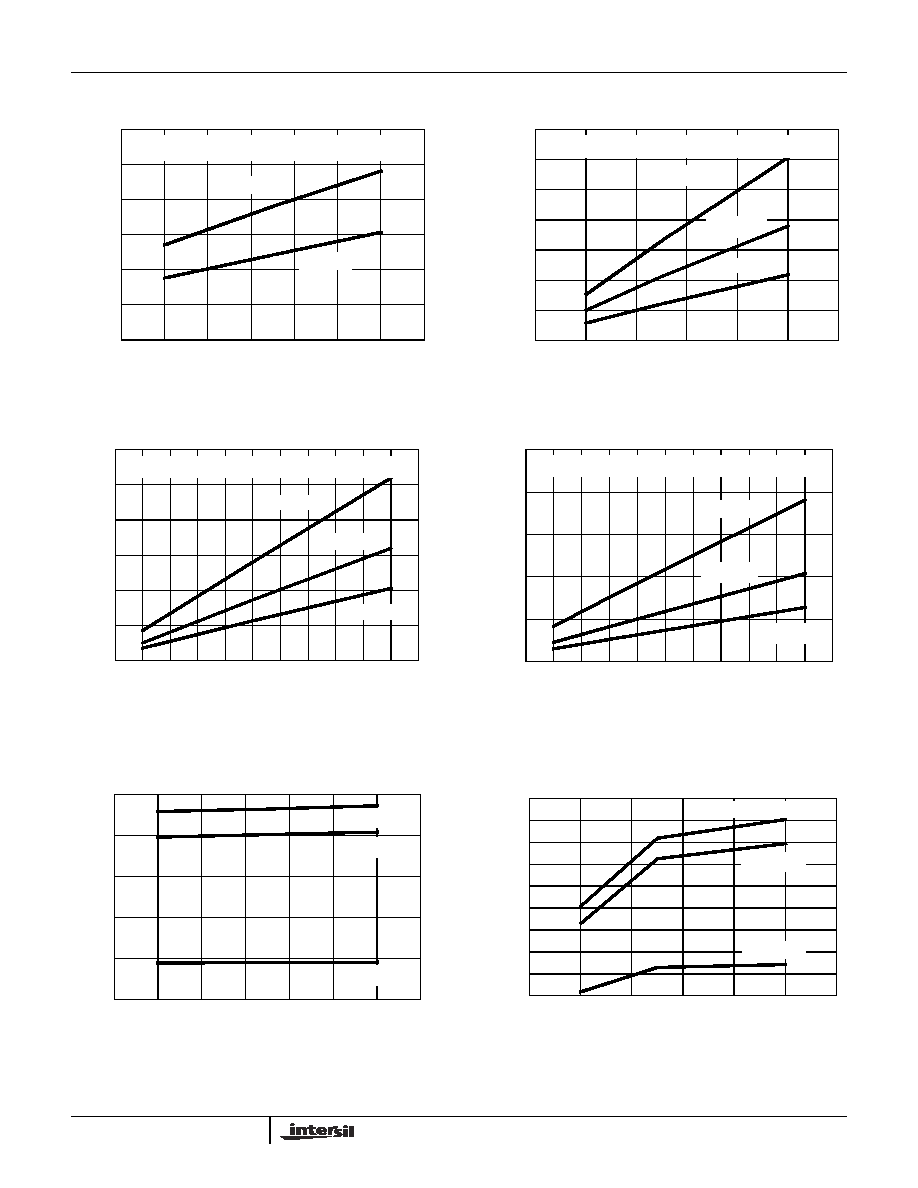

FIGURE 11. SUPPLY CURRENT vs FREQUENCY
FIGURE 12. SUPPLY CURRENT vs FREQUENCY
FIGURE 13. SUPPLY CURRENT vs FREQUENCY
FIGURE 14. SUPPLY CURRENT vs FREQUENCY
FIGURE 15. DISABLED SUPPLY CURRENT vs FREQUENCY
FIGURE 16. DISABLE SUPPLY CURRENT vs FREQUENCY
Typical Performance Curves
(Continued)
NOTE: Refer to Test Circuit (Figure 1).
4
5
6
7
8
9
10
11
0
500
1000
1500
2000
2500
3000
FREQUENCY (MHz)
EN = 1, F1 = 0, F2 = 0, C
L
= 18pF, GENERATOR (1V
P-P
) (NOTE)
V
DD
= +8V
V
DD
= +5V
S
U
P
P
L
Y
CUR
RE
NT
(
A)
0
1
2
3
4
5
6
0
200
400
600
800
1000
1200
1400
FREQUENCY (MHz)
V
DD
= +8V
EN = 1, F1 = 0, F2 =1, C
L
= 18pF, GENERATOR (1V
P-P
) (NOTE)
V
DD
= +5V
V
DD
= +3V
S
U
P
P
L
Y
CURRE
NT
(
A)
0
100 200 300 400 500 600 700 800 900 1000 1100
0
50
100
150
200
250
300
FREQUENCY (kHz)
V
DD
= +8V
V
DD
= +5V
V
DD
= +3V
EN = 1, F1 = 0, F2 = 0, C
L
= 18pF, GENERATOR (1V
P-P
) (NOTE)
S
U
P
P
L
Y
CURRE
NT
(
A)
0
10
20
30
40
50
60
70
80
90
100 110
0
10
20
30
40
50
FREQUENCY (kHz)
EN = 1, F1 = 0, F2 = 0, C
L
= 18pF, GENERATOR (1V
P-P
) (NOTE)
V
DD
= +8V
V
DD
= +5V
V
DD
= +3V
S
U
P
P
L
Y
CURRE
NT
(
A)
4
5
6
7
8
9
10
11
0
50
100
150
200
250
EN = 0, F1 = 0, F2 = 0, C
L
= 18pF, GENERATOR (1V
P-P
) (NOTE)
FREQUENCY (MHz)
V
DD
= +8V
V
DD
= +5V
V
DD
= +3V
S
U
P
P
L
Y
CURRE
NT
(
A)
0
1
2
3
4
5
6
30
40
50
60
70
80
90
100
110
120
EN = 0, F1 = 0, F2 = 1, C
L
= 18pF, GENERATOR (1V
P-P
) (NOTE)
FREQUENCY (MHz)
S
U
P
P
L
Y
CURRE
NT
(
A)
V
DD
= +8V
V
DD
= +5V
V
DD
= +3V
HA7210
9

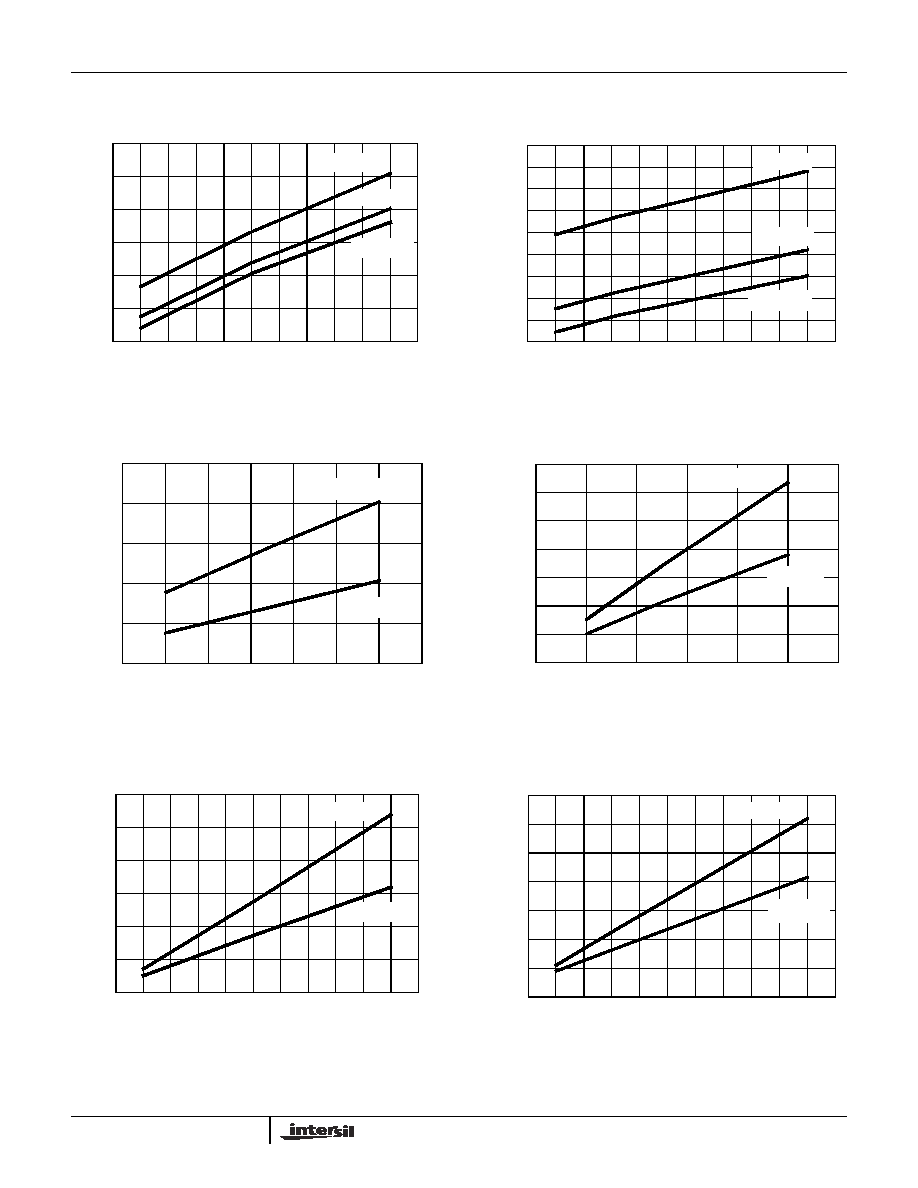

FIGURE 17. DISABLE SUPPLY CURRENT vs FREQUENCY
FIGURE 18. DISABLE SUPPLY CURRENT vs FREQUENCY
FIGURE 19. SUPPLY CURRENT vs FREQUENCY
FIGURE 20. SUPPLY CURRENT vs FREQUENCY
FIGURE 21. SUPPLY CURRENT vs FREQUENCY
FIGURE 22. SUPPLY CURRENT vs FREQUENCY
Typical Performance Curves
(Continued)
NOTE: Refer to Test Circuit (Figure 1).
0
100 200 300 400 500 600 700 800 900 1000 1100
5
10
15
20
25
30
35
EN = 0, F1 = 1, F2 = 0, C
L
= 18pF, GENERATOR (1V
P-P
) (NOTE)
FREQUENCY (kHz)
S
U
P
P
L
Y
CURRE
NT
(
A)
V
DD
= +8V
V
DD
= +5V
V
DD
= +3V
0
10
20
30
40
50
60
70
80
90
100 110
2
3
4
5
6
7
8
9
10
11
EN = 0, F1 = 1, F2 = 1, C
L
= 18pF, GENERATOR (1V
P-P
) (NOTE)
FREQUENCY (kHz)
S
U
P
P
L
Y
CURRE
NT
(
A)
V
DD
= +8V
V
DD
= +5V
V
DD
= +3V
4
5
6
7
8
9
10
11
500
1000
1500
2000
2500
3000
EN = 1, F1 = 0, F2 = 0, V
DD
= +5V, GENERATOR (1V
P-P
) (NOTE)
FREQUENCY (MHz)
S
U
P
P
L
Y
CURRE
NT
(
A)
C
L
= 40pF
C
L
= 18pF
0
1
2
3
4
5
6
0
200
400
600
800
1000
1200
1400
EN = 1, F1 = 0, F2 = 1, V
DD
= +5V, GENERATOR (1V
P-P
) (NOTE)
FREQUENCY (MHz)
S
U
P
P
L
Y
CURRE
NT
(
A)
C
L
= 40pF
C
L
= 18pF
0
100 200 300 400 500 600 700 800 900 1000 1100
0
50
100
150
200
250
300
EN = 1, F1 = 1, F2 = 0, V
DD
= +5V, GENERATOR (1V
P-P
) (NOTE)
FREQUENCY (kHz)
S
U
P
P
L
Y
CURRE
NT
(
A)
C
L
= 40pF
C
L
= 18pF
0
10
20
30
40
50
60
70
80
90
100 110
0
5
10
15
20
25
30
35
EN = 1, F1 = 1, F2 = 1, V
DD
= +5V, GENERATOR (1V
P-P
) (NOTE)
FREQUENCY (kHz)
S
U
P
P
L
Y
CURR
E
N
T
(
A)
C
L
= 18pF
C
L
= 40pF
HA7210
10

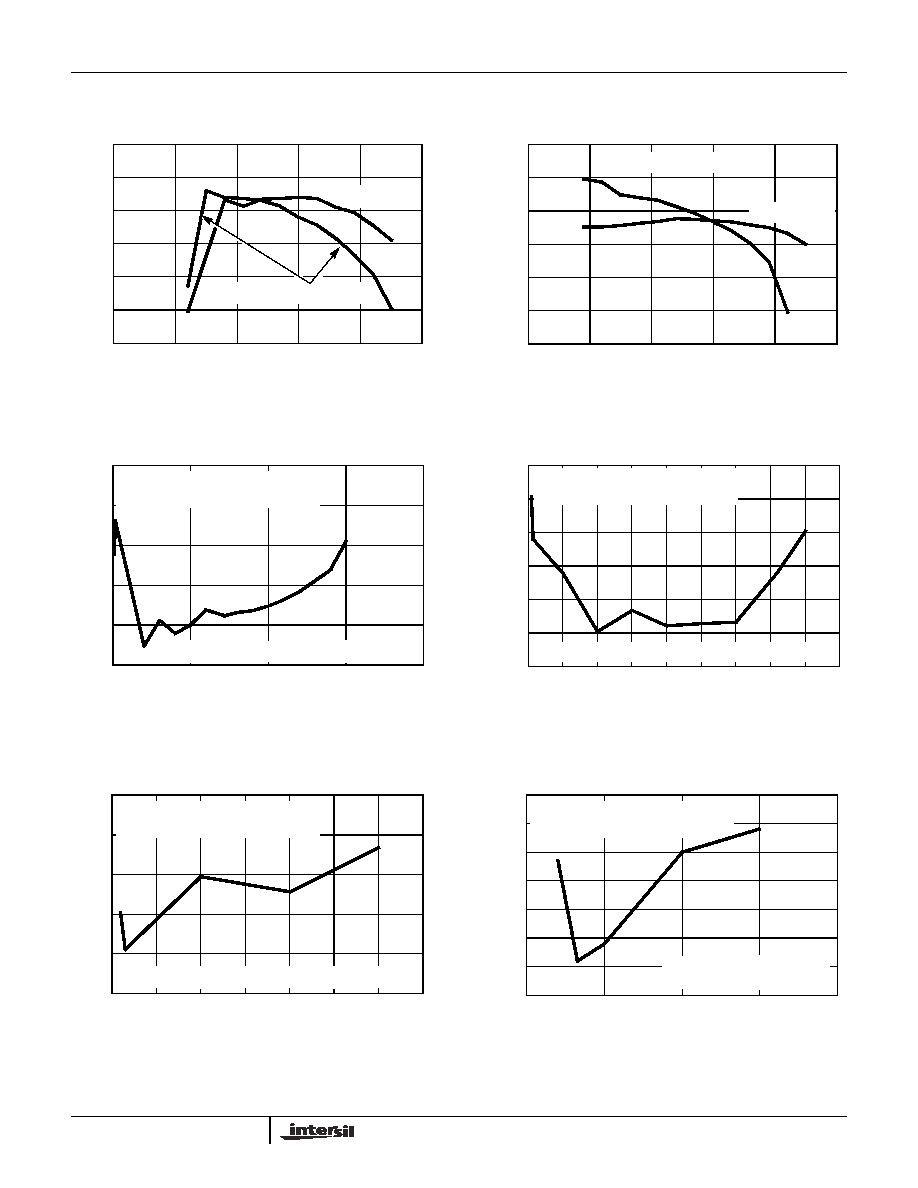

FIGURE 23. DUTY CYCLE vs TEMPERATURE
FIGURE 24. DUTY CYCLE vs TEMPERATURE
FIGURE 25. DUTY CYCLE vs FREQUENCY
FIGURE 26. DUTY CYCLE vs FREQUENCY
FIGURE 27. DUTY CYCLE vs FREQUENCY
FIGURE 28. DUTY CYCLE vs FREQUENCY
Typical Performance Curves
(Continued)
NOTE: Refer to Test Circuit (Figure 1).
-100
-50
0
50
100
150
30
35
40
45
50
55
60
f
IN
= 5MHz, F1 = 0, F2 = 0, C
L
= 30pF, V
DD
= 5V
TEMPERATURE (
o
C)
DU
T
Y
CY
CL
E
(
%
)
X
TAL
AT 25
o
C
GENERATOR (1V
P-P
) (NOTE)
-100
-50
0
50
100
150
10
20
30
40
50
60
70
f
IN
= 100kHz, F1 = 1, F2 = 1, C
L
= 30pF, V
DD
= 5V
TEMPERATURE (
o
C)
DUT
Y
CY
CL
E
(
%
)
GENERATOR (1V
P-P
) (NOTE)
X
TAL
AT 25
o
C
0
45
50
55
60
65
70
F1 = F2 = 0, V
DD
= 5V, C
L
= 18pF, C
1
= C
2
= 0
FREQUENCY (MHz)
DUT
Y
CY
CL
E
(
%
)
15
20
5
10
DATA COLLECTED USING CRYSTALS
AT EACH FREQUENCY
F1 = 0, F2 = 0 RECOMMENDED FOR 5MHz TO 10MHz RANGE
0
45
50
55
60
65
70
F1 = 0, F2 = 1, V
DD
= 5V, C
L
= 18pF, C
1
= C
2
= 0
FREQUENCY (MHz)
DUT
Y
CY
CL
E
(
%
)
7
9
4
6
1
2
3
5
8
40
F1 = 0, F2 = 1 RECOMMENDED FOR 1MHz TO 5MHz RANGE
DATA COLLECTED USING CRYSTALS
AT EACH FREQUENCY
0
40
45
50
55
60
65
F1 = 1, F2 = 0, V
DD
= 5V, C
L
= 18pF, C
1
= C
2
= 0
FREQUENCY (kHz)
DUT
Y
CY
CL
E
(
%
)
1500
2000
500
1000
2500
3000
3500
F1 = 1, F2 = 0 RECOMMENDED FOR 100kHz TO 1MHz RANGE
DATA COLLECTED USING CRYSTALS
AT EACH FREQUENCY
0
42
43
44
45
46
47
F1 = F2 = 1, V
DD
= 5V, C
L
= 18pF, C
1
= C
2
= 0
FREQUENCY (kHz)
DUT
Y
CY
CL
E
(
%
)
150
200
50
100
41
40
F1 = 1, F2 = 1 RECOMMENDED
FOR 10kHz TO 100kHz RANGE
DATA COLLECTED USING CRYSTALS
AT EACH FREQUENCY
HA7210
11

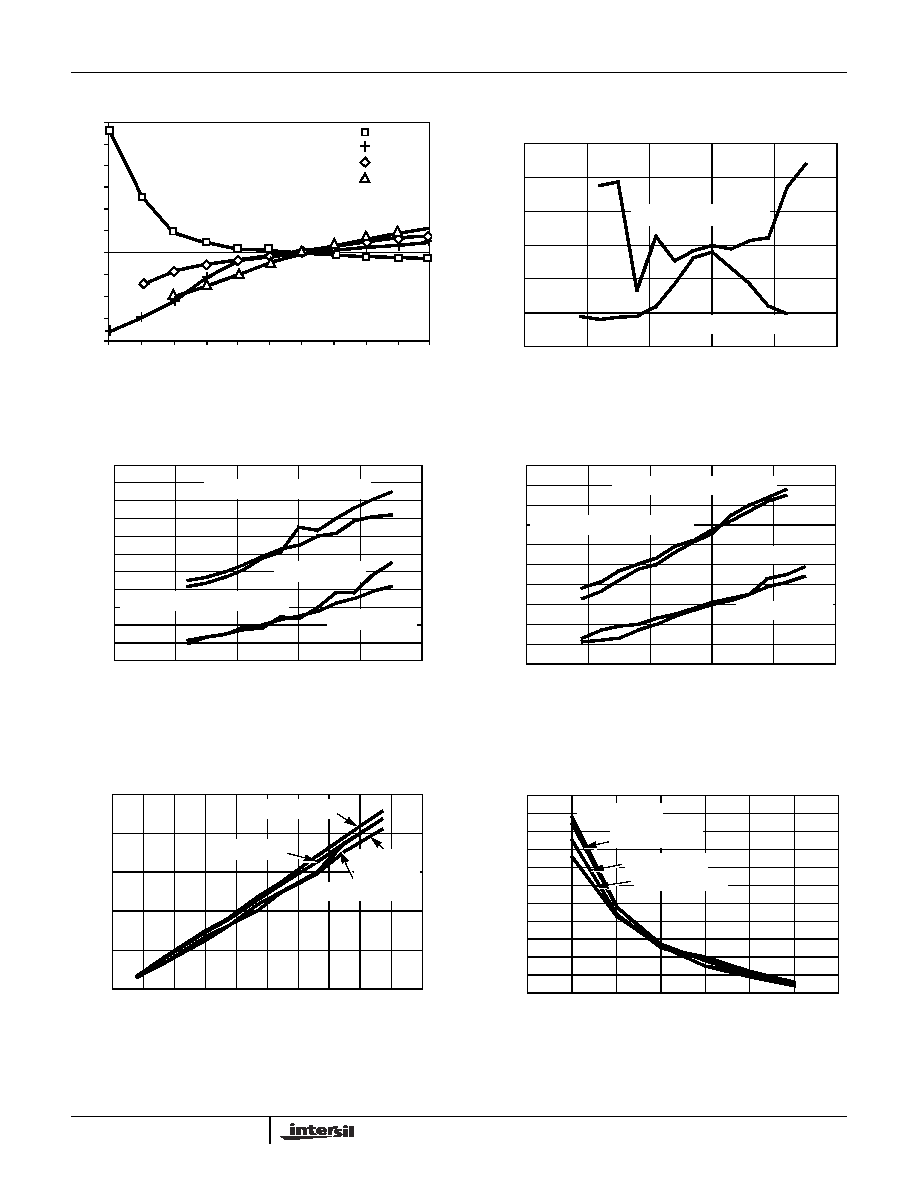

FIGURE 29. FREQUENCY CHANGE vs V
DD
FIGURE 30. EDGE JITTER vs TEMPERATURE
FIGURE 31. RISE/FALL TIME vs TEMPERATURE
FIGURE 32. RISE/FALL TIME vs TEMPERATURE
FIGURE 33. RISE/FALL TIME vs C
L
FIGURE 34. RISE/FALL TIME vs V
DD
Typical Performance Curves
(Continued)
NOTE: Refer to Test Circuit (Figure 1).
2
4
6
-20
-10
0
5
15
20
30
V
DD
SUPPLY VOLTAGE (V)
-5
-15
25
10
32kHz
1MHz
5MHz
10MHz
F
R
E
Q
UE
NCY
CHANG
E
(
P
P
M
)
DEVIATION FROM FREQUENCY AT 5.0V
-100
-50
0
50
100
150
0
1
2
3
4
5
6
V
DD
= 5V, C
L
= 30pF, GENERATOR (1V
P-P
) (NOTE)
TEMPERATURE (
o
C)
E
D
GE
J
I
T
T
E
R
(
%
OF
P
E
R
I
O
D
)
f
IN
= 5MHz, F1 = 0, F2 = 0
f
IN
= 100kHz, F1 = 1, F2 = 1
-100
-50
0
50
100
150
2
3
4
5
6
7
8
9
10
11
12
13
f
IN
= 5MHz, F1 = 0, F2 = 0, C
L
= 30pF, V
DD
= 5V
TEMPERATURE (
o
C)
t
f
GENERATOR (1V
P-P
) (NOTE)
t
r
GENERATOR (1V
P-P
) (NOTE)
t
f
X
TAL
AT 25
o
C
t
r
X
TAL
AT 25
o
C
RIS
E
/F
AL
L
T
I
M
E
(
n
s
)
-100
-50
0
50
100
150
2
3
4
5
6
7
8
9
10
11
12
f
IN
= 100kHz, F1 = 1, F2 = 1, C
L
= 30pF, V
DD
= 5V
TEMPERATURE (
o
C)
t
f
GENERATOR (1V
P-P
) (NOTE)
t
r
GENERATOR (1V
P-P
) (NOTE)
t
f
X
TAL
AT 25
o
C
t
r
X
TAL
AT 25
o
C
RIS
E
/F
AL
L
T
I
M
E
(
n
s
)
10
20
30
40
50
60
70
80
90
100 110
5
10
15
20
25
30
C
L
(pF)
RIS
E
/F
AL
L
T
I
M
E
(
n
s
)
V
DD
= 5V, GENERATOR (1V
P-P
) (NOTE)
t
f
(f
IN
= 100kHz)
t
f
(f
IN
= 5MHz)
t
r
t
r
(f
IN
= 100kHz)
(f
IN
= 5MHz)
2
3
4
5
6
7
8
9
4
5
6
7
8
9
10
11
12
13
14
15
V
DD
(+V)
C
L
= 18pF, GENERATOR (1V
P-P
) (NOTE)
t
f
(f
IN
= 5MHz)
t
f
(f
IN
= 100kHz)
t
r
(f
IN
= 5MHz)
t
r
(f
IN
= 100kHz)
RIS
E
/F
AL
L
T
I
M
E
(
n
s
)
HA7210
12
FIGURE 35. TRANSCONDUCTANCE vs FREQUENCY
FIGURE 36. TRANSCONDUCTANCE vs FREQUENCY
FIGURE 37. TRANSCONDUCTANCE vs FREQUENCY
FIGURE 38. TRANSCONDUCTANCE vs FREQUENCY
NOTE: Figure 39 (Duty Cycle vs R
S
at 32kHz) should only be used for 32kHz crystals. R
S
may be used at other frequencies to adjust Duty Cycle
but experimentation will be required to find an appropriate value. The R
S
value will be proportional to the effective series resistance of the crystal
being used.
FIGURE 39. DUTY CYCLE vs R
S
at 32kHz
Typical Performance Curves
(Continued)
NOTE: Refer to Test Circuit (Figure 1).
580
540
500
460
420
380
340
300
260
10K
100K
1M
10M
140
150
160
170
180
FREQUENCY (Hz)
P
H
A
SE (
D
E
G
R
E
ES
)
T
RANS
CO
NDUCT
ANCE
(
A/V
)
V
DD
= 5V, V
SS
= GND
436.5
A/V
2
3
1000pF
1
F
HA7210
100
50
178
o
620
F1 = 0, F2 = 0
460
420
380
340
300
260
10K
100K
1M
10M
140
150
160
170
180
FREQUENCY (Hz)
PH
A
S
E (
D
EG
R
E
E
S
)
T
RANS
CO
NDUCT
ANC
E
(
A/
V
)
130
V
DD
= 5V, V
SS
= GND
311.6
A/V
2
3
1000pF
1
F
HA7210
100
50
500
177
o
F1 = 0, F2 = 1
220
200
180
160
140
120
100
10K
100K
1M
10M
140
150
160
170
180
FREQUENCY (Hz)
P
HAS
E
(
D
E
G
RE
E
S
)
T
RANS
CO
NDUCT
ANCE
(
A/
V
)
130
240
V
DD
= 5V, V
SS
= GND
156.7
A/V
176.6
o
2
3
1000pF
1
F
HA7210
100
50
F1 = 1, F2 = 0
15
10
5
0
10K
100K
1M
140
150
160
170
180
FREQUENCY (Hz)
PH
A
S
E (
D
EG
R
E
E
S
)
T
RANS
CO
NDUCT
ANCE
(
A/V
)
130
120
110
20
V
DD
= 5V, V
SS
= GND
6.56
A/V
2
3
1000pF
1
F
HA7210
100
50
166
o
F1 = 1, F2 = 1
0
20
40
60
80
100
120
35
40
45
50
55
60
F1 = F2 = 1, V
DD
= 5V, C
L
= 18pF, T
A
= 25
o
C, f
OSC
= 32.768kHz
R
S
(k
)
DUT
Y
CY
CL
E
(
%
)
NDK PART #
MX-38
EPSON PART #
C-001R32.768K-A
HA7210
XTAL
2
OSC IN
3
OSC OUT
R
S
HA7210
13
Die Characteristics
DIE DIMENSIONS:
68
mils x 64
mils x 14 mils
METALLIZATION:
Type: SiAl
Thickness: 10k
1k
SUBSTRATE POTENTIAL:
V
SS
PASSIVATION:
Type: Nitride (Si
3
N
4
) Over Silox (SiO
2
, 3% Phos)
Silox Thickness: 7k
1k
Nitride Thickness: 8k
1k

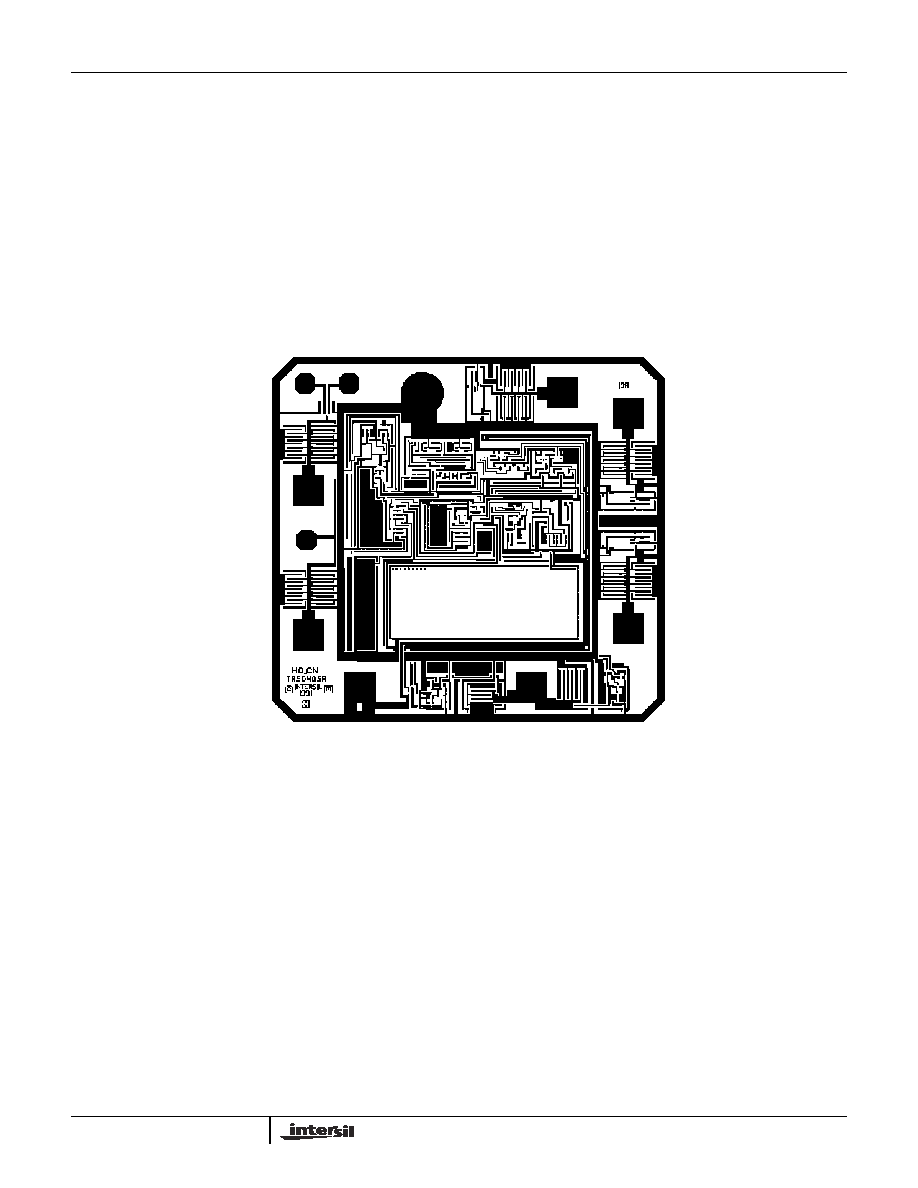

Metallization Mask Layout
HA7210
(1
) V
DD
CRYSTAL (2)
CRYSTAL (3)
V
SS
(4
)
OU
T
P
U
T
(5
)
(6) FREQ 1
(7) FREQ 2
(
8
)
E
NABL
E
HA7210
14
HA7210

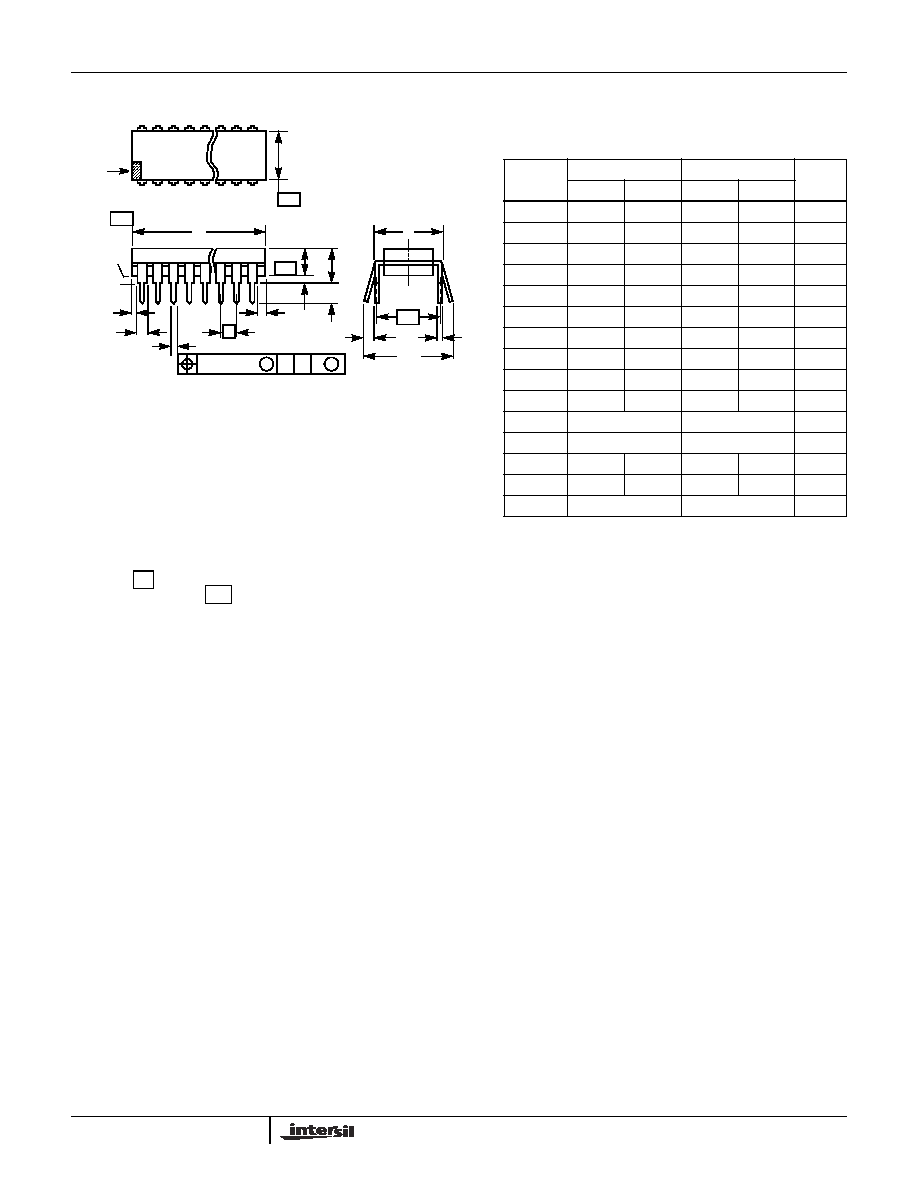

Dual-In-Line Plastic Packages (PDIP)
CL
E
e
A
C
e
B
e
C
-B-
E1
INDEX
1 2 3
N/2
N
AREA
SEATING
BASE
PLANE
PLANE
-C-
D1
B1
B
e
D
D1
A
A2
L
A
1
-A-
0.010 (0.25)
C A
M
B S
NOTES:
1. Controlling Dimensions: INCH. In case of conflict between
English and Metric dimensions, the inch dimensions control.
2. Dimensioning and tolerancing per ANSI Y14.5M-1982.
3. Symbols are defined in the "MO Series Symbol List" in Section
2.2 of Publication No. 95.
4. Dimensions A, A1 and L are measured with the package seated
in JEDEC seating plane gauge GS-3.
5. D, D1, and E1 dimensions do not include mold flash or protru-
sions. Mold flash or protrusions shall not exceed 0.010 inch
(0.25mm).
6. E and
are measured with the leads constrained to be per-
pendicular to datum
.
7. e
B
and e
C
are measured at the lead tips with the leads uncon-
strained. e
C
must be zero or greater.
8. B1 maximum dimensions do not include dambar protrusions.
Dambar protrusions shall not exceed 0.010 inch (0.25mm).
9. N is the maximum number of terminal positions.
10. Corner leads (1, N, N/2 and N/2 + 1) for E8.3, E16.3, E18.3,
E28.3, E42.6 will have a B1 dimension of 0.030 - 0.045 inch
(0.76 - 1.14mm).
e
A
-C-
E8.3
(JEDEC MS-001-BA ISSUE D)
8 LEAD DUAL-IN-LINE PLASTIC PACKAGE
SYMBOL
INCHES
MILLIMETERS
NOTES
MIN
MAX
MIN
MAX
A
-
0.210
-
5.33
4
A1
0.015
-
0.39
-
4
A2
0.115
0.195
2.93
4.95
-
B
0.014
0.022
0.356
0.558
-
B1
0.045
0.070
1.15
1.77
8, 10
C
0.008
0.014
0.204
0.355
-
D
0.355
0.400
9.01
10.16
5
D1
0.005
-
0.13
-
5
E
0.300
0.325
7.62
8.25
6
E1
0.240
0.280
6.10
7.11
5
e
0.100 BSC
2.54 BSC
-
e
A
0.300 BSC
7.62 BSC
6
e
B
-
0.430
-
10.92
7
L
0.115
0.150
2.93
3.81
4
N
8
8
9
Rev. 0 12/93
15
All Intersil U.S. products are manufactured, assembled and tested utilizing ISO9000 quality systems.
Intersil Corporation's quality certifications can be viewed at www.intersil.com/design/quality
Intersil products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design, software and/or specifications at any time without
notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and
reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result
from its use. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries.
For information regarding Intersil Corporation and its products, see www.intersil.com
HA7210

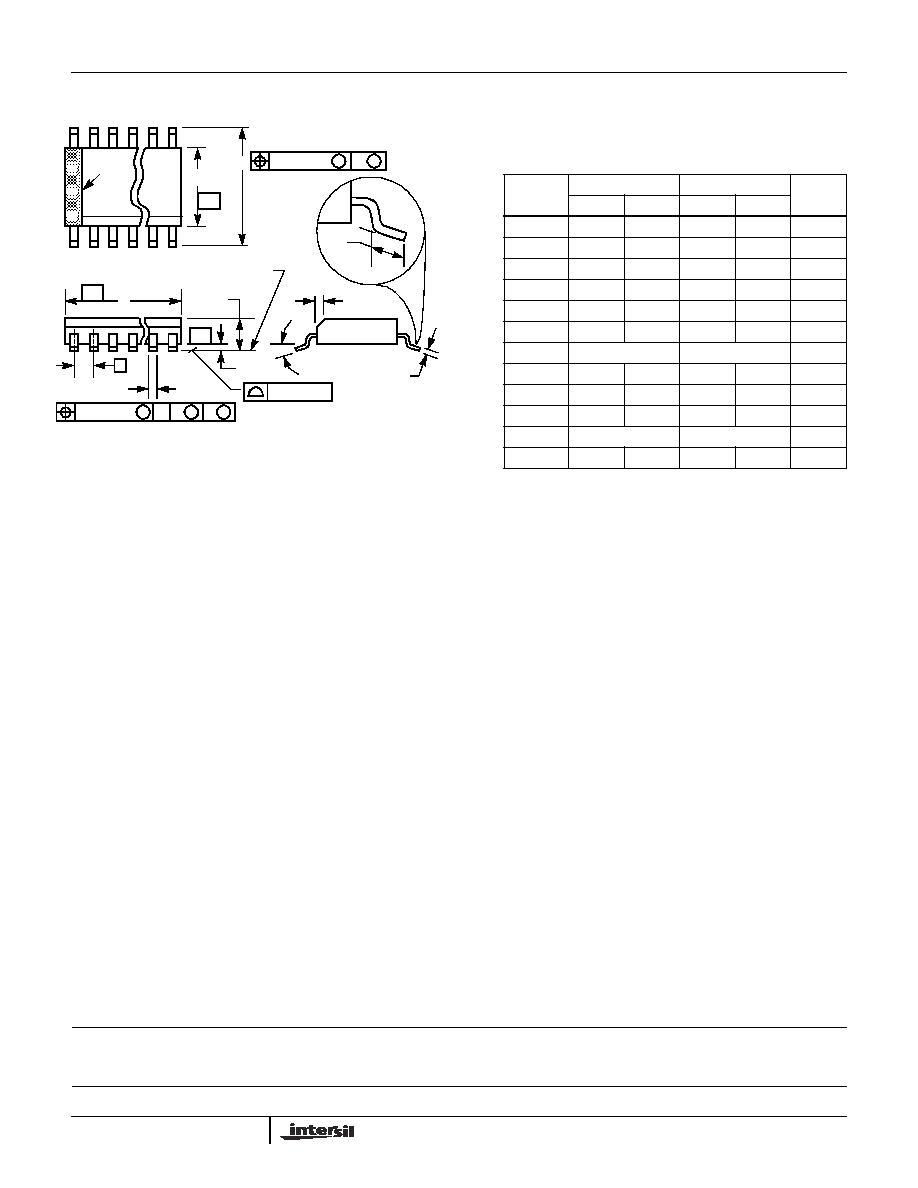

Small Outline Plastic Packages (SOIC)
INDEX
AREA
E
D
N
1
2
3
-B-
0.25(0.010)
C A
M
B S
e
-A-
L
B
M
-C-
A1
A
SEATING PLANE
0.10(0.004)
h x 45
o
C
H
0.25(0.010)
B
M
M
NOTES:
1. Symbols are defined in the "MO Series Symbol List" in Section 2.2 of
Publication Number 95.
2. Dimensioning and tolerancing per ANSI Y14.5M-1982.
3. Dimension "D" does not include mold flash, protrusions or gate burrs.
Mold flash, protrusion and gate burrs shall not exceed 0.15mm (0.006
inch) per side.
4. Dimension "E" does not include interlead flash or protrusions. Inter-
lead flash and protrusions shall not exceed 0.25mm (0.010 inch) per
side.
5. The chamfer on the body is optional. If it is not present, a visual index
feature must be located within the crosshatched area.
6. "L" is the length of terminal for soldering to a substrate.
7. "N" is the number of terminal positions.
8. Terminal numbers are shown for reference only.
9. The lead width "B", as measured 0.36mm (0.014 inch) or greater
above the seating plane, shall not exceed a maximum value of
0.61mm (0.024 inch).
10. Controlling dimension: MILLIMETER. Converted inch dimensions
are not necessarily exact.
M8.15
(JEDEC MS-012-AA ISSUE C)
8 LEAD NARROW BODY SMALL OUTLINE PLASTIC
PACKAGE
SYMBOL
INCHES
MILLIMETERS
NOTES
MIN
MAX
MIN
MAX
A
0.0532
0.0688
1.35
1.75
-
A1
0.0040
0.0098
0.10
0.25
-
B
0.013
0.020
0.33
0.51
9
C
0.0075
0.0098
0.19
0.25
-
D
0.1890
0.1968
4.80
5.00
3
E
0.1497
0.1574
3.80
4.00
4
e
0.050 BSC
1.27 BSC
-
H
0.2284
0.2440
5.80
6.20
-
h
0.0099
0.0196
0.25
0.50
5
L
0.016
0.050
0.40
1.27
6
N
8
8
7
0
o
8
o
0
o
8
o
-
Rev. 0 12/93
PDF
ZIP
