ICS601-21
MDS 601-21 H
1
Revision 040204
I n t e gr a t e d C i r c u i t S y s t e m s
l
5 2 5 R a c e S t r e e t , S a n J o s e, C A 9 5 1 2 6
l
t e l ( 4 0 8 ) 2 9 7 - 1 2 0 1
l
w w w. i c s t . c o m
L
OW
P
HASE
N
OISE
C
LOCK
M
ULTIPLIER
Description
The ICS601-21 is a low-cost, low phase noise, high
performance clock synthesizer for applications which
require low phase noise and low jitter. It is ICS' lowest
phase noise multiplier. Using ICS' patented analog and
digital Phase Locked Loop (PLL) techniques, the chip
accepts a 10 - 27 MHz crystal or clock input, and
produces output clocks up to 220 MHz at 3.3 V.
This product is intended for clock generation. It has low
output jitter (variation in the output period), but input to
output skew and jitter are not defined nor guaranteed.
Features
Fully integrated PLL, no external loop filter required
Differential 3.3 V LVPECL outputs
Uses fundamental 10 - 27 MHz crystal or clock
Output clocks up to 220 MHz at 3.3 V
Low phase noise: -122 dBc/Hz at 10 kHz
Low jitter - 15 ps one sigma typ.
Powerdown mode lowers power consumption
Packaged in 16-pin TSSOP
Advanced, low power, sub-micron CMOS process
Operating voltage of 3.3 V
Commercial temperature range available

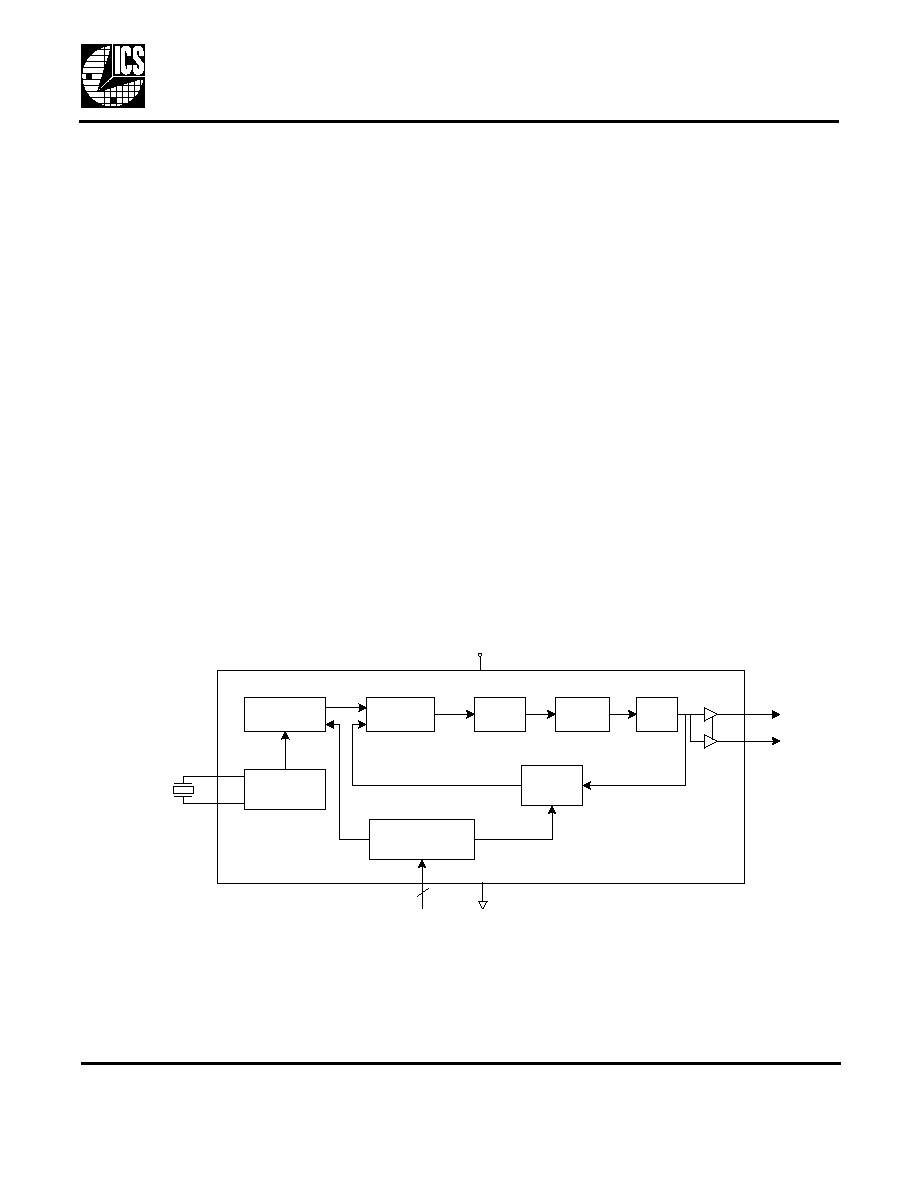

Block Diagram
CLK
ROM Based
Multipliers
VCO
Divide
X1/ICLK
X2
Crystal or
clock input
Crystal
Oscillator
Reference
Divider
Phase
Comparator
VDD
Charge
Pump
Loop
Filter
VCO
S2:0
nCLK
4
GND
L
OW
P
HASE
N
OISE
C
LOCK
M
ULTIPLIER
MDS 601-21 H
2
Revision 040204
I n t e gr a t e d C i r c u i t S y s t e m s
l
5 2 5 R a c e S t r e e t , S a n J o s e, C A 9 5 1 2 6
l
t e l ( 4 0 8 ) 2 9 7 - 1 2 0 1
l
w w w. i c s t . c o m
ICS601-21

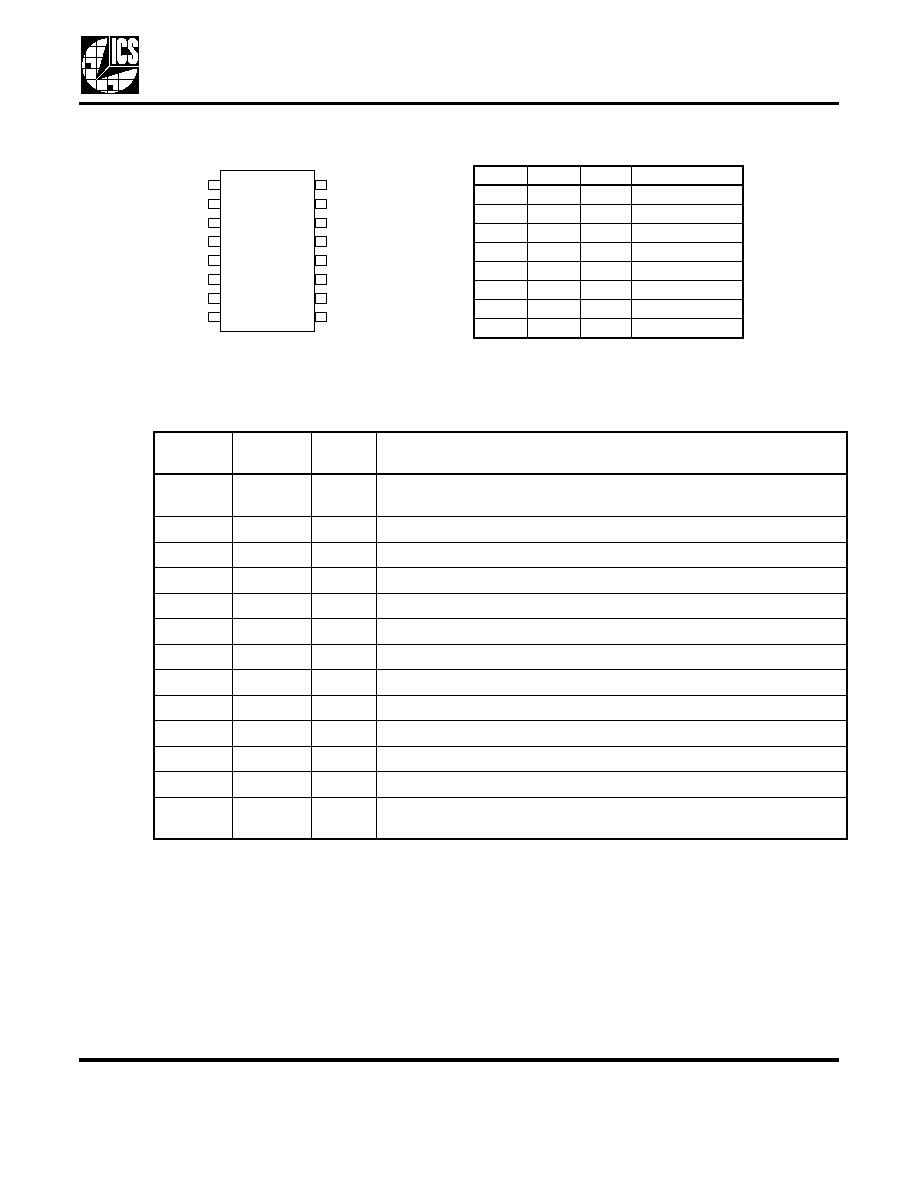

Pin Assignment
Multiplier Select Table
0 = connect directly to ground
1 = connect directly to VDD
Pin Descriptions
1
2
3
G N D
4
V D D
5
6
G N D
7
8
C LK
nC LK
S1
G N D
X2
V D D
S2
V D D
16
X 1
V D D
G N D
S0
VD D
15
14
13
12
11
10
9
16 Pin (173 m il) TSSOP
S2
S1
S0
Multiplier
0
0
0
x1
0
0
1
x2
0
1
0
x3
0
1
1
x4
1
0
0
x5
1
0
1
x6
1
1
0
x8
1
1
1
x16
Pin
Number
Pin
Name
Pin
Type
Pin Description
1
X1
XI
Crystal or clock input. Connect to a 10-27 MHz fundamental parallel mode
crystal or clock input.
2 - 4
VDD
Power
Connect to +3.3 V.
5
GND
Power
Connect to ground.
6
VDD
Power
Connect to +3.3 V.
7 - 8
GND
Power
Connect to ground.
9
S2
Input
Select pin 2. Internal pull-up resistor.
10
S1
Input
Select pin 1. Internal pull-up resistor.
11
S0
Input
Select pin 0. Internal pull-up resistor.
12
VDD
Power
Connect to +3.3 V.
13
nCLK
Output
Inverted differential clock output.
14
CLK
Output
Differential clock output.
15
GND
Power
Connect to ground.
16
X2
XO
Crystal connection. Connect to 10-27MHz fundamental parallel mode crystal
or leave unconnected for clock input.
L
OW
P
HASE
N
OISE
C
LOCK
M
ULTIPLIER
MDS 601-21 H
3
Revision 040204
I n t e gr a t e d C i r c u i t S y s t e m s
l
5 2 5 R a c e S t r e e t , S a n J o s e, C A 9 5 1 2 6
l
t e l ( 4 0 8 ) 2 9 7 - 1 2 0 1
l
w w w. i c s t . c o m
ICS601-21
External Components
The ICS601-21 requires a minimum number of external components for proper operation. Decoupling
capacitors of 0.01
F and 0.1 F should be connected between VDD and GND, as close to the part as
possible. A 50
terminating resistor should be used on each clock output. (See termination diagram on
page 5). The crystal must be connected as close to the chip as possible. The crystal should be
fundamental mode, parallel resonant. Do not use third overtone. For exact tuning when using a crystal,
capacitors should be connected from pins X1 to ground and X2 to ground. In general, the value of these
capacitors is given by the following equation, where CL is the crystal load capacitance: Crystal caps (pF) =
(CL-5) x 2. So for a crystal with 16 pF load capacitance, two 22 pF caps can be used. For any given board
layout, ICS can measure the board capacitance and recommend the exact capacitance value to use.
Absolute Maximum Ratings
Stresses above the ratings listed below can cause permanent damage to the ICS601-21. These ratings,
which are standard values for ICS commercially rated parts, are stress ratings only. Functional operation of
the device at these or any other conditions above those indicated in the operational sections of the
specifications is not implied. Exposure to absolute maximum rating conditions for extended periods can
affect product reliability. Electrical parameters are guaranteed only over the recommended operating
temperature range.
Recommended Operation Conditions
DC Electrical Characteristics
VDD=3.3 V 10%, Ambient temperature 0 to +70
C
Item
Rating
Supply Voltage, VDD
7 V
All Inputs and Outputs
-0.5 V to VDD+0.5 V
Ambient Operating Temperature, Commercial version
0 to +70
C
Storage Temperature
-65 to +150
C
Junction Temperature
125
C
Soldering Temperature
260
C
Parameter
Min.
Typ.
Max.
Units
Ambient Operating Temperature
0
+70
C
Power Supply Voltage (measured in respect to GND)
+3.0
+3.6
V
Parameter
Symbol
Conditions
Min.
Typ.
Max.
Units
Operating Voltage
VDD
3.0
3.6
V
Input High Voltage
V
IH
X1/ICLK pin only
VDD/2+1
V
Input Low Voltage
V
IL
X1/ICLK pin only
VDD/2-1
V
L
OW
P
HASE
N
OISE
C
LOCK
M
ULTIPLIER
MDS 601-21 H
4
Revision 040204
I n t e gr a t e d C i r c u i t S y s t e m s
l
5 2 5 R a c e S t r e e t , S a n J o s e, C A 9 5 1 2 6
l
t e l ( 4 0 8 ) 2 9 7 - 1 2 0 1
l
w w w. i c s t . c o m
ICS601-21
DC Electrical Characteristics
(continued)
Note 1: Outputs terminated with 50
to VDD-2V
AC Electrical Characteristics
VDD = 3.3 V 10%, Ambient Temperature 0 to +70
C
Note 2: Input frequency limited by maximum output frequency and multiplication factor (I.e. For 16x,
maximum input frequency is 13.75 MHz).
Parameter
Symbol
Conditions
Min.
Typ.
Max.
Units
Input High Voltage
V
IH
Input select pins
2
VDD
V
Input Low Voltage
V
IL
Input select pins
0.8
V
Output High Voltage
V
OH
Note 1
VDD-1.4
VDD-1.0
V
Output Low Voltage
V
OL
Note 1
VDD-2.0
VDD-1.7
V
Output Voltage Swing
V
swing
Peak to Peak
0.6
0.95
V
Operating Supply Current
IDD
Note 1, 125 MHz
30
45
mA
Input Capacitance
C
IN
Input select pins
5
pF
On Chip Pull-up Resistor
R
PU
Input select pins
510
k
Parameter
Symbol
Conditions
Min.
Typ.
Max.
Units
Crystal Input Frequency
Fin
Note 2
10
27
MHz
Output Frequency
10
220
MHz
Output Rise Time
t
OR
20% to 80%, no load
600
900
ps
Output Fall Time
t
OF
80% to 20%, no load
900
1200
ps
Output Clock Duty Cycle
at VDD/2
45
50
55
%
Maximum Absolute Jitter, short
term, 125 MHz
No load
50
75
ps
Maximum Jitter, one sigma,
125 MHz (x5)
No load
12
20
ps
Phase Noise, relative to carrier,
125 MHz (x5)
100 Hz offset
-90
-94
dBc/Hz
Phase Noise, relative to carrier,
125 MHz (x5)
1 kHz
-116
-120
dBc/Hz
Phase Noise, relative to carrier,
125 MHz (x5)
10 kHz offset
-118
-122
dBc/Hz
Phase Noise, relative to carrier,
125 MHz (x5)
100 kHz offset
-115
-119
dBc/Hz
L
OW
P
HASE
N
OISE
C
LOCK
M
ULTIPLIER
MDS 601-21 H
5
Revision 040204
I n t e gr a t e d C i r c u i t S y s t e m s
l
5 2 5 R a c e S t r e e t , S a n J o s e, C A 9 5 1 2 6
l
t e l ( 4 0 8 ) 2 9 7 - 1 2 0 1
l
w w w. i c s t . c o m
ICS601-21

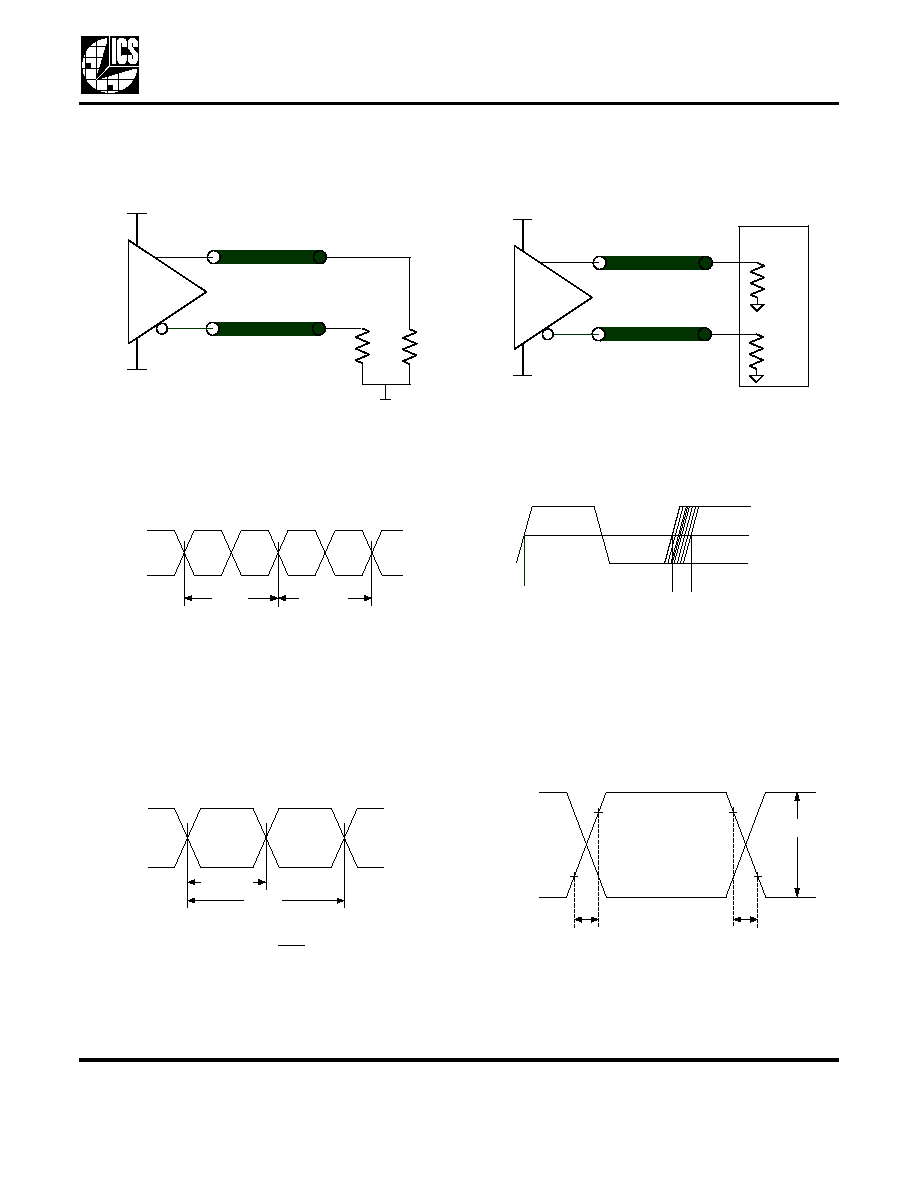

Parameter Measurement Information
Period Jitter
V
OH
V
OL
V
REF
HISTOGRAM
Mean Period
(First edge after trigger)
1s contains 68.26% of all measurements
2s contains 95.4% of all measurements
3s contains 99.73% of all measurements
4s contains 99.99366% of all measurements
6s contains (100-1.973x10
-7
)% of all measurements
Reference Point
Clock
Outputs
80%
80%
20%
20%
t
OR
t
OF
O
UTPUT
R
ISE
/F
ALL
T
IME
V
SWING
3.3V O utp ut Lo ad A C T est C ircuit
LV P E C L
V
D D
= 3.3V
G N D =0V
S C O P E
50
50
Z = 50
Z = 50
Q x
nQ x
CYCLE-TO-CYCLE JITTER
t
jit(cc) =
t
cycle(n) -
t
cycle(n+1)
t
cycle(n)
t
cycle(n+1)
nFOUT
FOUT
1000 Cycles
3 .3V LV P E C L D rive r T erm ina tion
LV P E C L
V
D D
= 3.3V
G N D = 0V
50
50
Z = 50
Z = 50
Q x
nQ x
V
D D
-2V = 1.3V
Pulse Width
t
PERIOD
O
UTPUT
D
UTY
C
YCLE AND
t
PERIOD
t
PW
t
PERIOD
ODC =
nFOUT
FOUT
L
OW
P
HASE
N
OISE
C
LOCK
M
ULTIPLIER
MDS 601-21 H
6
Revision 040204
I n t e gra t e d C i r c u i t S y s t e ms
l
5 2 5 R a c e S t r e e t , S a n J o s e, C A 9 5 1 2 6
l
t e l ( 4 0 8 ) 2 9 7 - 1 2 0 1
l
w w w. i c s t . c o m
ICS601-21

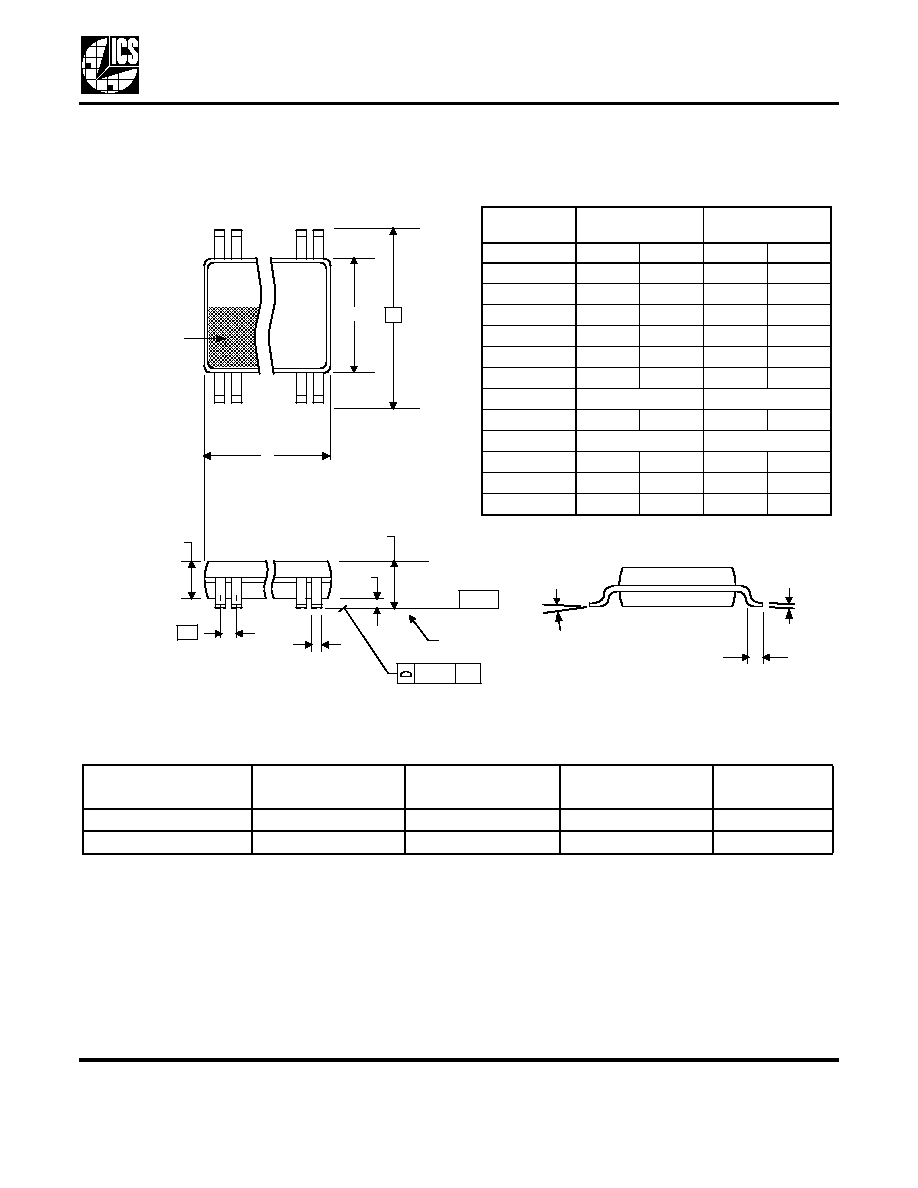

Package Outline and Package Dimensions
(16-pin TSSOP, 173 Mil. Narrow Body)
Package dimensions are kept current with JEDEC Publication No. 95
Ordering Information
While the information presented herein has been checked for both accuracy and reliability, Integrated Circuit Systems (ICS) assumes no
responsibility for either its use or for the infringement of any patents or other rights of third parties, which would result from its use. No other
circuits, patents, or licenses are implied. This product is intended for use in normal commercial applications. Any other applications such as those
requiring extended temperature range, high reliability, or other extraordinary environmental requirements are not recommended without
additional processing by ICS. ICS reserves the right to change any circuitry or specifications without notice. ICS does not authorize or warrant
any ICS product for use in life support devices or critical medical instruments.
Part / Order Number
Marking
Shipping
packaging
Package
Temperature
ICS601G-21
ICS601G-21
Tubes
16-pin TSSOP
0 to 70
C
ICS601G-21T
ICS601G-21
Tape and Reel
16-pin TSSOP
0 to 70
C
INDEX
AREA
1 2
16
D
E1
E
SEATING
PLANE
A1
A
A2
e
- C -
b
aaa
C
c
L
Millimeters
Inches
Symbol
Min
Max
Min
Max
A
--
1.20
--
0.047
A1
0.05
0.15
0.002
0.006
A2
0.80
1.05
0.032
0.041
b
0.19
0.30
0.007
0.012
C
0.09
0.20
0.0035
0.008
D
4.90
5.1
0.193
0.201
E
6.40 BASIC
0.252 BASIC
E1
4.30
4.50
0.169
0.177
e
0.65 Basic
0.0256 Basic
L
0.45
0.75
0.018
0.030
0
8
0
8
aaa
--
0.10
--
0.004
