Oscillator, Multiplier, and Buffer with 8 Outputs
Description
The ICS552-01 produces 8 low-skew copies of the
multiple input clock or fundamental, parallel-mode
crystal. Unlike other clock drivers, these parts do not
require a separate oscillator for the input. Using ICS'
patented Phase-Locked Loop (PLL) to multiply the
input frequency, it is ideal for generating and
distributing multiple high-frequency clocks. This is a
single chip used for 3 different applications:
1) ICS552-01 (A mode) -- an Oscillator mutilpier
2) ICS552-01 (B mode) -- a Dual 1:4 buffer
3) ICS552-01 (C mode) -- a 1:8 Oscillator buffer
Features (all)
Packaged as 20-pin SSOP (QSOP)
Pb-free packaging available
Operating voltages of 3.0 V to 5.5 V
Industrial temperature available
Features (specific)
ICS552-01 (for A mode)
Contains on-chip multiplier with selections of x1,
x1.33, x2, x2.66, x3, x3.33, x4, x4.66, x5, and x6
Power-down and Tri-state modes
ICS552-01 (for B mode)
Up to 200 MHz clock input/output at 3.3 V
Low skew of 250 ps maximum for any bank of four
Inputs can be connected together for a 1 to 8 buffer
with 250 ps skew between any outputs
Non-inverting buffer mode
Ideal for clock networks
Output Enable mode tri-states outputs
Full CMOS output swing with 25 mA output drive
capability at TTL levels
Advanced, low power, sub-micron CMOSprocess
ICS552-01 (for C mode)
Use with 25 MHz crystal for networking
Use with 27 MHz crystal for MPEG
ICS552-01 (for A and C modes)
Input frequency of 10.0 to 27.0 MHz
Provides 8 low-skew outputs (<250 ps)
Output clock duty cycle of 40/60 at 3.3 V
Block Diagram
(ICS552-01--A mode)
Crystal
Buffer/
Crystal
Oscillator
GND
VDD
PLL
Multiplier
S3:S0
CLK1
CLK8
CLK7
CLK6
CLK5
CLK4
CLK3
CLK2
4
X2
10.0 to 27.0 MHz
crystal or clock input
External capacitors are
required with a crystal input.
X1
Oscillator, Multiplier, and Buffer with 8 Outputs
MDS 552-01 C
2
Revision 100104
Integrated Circuit Systems, Inc.
525 Race Street, San Jose, CA 95126
tel (408) 297-1201
www.icst.com
ICS552-01

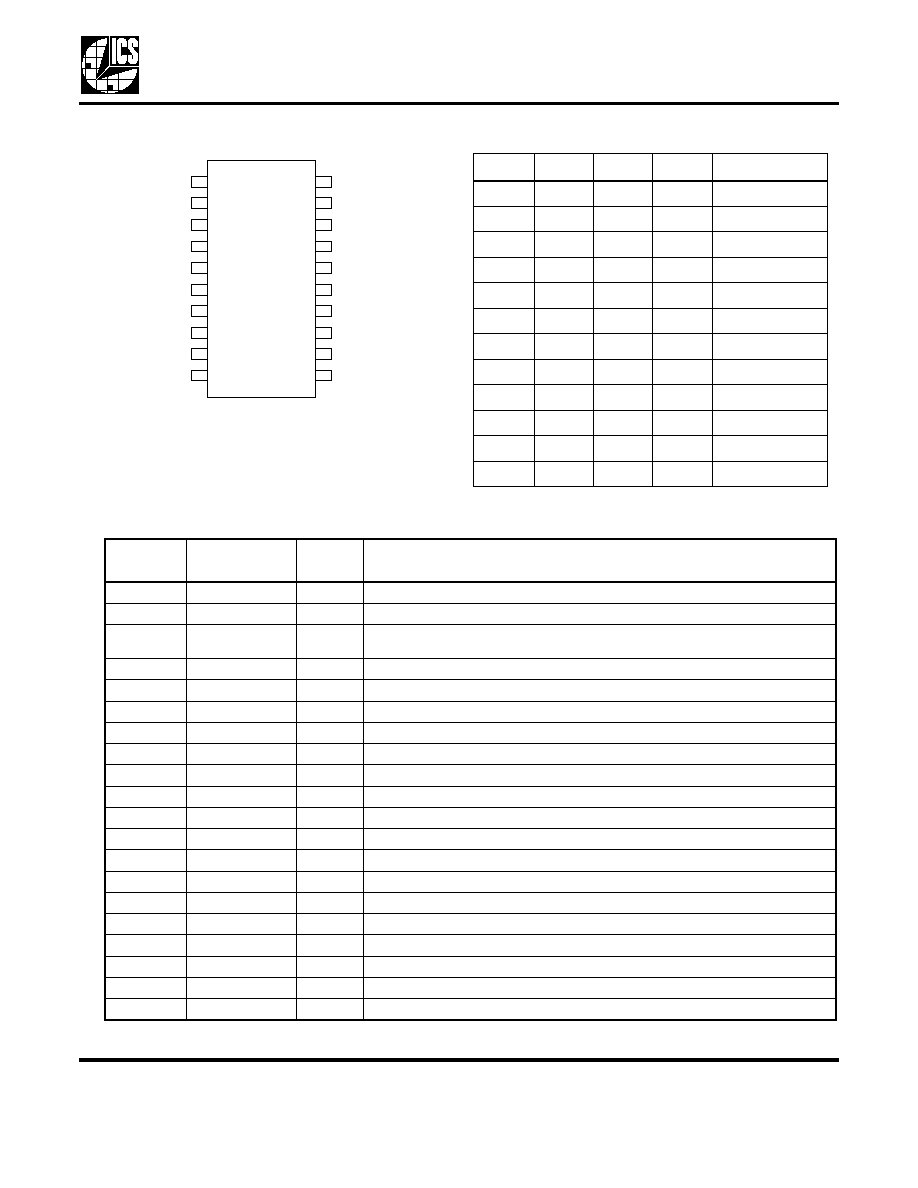

Pin Assignment
(ICS552-01--A mode)
Multiplier Select Table
Pin Descriptions
(ICS552-01--A mode)
16
1
15
2
14
DC
S0
3
13
X2
4
12
X1/ICLK
DC
5
11
S2
6
7
VDD
8
GND
S3
VDD
GND
CLK1
CLK5
CLK2
CLK6
9
10
CLK3
CLK7
CLK4
CLK8
20
19
18
17
20-pin (150 mil) SSOP (QSOP)
S1
S3
S2
S1
S0
Multiplier
0
0
0
0
Power Down
0
0
0
1
x1
0
0
1
0
x1.333
0
0
1
1
x2
0
1
0
0
x2.666
0
1
0
1
x3
0
1
1
0
x3.333
0
1
1
1
x4
1
0
0
0
x5
1
0
0
1
x4.66
1
0
1
0
x6
1
1
0
1
Tri-state all
Pin
Number
Pin
Name
Pin
Type
Pin Description
1
DC
--
Do not connect.
2
X2
XO
Crystal connection. Connect to a 10 - 27 MHz fundamental mode crystal.
3
X1/ICLK
XI
Crystal connection. Connect to a 10 - 27 MHz fundamental mode crystal or
clock.
4
VDD
Power
Connect to +3.3 V or 5 V. Decouple with pin 6. Must be same as other VDDs.
5
S2
Input
Multiplier Select pin 2 per table above.
6
GND
Power
Connect to ground.
7
CLK1
Output
Output clock 1.
8
CLK2
Output
Output clock 2.
9
CLK3
Output
Output clock 3.
10
CLK4
Output
Output clock 4.
11
S1
Input
Multiplier Select pin 1 per table above
12
CLK5
Output
Output clock 5.
13
CLK6
Output
Output clock 6.
14
GND
Power
Connect to ground.
15
S3
Input
Multiplier Select pin 3 per table above
16
VDD
Power
Connect to +3.3 V or 5 V. Decouple with pin 14. Must be same as other VDDs.
17
CLK7
Output
Output clock 7.
18
CLK8
Output
Output clock 8.
19
DC
--
Do not connect.
20
S0
Input
Multiplier Select pin 0 per table above
Oscillator, Multiplier, and Buffer with 8 Outputs
MDS 552-01 C
3
Revision 100104
Integrated Circuit Systems, Inc.
525 Race Street, San Jose, CA 95126
tel (408) 297-1201
www.icst.com
ICS552-01
Block Diagram
(ICS552-01--B mode)
Pin Assignment
(ICS552-01--B mode)
Clock Output Select Table
(ICS552-01--B mode)
S1
S0
Mode
0
0
QA1:4 and QB1:4 running
0
1
Test mode
1
0
OE. All outputs in high impedance
1
1
QA1:4 only. QB1:4 stopped low
Control
Logic
INA
QA1
QB4
QB3
QB2
QB1
QA4
QA3
QA2
INB
S1
S0
16
1
15
2
14
INA
S0
3
13
DC
4
12
DC
INB
5
11
VDD
6
7
VDD
8
GND
VDD
VDD
GND
QA1
QB1
QA2
QB2
9
10
QA3
QB3
QA4
QB4
20
19
18
17
20-pin (150 mil) SSOP (QSOP)
S1
Oscillator, Multiplier, and Buffer with 8 Outputs
MDS 552-01 C
4
Revision 100104
Integrated Circuit Systems, Inc.
525 Race Street, San Jose, CA 95126
tel (408) 297-1201
www.icst.com
ICS552-01
Pin Descriptions
(ICS552-01--B mode)
KEY: CI = clock input with pull-up resistor; I = input with internal pull-up resistor.
Pin
Number
Pin
Name
Pin
Type
Pin Description
1
INA
CI
Input to buffer A. Outputs QA1:4 will be the same frequency. Internal pull-up resistor.
2
DC
--
Do not connect.
3
DC
--
Do not connect.
4
VDD
Power
Connect to +3.3 V or 5.0 V. Must be same as other VDDs.
5
VDD
Power
Connect to +3.3 V or 5.0 V. Must be same as other VDDs.
6
GND
Power
Connect to ground.
7
QA1
Output
Output 1 from buffer A.
8
QA2
Output
Output 2 from buffer A.
9
QA3
Output
Output 3 from buffer A.
10
QA4
Output
Output 4 from buffer A.
11
S1
I
Mode Select pin 1. Selects mode for outputs. Must be at GND for all clocks on. Internal
pull-up resistor.
12
QB1
Output
Output 1 from buffer B.
13
QB2
Output
Output 2 from buffer B.
14
GND
Power
Connect to ground.
15
VDD
Power
Connect to +3.3 V or 5.0 V. Must be same as other VDDs.
16
VDD
Power
Connect to +3.3 V or 5.0 V. Must be same as other VDDs.
17
QB3
Output
Output 3 from buffer B.
18
QB4
Output
Output 4 from buffer B.
19
INB
CI
Input to buffer B. Outputs QA1:4 will be the same frequency. Internal pull-up resistor.
20
S0
I
Mode Select pin 0. Selects mode for outputs. Must be at GND for all clocks on. Internal
pull-up resistor.
Oscillator, Multiplier, and Buffer with 8 Outputs
MDS 552-01 C
5
Revision 100104
Integrated Circuit Systems, Inc.
525 Race Street, San Jose, CA 95126
tel (408) 297-1201
www.icst.com
ICS552-01
Block Diagram
(ICS552-01--C mode)
Pin Assignment
(ICS552-01--C mode)
Crystal
Oscillator
GND
VDD
CLK1
CLK8
CLK7
CLK6
CLK5
CLK4
CLK3
CLK2
5
X2
10.0 to 27.0 MHz
crystal input
External capacitors are
required with a crystal input.
X1
3
16
1
15
2
14
DC
VDD
3
13
X2
4
12
X1
DC
5
11
GND
6
7
VDD
8
GND
VDD
VDD
GND
CLK1
CLK5
CLK2
CLK6
9
10
CLK3
CLK7
CLK4
CLK8
20
19
18
17
20-pin (150 mil) SSOP (QSOP)
VDD
Oscillator, Multiplier, and Buffer with 8 Outputs
MDS 552-01 C
6
Revision 100104
Integrated Circuit Systems, Inc.
525 Race Street, San Jose, CA 95126
tel (408) 297-1201
www.icst.com
ICS552-01
Pin Descriptions
(ICS552-01--C mode)
Pin
Number
Pin
Name
Pin
Type
Pin Description
1
DC
--
Do not connect.
2
X2
XO
Crystal connection. Connect to a 10 - 27 MHz fundamental mode crystal.
3
X1
XI
Crystal connection. Connect to a 10 - 27 MHz fundamental mode crystal.
4
VDD
Power
Connect to +3.3 V or 5 V. Decouple with pin 6. Must be same as other VDDs.
5
GND
Power
Connect to ground.
6
GND
Power
Connect to ground.
7
CLK1
Output
Output clock 1.
8
CLK2
Output
Output clock 2.
9
CLK3
Output
Output clock 3.
10
CLK4
Output
Output clock 4.
11
VDD
Power
Connect to +3.3 V or 5 V. Must be same as other VDDs.
12
CLK5
Output
Output clock 5.
13
CLK6
Output
Output clock 6.
14
GND
Power
Connect to ground.
15
VDD
Power
Connect to +3.3 V or 5 V. Must be same as other VDDs.
16
VDD
Power
Connect to +3.3 V or 5 V. Decouple with pin 14. Must be same as other VDDs.
17
CLK7
Output
Output clock 7.
18
CLK8
Output
Output clock 8.
19
DC
--
Do not connect.
20
VDD
Power
Connect to +3.3 V or 5 V. Must be same as other VDDs.
Oscillator, Multiplier, and Buffer with 8 Outputs
MDS 552-01 C
7
Revision 100104
Integrated Circuit Systems, Inc.
525 Race Street, San Jose, CA 95126
tel (408) 297-1201
www.icst.com
ICS552-01
External Components
Series Termination Resistor
Clock output traces over one inch should use series
termination. To series terminate a 50
trace (a
commonly used trace impedance), place a 33
resistor
in series with the clock line, as close to the clock output
pin as possible. The nominal impedance of the clock
output is 20
.
Decoupling Capacitors
As with any high-performance mixed-signal IC, the
ICS552-01 must be isolated from system power supply
noise to perform optimally.
Decoupling capacitors of 0.01F must be connected
between each VDD and GND on pins 4 and 6, and 16
and 14. Other VDDs and GNDs can be connected to
these pins or directly to their respective ground planes.
Crystal Load Capacitors
The device crystal connections should include pads for
small capacitors from X1 to ground and from X2 to
ground. These capacitors are used to adjust the stray
capacitance of the board to match the nominally
required crystal load capacitance. Because load
capacitance can only be increased in this trimming
process, it is important to keep stray capacitance to a
minimum by using very short PCB traces (and no vias)
been the crystal and device. Crystal capacitors must be
connected from each of the pins X1 and X2 to ground.
The value (in pF) of these crystal caps should equal
(C
L
-12 pF)*2. In this equation, C
L
= crystal load
capacitance in pF. Example: For a crystal with a 18 pF
load capacitance, two 12 pF capacitors should be
used. For a clock input, connect it X1/ICLK and leave
X2 unconnected (floating).
PCB Layout Recommendations
For optimum device performance and lowest output
phase noise, the following guidelines should be
observed.
1) Each 0.01F decoupling capacitor should be
mounted on the component side of the board as close
to the VDD pin as possible. No vias should be used
between decoupling capacitor and VDD pin. The PCB
trace to VDD pin should be kept as short as possible,
as should the PCB trace to the ground via.
2) The external crystal should be mounted just next to
the device with short traces. The X1 and X2 traces
should not be routed next to each other with minimum
spaces, instead they should be separated and away
from other traces.
3) To minimize EMI, the 33
series termination resistor
(if needed) should be placed close to the clock output.
4) An optimum layout is one with all components on the
same side of the board, minimizing vias through other
signal layers.
Oscillator, Multiplier, and Buffer with 8 Outputs
MDS 552-01 C
8
Revision 100104
Integrated Circuit Systems, Inc.
525 Race Street, San Jose, CA 95126
tel (408) 297-1201
www.icst.com
ICS552-01
Absolute Maximum Ratings
Stresses above the ratings listed below can cause permanent damage to the ICS552-01. These ratings,
which are standard values for ICS commercially rated parts, are stress ratings only. Functional operation of
the device at these or any other conditions above those indicated in the operational sections of the
specifications is not implied. Exposure to absolute maximum rating conditions for extended periods can
affect product reliability. Electrical parameters are guaranteed only over the recommended operating
temperature range.
Recommended Operation Conditions
DC Electrical Characteristics
Unless stated otherwise, VDD = 3.3 V or 5 V, Ambient Temperature -40 to +85
C
Parameter
Condition
Min.
Typ.
Max.
Units
Supply Voltage, VDD
Referenced to GND
7
V
Inputs
Referenced to GND
-0.5
VDD+0.5
V
Clock Outputs
Referenced to GND
-0.5
VDD+0.5
V
Storage Temperature
-65
150
C
Soldering Temperature
Max 10 seconds
260
C
Junction Temperature
125
C
Parameter
Min.
Typ.
Max.
Units
Ambient Operating Temperature (commercial)
0
+70
C
Ambient Operating Temperature (industrial)
-40
+85
C
Parameter
Symbol
Conditions
Min.
Typ.
Max.
Units
Operating Voltage
VDD
3.0
5.5
V
Input High Voltage
V
IH
ICLK
VDD/2+1
VDD/2
V
Input Low Voltage
V
IL
ICLK
VDD/2
VDD/2-1
V
Input High Voltage
V
IH
S3:S0
2
V
Input Low Voltage
V
IL
S3:S0
0.8
V
Output High Voltage
V
OH
VDD = 3.3 V,
I
OH
= -8 mA
2.4
V
Output Low Voltage
V
OL
VDD = 3.3 V,
I
OL
= 8 mA
0.4
V
Output High Voltage
V
OH
VDD = 3.3 V or 5 V,
I
OH
= -8 mA
VDD-0.4
V
Short Circuit Current
I
OS
VDD = 3.3 V, each
output
50
mA
Oscillator, Multiplier, and Buffer with 8 Outputs
MDS 552-01 C
9
Revision 100104
Integrated Circuit Systems, Inc.
525 Race Street, San Jose, CA 95126
tel (408) 297-1201
www.icst.com
ICS552-01
AC Electrical Characteristics
Unless stated otherwise, VDD = 3.3 V or 5 V, Ambient Temperature -40 to +85
C
Thermal Characteristics
Operating Supply Current
I
DD
at 3.3 V, no load, 25
MHz in, x4
35
mA
Operating Supply Current
I
DD
at 5 V, no load, 25 MHz
in, x4
59
mA
Power-down Supply
Current
I
DD
S3:S0 = 0 (GND)
55
A
Parameter
Symbol
Conditions
Min.
Typ.
Max.
Units
Input Frequency
F
IN
Fundamental crystal
10
27
MHz
Input clock
10
27
MHz
Output Rise Time
t
OR
0.8 to 2.0 V
1.5
ns
Output Fall Time
t
OF
2.0 to 0.8 V
1.5
ns
Duty Cycle
at VDD/2
40
50
60
%
Output-to-Output Skew
Rising edges at VDD/2
250
ps
Parameter
Symbol
Conditions
Min.
Typ.
Max.
Units
Thermal Resistance Junction to
Ambient
JA
Still air
135
C/W
JA
1 m/s air flow
93
C/W
JA
3 m/s air flow
78
C/W
Thermal Resistance Junction to Case
JC
60
C/W
Parameter
Symbol
Conditions
Min.
Typ.
Max.
Units
Oscillator, Multiplier, and Buffer with 8 Outputs
MDS 552-01 C
10
Revision 100104
Integrated Circuit Systems, Inc.
525 Race Street, San Jose, CA 95126
tel (408) 297-1201
www.icst.com
ICS552-01

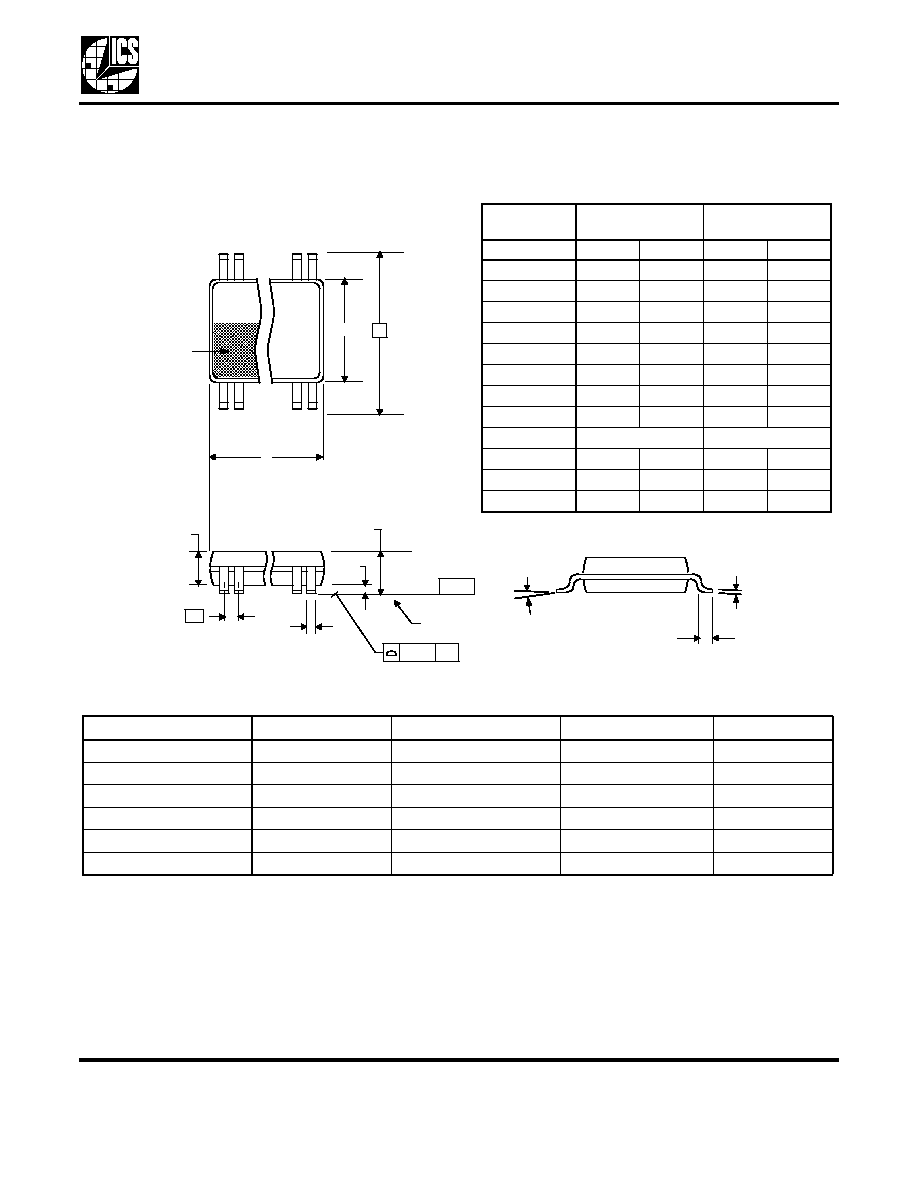

Package Outline and Package Dimensions
(20-pin SSOP, 150 Mil. Wide Body)
Package dimensions are kept current with JEDEC Publication No. 95
Ordering Information
"LN" denotes Pb (lead) free package.
While the information presented herein has been checked for both accuracy and reliability, Integrated Circuit Systems (ICS)
assumes no responsibility for either its use or for the infringement of any patents or other rights of third parties, which would
result from its use. No other circuits, patents, or licenses are implied. This product is intended for use in normal commercial
applications. Any other applications such as those requiring extended temperature range, high reliability, or other extraordinary
environmental requirements are not recommended without additional processing by ICS. ICS reserves the right to change any
circuitry or specifications without notice. ICS does not authorize or warrant any ICS product for use in life support devices or
critical medical instruments.
Part / Order Number
Marking
Shipping Packaging
Package
Temperature
ICS552R-01
ICS552R-01
Tubes
20-pin SSOP
0 to +70
C
ICS552R-01T
ICS552R-01
Tape and Reel
20-pin SSOP
0 to +70
C
ICS552R-01LN
552R-01LN
Tubes
20-pin SSOP
0 to +70
C
ICS552R-01LNT
552R-01LN
Tape and Reel
20-pin SSOP
0 to +70
C
ICS552R-01I
ICS552R-01I
Tubes
20-pin SSOP
-40 to +85
C
ICS552R-01IT
ICS552R-01I
Tape and Reel
20-pin SSOP
-40 to +85
C
INDEX
AREA
1 2
20
D
E1
E
SEATING
PLANE
A1
A
A2
e
- C -
b
aaa
C
c
L
Millimeters
Inches
Symbol
Min
Max
Min
Max
A
1.35
1.75
0.053
0.069
A1
0.10
0.25
0.004
0.010
A2
--
1.50
--
0.059
b
0.20
0.30
0.008
0.012
c
0.18
0.25
0.007
0.010
D
8.55
8.75
0.337
0.344
E
5.80
6.20
0.228
0.244
E1
3.80
4.00
0.150
0.157
e
.635 Basic
.025 Basic
L
0.40
1.27
0.016
0.050
0
8
0
8
aaa
--
0.10
--
0.004
PDF
ZIP
