CS22220 Wireless PCMCIA Controller
1 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
1
Description
The Cirrus Logic CS22220 Wireless Network Controller enables high performance, 11 Megabits per
second digital wireless data connectivity for PCMCIA, mobile, embedded systems and other cost
sensitive applications
.
The CS22220 is a highly integrated single-chip PCMCIA solution for wireless networks supporting
video, audio, voice, and data traffic. The programmable controller executes Cirrus Logic's
WhitecapTM2 networking protocol that provides Wi-FiTM (802.11b) compliance as well as multimedia
and quality of service (QoS) support. The device includes several high performance components
including an ARM7TDMI RISC processor core, a Forward Error Correction (FEC) codec and a
wireless radio MAC supporting up to11 Mbps throughput. The CS22220 utilizes state of the art
0.18um CMOS process and is housed in a 208 FPBGA compact (15mm x 15mm) package, which
has low-lead inductance suitable for highly integrated radio applications. The core is powered at 1.8
V with 3.3V (5.0V tolerant) I/O to reduce overall power consumption. In addition, the CS22220
supports low power management for the host and radio interfaces.
The CS22220 is designed to be an integral part of a PC card (PCMCIA 2.1/JEIDA 4.2). The
PCMCIA host interface also supports both little endian and big endian protocol for easy interfacing
to popular microprocessors in embedded system applications.
Figure 1. Example System Block Diagram
11 Mbps
Wireless
Baseband I/F
CS22220
Wireless
PCMCIA
Controller
802.11b compatible
2.4 GHz
Digital Radio
PHY Transceiver
2.4 GHz Direct Sequence
Spread Spectrum
System Memory
SDRAM (Up to 4MB)
SRAM (Up to 256KB)
PCMCIA Host or Embedded CPU
Networking Data
Boot ROM/Flash
(Up to 1MB)
CS22220 Data Sheet
Wireless PCMCIA Controller
CS22220 Wireless PCMCIA Controller
2 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
2
Features
Embedded ARM Core and System Support Logic
High performance ARM7TDMI RISC processor core up to 77MHz
4KB integrated, one-way set associative, unified, write through cache
Individual interrupt for each functional block
Two 23-bit programmable (periodic or one-shot) general purpose timers
8 Dword (32-bits) memory write and read buffers for high system performance
Abort cycle detection and reporting for debugging
ARM performance monitoring function for system fine-tuning
Programmable performance improvement logic based on system configuration
Enhanced Memory Controller Unit
Programmable memory controller unit supporting SDRAM /async SRAM/Boot ROM/Flash
interface
16-bit data bus with 12-bit address supporting up to 4MB up to 103 MHz
(100/133MHz SDRAM)
8-bit data bus with addressing support up to 1MB of boot ROM/Flash.
Programmable SDRAM timing and size parameters such as CAS latencies and number of
banks, columns, and rows
Flexible independent DMA engines for PCMCIA and digital radio functional units
FEC codec
High performance Reed-Solomon coding for error correction (255:239 block coding)
Reduces error probability of a typical 10e-3 error rate environment to 10e-9
Programmable rate FEC engine to optimize channel efficiency
Low latency, fully pipelined hardware encoding and decoding. Supports byte-wise single cycle
throughput up to 77MHz, with a sustain rate of 77MBps.
Double buffering (63 Dword read/write buffer) to enhance system performance
Digital Radio MAC Interface
Glue-less interface to 802.11b baseband transceivers
Up to 11Mbps data rates
32 Dword transmit/receive FIFO
Supports clear channel assessment (CCA)
Power Management
Host (PCMCIA) ACPI compliant
Programmable sleep timer for ARM core and system low power management
Independent power management control for individual functional units
Supports variable rate radio transmit, receive, and standby radio power modes
Clock and PLL Interface
Single 44MHz crystal oscillator reference clock
Internal PLL to generate internal and on board clocks
PCMCIA Interface
16 bit PCMCIA I/O target device supporting memory map or program I/O using 11 address bits
Independent DMA controller to transfer data between PCMCIA and main memory
Fully compliant with PCMCIA 2.1/JEIDA 4.2 standard
Supports big endian and little endian (default) data formats
Supports custom mode for embedded applications where the interface becomes a generic
memory address/data interface
Chip Processing and Packaging
208 FPBGA package and 0.18um state of the art CMOS process
1.8 V core for low power consumption. 3.3V I/O - 5V tolerant I/O
CS22220 Wireless PCMCIA Controller
3 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
IMPORTANT NOTICE
"Preliminary" product information describes products that are in production, but for which full characterization data is not yet
available. "Advance" product information describes products that are in development and subject to development changes.
Cirrus Logic, Inc. and its subsidiaries ("Cirrus") believe that the information contained in this document is accurate and
reliable. However, the information is subject to change without notice and is provided "AS IS" without warranty of any kind
(express or implied). Customers are advised to obtain the latest version of relevant information to verify, before placing
orders, that information being relied on is current and complete. All products are sold subject to the terms and conditions of
sale supplied at the time of order acknowledgment, including those pertaining to warranty, patent infringement, and limitation
of liability. No responsibility is assumed by Cirrus for the use of this information, including use of this information as the
basis for manufacture or sale of any items, or for infringement of patents or other rights of third parties. This document is the
property of Cirrus and by furnishing this information, Cirrus grants no license, express or implied under any patents, mask
work rights, copyrights, trademarks, trade secrets or other intellectual property rights. Cirrus owns the copyrights of the
information contained herein and gives consent for copies to be made of the information only for use within your organization
with respect to Cirrus integrated circuits or other parts of Cirrus. This consent does not extend to other copying such as
copying for general distribution, advertising or promotional purposes, or for creating any work for resale.
An export permit needs to be obtained from the competent authorities of the Japanese Government if any of the products or
technologies described in this material and controlled under the "Foreign Exchange and Foreign Trade Law" is to be
exported or taken out of Japan. An export license and/or quota needs to be obtained from the competent authorities of the
Chinese Government if any of the products or technologies described in this material is subject to the PRC Foreign Trade
Law and is to be exported or taken out of the PRC.
CERTAIN APPLICATIONS USING SEMICONDUCTOR PRODUCTS MAY INVOLVE POTENTIAL RISKS OF DEATH,
PERSONAL INJURY, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE ("CRITICAL APPLICATIONS").
CIRRUS PRODUCTS ARE NOT DESIGNED, AUTHORIZED, OR WARRANTED TO BE SUITABLE FOR USE IN LIFE-
SUPPORT DEVICES OR SYSTEMS OR OTHER CRITICAL APPLICATIONS. INCLUSION OF CIRRUS PRODUCTS IN
SUCH APPLICATIONS IS UNDERSTOOD TO BE FULLY AT THE CUSTOMER'S RISK.
Cirrus Logic, Cirrus, and the Cirrus Logic logo designs are trademarks of Cirrus Logic, Inc. All other brand and product
names in this document may be trademarks or service marks of their respective owners.
Use of this product in any manner that complies with the MPEG-2 video standard as defined in ISO
documents IS 13818-1 (including annexes C, D, F, J, and K), IS 13818-2 (including annexes A, B,
C, and D, but excluding scalable extensions), and IS 13818-4 (only as it is needed to clarify IS
13818-2) is expressly prohibited without a license under applicable patents in the MPEG-2 patent
portfolio, which license is available from MPEG LA, L.L.C. 250 Steele Street, Suite 300, Denver,
Colorado 80296.
CS22220 Wireless PCMCIA Controller
4 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
3
Functional Description

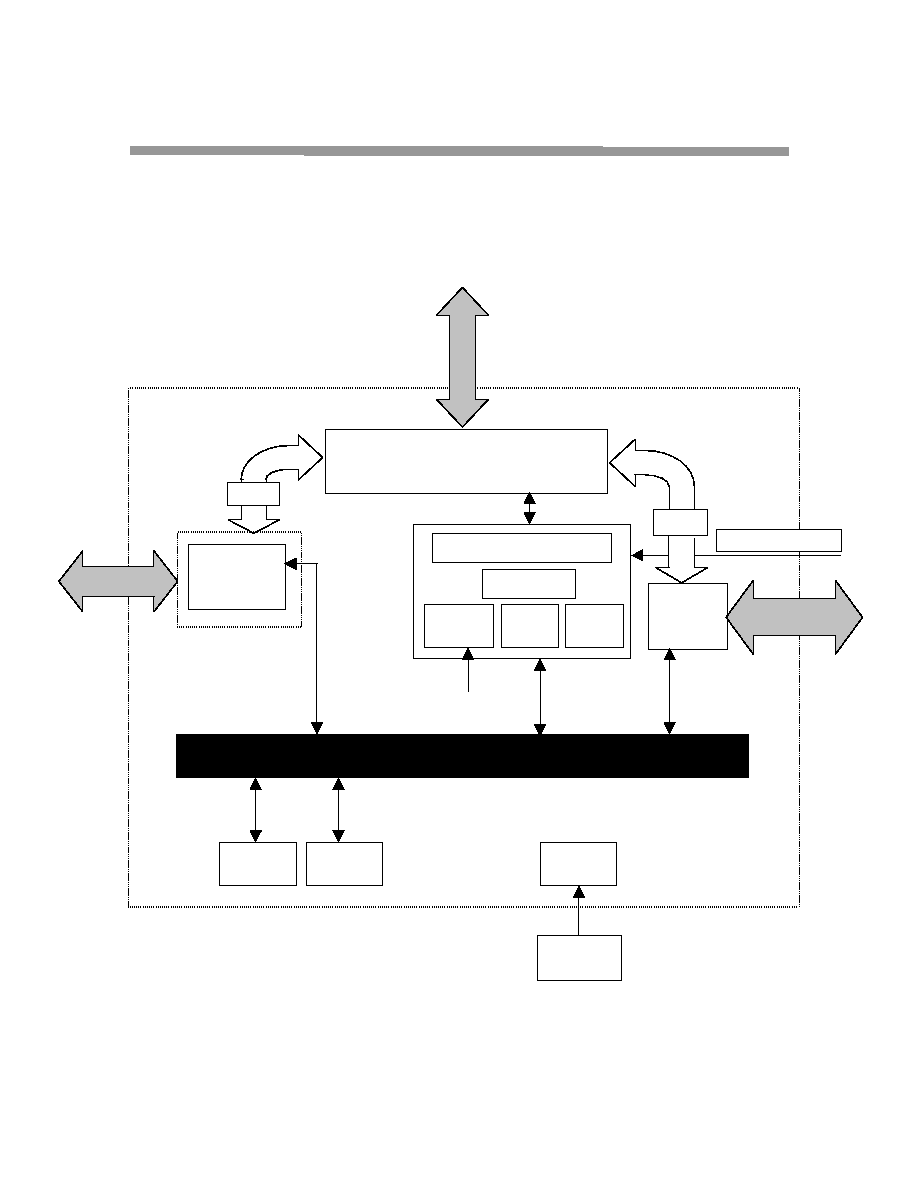

Figure 2. Block Diagram of Major Functional Units
Digital Radio
Interface
Memory/Boot ROM
Controller
Arbiter
ARM 7TDMI
Radio MAC
w/ DMA Ctrl
FEC codec
JTAG/Test Interface
S
y
st
em
M
e
mo
ry
PCMCIA
Clock/PLL
PCMCIA
Controller
w/DMA Ctrl
Crystal or
Oscillator
4KB
Cache
Timer
(2)
Interrupt
controller
Sleep
Timer
System Control Bus
DMA
DMA
Read/Write Buffer
CS22220 Wireless PCMCIA Controller
5 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
3.1
Embedded ARM Core and System Support Logic
The processing elements of the CS22220 include the ARM7TDMI core and its associated
system control logic.
The ARM processor and system controller consists of a memory
management unit, 4-KB write through cache controller, 20 IRQ and 4 FIRQ interrupt
controller, and 2 general purpose timers. The ARM processor and integrated system
support logic provide the necessary execution engine to support a real time multi-tasking
operating system, the network protocol stack, and firmware services.
Memory Management Unit
ARM instructions and data are fetched from system memory a cache-line (4/8 Dwords
/Programmable) at a time when caching is turned on. During a cache line fill, critical word
data, i.e., the access that caused the miss, is forwarded to the ARM and also written into
the data RAM cache. The non-critical words in the line fetched following the critical word
are then written to the cache on a Dword basis, as they become available.
Memory writes are posted to dual 4-Dwords (32-bit) memory write posting buffers. Write
posts use the sequential addressing feature on the memory bus. With dual buffering an out
of sequence write will post to one write buffer while the other buffer is flushed to memory.
There is one 8Dword Read Buffer in the MEM block. The buffer is used for both cacheable
and non-cacheable memory space.
Interrupt Controller
The interrupt controller provides two interrupt channels to the ARM processor.
One
interrupt channel is presented to the ARM on its nFIQ, and the other channel is presented
on its nIRQ pin. These are referred to as the FIQ channel and the IRQ channel. Both
channels operate in identical but independent fashion. The FIQ channel has a higher
priority on the ARM processor than the IRQ channel.
The interrupt controller includes a CONTROL register for each logical interrupt in the ARM
Complex. The CONTROL register serves the following main purposes:
Provides the mapping between the EXT_INT inputs (physical interrupts) and the logical
interrupt
Selects the particular type of signaling expected on the EXT_INT inputs: level, edge,
active level high/low etc.
Enable or disable a logical interrupt
CS22220 Wireless PCMCIA Controller
6 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
3.2
Digital Radio Interface
The CS22220 digital radio MAC I/F supports multiple radio baseband and RF interfaces.
The baseband registers can be programmed during the configuration time using the control
port interface. The MAC also provides the capability of programming the signal, service and
length on per packet basis without ARM intervention. This significantly improves the
performance of the system.
There are three primary digital interface ports for the CS22220 that are used for
configuration and during normal operation.
These ports are:
The Control Port, which is used to configure, set power consumption modes, write
and/or read the status of the radio base band registers.
The TX Port, which is used to output the data that needs to be transmitted from the
network processor.
The RX Port, which is used to input the received demodulated data to the network
processor
3.3
FEC Codec
The FEC codec performs Reed-Solomon coding to protect the data before it is transmitted
to a noisy channel. It is a similar code as employed by the digital broadcast industry, such
as ITU-T J.83 for DVB. The RS(255, 8) code implemented by the CS22220 can reduce
error probability to 1/10e-9 in a typical 1/10e-3 error rate environment.
The
encoder/decoder can be programmed to vary the coding block length (N) and correctable
error (t) to optimize the tradeoff between channel utilization and data protection. The range
of N is currently set to be from 20 to 255, and the t is 8. The symbol size is fixed at 8 bits.
Coding parameters can be set real time, allowing maximum flexibility for the system to
adjust the FEC setting, such as block size, in order to optimize channel efficiency. The
encoder also has a very low latency of two cycles. Both the encoder and decoder are fully
pipelined in structure to achieve single cycle throughput. The FEC can be disabled in
firmware.
CS22220 Wireless PCMCIA Controller
7 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
3.4
Programmable Memory Controller
The CS22220 incorporates a general-purpose memory controller. The memory controller
supports both SDRAM/async SRAM memory interface and a FLASH memory interface.
In the RAM configuration, the system memory interface supports up to 4-Mbyte of 16-bit
SDRAM running at frequency up to 103 MHz (using 133MHz SDRAM) single-state access
cycles or 256KB of 16 bit async SRAM. The memory controller provides programming of
SDRAM parameters such as CAS latency, refresh rate and etc; these registers are located
in miscellaneous configuration registers. The CS22220 memory controller supports the
power saving feature of the SDRAM by toggling the clock enable (CKE) signal. When there
are no pending memory requests from any internal requester, the CS22220 will keep CKE
low to cause the SDRAM to stay in power down mode. Once a memory request is active,
the CS22220 will assert CKE high to cause the SDRAM to come out of power down mode.
Typically, this can reduce memory power consumption by up to 50%.
In ROM configuration, firmware for CS22220 is stored in non-volatile memory and is
accessed through the boot ROM interface. The maximum addressable ROM space
supported is 1MB. ROM read/write and output enable are shared with RAM control pins.
3.5
PCMCIA Interface
The PC-Card interface implemented in Cirrus Logic CS22220 is fully compliant with
PCMCIA 2.1/JEIDA 4.2. The interface supports 16 data bits PCMCIA program I/O and
memory mapped accesses using 11 address bits. PCMCIA interface allows laptop users to
connect to home network to access data and multimedia streams with ease. The interface
provides both memory and I/O access.
The PCMCIA interface incorporates an independent DMA controller to transfer data to/from
the main memory. The ARM has the flexibility in controlling how often it is interrupted and
simplifies the packet transmit/receive protocol. The DMA controller is programmed during
power up.
The CS22220 PCcard interface incorporates a custom mode, which can be used for
embedded applications, by bypassing the standard PC card Pnp configuration
requirements. This interface thus becomes a generic asynchronous 16 bit data interface.
This mode is useful when interfacing the CS22220 wireless network controller directly to an
embedded micro-controller capable of supporting a 16 bit data bus.
CS22220 Wireless PCMCIA Controller
8 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
4
Pinout and Signal Descriptions
Figure 3. CS22220 Logical Pin Groupings
Digital Radio
Interface
nPERR, nSERR
TXCLK
TXPE
TXD
TXRDY
CCA
BBRNW
nRESETB
TXPEBB
nBBCS
BBAS
TXPAPE
BBSCLK
BBSDX
SYNTHLE
RXPEBB
nRPD
RXD
MDRDY
RXCLK
CS22220
Controller
SMCLK
SMA[11:0]
nSMCS[1:0]
nSMRAS
nSMCAS
SMD[15:0]
nSMWE
SMDQM[1:0]
System
Memory
Interface
SMCKE
JTAG
Interface
XTALCLKIN
XTALOUT
TDO
TDI
TCK
TMS
nTRST
nBRCE
Clock Interface
XTRACLK
PLLAGND
PLLAVCC
PLLDGND
PLLDVCC
PLLPLUS
PLL Power
Interface
nPCINPACK
PCD[15:0]
NIOIS16
nPCWAIT
nPCSTSCHG
nPCIRQ
nPCREG
nPCIORD
PCIOWR
EXT_RESET
PCA[10:0]
NPCE1
NPCE2
NPCOE
nPCWE
PCMCIA
Interface
NTEST
CS22220 Wireless PCMCIA Controller
9 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
This section provides detailed information on the CS22220 signals. The signal descriptions are
useful for hardware designers who are interfacing the CS22220 with other devices.
System Memory Interface
The system memory interface supports standard SDRAM interface, async SRAM and FLASH.
There are a total of 38 signals in this interface.
SMCLK
Output
System mem clock for SDRAM.
Currently the interface supports 100
MHz for a maximum bandwidth of 200Mbytes/sec.
nSMCS0
Output
Chip select bit 0. This signal is used to select or deselect the SDRAM for
command entry.
When SMNCS is low it qualifies the sampling of
nSMRAS, nSMCAS and nSMWE. Also, used as testmode(2) when
NTEST pin is '0'.
nSMCS1
Output
Chip select bit 1.
nBRCE
Output
Chip select for ROM access. This signal is used to select or deselect the
boot ROM memory.
nSMRAS
Output
Row address select. Used in combination with nSMCAS, nSMWE and
nSMCS to specify which SDRAM page to open for access. Also used
during reset to latch in the strap value for clk_bypass; if set to a '1' implies
bypassing clock module; whatever clk is applied on the input clock is
used for memclk and ctlclk. Also shared as the ROMOE signal.
nSMCAS
Output
Column address select. Used in combination with nSMRAS, nSMWE and
nSMCS to specify which piece of data to access in selected page. Also
used during reset to latch in the strap value for same_freq; if set to a '1'
implies internal mem_clk and arm_clk are running at the same frequency
and 180 degrees out of phase.
nSMWE
Output
Write enable.
Used in combination with nSMRAS, nSMCAS, and
nSMWE to specify whether the current cycle is a read or a write cycle.
Also used during reset to latch in the strap value for tst_bypass; if set to a
'1' implies PLL bypass.
Also shared as the ROMWE to do flash
programming.
CS22220 Wireless PCMCIA Controller
10 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
SMDQM[1:0]
Output
Data mask bit 1:0. These signals function as byte enable lines masking
unwanted bytes on memory writes. Also, used as testmode(1:0) when
NTEST pin is '0'.
SMCKE
Output
Clock enable. SMCKE is used to enable and disable clocking of internal
RAM logic.
SMA0
Output
Address bit0.
The address bus specifies either the row address or
column address. Also, this is shared as boot-ROM address bit0. Also
used during reset to latch in the strap value for pccsel, if set to a '1'
implies pccard mode
SMA1
Output
Address bit1. Also, this is shared as boot-ROM address bit1. This pin
should be pull-down.
SMA2
Output
Address bit2. Also, this is shared as boot-ROM address bit2. This pin
should be pull-down.
SMA3
Output
Address bit3. Also shared as boot-ROM address bit3. This pin should be
pull-down.
SMA4
Output
Address bit4. Also shared as boot-ROM address bit4.
Also used during
reset to latch in the strap value for romcfg; if set to a '1' implies pccard
configuration data should be downloaded from ROM.
SMA5
Output
Address bit5. Also shared as boot-ROM address bit5. Also used during
reset to latch in the strap value for test_rst_enb; if set to a '0' implies
normal operation mode.
SMA6
Output
Address bit6. Also shared as boot-ROM address bit6. Also used during
reset to latch in the strap value for freq_sel(0). Freq_sel(2:0) is used to
select the multiplication factor for the internal PLL (000=1x, and 111=8x).
CS22220 Wireless PCMCIA Controller
11 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
SMA7
Output
Address bit7. Also shared as boot-ROM address bit7. Also used during
reset to latch in the strap value for freq_sel(1). Freq_sel(2:0) is used to
select the multiplication factor for the internal PLL (000=1x, and 111=8x).
SMA8
Output
Address bit8. Also shared as boot-ROM address bit8. Also used during
reset to latch in the strap value for freq_sel(2). Freq_sel(2:0) is used to
select the multiplication factor for the internal PLL (000=1x, and 111=8x).
SMA9
Output
Address bit9. Also shared as boot-ROM address bit9. Also used during
reset to latch in the strap value for sdram_delay(0). Sdram_delay(2:0) is
used to select the delay factor for the internal memory clock (000=0ns,
and 111=1.75ns with each .25ns increments).
SMA10
Output
Address bit10. Also shared as boot-ROM address bit10. Also used during
reset to latch in the strap value for sdram_delay(1). Sdram_delay(2:0) is
used to select the delay factor for the internal memory clock (000=0ns,
and 111=1.75ns with each .25ns increments).
SMA11
Output
Address bit11. Also shared as boot-ROM address bit11. Also used during
reset to latch in the strap value for sdram_delay(2). Sdram_delay(2:0) is
used to select the delay factor for the internal memory clock (000=0ns,
and 111=1.75ns with each .25ns increments).
SMD[7:0]
Bi-directional
Data bus. The data bus contains the data to be written to memory on a
write cycle and the read return data on a read cycle.
SMD[15:8]
Bi-directional
Shared data bus. The data bus contains the data to be written to RAM
memory on a write cycle and the read return data on a read cycle. Data
bit [15:8] is also shared as boot ROM address bit [19:12].
Digital Radio Interface
All radio input buffers are Schmitt triggered input buffers. There are total of 26 signals in this
interface.
TXCLK
Input
Transmit clock is a clock input from the radio baseband processor. This
signal is used to clock out the transmit data on the rising edge of TXCLK.
CS22220 Wireless PCMCIA Controller
12 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
TXPEBB
Output
Baseband transmit power enable, an output from the MAC to the radio
baseband processor. When active, the baseband processor transmitter is
configured to be operational, otherwise the transmitter is in standby
mode.
TXD
Output
It is the serial data output from the MAC to the radio baseband processor.
The data is transmitted serially with the LSB first. The data is driven by
the MAC on the rising edge of TXCLK and is sampled by the radio
baseband processor on the falling or rising edge of TXCLK depending on
baseband requirements.
TXRDY
Input
Transmit data ready is an input to the MAC from the radio baseband
processor to indicate that the radio baseband processor is ready to
receive the data packet over the TXD signal. The signal is sampled by the
MAC on the rising edge of TXCLK.
CCA
Input
Clear channel assessment is an input from the radio baseband processor
to signal that the channel is clear to transmit. When this signal is a 0, the
channel is clear to transmit. When this signal is a 1, the channel is not
clear to transmit. This helps the MAC to determine when to switch from
receive to transmit mode.
BBRNW
Output
Baseband read/write is an output from the MAC to indicate the direction
of the SD bus when used for reading or writing data. This signal has to be
setup to the rising edge of BBSCLK for the baseband processor and is
driven on the rising edge of the ARMCLK corresponding the falling edge
of BBSCLK.
nRESETBB
Output
Baseband reset is an output of the MAC to reset the baseband processor.
BBAS
Output
Baseband address strobe is used to envelop the address or the data on
the BBSDX bus. A logic 1 envelops the address and a logic 0 envelops
the data. This signal has to be setup to the rising edge of BBSCLK for the
baseband processor and is driven on the falling edge of BBSCLK.
nBBCS
Output
Baseband chip select is an active low output to activate the serial control
port. When inactive the SD, BBSCLK, BBAS and BBRNW signals are
`don't cares'.
CS22220 Wireless PCMCIA Controller
13 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
TXPAPE
Output
Radio power amplifier power enable is a software-controlled output. This
signal is used to gate power to the power amplifier.
TXPE
Output
Radio transmit power enable indicates if transmit mode is enabled. When
low, this signal indicates transmitter is in standby mode.
RXPEBB
Output
Baseband receive power enable is an output that indicates if the MAC is
in receive mode. Output to baseband processor enables receive mode in
baseband processor.
BBSCLK
Output
Baseband serial clock is a programmable output generated by dividing
ARM_CLK by 14 (default). This clock is used for the serial control port to
sample the control and data signals.
BBSDX
Bi-directional
Baseband serial data is a bi-directional serial data bus, which is used to
transfer address and data to/from the internal registers of the baseband
processor.
SYNTHLE
Output
Synthesizer latch enable is an active high signal used to send data to the
synthesizer.
nRPD
Output
Radio power down enable.
This active low signal is used to power
management purpose for the radio circuitry.
RXCLK
Input
This is an input from the baseband processor. It is used to clock in
received data from baseband processor.
MDRDY
Input
Receive data ready is an input signal from the baseband processor,
indicating a data packet is ready to be transferred to the MAC. The signal
returns to an inactive state when there is no more receiver data or when
the link has been interrupted. This signal is sampled on the falling or
rising edge of RXCLK depending on baseband requirements.
RXD
Input
Receive data is an input from the baseband processor transferring
demodulated header information and data in a serial format. The data is
frame aligned with MD_RDY. This signal is sampled on the falling or
rising edge of RXCLK depending on baseband requirements.
CS22220 Wireless PCMCIA Controller
14 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
DACAVCC
Input
Analog power for DAC. This is 3.3V.
DACAGND
Input
Analog ground for DAC.
PLL and Clock Interface
There are three clock pins and five PLL power pins. There are a total of 8 signals in this interface.
XTAL_CLKIN
Input
44 MHz reference clock input/crystal clock input.
XTALOUT
Input
Reference crystal clock output.
XTRACLK
Input
Second clock input to the clock module. This input clock is used
depending on the clock configuration, which is determined by three
strapping pin values.
PLLAGND
Input
Analog PLL ground.
PLLAVCC
Input
Analog PLL power. This is 3.3V.
PLLDGND
Input
Digital PLL ground.
PLLDVCC
Input
Digital PLL power. This is 1.8V.
PLLPLUS
Input
Analog PLL ground.
CS22220 Wireless PCMCIA Controller
15 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
PC Card Interface
The PC Card interface is PCMCIA 2.1 fully compliant interface. The following provides detail pin
description.
PCD[15:0]
Bi-directional
Data lines. The data bus contains the data to be written on a write cycle
and the read return data on a read cycle.
PCA[10:0]
Input
Address lines. Signal PCA[10:0] are address bus input lines. PCA10 is
the most significant bit. During memory word access mode, A0 is not
used. During I/O word access cycle, A0 must be negated.
nPCE[2:1]
Input
Card enable. These lines are active low input signals. nPCE1 enables
even numbered addresses and nPCE2 enables odd numbered
addresses.
nPOE
Input
Output enable. This signal is used to gate memory read data from
memory card.
nPCWE
Input
Write enable. This is active low input signal is used for strobing memory
write data into the memory card.
nPCREG
Input
Attribute memory select. Assertion of this signal indicates the access is
limited to attribute memory and to I/O space. Attribute memory is a
separate accessed section of card memory and is generally used to
record card capacity and other configuration and attribute information.
nPCIREQ
Output
Interrupt request. This signal is asserted to indicate to the host system
that a PC card device requires host software service.
nPCSTSCHG
Output
PC card status changed Not supported. This pin is used as a mode
strap pin. When asserted during reset, PC CARD I/F uses the big endian
protocol; otherwise pulled low (Default), it uses the little endian protocol.
CS22220 Wireless PCMCIA Controller
16 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
nPCWAIT
Output
The wait signal is asserted by a PC card to delay completion of the
memory access or I/O access.
nIOIS16
Output
The nIOIS16 output signal is asserted when the address at the socket
corresponds to an I/O address to which the card responds, and the I/O
port addressed is capable of 16-bit access.
nPCINPACK
Output
Input port acknowledge. This output signal is asserted when the PC card
is selected and can respond to an I/O read cycle at the address on the
address bus.
nPCIORD
Input
The host asserts nIORD to read data from a PC card's I/O space.
nPCIOWR
Input
The host asserts nPCIOWR to write data to a PC card's I/O space.
System and PC Card Reset
EXT_RESET
Input
The reset signal clears the configuration option register and places the
card in an unconfigured state.The system must place the RESET signal in
a high-Z state during card power up. The signal must remain high
impedance for at least 1 msec after Vcc becomes valid.
JTAG Interface
TDO
Output
Test data output. This input has an integral pull up.
TDI
Input
Test data input.
TCK
Input
Test clock signal.
TMS
Input
Test mode select. This input has an internal pull up.
nTRST
Input
Test interface reset. This input has an internal pull up.
CS22220 Wireless PCMCIA Controller
17 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
Miscellaneous Interface
NTEST
Input
Chip test mode pin. Used in conjunction with SMNCS0, SMDQM[0:1].
Pull up for normal operation
SPIO_0:8,12:15
Bi-directional
Special purpose I/O reserved for supporting custom interfaces.
* Check with Cirrus Logic support for supported options and
usage.
Power and Ground
VCC (5V and 3.3V)
1
Input
5V inputs. There are a total of 3 pins.
VDD (3.3V)
Input
3.3V inputs. There are a total of 22 pins.
VEE (1.8V)
Input
1.8V inputs to the core. There are a total of 9 pins.
VSS
Input
Ground. There are total of 28 pins.
1
5V or 3.3V depending on desired PCMCIA configuration
CS22220 Wireless PCMCIA Controller
18 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
Figure 4. CS22220 208 Pin FPBGA Pinout Diagram
CS22220 Wireless PCMCIA Controller
19 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
Table 1. Pin Listing by Name
ball
name
ball
name
ball
name
ball
name
A07
(N/C)
K03
PCA08
T16
SMA00
E16
TXPAPE
A13
(N/C)
L04
PCA09
U17
SMA01
B17
TXPE
B08
(N/C)
L01
PCA10
P14
SMA02
E15
TXPEBB
C03
(N/C)
E04
PCD00
T17
SMA03
D16
TXRDY
C07
(N/C)
D03
PCD01
R17
SMA04
A01
VCC
C08
(N/C)
C01
PCD02
P15
SMA05
J01
VCC
C12
(N/C)
R03
PCD03
N14
SMA06
T02
VCC
R05
(N/C)
R01
PCD04
P17
SMA07
B03
VDD
T06
(N/C)
P02
PCD05
N15
SMA08
A12
VDD
H17
BBAS
N01
PCD06
M14
SMA09
B04
VDD
K17
BBNCS
N02
PCD07
M16
SMA10
B11
VDD
H15
BBRNW
D02
PCD08
M15
SMA11
B14
VDD
J16
BBSCLK
D04
PCD09
U07
SMCKE
C06
VDD
H14
BBSDX
B02
PCD10
U11
SMCLK
C15
VDD
T04
CAL_EN
R02
PCD11
T08
SMD00
D09
VDD
C16
CCA
P03
PCD12
R10
SMD01
E17
VDD
D11
DACAVDD
P01
PCD13
P11
SMD02
F04
VDD
C13
DACAVSS
N03
PCD14
T11
SMD03
G16
VDD
D12
RSVD
N04
PCD15
R11
SMD04
J15
VDD
B12
RSVD
A16
PLLAGND
P12
SMD05
K01
VDD
H01
EXT_RESET
D14
PLLAVCC
R12
SMD06
N17
VDD
G15
MDRDY
B15
PLLDGND
P13
SMD07
P16
VDD
L15
NBRCE
A17
PLLDVCC
U12
SMD08
R04
VDD
M03
NPCE1
A15
PLLPLUS
R13
SMD09
R08
VDD
M02
NPCE2
F15
RLINK
U13
SMD10
T01
VDD
G02
NPCINPACK
B16
RNPD
U14
SMD11
T10
VDD
C02
NPCIOIS16
U01
RSVD
R14
SMD12
T12
VDD
L03
NPCIORD
T03
RSVD
U15
SMD13
T14
VDD
L02
NPCIOWR
E14
RSVD
U16
SMD14
U09
VDD
H03
NPCIREQ
P06
RSVD
R15
SMD15
A09
VEE
M04
NPCOE
U05
RSVD
U06
SMDQM00
C09
VEE
F03
NPCREG
P05
RSVD
T07
SMDQM01
D07
VEE
D01
NPCSTSCHG U04
RSVD
P08
SMNCAS
J03
VEE
G03
NPCWAIT
T05
RSVD
R06
SMNCS00
J04
VEE
K02
NPCWE
A02
RSVD
P07
SMNCS01
J14
VEE
G14
NRESETBB
A03
RSVD
L16
SMNRAS
K16
VEE
K14
NTEST
A04
RSVD
L14
SMNWE
R09
VEE
C11
NTRST
A05
RSVD
U03
SYNTH_LE1
T09
VEE
E02
PCA00
A06
RSVD
P04
SYNTH_LE2
A08
VSS
E03
PCA01
B05
RSVD
J17
SYNTHLE
A11
VSS
E01
PCA02
B06
RSVD
A10
TCK
A14
VSS
F02
PCA03
C04
RSVD
B10
TDI
B01
VSS
G04
PCA04
D06
RSVD
C10
TDO
B07
VSS
F01
PCA05
G17
RXCLK
D10
TMS
B09
VSS
G01
PCA06
F14
RXD
D17
TXCLK
C05
VSS
H02
PCA07
F17
RXPEBB
D15
TXD
C17
VSS
CS22220 Wireless PCMCIA Controller
20 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
ball
name
Ball
name
ball
name
ball
name
D08
VSS
L17
VSS
R16
VSS
C14
XTALCLKIN
F16
VSS
M01
VSS
T13
VSS
D13
XTALOUT
H04
VSS
M17
VSS
T15
VSS
B13
XTRACLK
H16
VSS
N16
VSS
U02
VSS
J02
VSS
P09
VSS
U08
VSS
K04
VSS
P10
VSS
U10
VSS
K15
VSS
R07
VSS
D05
WC_WiFi
CS22220 Wireless PCMCIA Controller
21 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
Table 2. Pin Listing by Ball
ball
name
Ball
name
ball
name
ball
name
A01
VCC
C12
(N/C)
G16
VDD
N04
PCD15
A02
RSVD
C13
DACAVSS
G17
RXCLK
N14
SMA06
A03
RSVD
C14
XTALCLKIN
H01
EXT_RESET
N15
SMA08
A04
RSVD
C15
VDD
H02
PCA07
N16
VSS
A05
RSVD
C16
CCA
H03
NPCIREQ
N17
VDD
A06
RSVD
C17
VSS
H04
VSS
P01
PCD13
A07
(N/C)
D01
NPCSTSCHG
H14
BBSDX
P02
PCD05
A08
VSS
D02
PCD08
H15
BBRNW
P03
PCD12
A09
VEE
D03
PCD01
H16
VSS
P04
SYNTH_LE2
A10
TCK
D04
PCD09
H17
BBAS
P05
RSVD
A11
VSS
D05
WC_WiFi
J01
VCC
P06
RSVD
A12
VDD
D06
RSVD
J02
VSS
P07
SMNCS01
A13
(N/C)
D07
VEE
J03
VEE
P08
SMNCAS
A14
VSS
D08
VSS
J04
VEE
P09
VSS
A15
PLLPLUS
D09
VDD
J14
VEE
P10
VSS
A16
PLLAGND
D10
TMS
J15
VDD
P11
SMD02
A17
PLLDVCC
D11
DACAVDD
J16
BBSCLK
P12
SMD05
B01
VSS
D12
RSVD
J17
SYNTHLE
P13
SMD07
B02
PCD10
D13
XTALOUT
K01
VDD
P14
SMA02
B03
VDD
D14
PLLAVCC
K02
NPCWE
P15
SMA05
B04
VDD
D15
TXD
K03
PCA08
P16
VDD
B05
RSVD
D16
TXRDY
K04
VSS
P17
SMA07
B06
RSVD
D17
TXCLK
K14
NTEST
R01
PCD04
B07
VSS
E01
PCA02
K15
VSS
R02
PCD11
B08
(N/C)
E02
PCA00
K16
VEE
R03
PCD03
B09
VSS
E03
PCA01
K17
BBNCS
R04
VDD
B10
TDI
E04
PCD00
L01
PCA10
R05
(N/C)
B11
VDD
E14
RSVD
L02
NPCIOWR
R06
SMNCS00
B12
RSVD
E15
TXPEBB
L03
NPCIORD
R07
VSS
B13
XTRACLK
E16
TXPAPE
L04
PCA09
R08
VDD
B14
VDD
E17
VDD
L14
SMNWE
R09
VEE
B15
PLLDGND
F01
PCA05
L15
NBRCE
R10
SMD01
B16
RNPD
F02
PCA03
L16
SMNRAS
R11
SMD04
B17
TXPE
F03
NPCREG
L17
VSS
R12
SMD06
C01
PCD02
F04
VDD
M01
VSS
R13
SMD09
C02
NPCIOIS16
F14
RXD
M02
NPCE2
R14
SMD12
C03
(N/C)
F15
RLINK
M03
NPCE1
R15
SMD15
C04
RSVD
F16
VSS
M04
NPCOE
R16
VSS
C05
VSS
F17
RXPEBB
M14
SMA09
R17
SMA04
C06
VDD
G01
PCA06
M15
SMA11
T01
VDD
C07
(N/C)
G02
NPCINPACK
M16
SMA10
T02
VCC
C08
(N/C)
G03
NPCWAIT
M17
VSS
T03
RSVD
C09
VEE
G04
PCA04
N01
PCD06
T04
CAL_EN
C10
TDO
G14
NRESETBB
N02
PCD07
T05
RSVD
C11
NTRST
G15
MDRDY
N03
PCD14
T06
N/C
CS22220 Wireless PCMCIA Controller
22 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
ball
name
ball
name
ball
name
ball
name
T07
SMDQM01
T14
VDD
U04
RSVD
U11
SMCLK
T08
SMD00
T15
VSS
U05
RSVD
U12
SMD08
T09
VEE
T16
SMA00
U06
SMDQM00
U13
SMD10
T10
VDD
T17
SMA03
U07
SMCKE
U14
SMD11
T11
SMD03
U01
RSVD
U08
VSS
U15
SMD13
T12
VDD
U02
VSS
U09
VDD
U16
SMD14
T13
VSS
U03
SYNTH_LE1
U10
VSS
U17
SMA01
CS22220 Wireless PCMCIA Controller
23 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
5
Specifications
Table 3. Absolute Maximum Ratings
Symbol
Parameter
Limits
Units
V
EE
Voltage at Core
-0.18 to 2.0
V
V
DD
DC Supply ( I/O)
-0.3 to 3.9
V
V
IN
Input Voltage
-0.1 to V
DD
+ 0.3
V
I
IN
DC Input Current
+/- 10
A
T
STGP
Storage Temperature
Range
-40 to 125
C
Table 4. Recommended Operating Conditions
Symbol
Parameter
Limits
Units
V
DD
V
EE
DC Supply
3.15 to 3.60 (3V I/O)
1.6 to 2.0 (core)
V
XTALIN
Input frequency
1
44
MHz
F
TCK
JTAG clock frequency
0 to 10
MHz
T
A
Ambient Temperature
0 to +70
C
T
J
Junction Temperature
0 to +105
C
Notes:
1.
The XTALIN & XTALOUT pins have minimal ESD protection.
2.
This device may have ESD sensitivity above 500V HBM per JESD22-A114. Normal ESD precautions
need to be followed.
Table 5. Capacitance
Symbol
Parameter
Value
Units
C
IN
Input Capacitance
3.4
pF
C
OUT
Output Capacitance
4.0
pF
Table 6. DC Characteristics
Symbol Parameter
Condition
Min
Typ.
Max
Units
V
IL
Voltage Input Low
-0.50
0.3 * V
DD
V
V
IH
Voltage Input High
0.7 * V
DD
V
DD
+ 0.3
V
V
OL
Voltage Output Low
I
OL
= 800
A
V
SS
+ 0.1
V
V
OH
Voltage Output High
I
OH
= 800
A
V
SS
- 0.1
V
I
IL
Input Leakage Current
V
IN
= V
SS
or V
DD
-10
10
A
I
OZ
3-State Output Leakage Current V
OH
= V
SS
or V
DD
-10
10
A
I
DD
I
EE
Dynamic Supply Current
Note 1
V
DD
= 3.3V
V
DD
= 1.8V
35
135
mA
CS22220 Wireless PCMCIA Controller
24 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
5.1
AC Characteristics and Timing
Table 7. System Memory Interface Timings
Parameter
Parameter Description
Min
Max
Units
t
d
SMD
SMCLK to SMD[31:0] output delay
7
ns
t
d
SMA
SMCLK to SMA[11:0] output delay
4.7
ns
t
d
SMDQM
SMCLK to SMDQM[3:0] output delay
5.1
ns
t
d
SMNCS
SMCLK to SMNCS[1:0] output delay
4.1
ns
t
d
SMNWE
SMCLK to SMNWE output delay
4.5
ns
t
d
SMCKE
SMCLK to SMCKE output delay
4.3
ns
t
d
SMNCAS
SMCLK to SMNCAS output delay
4.0
ns
t
d
SMNRAS
SMCLK to SMNRAS output delay
5.0
ns
T
per
SMCLK
SMCLK period
72
103
ns
T
su
SMD
SMD[31:0] setup to SMCLK
1.0
ns
T
h
SMD
SMD[31:0] hold from SMCLK
2.4
ns
Notes:
1.
Outputs are loaded with 35pf on SMD, 25pf on SMA, SMDQM, SMNRAS, and SMNCAS and 20pf on SMCLK,
SMNCS, and SMCKE.
2.
An attempt has been made to balance the setup time needed by the SDRAM and the setup needed by CS22210 to
read data. If there is a problem meeting setup on the SDRAM, there is a programmable delay line on SMCLK which
can help meet the setup time. Care must be taken, however, not to violate the setup on the return read data. The
delay can be increased by a multiple of 0.25ns by using the SMA[11:09] pins to selectively set the clock delay .
SMCLK
SMD[15:0]
SMA[13:0]
SMDQM[1:0]
SMNCS[1:0]
SMNWE
SMCKE
SMNRAS
SMNCAS
WRITE DATA
WRITE DATA
ROW ADDR
COLUMN ADDR
ROW ADDR
t
d
SMCKE
t
d
SMNRAS
t
d
SMNCAS
t
d
SMNWE
t
d
SMA
t
d
SMD
t
d
SMDQM
t
d
SMNCS
Figure 5. System Memory Interface `Write' Timing Diagram
CS22220 Wireless PCMCIA Controller
25 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
SMCLK
SMD[15:0]
SMA[13:0]
SMDQM[1:0]
SMNCS[1:0]
SMNWE
SMCKE
SMNRAS
SMNCAS
DATA
DATA
ROW ADDR
COLUMN ADDR
ROW ADDR
ACTIVE
ACTIVE
t
per
SMCLK
t
d
SMCKE
t
d
SMNRAS
t
d
SMNCAS
t
d
SMA
t
d
SMNCS
t
su
SMD
t
h
SMD
Figure 6. System Memory Interface 'Read' Timing Diagram
CS22220 Wireless PCMCIA Controller
26 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
Table 8. ROM/Flash Memory `Read' Timing
Item
Symbol
Min
Max
Clock Period
(1)
t
per
SMCLK
72 MHz
103 MHz
CE to SMD Latched Data
(2)
t
id
SMD
221 ns
OE de-asserted to OE asserted
(3)
t
f
SMRAS
6(t
per
SMCLK
)
ROM address to output delay
(4)
t
ACC
220 ns
SMCLK to SMA output delay
t
d
SMA
4.0 ns
SMCLK to BRCE output delay (CE)
t
d
BRCE
4.5 ns
SMCLK to SMRAS output delay (OE)
t
d
SMRAS
5.0 ns
SMD setup to SMCLK
t
su
SMD
1.0 ns
SMD hold from SMCLK
t
h
SMD
2.4 ns
1. The memclock timing is derived by bootstrap PLL settings. Synchronous modes at 77 MHz & 72
MHz are currently supported.
2. t
id
SMD is based on the fm_romrdlat register settings default is 09h max. (77Mhz ~ 17 times
SMCLK = 221ns).
3. t
f
SMRAS is the minimum time required before the next OE is active on the bus (6 times SMCLK).
The ROM device must release the bus within this time frame (77MHz ~ 78 ns).
4. Based on default fm_romrdlat register settings (note: 09h translates to 11h) see fm_romrdlat register
settings for more information)
SMCLK
SMD[7:0]
SMA[11:0], SMD[13:8]
SMNWE
BRCE (CE)
SMRAS (OE)
DATA
ADDRESS
t
per
SMCLK
t
d
t
d
SMRAS
t
d
t
ld
SMD
t
d
BRCE
t
d
SMRAS
BRCE
t
ACC
SMA
t
su
SMD
t
h
SMD
t
f
SMRAS

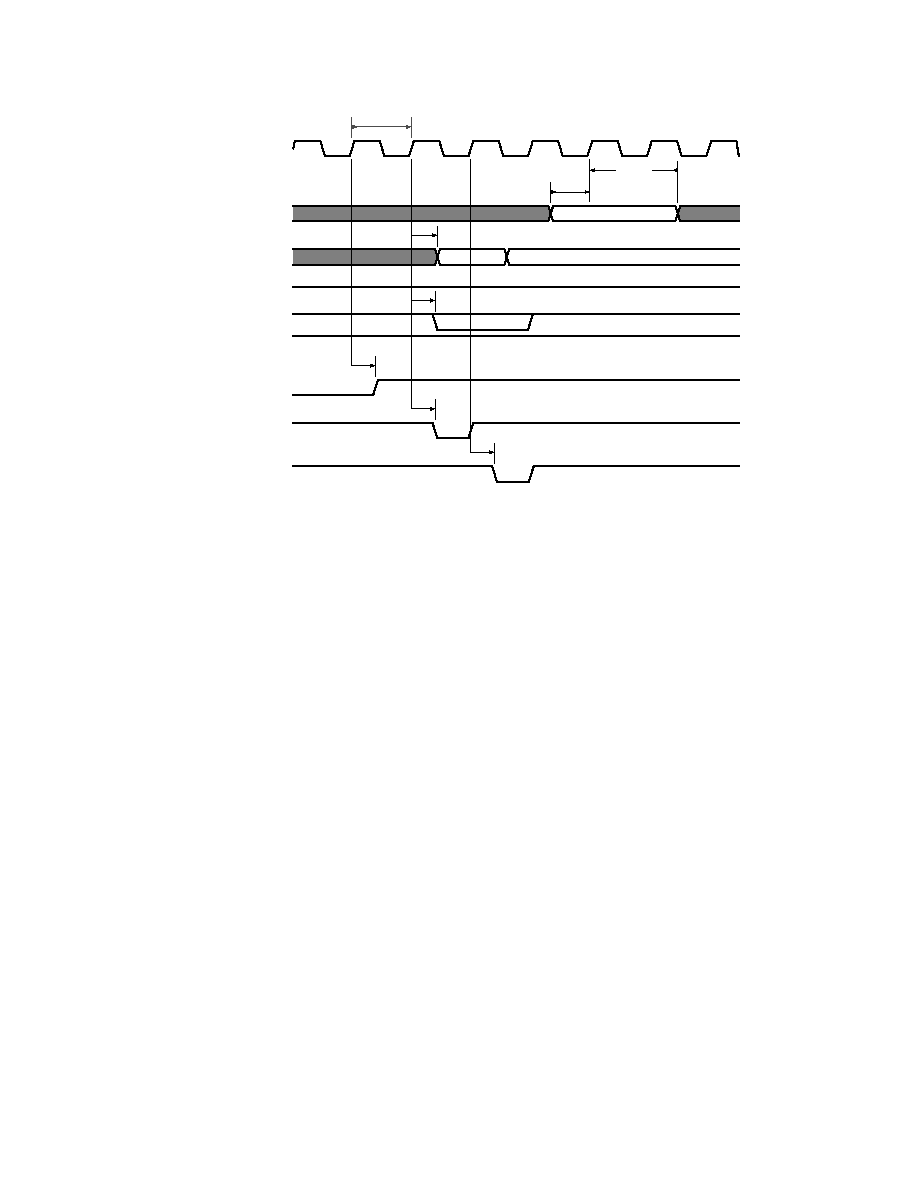

Figure 7. ROM Memory Interface 'Read' Timing Diagram
CS22220 Wireless PCMCIA Controller
27 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
5.2
PCMCIA Interface Timing Diagrams

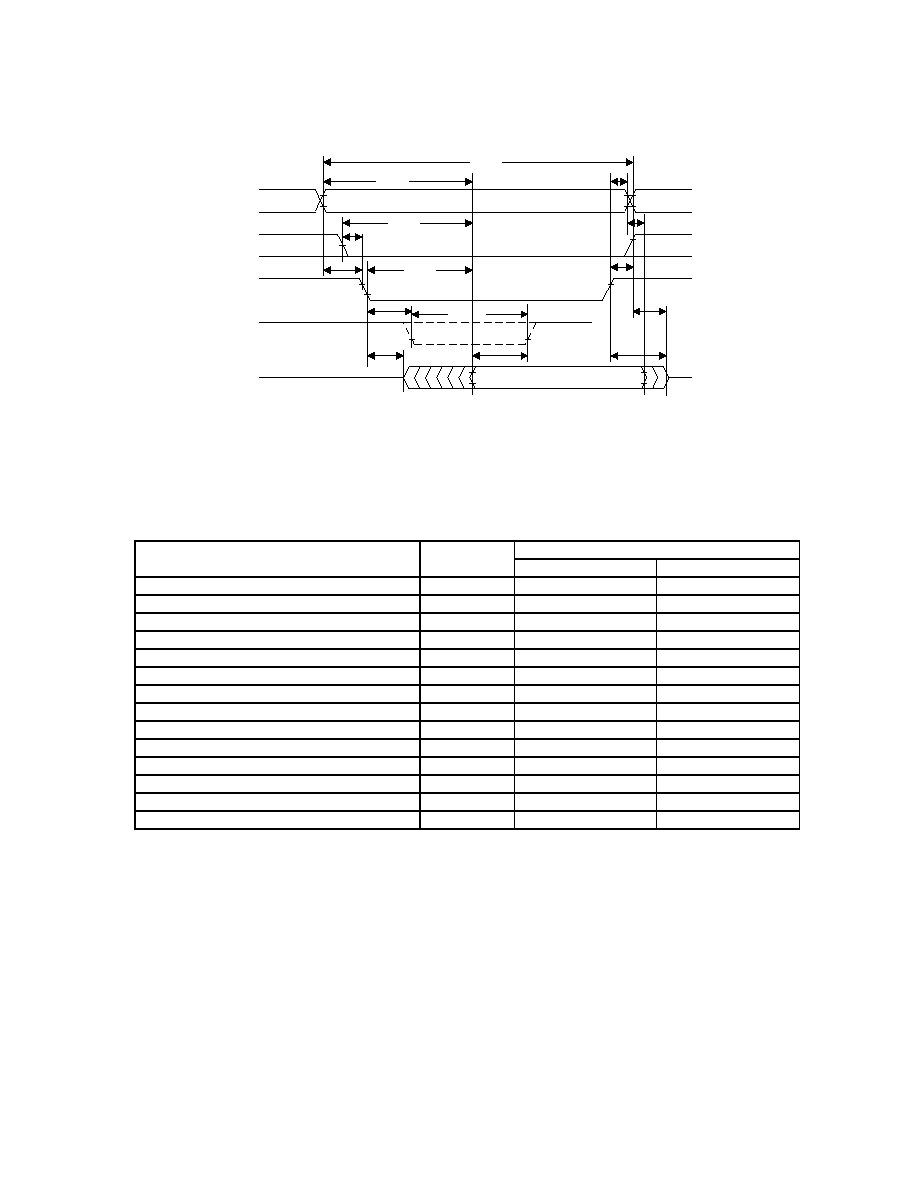

Figure 8. Attribute/Common Memory `Read' Timing Diagram
Table 9. Common Memory `Read' Timing Specification
100 ns
Speed Version
Item
Symbol
Min
Max
Read Cycle Time
t
c
R
100
Address Accesss Time
t
a
(A)
100
Card Enable Access Time
t
a
(CE)
100
Output Enable Access Time
t
a
(OE)
50
Output Disable Time from PC_NOE
t
dis
(OE)
50
Output Disable Time from PC_NCE
t
en
(CE)
5
Data Valid from Address Change
t
v
(A)
0
Address Setup Time
t
su
(A)
10
Address Hold Time
t
h
(A)
15
Card Enable Setup Time
t
su
(CE)
0
Card Enable Hold Time
t
h
(CE)
15
PC_NWAIT Valid from PC_NOE
t
v
(WT-OE)
35
PC_NWAIT Pulse Width
t
w
(WT)
12 us
Data Setup for PC_NWAIT Released
t
v
(WT)
0
PC_A[25:0], PC_NREG
PC_NCE
PC_NOE
PC_NWAIT
PC_D[15:0]
t
c
(R)
t
a
(CE)
t
a
(A)
t
h
(A)
t
v
(A)
t
h
(CE)
t
dis
(CE)
t
dis
(OE)
t
su
(CE)
t
su
(A)
t
a
(OE)
t
v
(WT-OE)
t
en
(OE)
t
v
(WT)
t
w
(WT)
CS22220 Wireless PCMCIA Controller
28 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
Table 10. Attribute Memory `Read' Timing Specification
600 ns
Speed Version
Item
Symbol
Min
Max
Read Cycle Time
t
c
R
600
Address Accesss Time
t
a
(A)
600
Card Enable Access Time
t
a
(CE)
600
Output Enable Access Time
t
a
(OE)
300
Output Disable Time from PC_NOE
t
dis
(OE)
150
Output Enable Time from PC_NCE
t
en
(OE)
5
Data Valid from Address Change
t
v
(A)
0
Address Setup Time
t
su
(A)
100
Address Hold Time
t
h
(A)
35
Card Enable Setup Time
t
su
(CE)
0
Card Enable Hold Time
t
h
(CE)
35
PC_NWAIT Valid from PC_NOE
t
v
(WT-OE)
100
PC_NWAIT Pulse Width
t
w
(WT)
12 us
Data Setup for PC_NWAIT Released
t
v
(WT)
0

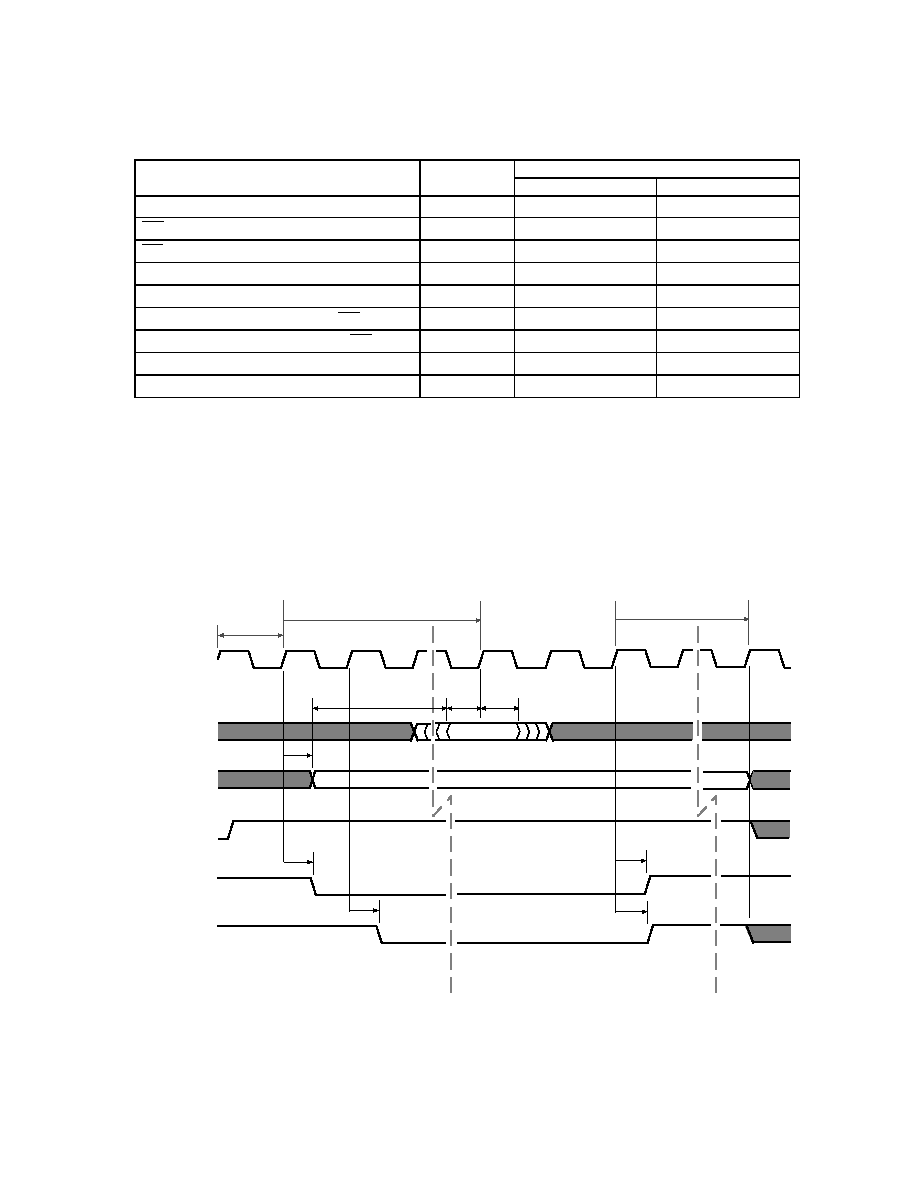

Figure 9. Memory `Write' Timing Diagram
PC_A[25:0], PC_NREG
PC_NCE
PC_NOE
PC_NWAIT
PC_D[15:0](Din)
t
c
(W)
t
su
(CE-WEH)
t
su
(CE)
t
su
(A-WEH)
t
su
(A)
t
su
(OE-WE)
t
w
(WE)
PC_NWE
PC_D[15:0](Dout)
Valid Data Input
t
v
(WT-WE)
t
v
(WT)
t
w
(WT)
t
su
(D-WEH)
t
dis
(WE)
t
dis
(OE)
t
en
(WE)
t
h
(CE)
t
rec
(WE)
t
h
(D)
t
h
(OE-WE)
t
en
(OE)
CS22220 Wireless PCMCIA Controller
29 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
Table 11. Common Memory `Write' Timing Specification
100 ns
Speed Version
Item
Symbol
Min
Max
Write Cycle time
t
c
W
100
Write Pulse Width
t
w
(WE)
60
Address Setup Time
t
su
(A)
10
Address Setup Time for PC_NWE
t
su
(A-WEH)
70
Card Enable Setup Time for PC_NWE
t
su
(CE-WEH)
70
Data Setup time for PC_NWE
t
su
(D-WEH)
40
Data Hold Time
t
h
(D)
15
Write Recovery Time
t
rec
(WE)
15
Output Disable Time from PC_NWE
t
dis
(WE)
50
Output Disable Time from PC_NOE
t
dis
(OE)
50
Output Enable Time from PC_NWE
t
en
(WE)
5
Output Enable Time from PC_NOE
t
en
(OE)
5
Output Enable Setup from PC_NWE
t
su
(OE-WE)
10
Output Enable Hold from PC_NWE
t
h
(OE-WE)
10
Card Enable Setup Time
t
su
(CE)
0
Card Enable Hold Time
t
h
(CE)
15
PC_NWAIT Valid from PC_NWE
t
v
(WT-WE)
35
PC_NWAIT Pulse Width
t
w
(WT)
12 us
PC_NWE High from PC_NWAIT Released
0
Table 12. Attribute Memory `Write' Timing Specification
600 ns
Speed Version
Item
Symbol
Min
Max
Write Cycle time
t
c
W
600
Write Pulse Width
t
w
(WE)
300
Address Setup Time
t
su
(A)
50
Address Setup Time for PC_NWE
t
su
(A-WEH)
350
Card Enable Setup Time for PC_NWE
t
su
(CE-WEH)
300
Data Setup time for PC_NWE
t
su
(D-WEH)
150
Data Hold Time
t
h
(D)
70
Write Recovery Time
t
rec
(WE)
70
Output Disable Time from PC_NWE
t
dis
(WE)
150
Output Disable Time from PC_NOE
t
dis
(OE)
150
Output Enable Time from PC_NWE
t
en
(WE)
5
Output Enable Time from PC_NOE
t
en
(OE)
5
Output Enable Setup from PC_NWE
t
su
(OE-WE)
35
Output Enable Hold from PC_NWE
t
h
(OE-WE)
35
Card Enable Setup Time
t
su
(CE)
0
Card Enable Hold Time
t
h
(CE)
35
PC_NWAIT Valid from PC_NWE
t
v
(WT-WE)
100
PC_NWAIT Pulse Width
t
w
(WT)
12 us
PC_NWE High from PC_NWAIT Released
0
CS22220 Wireless PCMCIA Controller
30 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
Figure 10. I/O `Read' Timing Diagram
Table 13. I/O `Read' (Input) Timing Specification
Item
Symbol
Min
Max
Data Delay after PC_NIORD
t
d
(IORD)
100
Data Hold following PC_NIORD
t
h
(IORD)
0
PC_NIORD Width Time
t
w
IORD
165
Address Setup before PC_NIORD
t
su
A (IORD)
70
Address Hold following PC_NIORD
t
h
A (IORD)
20
PC_NCE Setup before PC_NIORD
t
su
CE (IORD)
5
PC_NCE Hold following PC_NIORD
t
h
CE (IORD)
20
PC_NREG Setup before PC_NIORD
t
su
REG (IORD)
5
PC_NREG Hold before PC_NIORD
t
h
REG (IORD)
0
PC_NINPACK Delay Falling from PC_NIORD
t
df
INPACK (IORD)
0
45
PC_NINPACK Delay Rising from PC_NIORD
t
dr
INPACK (IORD)
45
PC_NIOIS16 Delay Falling from Address
t
df
IOIS16 (ADR)
35
PC_NIOIS16 Delay Rising from Address
t
dr
IOIS16 (ADR)
35
PC_NWAIT Delay Falling from PC_NIORD
t
d
WT (IORD)
35
Data Delay from PC_NWAIT Rising
t
dr
(WT)
0
PC_NWAIT Width Time
t
w
(WT)
12,000
t
su
REG (IORD)
t
su
CE (IORD)
t
h
A (IORD)
t
h
REG (IORD)
t
h
CE (IORD)
t
w
(IORD)
t
su
A (IORD)
t
df
IOIS16 (ADR)
t
df
INPACK (IORD)
t
w
(WT)
t
h
(IORD)
t
df
WT (IORD)
PC_A[25:0]
PC_NREG
PC_NCE
PC_NIORD
PC_IOIS16
PC_NWAIT
PC_D[15:0]
PC_NINPACK
t
dr
INPACK (ADR)
t
dr
IOIS16 (ADR)
t
d
(IORD)
t
dr
(WT)
CS22220 Wireless PCMCIA Controller
31 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
Figure 11. I/O `Write' Timing Diagram
Table 14. I/O `Write' (Output) Timing Specification
Item
Symbol
Min
Max
Data Setup after PC_NIOWR
t
d
(NIOWR)
60
Data Hold following PC_NIOWR
t
h
(NIOWR)
30
PC_NIOWR Width Time
t
w
IOWR
165
Address Setup before PC_NIOWR
t
su
A (NIOWR)
70
Address Hold following PC_NIOWR
t
h
A (NIOWR)
20
PC_NCE Setup before PC_NIOWR
t
su
CE (NIOWR)
5
PC_NCE Hold following PC_NIOWR
t
h
CE (NIOWR)
20
PC_NREG Setup before PC_NIOWR
t
su
REG (NIOWR)
5
PC_NREG Hold following PC_NIOWR
t
h
REG (NIOWR)
0
PC_NIOIS16 Delay Falling from Address
t
df
IOIS16 (ADR)
35
PC_NIOIS16 Delay Rising from Address
t
dr
IOIS16 (ADR)
35
PC_NWAIT Delay Falling from PC_NIOWR
t
d
WT (NIOWR)
35
PC_NWAIT Width Time
t
w
(WT)
12,000
PC_NIOWR Width Time
t
dr
IOWR (WT)
0
t
su
REG (IOWR)
t
su
CE (IOWR)
t
h
A (IOWR)
t
h
REG (IOWR)
t
h
CE (IOWR)
t
w
(IOWR)
t
su
A (IOWR)
t
df
IOIS16 (ADR)
t
df
WT (IOWR)
t
dr
IOWR (WT)
t
w
(WT)
t
h
(IOWR)
t
su
(IOWR)
PC_A[25:0]
PC_NREG
PC_NCE
PC_NIOWR
PC_IOIS16
PC_NWAIT
PC_D[15:0]
t
dr
IOIS16 (ADR)
CS22220 Wireless PCMCIA Controller
32 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
Table 15. Radio MAC AC Timings Intersil Modes
Parameter
Parameter Description
Min
Max
Units
t
d
BBAS
BBAS output delay from falling BBSCLK
8.2
ns
t
d
BBRNW
BBRNW output delay from falling BBSCLK
8.0
ns
t
d
nBBCS
nBBCS output delay from falling BBSCLK
59.0
ns
t
d
BBSDX
BBSDX output delay from falling BBSCLK
7.0
ns
T
su
BBSDX
BBSDX setup to rising edge of BBSCLK
14.8
ns
T
h
BBSDX
BBSDX hold from rising edge of BBSCLK
0.0
ns
t
d
TXD
TXD output delay from rising TXCLK (SMAC
Mode)
33.5
ns
t
d
TXD
TXD output delay from rising TXCLK (RMAC
Mode)
15.4
ns
T
su
RXD
RXD setup to rising edge of RXCLK
1.0
ns
T
h
RXD
RXD hold from rising edge of RXCLK
1.8
ns
T
su
MDRDY
MDRDY setup to falling edge of RXCLK
2
ns
T
h
MDRDY
MDRDY hold from falling edge of RXCLK
1
ns
t
d
TXPEBB
TXPEBB output delay from rising TXCLK
15.0
ns
t
d
RXPEBB
RXPEBB output delay from rising RXCLK
16.0
ns
T
su
TXRDY
TXRDY setup to falling edge of TXCLK
6.5
ns
T
h
TXRDY
TXRDY hold from falling edge of TXCLK
0
ns
T
duty
RXCLK
2
RXCLK period
See Note
ns
T
duty
TXCLK
2
TXCLK period
See Note
ns
Notes:
1.
CCA signal is double synchronized to ARMCLKIN.
2.
ARMCLK must be at least 4 times the TXCLK and RXCLK frequency.
3.
Harris baseband (3824/3824A) generates RXCLK and TXCLK of 4 Mhz. the duty cycle varies between 33-40%
with a high time of 90.9ns and low time that alternates between 136 and 182ns. The clock period varies between
227 and 272 ns, giving an effective period of 250ns.
4.
TXD delay in 802.11b mode is the result of sampling the TXCLK with the ctlclk, therefore the maximum delay
is equal to two ctlclk periods plus the flop-to-output delay. In this table, ctlclk is assumed to have a 13 ns
period.
5.
BBNCS output delay = [(1/ARMCLK freq)*ceiling(SER_CLK_DIV/2)] + 7ns, the specified value is based on
ARMCLK of 77 Mhz and SER_CLK_DIV=8.
CS22220 Wireless PCMCIA Controller
33 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
Table 16. Radio MAC AC Timings RFMD Modes
Parameter
Parameter Description
Min
Max
Units
t
d
BBRNW
BBRNW output delay from falling BBSCLK
6.7
ns
t
d
nBBCS
nBBCS output delay from falling BBSCLK
110.79
ns
t
d
BBSDX
BBSDX output delay from falling BBSCLK
7.0
ns
T
su
BBSDX
BBSDX setup to rising edge of BBSCLK
14.5
ns
T
h
BBSDX
BBSDX hold from rising edge of BBSCLK
0.0
ns
t
d
TXD
TXD output delay from rising TXCLK (SMAC
Mode)
33.5
ns
t
d
TXD
TXD output delay from rising TXCLK (RMAC
Mode)
15.4
ns
T
su
RXD
RXD setup to rising edge of RXCLK
1.0
ns
T
h
RXD
RXD hold from rising edge of RXCLK
1.8
ns
T
su
MDRDY
MDRDY setup to falling edge of RXCLK
2
ns
T
h
MDRDY
MDRDY hold from falling edge of RXCLK
1
ns
t
d
TXPEBB
TXPEBB output delay from rising TXCLK
15.0
ns
t
d
RXPEBB
RXPEBB output delay from rising RXCLK
16.0
ns
T
su
TXRDY
TXRDY setup to falling edge of TXCLK
6.5
ns
T
h
TXRDY
TXRDY hold from falling edge of TXCLK
0
ns
Notes:
1.
CCA signal is double synchronized to ARMCLKIN.
2.
ARMCLK must be at least 4 times the TXCLK and RXCLK frequency.
3.
TXD delay in 802.11b mode is the result of sampling the TXCLK with the ctlclk, therefore the maximum delay
is equal to two ctlclk periods plus the flop-to-output delay. In this table, ctlclk is assumed to have a 13 ns
period.
4.
BBNCS output delay = [(1/ARMCLK freq)*ceiling(SER_CLK_DIV/2)] + 7ns, the specified value is based on
ARMCLK of 77 Mhz and SER_CLK_DIV=8.
Table 17. Package Specifications
Symbol
Parameter
Value
Units
JC
Junction-to-Case Thermal
Resistance
2.5
C/W
JA
Junction-to-Open Air Thermal
Resistance
26.9
C/W
T
J_MAX
Max Junction Temperature
105
C
Notes:
1. ARMCLK / MEMCLK = 77MHz
CS22220 Wireless PCMCIA Controller
34 of 34
DS557PP2
Rev. 3.0
www.cirrus.com
6
Packaging
The CS22220 Controller is available in a 208 Fine Pitch Ball Grid Array (FPBGA) package.
Figure 12 contains the package mechanical drawing.
Figure 12. CS22220 208 FPBGA-pin Mechanical Drawing
PDF
ZIP
