Power Controller IC
0V
International Airport Industrial Park Mailing Address: PO Box 11400, Tucson, AZ 85734 Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 Tel: (520) 746-1111 Twx: 910-952-1111
Internet: http://www.burr-brown.com/ FAXLine: (800) 548-6133 (US/Canada Only) Cable: BBRCORP Telex: 066-6491 FAX: (520) 889-1510 Immediate Product Info: (800) 548-6132
Miniature 15V Input, 1W Isolated
UNREGULATED DC/DC CONVERTERS
1997 Burr-Brown Corporation
PDS-1382C
Printed in U.S.A. January, 1999

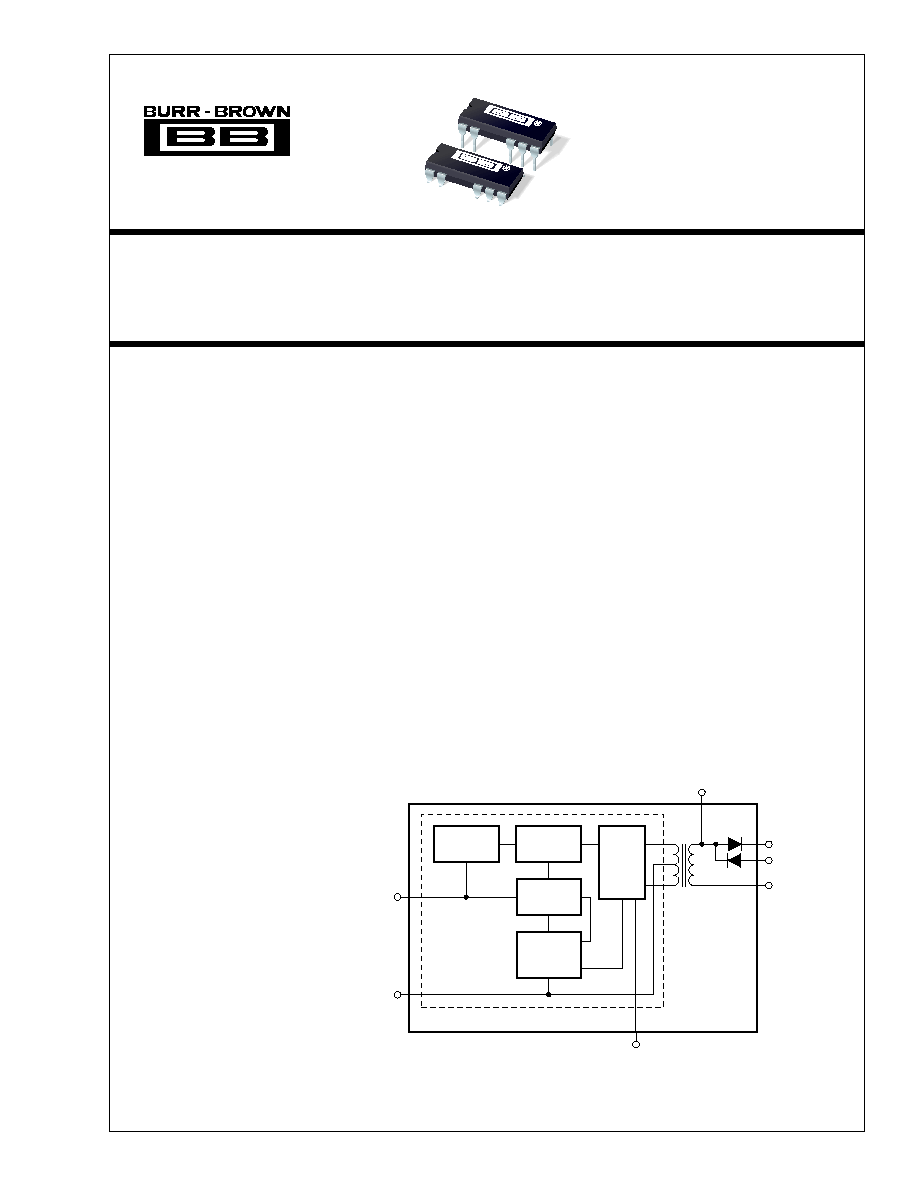

FEATURES
q
STANDARD JEDEC PLASTIC PACKAGE
q
LOW PROFILE: 0.15" (3.8mm)
q
SYNCHRONIZABLE
q
OUTPUT SHORT CIRCUIT PROTECTION
q
THERMAL SHUTDOWN
q
STARTS INTO ANY CAPACITIVE LOAD
q
EFFICIENCY: 76% (at Full Load)
q
1000Vrms ISOLATION
q
400kHz SWITCHING
q
93 MILLION HOURS MTTF
q
AVAILABLE IN TAPE AND REEL
DESCRIPTION
The DCP0115 family is a series of high efficiency,
15V input isolated DC/DC converters. In addition to
1W nominal galvanically isolated output power capa-
bility, the range of DC/DCs are also fully
synchronizable. The devices feature thermal shutdown,
and overload protection is implemented via watchdog
circuitry. Advanced power-on reset techniques give
superior reset performance and the devices will start
into any capacitive load up to full power output.
The DCP01 family is implemented in standard-molded
IC packaging, giving outlines suitable for high volume
assembly.
DCP0115
Series
APPLICATIONS
q
POINT OF USE POWER CONVERSION
q
GROUND LOOP ELIMINATION
q
DATA ACQUISITION
q
INDUSTRIAL CONTROL AND
INSTRUMENTATION
q
TEST EQUIPMENT
DCP0115
DCP0115
background image
2
DCP0115
SPECIFICATIONS
At T
A
= +25
C, V
S
= +15V, unless otherwise specified.
DCP0115 SERIES
PARAMETER
CONDITIONS
MIN
TYP
MAX
UNITS
OUTPUT
Power
V
S
+ 4%
1
W
100% Full Load
0.92
W
Voltage (V
NOM
)
(1)
DCP011512D
75% Full Load
10
12
12.6
V
DCP011515D
75% Full Load
13
15
15.75
V
Voltage vs Temperature
0.08
%/
C
Short Circuit Duration
V
S
10%
Indefinite
Ripple
C
L
= O/P Capacitor = 10
F
6
mVp-p
100% Full Load
INPUT
Nominal Voltage (V
S
)
15
V
Voltage Range
10
10
%
Supply Current
100% Full Load
83
mA
Reflected Ripple Current
C
IN
= I/P Capacitor = 1
F
8
mArms
50% Full Load
ISOLATION
Voltage
(2)
1s Flash Test
1
kVrms
Continuous Voltage
(3)
1
kVrms
Insulation Resistance
>1
G
Input/Output Capacitance
2.5
pF
LOAD REGULATION
DCP011512D
10% to 100% Load
20
39
%
10% to 25% Load
10
%
25% to 75% Load
5
%
75% to 100% Load
7
%
DCP011515D
10% to 100% Load
20
39
%
10% to 25% Load
10
%
25% to 75% Load
9
%
75% to 100% Load
4
%
SWITCHING/SYNCHRONIZATION
Oscillator Frequency (f
OSC
)
Switching Frequency = f
OSC
/2
800
kHz
Sync Input Low
0
0.8
V
Sync Input Current
V
SYNC
= +2V
48
A
Reset Time
3.8
s
SYNC
OUT
Frequency
400
kHz
GENERAL
No Load Current
DCP011512D
0% Load
14
mA
DCP011515D
0% Load
17
mA
Efficiency
DCP011512D
100% Full Load
76
%
10% Full Load
48
%
DCP011515D
100% Full Load
76
%
10% Full Load
42
%
MTTF
(3)
T
A
= +85
C
136,000
hrs
T
A
= +55
C
2,630,000
hrs
T
A
= +25
C
92,600,000
hrs
Weight
14-Pin PDIP
1.08
g
THERMAL SHUTDOWN
Die Temperature
115
140
C
Shutdown Current
3
mA
TEMPERATURE RANGE
Operating
40
100
C
NOTES: (1) 100 % load current = 1W/V
NOM
typical. (2) Rated working voltage = 130Vrms (IEC950 convention). (3) Life test data.
The information provided herein is believed to be reliable; however, BURR-BROWN assumes no responsibility for inaccuracies or omissions. BURR-BROWN assumes
no responsibility for the use of this information, and all use of such information shall be entirely at the user's own risk. Prices and specifications are subject to change
without notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. BURR-BROWN does not authorize or warrant
any BURR-BROWN product for use in life support devices and/or systems.
background image
3
DCP0115

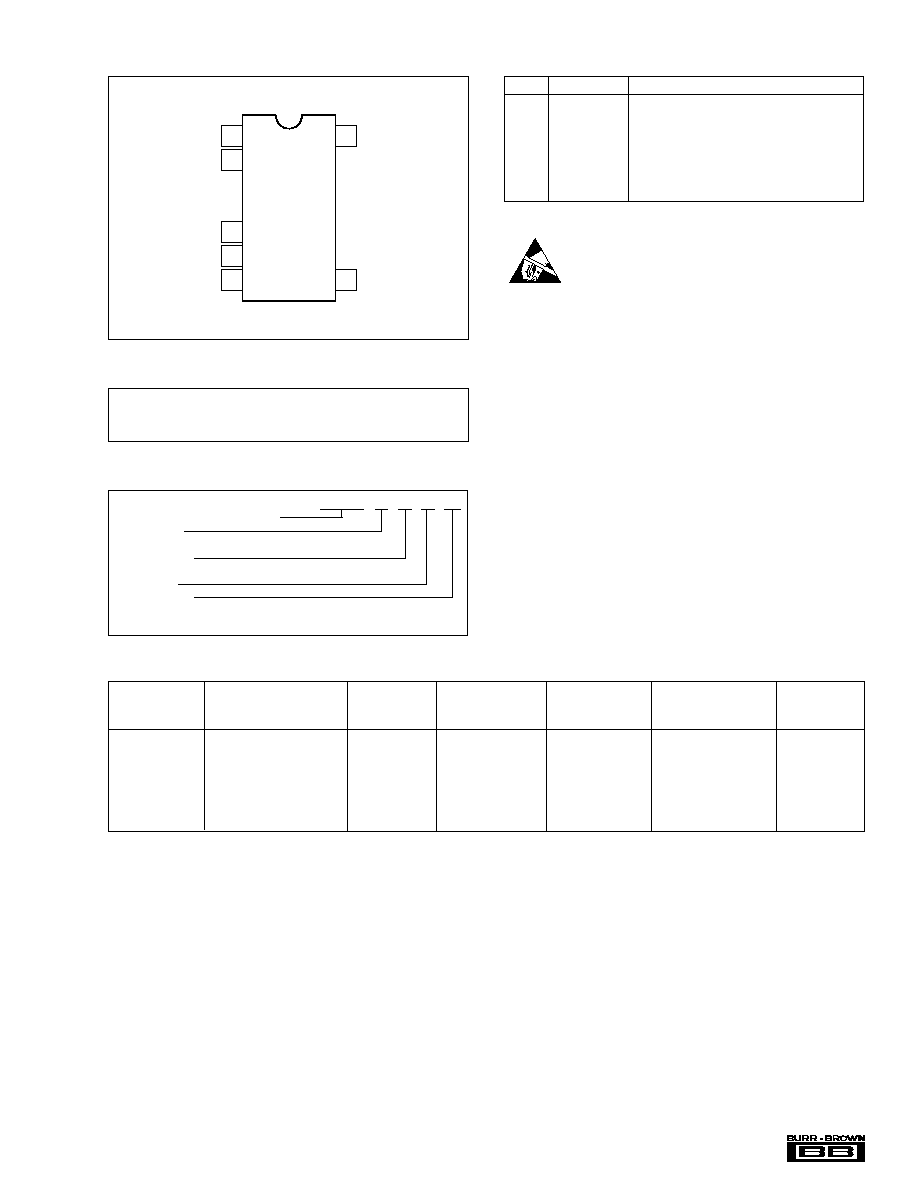

Top View
DIP
PIN CONFIGURATION (Dual Out)
PIN DEFINITION
PIN #
PIN NAME
DESCRIPTION
1
V
S
Voltage Input.
2
0V
Input Side Common.
5
0V
Output Side Common.
6
+V
OUT
+Voltage Out.
7
V
OUT
Voltage Out.
8
SYNC
OUT
Unregulated 400kHz Output from Transformer.
14
SYNC
IN
Synchronization Pin.
DCP0115
1
2
5
6
7
14
8
V
S
0V
0V
+V
OUT
V
OUT
SYNC
IN
SYNC
OUT
ELECTROSTATIC
DISCHARGE SENSITIVITY
This integrated circuit can be damaged by ESD. Burr-Brown
recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling
and installation procedures can cause damage.
ESD damage can range from subtle performance degrada-
tion to complete device failure. Precision integrated circuits
may be more susceptible to damage because very small
parametric changes could cause the device not to meet its
published specifications.
Input Voltage ........................................................................................ 18V
Storage Temperature ...................................................... 60
C to +150
C
Lead Temperature (soldering, 10s) ................................................. 300
C
ABSOLUTE MAXIMUM RATINGS
DCP01
Basic Model Number: 1W Product
Voltage Input:
15V In
Voltage Output:
15V Out
Dual Output:
Package Code:
P = 14-Pin Plastic DIP
P-U = 14-Pin Plastic DIP Gull Wing
ORDERING INFORMATION
15
15
(
)
D
PACKAGE
SPECIFIED
DRAWING
TEMPERATURE
PACKAGE
ORDERING
TRANSPORT
PRODUCT
PACKAGE
NUMBER
(1)
RANGE
MARKING
NUMBER
(2)
MEDIA
Dual
DCP011512D
14-Pin PDIP
010-1
40
C to +100
C
DCP011512DP
DCP011512DP
Rails
DCP011512D
14-Pin PDIP Gull Wing
010-2
40
C to +100
C
DCP011512DP-U
DCP011512DP-U
Rails
"
"
"
"
"
DCP011512DP-U/700
Tape and Reel
DCP011515D
14-Pin PDIP
010-1
40
C to +100
C
DCP011515DP
DCP011515DP
Rails
DCP011515D
14-Pin PDIP Gull Wing
010-2
40
C to +100
C
DCP011515DP-U
DCP011515DP-U
Rails
"
"
"
"
"
DCP011515DP-U/700
Tape and Reel
NOTES: (1) For detailed drawing and dimension table, please see end of data sheet, or Appendix C of Burr-Brown IC Data Book. (2) Models with a slash (/) are
available only in Tape and Reel in the quantities indicated (e.g., /700 indicates 700 devices per reel). Ordering 700 pieces of DCP011512DP-U/700 will get a single
700-piece Tape and Reel. For detailed Tape and Reel mechanical information, refer to Appendix B of Burr-Brown IC Data Book.
PACKAGE/ORDERING INFORMATION
background image
4
DCP0115

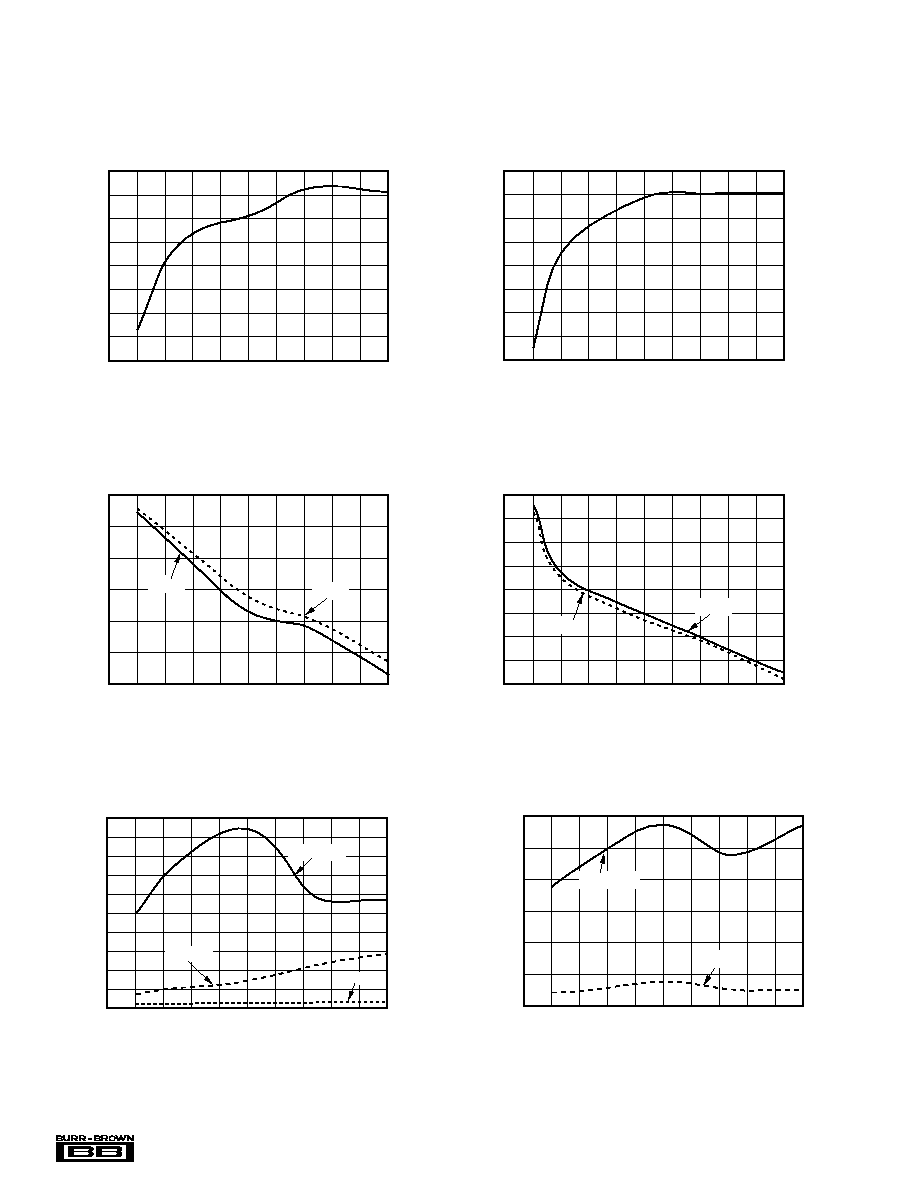

TYPICAL PERFORMANCE CURVES
At T
A
= +25
C, unless otherwise noted.
0
40
Load (%)
Peak-to-Peak Ripple Voltage (mV)
PEAK-TO-PEAK RIPPLE VOLTAGE vs LOAD
50
60
70
80
90
100
10
20
30
200
180
160
140
120
100
80
60
40
20
0
C
L
= 1F
C
L
= 10F
C
L
= 100nF
0
10
20
30
40
50
60
70
80
90
100
Load (%)
rms Ripple Current (mA)
REFLECTED r ms RIPPLE CURRENT vs LOAD
60
50
40
30
20
10
0
C
IN
= 1F
C
IN
= 100F
0
40
Load (%)
Efficiency (%)
DCP011512D
EFFICIENCY vs LOAD
50
60
70
80
90
100
10
20
30
80
75
70
65
60
55
50
45
40
0
40
Load (%)
Efficiency (%)
DCP011515D
EFFICIENCY vs LOAD
50
60
70
80
90
100
10
20
30
80
75
70
65
60
55
50
45
40
0
10
20
30
40
50
60
70
80
90
100
Load (%)
Output Voltage (V)
DCP011512D
OUTPUT VOLTAGE vs LOAD
14.0
13.5
13.0
12.5
12.0
11.5
11.0
+V
OUT
V
OUT
0
40
Load (%)
Output Voltage (V)
DCP011515D
OUTPUT VOLTAGE vs LOAD
50
60
70
80
90
100
10
20
30
18.0
17.5
17.0
16.5
16.0
15.5
15.0
14.5
14.0
V
OUT
+V
OUT
background image
5
DCP0115

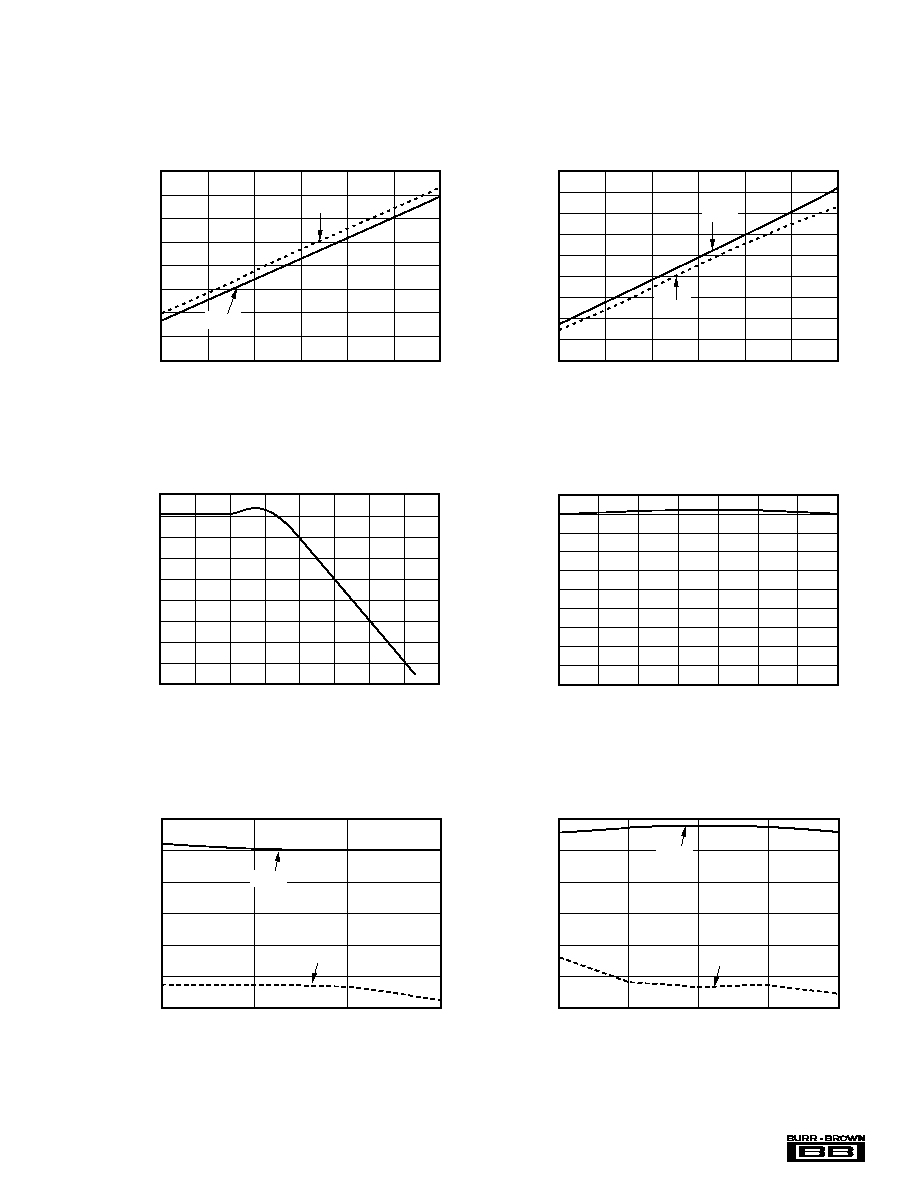

TYPICAL PERFORMANCE CURVES
(CONT)
At T
A
= +25
C, unless otherwise noted.
40
40
Temperature (C)
Frequency (%)
SWITCHING FREQUENCY vs TEMPERATURE
60
80
100
120
20
0
20
101
100
99
98
97
96
95
94
93
92
13.5
Input Voltage (V)
Output Voltage (V)
DCP011512D
OUTPUT VOLTAGE vs INPUT VOLTAGE (75% Load)
16.0
16.5
14.0
14.5
15
15.5
14.0
13.5
13.0
12.5
12.0
11.5
11.0
10.5
10.0
+V
OUT
V
OUT
13.5
Input Voltage (V)
Output Voltage (V)
DCP011515D
OUTPUT VOLTAGE vs INPUT VOLTAGE (75% Load)
16.0
16.5
14.0
14.5
15
15.5
17.5
17.0
16.5
16.0
15.5
15.0
14.5
14.0
13.5
13.0
V
OUT
+V
OUT
40
20
0
20
40
60
80
100
Temperature (C)
Output Power (W)
OUTPUT POWER vs TEMPERATURE
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
100
75
50
10
V
OUT
Load (% of Full Load)
V
OUT
(V)
DCP011512D
LOAD BALANCE (+V
OUT
LOAD = 100%)
15
10
5
0
5
10
15
V
OUT
+V
OUT
150
100
75
50
10
V
OUT
Load (% of Full Load)
V
OUT
(V)
DCP011512D
LOAD BALANCE (+V
OUT
LOAD = 10%)
15
10
5
0
5
10
15
V
OUT
+V
OUT
