EV3033
SONET/SDH/ATM OC-12 TRANSCEIVER EVALUATION BOARD
September 22, 1999
EV3033
SONET/SDH/ATM OC-12 TRANSCEIVER EVALUATION BOARD
DESCRIPTION
The S3033 evaluation board provides a flexible platform for verifying the operation of the S3033 transceiver
interface circuit. This document provides information on the board contents. It should be used in conjunction with
the S3033 data sheet, which contains full technical details on the chips operation.
Figure 1 shows the outline of the S3033 evaluation board. Figure 2 shows the block diagram of how the S3033
evaluation board should be connected to test equipment for Bit Error Rate (BER) testing.
Figure 1. S3033 Evaluation Board
RSDN
RSDP
TSCLKP
TSCLKN
DUT
VEE
GND
DUT
VCC
REFCLKP
TSDP
TSDN
REFCLKN
TTLREF
POCLK
PCLK
GND
19MHZCLK
PICLK
PIN7
PIN6
PIN5
PIN4
PIN3
PIN2
PIN1
PIN0
GND
POUT7:0
PIN7:0
GND
MODE1
MODE0
FP
GND
RSTB
(MODE JUMPERS)
GND
"1"
"0"
SDTTL
RLPTIME
SDPECL
DLEB
NC
NC
TSTRST
LLEB
OOF
SLPTIME
"1"
"0"
AMCC
6290 SEQUENCE DR.
SAN DIEGO, CA 92121
APPLIED MICRO CIRCUITS CORPORATION
S3033 SONET/SDH/ATM 0C-3/12 TRANSCEIVER WITH CDR
S3033
RSCLKN
RSCLKP
2
SONET/SDH/ATM OC-12 TRANSCEIVER EVALUATION BOARD
EV3033
September 22, 1999

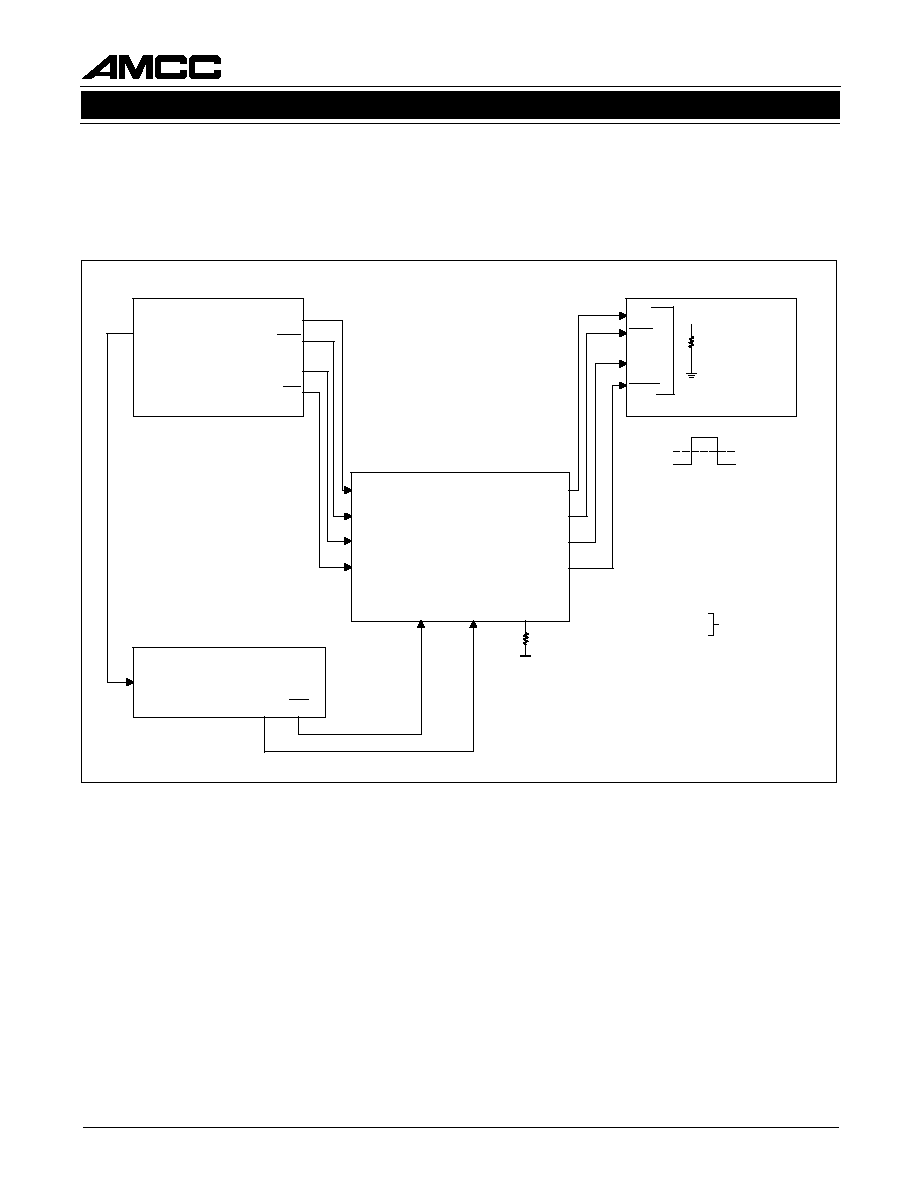

Figure 2. S3033 BER Test
Figure 2 depicts how the S3033 evaluation board can be connected for BER measurements, and shows all of
the DIP switch settings and the Level Shifted ECL (LSECL) power supply requirements for use with test
equipment that utilizes 50
to ground termination. In this configuration the S3033 is configured using a 19.44
MHz reference and operating at STS-12.
S3033 DUT
BERT TX (622MHz)
RSDP
RSCLKN
RSCLKP
RSDN
TSDP
TSDN
TSCLKP
TSCLKN
REFCLKP
REFCLKN
TTLREF
HP8133 PULSE
GENERATOR OR DIVIDER
BERT RX
DATA
CLOCK
DATA
CLOCK
DATA
DATA
CLK
CLK
CLOCK
EXT IN
OUT
(DIV BY 32)
OUT
19.44MHz
+2V
POWER SUPPLY
DUT VCC = +2V
DUT VEE = -1.3V +/- 5%
GND = 0V
DIP SWITCH SETTINGS:
LLEB "1"
SDPECL "1"
DLEB "1"
OOF "0"
MODE1 "0"
MODE0 "0"
SLPTIME "0"
TSTRST "0"
RLPTIME "0"
SDTTL "0"
FOR example
19.44MHz operation
622MHz
LSECL CONFIGURATION
50
or not
connected
+1.2V
+0.2V
+0.7V
10K
3
EV3033
SONET/SDH/ATM OC-12 TRANSCEIVER EVALUATION BOARD
September 22, 1999
Figure 3. Bit Error Rate (BER) Measurement and Jitter Testing Setup
Figure 3 depicts how two S3033 evaluation boards can be connected for BER measurements and jitter testing,
and shows all of the DIP switch settings and the power supply requirements for use with test equipment that
utilizes 50
to -2V termination. The DIP switch settings are for STS-12 testing.
DATA
CLOCK
DATA
CLOCK/CLOCK
DATA
CLOCK
TSCLKN
THRU DATA
REFCLK
DATA OUTPUT
RSDP
RSDN
PIN0
PIN1
PIN2
PIN3
PIN4
PIN5
PIN6
PIN7
PICLK
POUT0
POUT1
POUT2
POUT3
POUT4
POUT5
POUT6
POUT7
POCLK
Trigger
MEASURE DATA EYE
Scope
FF00 HEX OR PRBS PATTERN
2
7
-1 PRBS
BERT RX(622.08MHz)
TEKTRONIX JITTER ANALYZER
SJ300 (622.08MHz)
INPUT CLOCK
MEASURE JITTER
GENERATION
EXT IN
BERT TX (622.08MHz)
CLOCK CLOCK
S3033 DUT(TX)
S3033
DUT(RX)
OUT
OUT
(DIVIDE BY 32)
EXT CLK (155.52MHz)
HP8133 OR DIVIDER
LVECL
BUFFER
POWER DIVIDERS
CASCADE MICROTECH ECL
TERMINATOR
VTT=-2.45V
REFCLKN
REFCLKP
REFCLKP REFCLKN
TSDP
TSCLKP
RSDP
RSDN
TSDN
DATA
-3.3V
TTL BUS
BERT TX(622.08MHz)
JITTERED
OUTPUT
2
7
-1 PRBS DATA PATTERN
-3.3V
-3.3V
DUT VCC = 0V
DUT VEE = -3.3V +/- 5%
LLEB "1"
SDPECL "1"
DLEB "1"
OOF "0"
MODE1 "0"
MODE0 "0"
SLPTIME "0"
TSTRST "0"
RLPTIME "0"
SDTTL "0"
FOR 19.44MHz
OPERATION
VIH = -0.8
ECL INPUT LEVEL
FOR ALL
VIL = -1.8
DIP SWITCH
SETTING
NOTE: At low frequency (10-30Hz)
the reference clock must be Jittered
Provides Asynchronous Data
RSCLKP/N
2
CLOCK/CLOCK
2
4
SONET/SDH/ATM OC-12 TRANSCEIVER EVALUATION BOARD
EV3033
September 22, 1999
ELECTRICAL CONNECTIONS
Power Connections
Terminal posts are provided at the top edge of the board for VCC and VEE. The S3033 evaluation board can be
configured with ECL, PECL and Level Shifted (LSECL) I/O so the board can be configured to operate with
different types of standard test equipment. Figures 4 through 6 demonstrate the different types of input and
output waveforms that the S3033 evaluation board can output with the different voltage settings of VCC and VEE
per Table 1. Note the TTL I/O's voltage level will change to non-standard levels when the S3033 evaluation
board is powered by the different voltages.
The external test equipment environment or other standard ECL and/or +3.3V referenced ECL systems can
interface to the S3033 evaluation board. The board as shown by Figures 1 through 3 can be powered to allow
easy connection to the 50
to ground inputs of high performance oscilloscopes and spectrum analyzers as well
as the standard ECL I/O of serial Bit Error Rate Testers (BERT) and jitter analyzers. Table 1 illustrates the
nominal input voltages for DUT VCC and VEE voltage levels shown in Figures 4 through 6. Figures 4 and 5
show that the voltages track with VEE. Figure 6 shows that the voltages track with VCC.
Table 1. Power Connections for DUT and Test Equipment Interface
r
e
w
o
P
y
l
p
p
u
S
l
a
n
i
m
o
N
t
u
p
n
I
e
g
a
t
l
o
V
l
a
n
g
i
S
f
o
e
p
y
T
t
u
p
t
u
O
L
C
E
n
o
i
t
a
n
i
m
r
e
T
C
C
V
T
U
D
E
E
V
T
U
D
V
3
.
3
+
V
0
L
C
E
P
V
L
0
5
V
2
-
C
C
V
o
t
C
C
V
T
U
D
E
E
V
T
U
D
V
0
V
3
.
3
-
L
C
E
V
L
0
5
V
2
-
o
t
C
C
V
T
U
D
E
E
V
T
U
D
V
2
+
V
3
.
1
-
L
C
E
S
L
0
5
D
N
G
o
t
5
EV3033
SONET/SDH/ATM OC-12 TRANSCEIVER EVALUATION BOARD
September 22, 1999

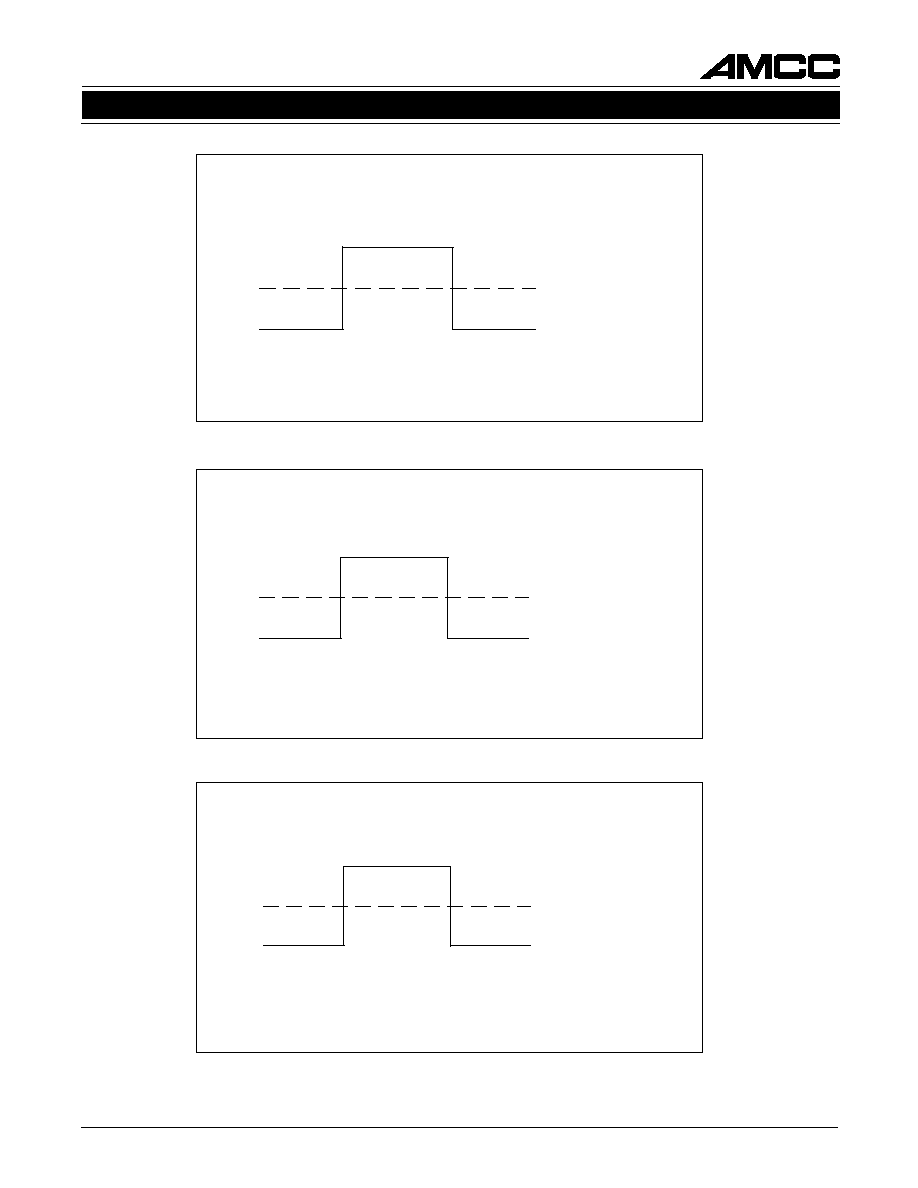

Figure 4. LVECL Signal Waveform
Figure 6. LVPECL Signal Waveform
Figure 5. LSECL Signal Waveform
VCC = 0V
-0.8V
-1.3V
-1.8V
Termination = 50
to -2V
VEE = -3.3V +/- 5%
LVECL
Termination = 50
to GND
LSECL
VCC = +2V
+1.2V
+0.7V
+0.2V
VEE = -1.3V +/- 5%
LVPECL
VCC = +3.3V +/- 5%
2.5V
2V
1.5V
VEE = 0V
Termination = 50
to (VCC -2V)
