1517-250M
250 Watts, 40 Volts, 200
s, 10%
Radar 1480 to 1650 MHz
GENERAL DESCRIPTION
The 1517-250M is an internally matched, COMMON BASE transistor capable
of providing 250 Watts of pulsed RF output power at 200 microseconds pulse
width, 10% duty factor across the band 1480 to 1650 MHz. This hermetically
solder-sealed transistor is specifically designed for upper L-Band radar
applications. It utilizes gold metallization and diffused emitter ballasting to
provide high reliability and supreme ruggedness.
CASE OUTLINE
55ST-1
ABSOLUTE MAXIMUM RATINGS
Maximum Power Dissipation
Device Dissipation @25
C
1
700
W
Maximum Voltage and Current
Collector to Base Voltage (BV
CES
) 70
V
Emitter to Base Voltage (BV
EBO
) 3
V
Collector Current (I
C
) 20
A
Maximum Temperatures
Storage Temperature
-65 to +200
C
Operating Junction Temperature
+200
C
FUNCTIONAL CHARACTERISTICS @ 25
C
SYMBOL CHARACTERISTICS
TEST CONDITIONS
MIN
TYP MAX UNITS
P
out
Power Output
250
280
350
W
P
g
Power
Gain
7.0
8.5
dB
c
Collector Efficiency
38
40
%
IR
L
Input Return Loss
9 dB
Pd
Pulse Droop
F = 1480-1650 MHz
V
CC
= 40 Volts
Pin = 50 W
Pulse Width = 200
s
Duty Factor = 10%
0.5 dB
VSWR
1
Load Mismatch Tolerance
F=1480 MHz, Pin = 50W
3.0:1
ELECTRICAL CHARACTERISTICS @ 25
C
I
EBO
Emitter Cutoff Current
V
EB
= 3 V
20
mA
BV
CES
Collector to Emitter Breakdown I
C
= 100 mA
70
V
h
FE
DC Current Gain
V
CE
= 5V, I
c
= 1A
20
jc
1
Thermal Resistance
0.25
C/W
NOTES: 1. Pulse condition of 200
sec, 10%
Issue Jan 2006
ADVANCED POWER TECHNOLOGY INC. RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE. TO VERIFY THE CURRENT VERSION
PLEASE CHECK OUR WEB SITE AT
WWW. ADVANCEDPOWER.COM
OR CONTACT OUR FACTORY DIRECT.
Advanced Power Technology Inc. 3000 Oakmead Village Drive, Santa Clara, CA 95051-0808 Tel. 408 / 986-8031 Fax 408 / 986-8120
1517-250M
Performance Curves
Typical Impedances
IMPEDANCE
Freq (MHz)
Zs
Zl
1480
1.30 - j3.08
0.56 j2.38
1510
1.57 - j2.79
0.64 j2.30
1560
1.83 j2.54
0.72 j2.21
1610
2.07 j2.38
0.75 - j2.13
1650
2.28 j2.25
0.76 j 2.04
Power Output vs Power Input
Vcc=40V, 200us, 10%
0
25
50
75
100
125
150
175
200
225
250
275
300
0
10
20
30
40
50
60
70
Pin (W)
Pout
(
W
)
1460 MHz
1560 MHz
1660 MHz
Series Load Impedance Vs Frequency
Vcc= 40Volts, Pout = 250W, 200 us, 10%
0.00
0.20
0.40
0.60
0.80
1.00
1460
1510
1560
1610
1660
Frequency
Rcl
( Oh
m
s
)
-3.00
-2.60
-2.20
-1.80
-1.40
-1.00
jXc
l
(
O
h
ms
)
Rl
JXl
Series Sopurce Impedance vs Frequency
Vcc = 40 Volts, Pout = 250W, 200 us, 10%
0.00
0.50
1.00
1.50
2.00
2.50
1410 1460 1510 1560 1610 1660
Frequency
Ri
n
( Oh
m
s
)
-3.20
-2.70
-2.20
-1.70
-1.20
-0.70
jXin (
O
h
ms
)
Rin
jXin
Power Gain and Efficiency vs Frequency
Vcc = 40 V, Pout = 250W, 200 us, 10%
0
2
4
6
8
10
12
1460
1510
1560
1610
1660
Frequency MHz
P
o
wer Gai
n
0
10
20
30
40
50
E
ffi
ci
en
cy %
Pgain
Efficiency
ADVANCED POWER TECHNOLOGY INC. RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE. TO VERIFY THE CURRENT VERSION
PLEASE CHECK OUR WEB SITE AT
WWW. ADVANCEDPOWER.COM
OR CONTACT OUR FACTORY DIRECT.
Advanced Power Technology Inc. 3000 Oakmead Village Drive, Santa Clara, CA 95051-0808 Tel. 408 / 986-8031 Fax 408 / 986-8120
1517-250M
BROADBAND TEST Circuit
ADVANCED POWER TECHNOLOGY INC. RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE. TO VERIFY THE CURRENT VERSION
PLEASE CHECK OUR WEB SITE AT
WWW. ADVANCEDPOWER.COM
OR CONTACT OUR FACTORY DIRECT.
Advanced Power Technology Inc. 3000 Oakmead Village Drive, Santa Clara, CA 95051-0808 Tel. 408 / 986-8031 Fax 408 / 986-8120
1517-250M

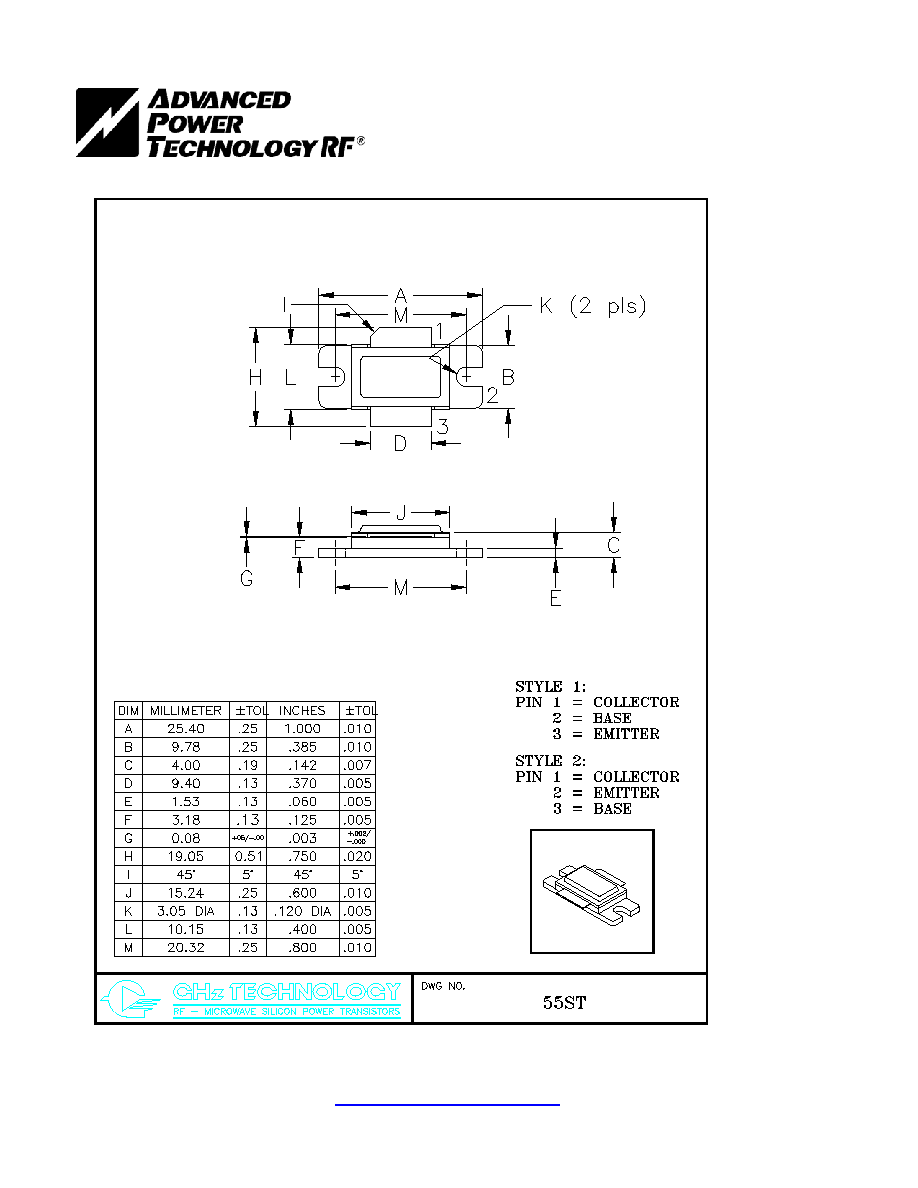

Case Outline
